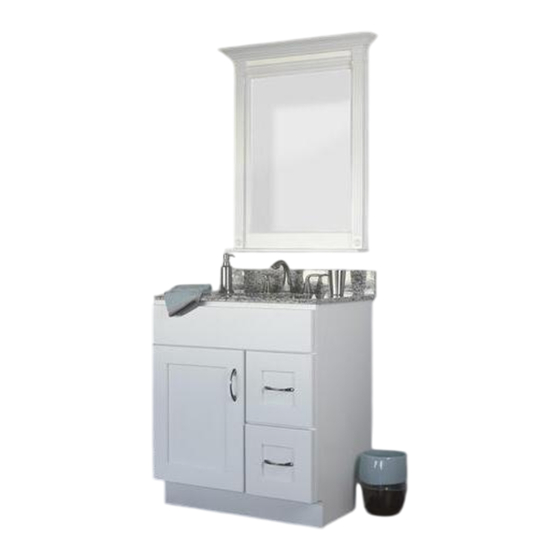

This assembly instruction applies to VK-V3021D-R and VK-V3021D-L

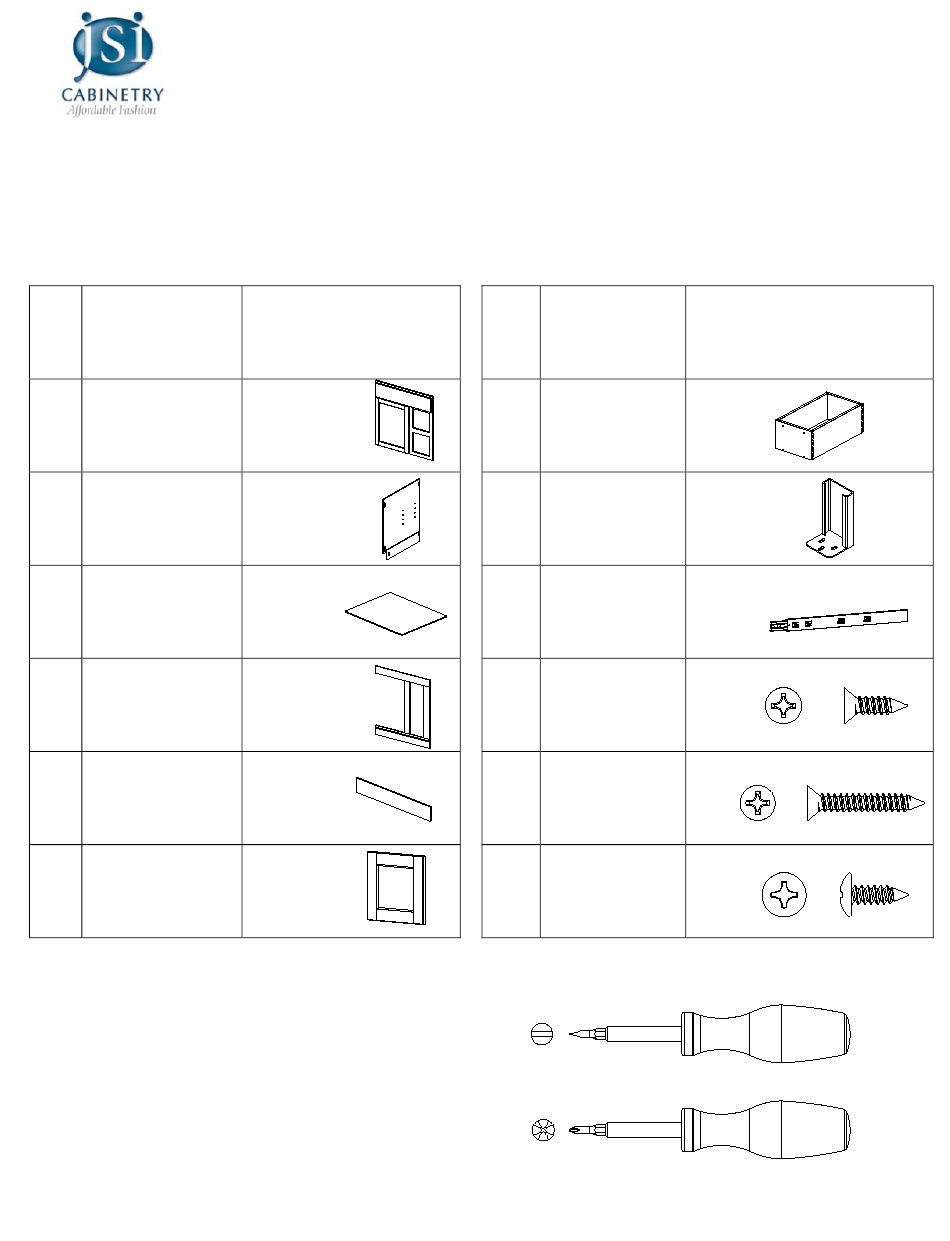

Parts included:
Cabinet Items
A
Face Frame with Door
Side Panel
B
(Left and Right)
C
Bottom Panel
D
Back Panel
E
Toe Kick
F
Drawer Front
Tools needed for assembly:
Vanity Cabinet
Assembly Instructions
Qty
1 x
2 x
1 x
1 x
1 x
2 x
Drawer Items
G
Drawer Box
Drawer Rail
H
Holder
Drawer Rails
I
(left and right)
½" Flat Head
J
Screws
1" Drawer Box
K
Screw
1/2'' Round
L
Head Screws
485 Commerce Dr.
Fall River, MA 02720
Qty
2 x
4 x
4 x
4 x
8 x
24 x
Advertisement
Related Manuals for JSI VK-V3021D-R
Summary of Contents for JSI VK-V3021D-R
- Page 1 485 Commerce Dr. Fall River, MA 02720 Vanity Cabinet Assembly Instructions This assembly instruction applies to VK-V3021D-R and VK-V3021D-L Parts included: Cabinet Items Drawer Items Face Frame with Door Drawer Box Side Panel Drawer Rail (Left and Right) Holder Drawer Rails...
- Page 2 Step #1: Check and count the items in the box before your installation. If you are short any pieces, stop and call the supplier. Otherwise, follow the steps below. Step #2: Put the face frame (A) face down on a flat soft working surface (Figure 1).
- Page 3 Step #4: Install the bottom panel (Figure 4): gently spread side panels and insert bottom panel (C) into the grooves of side panels (B) until it touches the face frame (A). Figure 4 Step #5: Place the back panel (D) on a flat surface face up. Install the drawer rail holders (H) in the pre- spotted area on the back panel (Figure 5).
- Page 4 Step #7: Align the four predrilled holes on the drawer box (G) with the predrilled holes on the drawer front (F) and fasten the drawer front to the drawer box using the 1” drawer box screws (K) (Figure 7). Figure 7 Step #8: To install the drawer rails, first separate inner rail from outer rail by pulling the drawer glide to the...
