GANGING INSTRUCTIONS
Recommended tools
NOTE: all screws provided must be
installed for proper installation and
compliance with product warranty.
STEP 1:

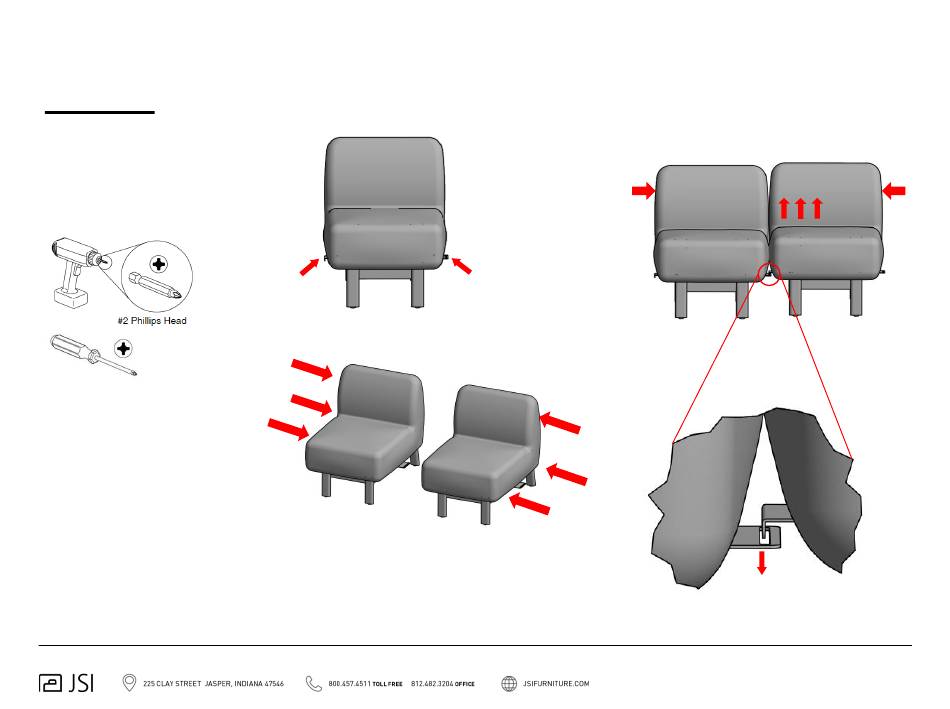

• The modular/sectional unit will come with
ganging brackets pre-installed. One side will be
a "hook" and the other a "receiver"
• Align units as shown and slide close together
Hook
STEP 2:
• While pushing units together lift the side with
the "hook" so it can drop into the "receiver" as
shown
• Make sure "hook" is securely engaged in the
"receiver"
Receiver
