3.6.4

Connecting the Combustion Oven (TEI) outlet

1 Absorber solution capillary
Capillary for the infeed of absorber solution
at the tube outlet.
3.6.5

Connecting the 930 Compact IC Flex

Combustion-IC-System

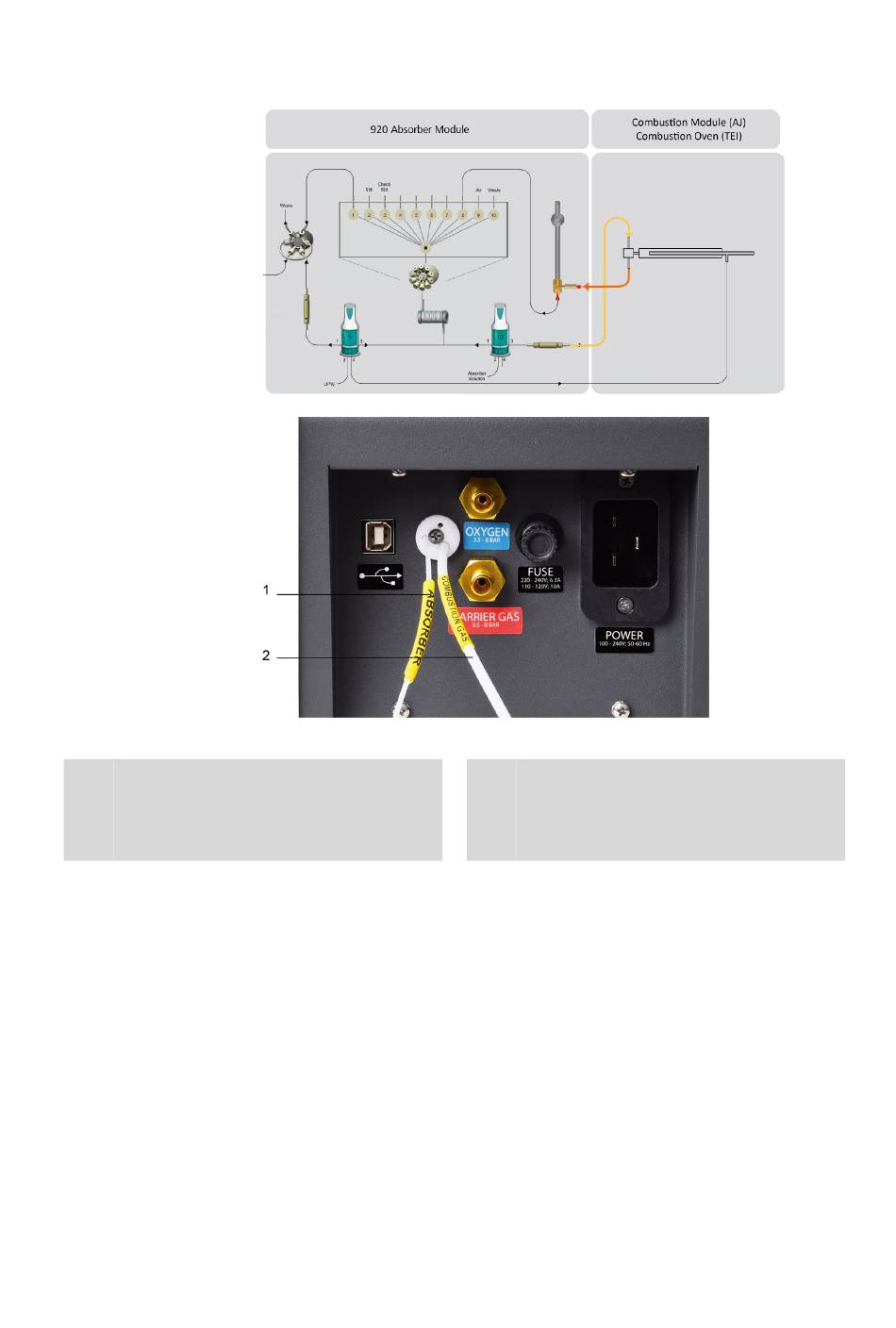

Figure 12 Combustion Oven (TEI) – Outlet
Combustion Module (AJ): A capillary is routed out on the left side of the
920 Absorber Module.
Combustion Oven (TEI): A capillary is routed out on the right side of the
920 Absorber Module.
This capillary is connected to the injection valve of the 930 Compact IC
Flex.
2 Combustion gases capillary
Capillary for transporting the combustion
gases from the tube outlet to the absorber
tube.
3 Installation
21
￭￭￭￭￭￭￭￭
