10-Port-Valve; Connecting The Ports; Figure 7 Connecting The 10-Port Valve - Metrohm Combustion-IC-System Manual - Short Instructions

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
Next steps
3.4

10-port-valve

3.4.1

Connecting the ports

Combustion-IC-System
Connect ... to
capillary/
tubing at
port ...
1 T connector (6.1808.060)
2 Bottle with the absorber solution
3 Connect the Metrosep A Trap 1 – 100/4.0 inlet
You can find detailed instructions in the manual for the 920 Absorber
Module.
The transfer tubing and capillaries for all of the liquids being used are con-
nected to the 10-port valve.
Connecting the 10-port valve
Connect the ports of the 10-port valve according to the following figure:
NOTICE
We recommend connecting the central port first.

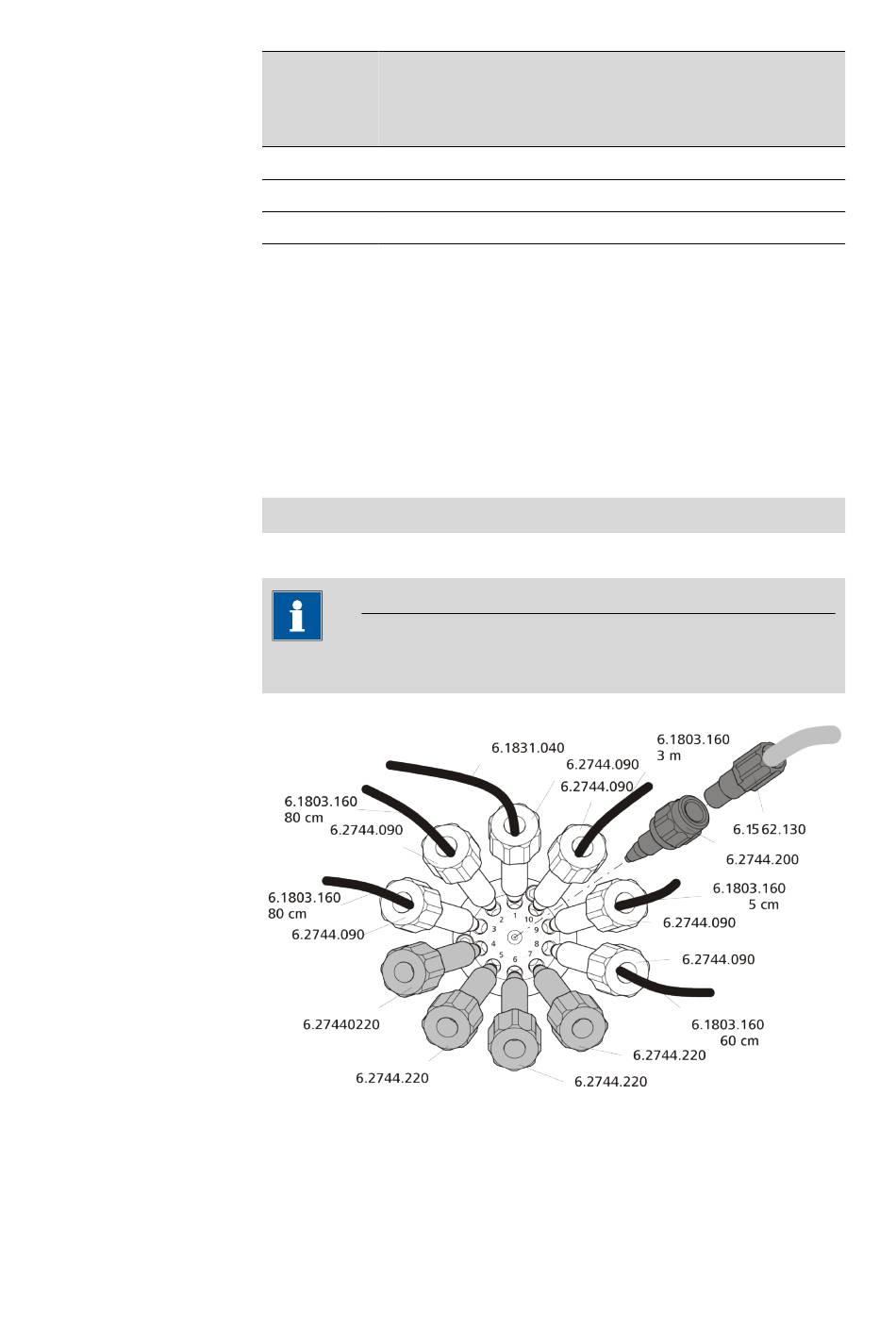

Figure 7 Connecting the 10-port valve
