Capillaries and tub-
ings
1 PTFE capillary, 0.75 mm ID / 3 m
(6.1803.160)
Connection between the 6-port valve and
the waste container.
3 PTFE capillary, 0.75 mm ID / 3 m
(6.1803.160)
Approx. 80 cm. Connection between the
10-port valve and the bottle with the stan-
dard solution.
5 PTFE capillary, 0.75 mm ID / 3 m
(6.1803.160)
Approx. 60 cm. Connection between the
10-port valve and the absorber tube.
7 PTFE capillary, 0.75 mm ID / 3 m
(6.1803.160)
Connection between the 10-port valve and
the waste container.
Combustion-IC-System

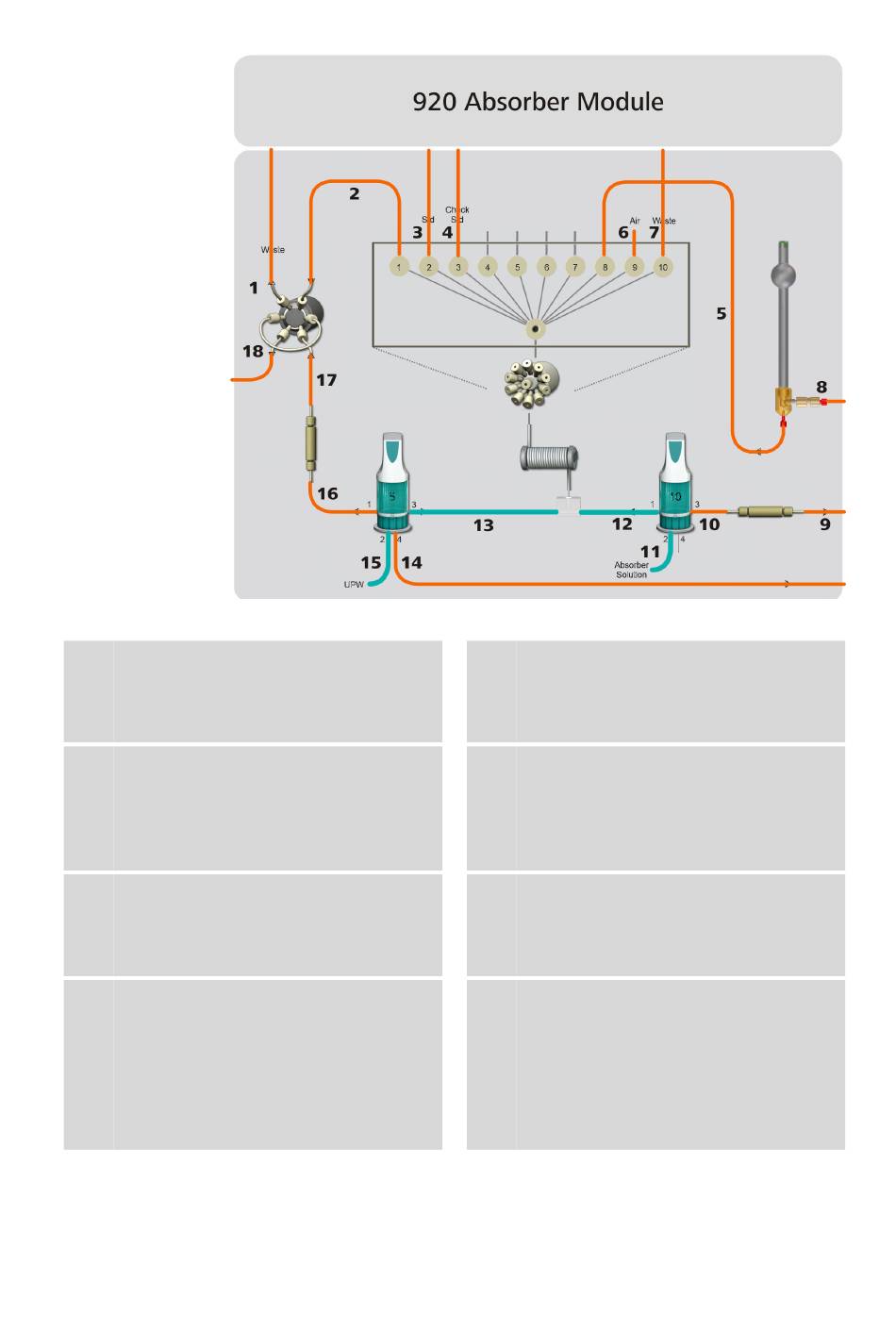

Figure 4 Capillaries and tubings in use – Overview
2 PEEK capillary, 0.5 mm ID / 15 cm
(6.1831.040)
Connection between the 6-port valve and
the 10-port valve.
4 PTFE capillary, 0.75 mm ID / 3 m
(6.1803.160)
Approx. 80 cm. Connection between the
10-port valve and the bottle with the check
standard.
6 PTFE capillary, 0.75 mm ID / 3 m
(6.1803.160)
Approx. 5 cm. For aspirating air segments.
8 Combustion Module (AJ): PTFE capil-
lary 1/8 OD / 1/16 ID / 1.5 m | Combus-
tion Oven (TEI): PTFE capillary 1/8 OD /
1/16 ID / 5 m
Connection between the absorber tube and
the Combustion Module (AJ) / Combustion
Oven (TEI).
3 Installation
9
￭￭￭￭￭￭￭￭
