3.5 6-port valve
Next step
3.5
6-port valve
3.5.1
Connecting the ports
Next steps
14
￭￭￭￭￭￭￭￭
Connect
... to
capillary/
tubing at
port ...
1
6-port valve (see chapter 3.5, page 14)
2
Bottle with standard solution
3
Bottle with check standard
8
Absorber tube
10
Waste container
You can find detailed instructions in the manual for the 920 Absorber
Module.
Connecting the 6-port valve

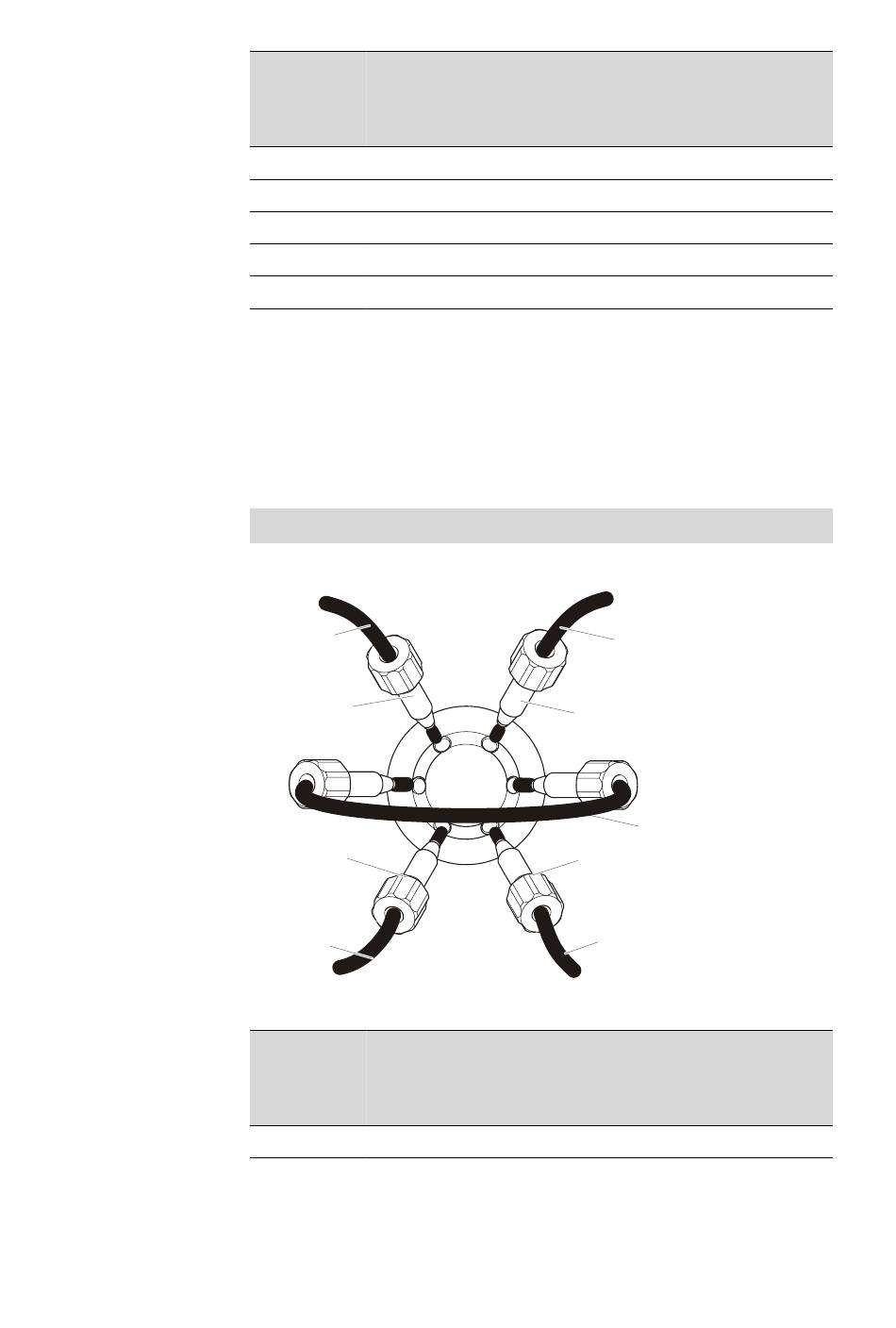

Connect the ports of the 6-port valve according to the following figure:
6.1803.160
6.2744.010
6.2744.010
6.1803.030
Figure 8
Connecting the 6-port valve
Connect
... to
capillary/
tubing at
port ...
2
Waste container
6.2744.010
1
2
6
3
4
5
6.2744.010
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
6.1831.040
6.1825.290
6.1803.030
