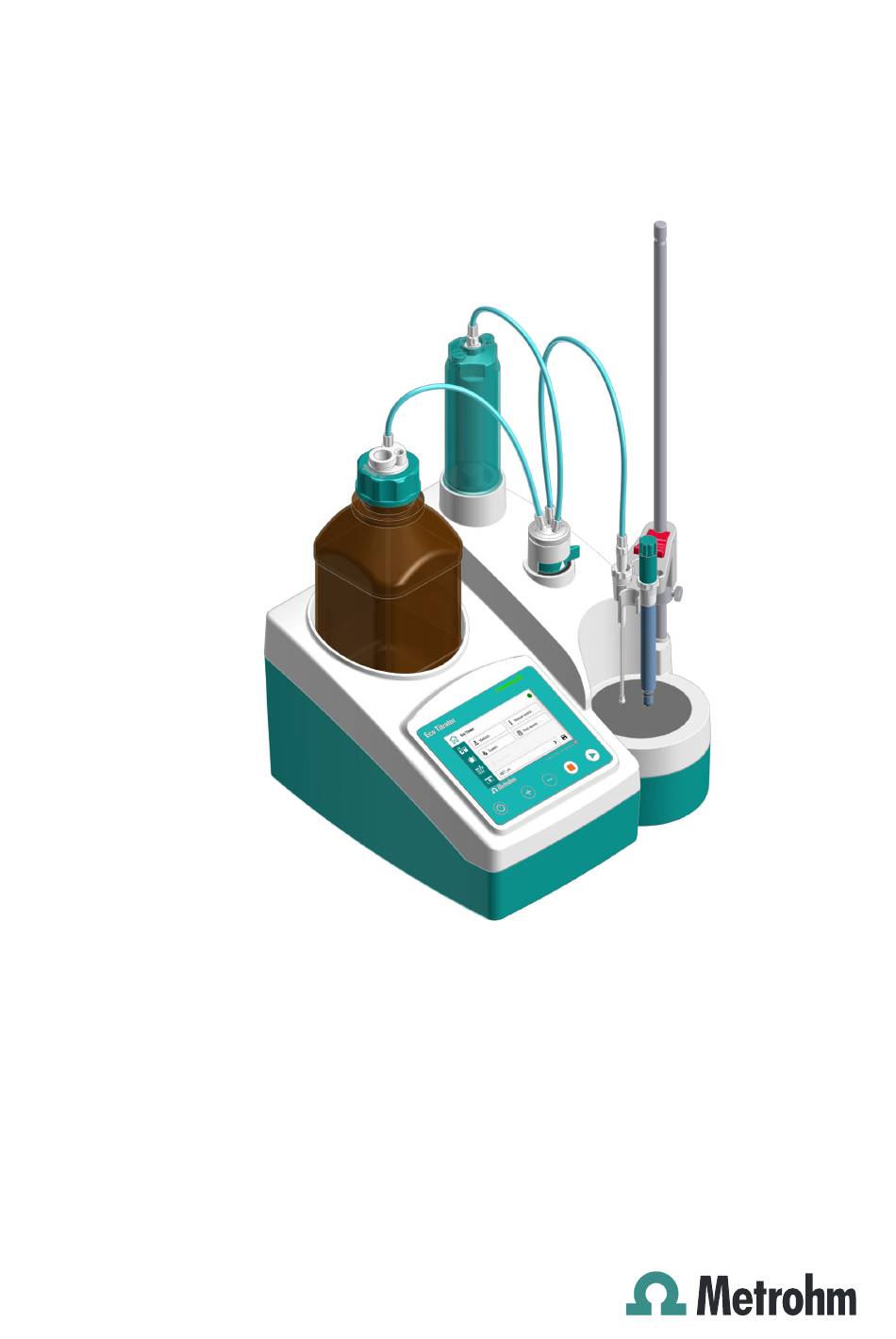

- Page 1 Eco Titrator Product information 8.1008.8002EN / 2019-02-20...
- Page 3 Metrohm AG Ionenstrasse CH-9100 Herisau Switzerland Phone +41 71 353 85 85 Fax +41 71 353 89 01 info@metrohm.com www.metrohm.com Eco Titrator Product information 8.1008.8002EN / 2019-02-20...
- Page 4 Technical Communication Metrohm AG CH-9100 Herisau techcom@metrohm.com This documentation is protected by copyright. All rights reserved. This documentation has been prepared with great care. However, errors can never be entirely ruled out. Please send comments regarding possible errors to the address above.
-
Page 5: Table Of Contents
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents Table of contents 1 Overview Product description .............. 1 Product versions ..............2 Eco Titrator – Overview ............3 Additional information ............7 1.4.1 Accessories ................7 2 Safety Product safety ............... 8 Hazard levels ................. 8 Warning symbols .............. -
Page 7: Overview
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview 1 Overview Product description The Eco Titrator is a titrator for volumetric titrations for universal use that is equipped with the following functional units: Built-in magnetic stirrer ￭ Dosing unit with exchangeable cylinder unit ￭ Methods can be created and saved on the instrument. The methods can be exported to and imported from a connected USB flash drive. -
Page 8: Product Versions
(see example): Figure 1 Type plate (example) (01) = External article number (21) = Serial number (240) = Metrohm article number NOTICE Information on the accessories for the respective product version can be obtained either on the Internet at http://www.metrohm.com from your regional Metrohm representative. -
Page 9: Eco Titrator - Overview

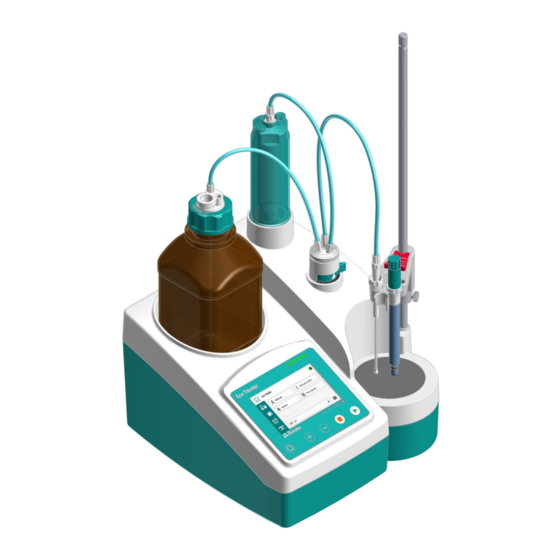

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview Eco Titrator – Overview Figure 2 Eco Titrator – Front Bottle holder Space for cylinder unit Flat stopcock Stand attachment Magnetic stirrer Status display, touch screen and con- trol bar ￭￭￭￭￭￭￭￭... - Page 10 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Eco Titrator – Overview Figure 3 Eco Titrator – Rear Type plate USB connector (USB 1 and USB 2) Ethernet connector (RJ-45) Remote connector "Power OUT" connector "Power IN" connector Pol connector Temp connectors Ref connector 10 Ind connector...
- Page 11 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview Figure 4 Eco Titrator – Accessories Cylinder unit Tubing connections Electrode cable Electrode Electrode holder Guide sleeve Clamping ring Support rod Buret tip 10 Amber glass bottle with GL 45 thread 11 Clip for SGJ 14/15 12 Bottle cap...
- Page 12 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Eco Titrator – Overview Figure 5 Eco Titrator – Peripherals Power supply unit Ethernet cable (opt. accessory) USB flash drive Printer Q3X (opt. accessory) ￭￭￭￭￭￭￭￭...
-
Page 13: Additional Information
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview Additional information Additional information concerning the topic can be found: in the software help ￭ in the Metrohm information portal on the Internet https:// ￭ guide.metrohm.com 1.4.1 Accessories Up-to-date information on the scope of delivery and optional accessories for your product can be found on the Internet. -
Page 14: Safety
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Product safety 2 Safety Product safety This product exhibited no flaws in terms of technical safety at the time it left the factory. To preserve this status and ensure non-hazardous opera- tion of the product, the following instructions must be observed carefully. Hazard levels The following warning messages indicate the severity of the danger and its possible effects. -
Page 15: Warning Symbols
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety CAUTION Health hazards or severe property damage Warns of dangerous situations or unsafe actions that could result in moderate injuries or considerable property damage. Lists measures to avoid hazard. Warning symbols Make sure that any additional hazard symbols are marked on the product for your operation of the product. -
Page 16: Intended Use
– Warning of dangerous optical radiation Intended use Metrohm products are used for the analysis and handling of chemicals. Usage therefore requires the user to have basic knowledge and experience in handling chemicals. Knowledge regarding the application of fire preven- tion measures prescribed for laboratories is also mandatory. -
Page 17: Danger From Electrical Potential
￭ sockets) against moisture. If you suspect that moisture has gotten into the product, discon- ￭ nect the product from the energy supply. Then notify Metrohm Service. Only personnel who have been issued Metrohm qualification may ￭ perform service and repair work on electrical and electronic com- ponents. -
Page 18: Danger From Biological Substances
If the product is used for biological hazardous substances, it must be marked in accordance with regulations. In case of a return shipment to Metrohm or a Metrohm Service partner, the product or product component has to be decontaminated and the hazard symbol for biological hazardous substances must be removed. -
Page 19: Danger From Careless Transport
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety 2.5.5 Danger from careless transport WARNING Risk of injury from careless transport Injuries from spilled chemical and/or biological substances, falling parts and pieces of broken glass. Remove loose parts (e.g. sample racks, sample beaker, bottles) ￭ before transport. Remove liquids. -
Page 20: Personnel Requirement
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Personnel requirement Spare parts must meet the technical requirements established by the ￭ manufacturer. Original spare parts always meet these requirements. Personnel must be familiar with this safety-relevant information and it ￭ must be available for consultation at all times. Personnel requirement Only qualified personnel may operate the present product. -
Page 21: Technical Specifications
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Technical specifications 3 Technical specifications Ambient conditions Nominal function range +5 °C - +45 °C at a maximum of 85% humidity Storage and transport –20 °C - +70 °C Energy supply External power supply unit Input Nominal voltage range 100 - 240 VAC Frequency range 50 - 60 Hz... -
Page 22: Dimensions
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Dimensions Current at the power supply unit 500 mA max. output current per channel Protection Internal fuse 1.5 A Dimensions Measurements Width 286 mm Height Without cylinder unit 220 mm With cylinder unit 358 mm With support rod 508 mm Depth 286 mm Weight... -
Page 23: Connectors Specifications
D-Sub 9-pin Ethernet CAT 6 Type Socket RJ-45 Cable type min. FFTP shielded Cable length max. 10 m from Metrohm acces- sories Type Socket type A Cable type shielded Cable length max. 5 m from Metrohm acces- sories Measuring inputs... -
Page 24: Display Specifications
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Display specifications Socket 2 × 2 mm measuring input for temperature sensors of the Pt1000 or NTC type for automatic tempera- ture compensation Socket type F measuring input for polarizable electrodes Socket 4 mm reference potential Display specifications Display Type VGA color display Size... -
Page 25: Measurement Specifications
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Technical specifications Measurement specifications Potentiometric Measuring range –2,000 - +2,000 mV Resolution 0.1 mV Measuring accuracy ±0.5mV in the measuring range –2,000 mV to +2,000 mV Input resistance ≥ 1·10 Ω –12 Offset current ≤ ±1·10 Temperature Pt1000 Measuring range –150 - +250 °C Measuring resolution 0.1 °C... -
Page 26: Stirrer Specifications
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Stirrer specifications Measuring accuracy applies to all measuring ranges without sensor error, under reference conditions, measuring interval 100 ms, room temperature +25 °C (± 3 °C), relative humidity ≤ 60% Stirrer specifications Variant magnetic Adjustment range for rotational +1 - +15 120 - 1,800 rpm speed Rotational speed change per step...
