Executing the System
X-Ref Target - Figure 4
X-Ref Target - Figure 5
12

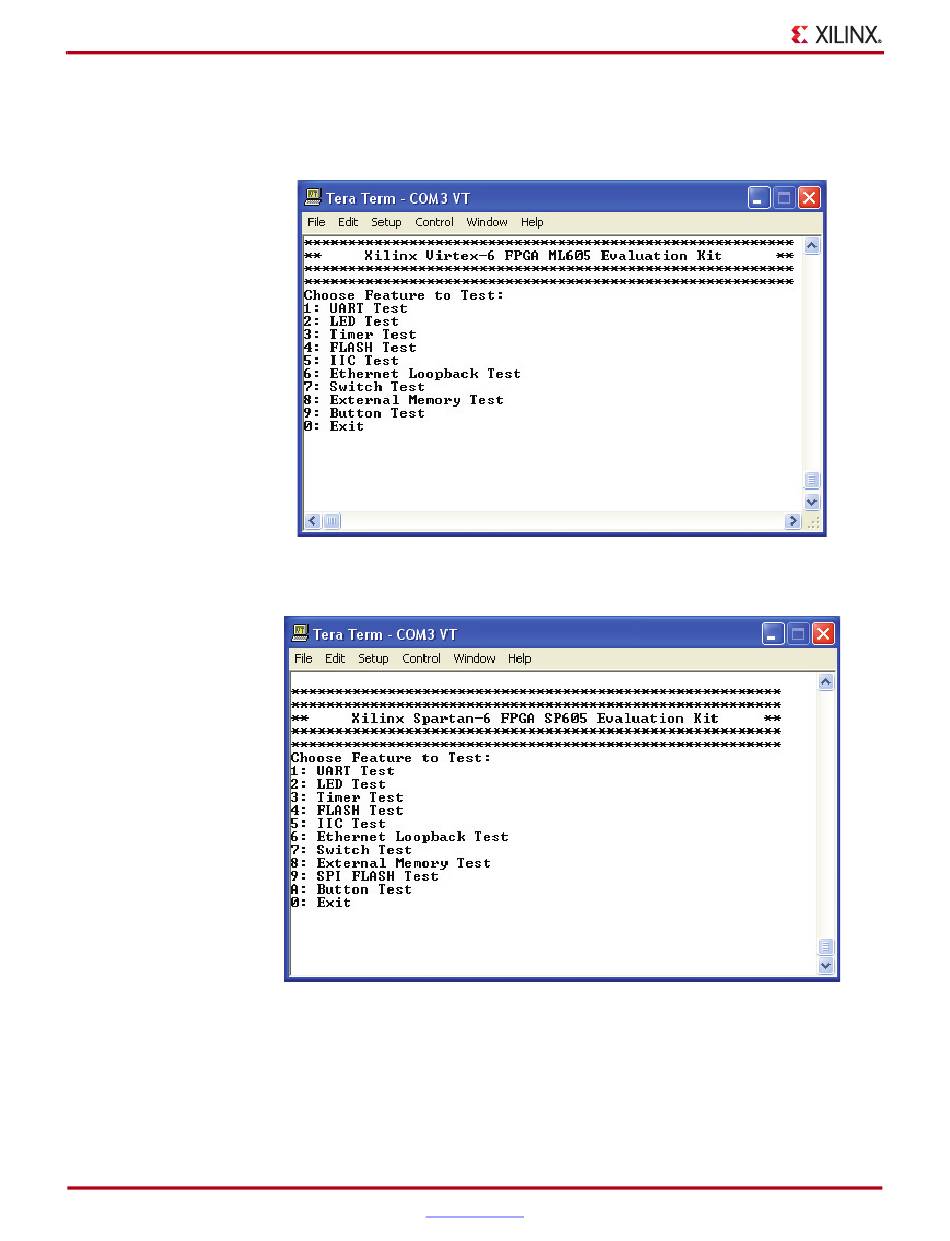

Figure 4 shows the resulting output for ML605 on the serial communication terminal
utility program. Figure 5
communication terminal utility program
Figure 4: Board Test Application Menu for ML605
Figure 5: Board Test Application Menu for SP605
Note:
The LED Test (option 2) loops through the LEDS two times and returns to the menu when
complete. The Ethernet Loopback Test (option 6) takes 30 seconds to complete after displaying
the initial setup message. (The Ethernet Loopback Test hangs if jumpers are not set for GMII.)
The External Memory Test (option 8) takes approximately 25 minutes to complete.
www.xilinx.com
shows the resulting output for SP605 on the serial
UG669_04_092110
UG669_05_092110
