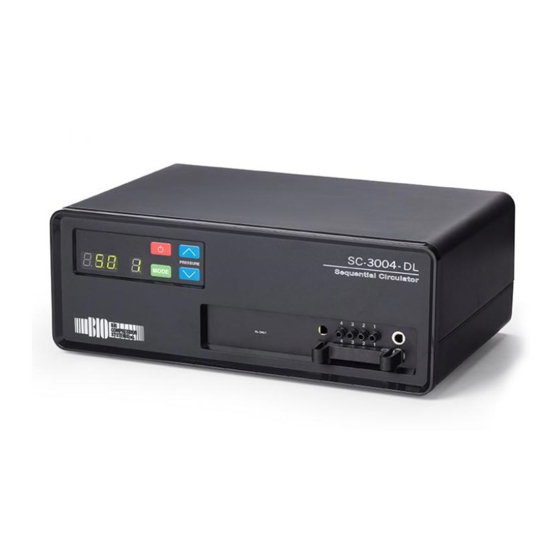

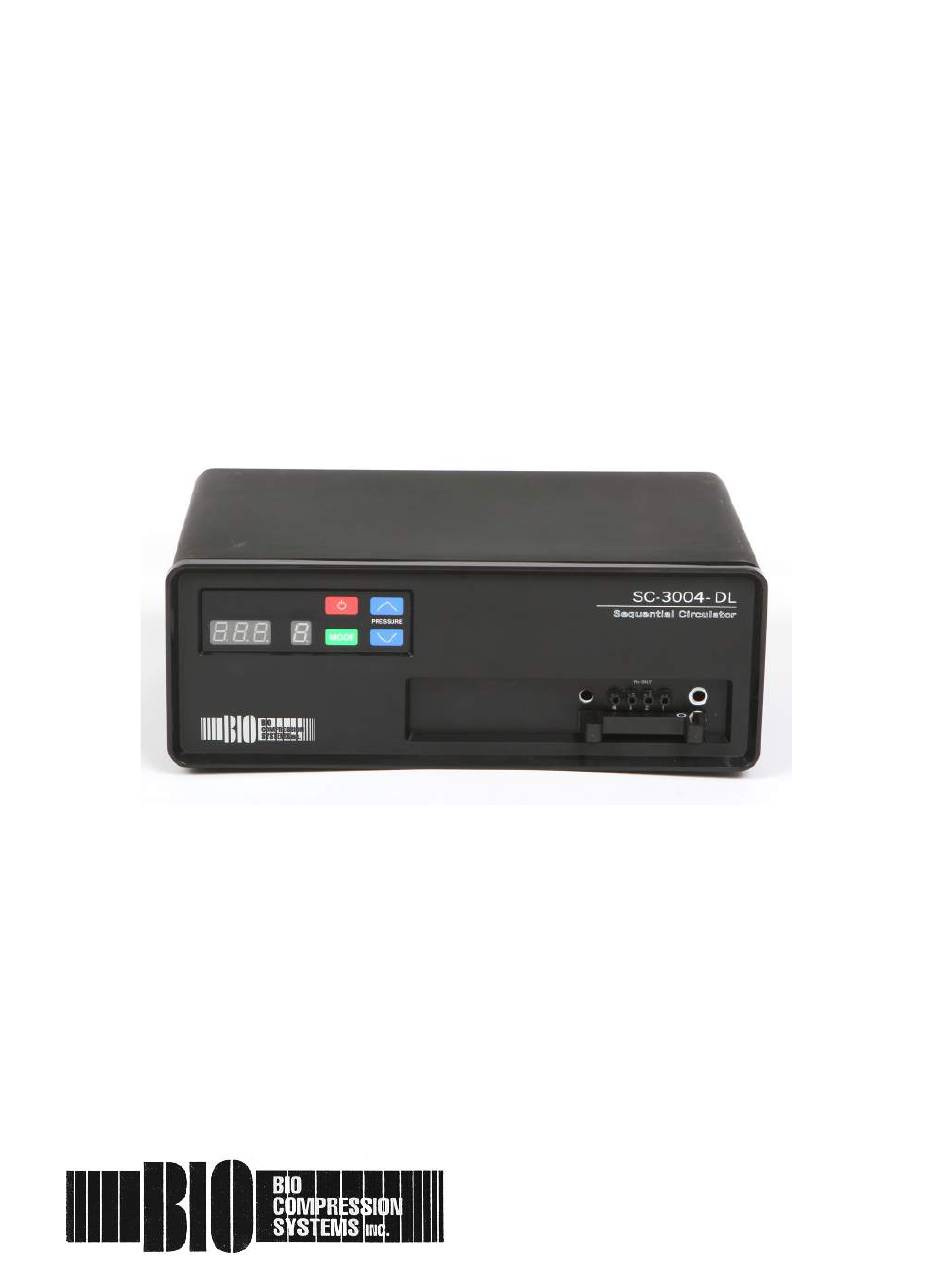

- Page 1 Bio Compression’s SC-3004-DL SEQUENTIAL CIRCULATOR Operating Instructions Quality Medical Products Since 1983...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................3 Device Description and Operating Principle ............. 3 Package Contents ....................3 Intended Use ......................4 Contraindications ....................4 Important Safety Tips ................... 4 Description of International Symbols ..............5 General Equipment Specifications ..............6 Environmental Conditions ................... -
Page 3: Introduction
INTRODUCTION Congratulations on the purchase of your BIO COMPRESSION SYSTEMS MODEL SC-3004-DL Sequential Circulator Device system and garments. DEVICE DESCRIPTION AND OPERATING PRINCIPLE: The Models SC-3004-DL Sequential Circulator provide gradient pneumatic com- pression for the treatment of lymphedema and associated venous disorders. Se- quential gradient compression helps to increase blood flow and move excess lymph away from the affected area for clearance from the body. -
Page 4: Intended Use
INTENDED USE: The Model SC-3004-DL Sequential Circulator is a pneumatic compression device intended for either primary or adjunctive treatment of primary or secondary lymphedema. The device is also intended for additional or alternate treatment of venous insufficiency and chronic venous stasis ulcers associated with venous in- sufficiency as well as general treatment for swelling of the extremities. - Page 5 Symbol Explanation Refer to Documentation before using and servicing CAUTION Type B - applied part. Electrical shock hazard. Disconnect LINE CORD before servicing; refer servicing to qualified service personnel. Federal (USA) law restricts this device to sale by or on the order of a physician.
-
Page 6: General Equipment Specifications
GENERAL EQUIPMENT SPECIFICATIONS: SC-3004-DL DIMENSIONS: 4.5” H x 11.75 W x 7.75” D WEIGHT: 5.5 lbs INFLATION: 52 Seconds DEFLATION: 8 Seconds CYCLE TIME: 13 Seconds / Chambers ELECTRICAL: 120 VAC, 60 Hz, 0.5 A APPLIED PART: TYPE B PROTECTION AGAINST... -
Page 7: Front Operating Panel
FRONT OPERATING PANEL: Figure 1, Front of Pump Key Function 1. POWER ON/OFF BUTTON 2. MODE BUTTON 3. INCREASE BUTTON 4. DECREASE BUTTON 5. LED DISPLAY 6. CHAMBER NUMBER LED 7. RECEPTOR PORTS FOR TUBING LATCH CONNECTORS PORTS #1-4 Figure 2, Latch Connectors on the ends of the garment tubing 8. -
Page 8: 4-Chamber Garment
4 Chamber Garment: Garments are available in the size and configuration to ensure both an effective treatment and maximum comfort. Please refer to section (2.5 Putting the garment on) in the operating manual for instructions on how to apply your garment. LATCH CONNECTORS: Attach and detach the garment to the pump. - Page 9 3.4 As the pump starts to run through its cycle, the number that shows in the “LED Display” (5) is the 60 minute countdown timer. The SC-3004-DL includes a one hour automatic shutoff timer. To run the pump in continuous (untimed) mode,...
-
Page 10: Guidelines For Treatment
END OF TREATMENT The pump powers down one of two ways: 1) After your 60 minute treatment is complete 2) You press the “Power On/Off” (1) button while the pump is running. 4.1 When your treatment is over, wait one minute before taking off the garment. 4.2 Squeeze the LATCH CONNECTOR and pull outward to remove garment from pump. - Page 11 5.6 After you have set the pressure in all 4 chambers, press the “Power On/Off” button and your pump will start to operate. PROGRAMMING YOUR PUMP TO OPERATE IN DIFFERENT MODES The SC-3004-DL can be run in two different modes - 1 hour shutoff or continu- “ ous. To set the mode:”...
-
Page 12: Maintenance And Storage
HOUR METER 7.1 The hour meter is displayed for 5 seconds each time you turn on your pump. The numbers in the “LED Readout” show the 1-999 hours, the letter in the “Chamber Number LED” indicates the following: A. Less than 1000 hours B.= 1000 - 2000 hours C.= 2000 - 3000 hours D. - Page 13 3. Cleaning solution should consist of 1/3 cup of laundry detergent per 1 gallon of warm tap water. Use either a large sink or plastic tub able to hold enough solution (depending on size and quantity of garments) to completely submerge the garment leaving the latch connector bars out of the water.
-
Page 14: Garment Specifications
4 CHAMBER GARMENT SPECIFICATIONS: PRODUCT APPLICATION SIZE SIDE GS-3035-S Small GS-3035-M Medium GS-3035-L Large GS-3035-SH/S Arm & Shoulder Small GS-3035-SH/M Arm & Shoulder Medium GS-3035-SH/L Arm & Shoulder Large GA-3035-S Small Adjustable GA-3035-M Medium Adjustable GA-3035-L Large Adjustable GV-3000 Vest GS-3045-H Half Leg Half... -
Page 15: Troubleshooting
TROUBLESHOOTING If the corrective action does not solve the problem, then call Bio Compression Systems, Inc., at 1-800-888-0908. Be sure to have serial number available when calling for service. Symptom Possible Cause Corrective Action No electricity Check the electrical wall outlet to be sure that the pump is plugged into the outlet correctly. -
Page 16: Warranty Information
WARRANTY INFORMATION: You can feel confident that your product is backed by the best warranty in the industry covering any and all malfunctions (including parts and labor) resulting from component and/or manufacturing defects. Compression Pump = 3 years from date of purchase / invoice Sleeves/Garments = 1 year from date of purchase / invoice Serial Number: ____________________________________ Date Purchased: ___________________________________... -
Page 17: Emc Manufacturer's Declarations
EMC Manufacturer’s Declaration Model SC-3004-DL electromagnetic emissions—manufacturer's declaration The model SC-3004-DL is intended for use in the electromagnetic environment specified below. The customer or the user of the model SC-3004-DL should assure that it is used in such an environment. - Page 18 Recommended separation distances between portable and mobile RF communications equipment and the model SC-3004-DL The model SC-3004-DL is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer of user of the model SC-3004-DL can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model SC-3004-DL as recommended below, according to the maximum output power of the communications equipment.
Need help?
Do you have a question about the SC-3004-DL and is the answer not in the manual?
Questions and answers
All the pressure is not releasing from the boots when the machine is turned off. What is the problem?
If the pressure is not releasing from the SC-3004-DL boots when the machine is turned off, possible causes include:
1. Garment not properly connected to the pump.
2. Damaged, kinked, or twisted garment hose.
3. Damaged garment.
Check these components and contact Bio Compression Systems if the issue persists.
