Summary of Contents for Bio Compression Systems SC-3008

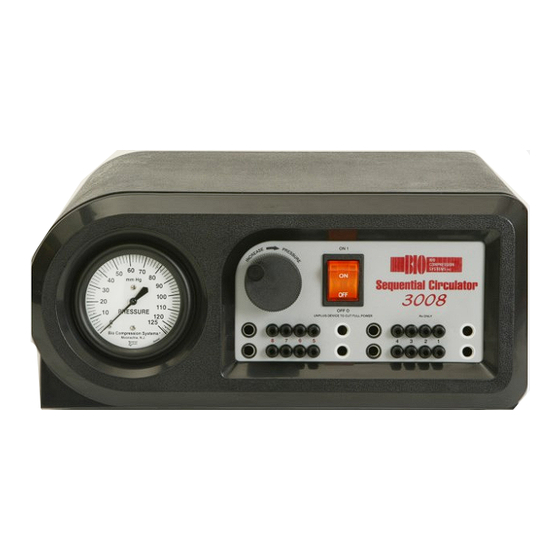

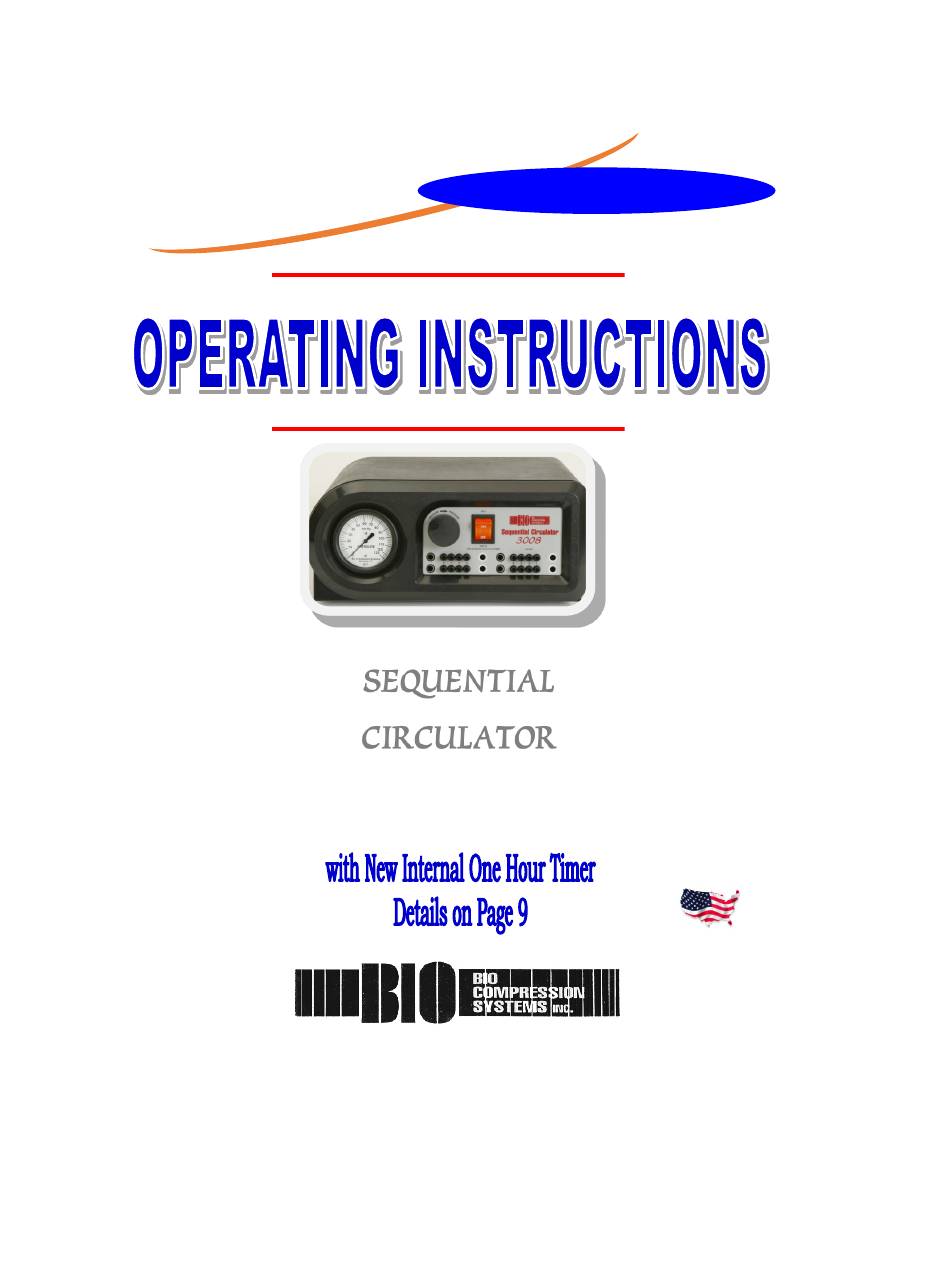

- Page 1 SEQUENTIAL CIRCULATOR MODEL SC-3008 Made in U.S.A 120 West Commercial Avenue, Moonachie, NJ 07074 Toll-Free Phone: 800-888-0908 / Phone: 201-939-0716 Fax: 201-939-4503 Web site: www.biocompression.com E-mail: biosystems@biocompression.com...
- Page 2 Congratulations on the purchasing of your BIO COMPRESSION SYSTEMS MODEL # SC-3008 Sequential 8 Circulator System The durable, high quality material used in the manufacturing of this product will ensure you long lasting performance. On rare incidences when problems occur, you can feel confident that your pump...
-
Page 3: Intended Use
INTENDED USE The Model SC-3008 Sequential Circulator is a manual (not software driven) sequential, pneumatic compression device intended for either primary or adjunctive treatment of primary or secondary lymphedema. The device is also intended for additional or alternate treatment of venous insuffi- ciency and venous stasis ulcers associated with venous insufficiency as well as general treatment for swelling of the extremities. -
Page 4: General Equipment Specifications
(“Electrical Specifications” under separate section) PACKAGING, SHIPPING & STORAGE The Model # SC-3008 is shipped in a specially designed (275 test) corrugated re-usable carton with protective end-caps which envelope each end of the pump, thereby suspending the pump on all four sides within the carton. - Page 5 CONTROLS & INDICATOR PUMP CONTROL DESCRIPTIONS 1) AMBER LIGHTED ON/OFF SWITCH 2) PRESSURE ADJUSTMENT KNOB, LOCKING To prevent against involuntary changes in the pressure setting due to inadvertent movement of the Pressure Adjustment Knob, a “locking” Pressure Adjustment Knob has been implemented on all model pumps to provide for safer, more effective therapy.
- Page 6 UPPER EXTREMITY GARMENT WITH TUBING PLUGS ATTACHED BILATERAL TREATMENT APPLICATION When bilateral treatment is required, remove the Latch Connector Blocker Bar from Auxiliary Air Supply Ports (#6 under controls & indicators) and attach the Latch Connector Bar in the same manner. ADJUSTABLE GRADIENT PRESSURE NOTE: When a pressure adjustment is made to any individual chamber, one must be conscious of the overall gradients across all chambers so as not to create reverse gradients.
-
Page 7: Electrical Specifications
ELECTRICAL SPECIFICATIONS The Model # SC-3008, Sequential Circulator’s electrical pump and components are “double insulated” and thus do not require a “protective ground.” As a result, the Model #3008 is equipped with an 18 gauge, 2-wire, 10 ft. power cord, secured through the pump casing with a Heyco strain relief bushing. - Page 8 NOTE: The outer safety fuse is the only item serviceable by someone other than a Bio Compression Sys- tems technician at the factory. Bio Compression Systems technicians have been trained specifical- ly for the manufacturing and repair of all Bio Compression Systems products.
-
Page 9: Unpacking Equipment
3. The Model #SC-3008 operates at a faster inflation cycle per chamber which allows less time for setting or adjusting the pressure in chamber #1 (the only chamber in which the pressure should be set). Once the pressure has been set, the pump automatically adjusts for slightly lower pressures in each chamber as it sequentially inflates each chamber in a distal to proximal direction. -
Page 10: Setting The Pressure
SETTING THE PRESSURE The physician is required to prescribe these settings, but general guidelines are listed below: 60mmHG is the general rule of thumb for most patients. However, other circumstances may require adjustments to the compression used. Presence of fibrotic tissue may require as much as 80mmHG in order to break up the fibrotic tissue and achieve reduction. -
Page 11: End Of Treatment
INTERNAL ONE HOUR TREATMENT TIMER The Model #SC-3008 Sequential Circulator is equipped with a one hour internal treatment timer which au- tomatically begins at the start of your treatment with the pump/controller shutting off once the one hour treatment time has been reached. - Page 12 NOTE: Repeat above steps if bilateral garments are used! ADJUSTING GRADIENT PRESSURES Model # SC-3008 Sequential Circulators provide total Calibrated Gradient Pressure. All gradients have been carefully calibrated at the factory resulting in the highest pressure in chambers #1 & #2 graduated down to the lowest in chambers #7 & #8.
-
Page 13: Warranty Information
Compression Pump = 3 years from date of purchase / invoice Sleeves/Garments = 1 year from date of purchase / invoice NOTES:_____________________________________________ Serial Number:_______________________________________ Date Purchased:______________________________________ Local Representative/Dealer:___________________________ Phone Number:______________________________________ REPAIR SERVICE 1-800-888-0908 BIO COMPRESSION SYSTEMS, INC. 120 West Commercial Ave., Moonachie, NJ 07074 www.biocompression.com... -
Page 14: Maintenance And Storage
MAINTENANCE AND STORAGE Exterior Pump Case Cleaning Instructions: 1. Clean the exterior case and tubing with a damp (not wet) cloth using mild soap and water solu- tion once per month or as needed. WARNING! Only an authorized technician may open the pump ... - Page 16 Other bio compression systems’ products Also available: Sequential Circulator Model 2004 & 2004-FC Sequential Circulator Model 3004 & 3004-fc Sequential Circulator model 2008 The Biocryo system Multi-Flo DVT Combo Prophylaxis System BioArterial Plus (Arterial Blood Flow Enhancement System) Compression therapy garments...
