Summary of Contents for Bio Compression Systems IC-1545-DL Multi-Flo DVT Combo

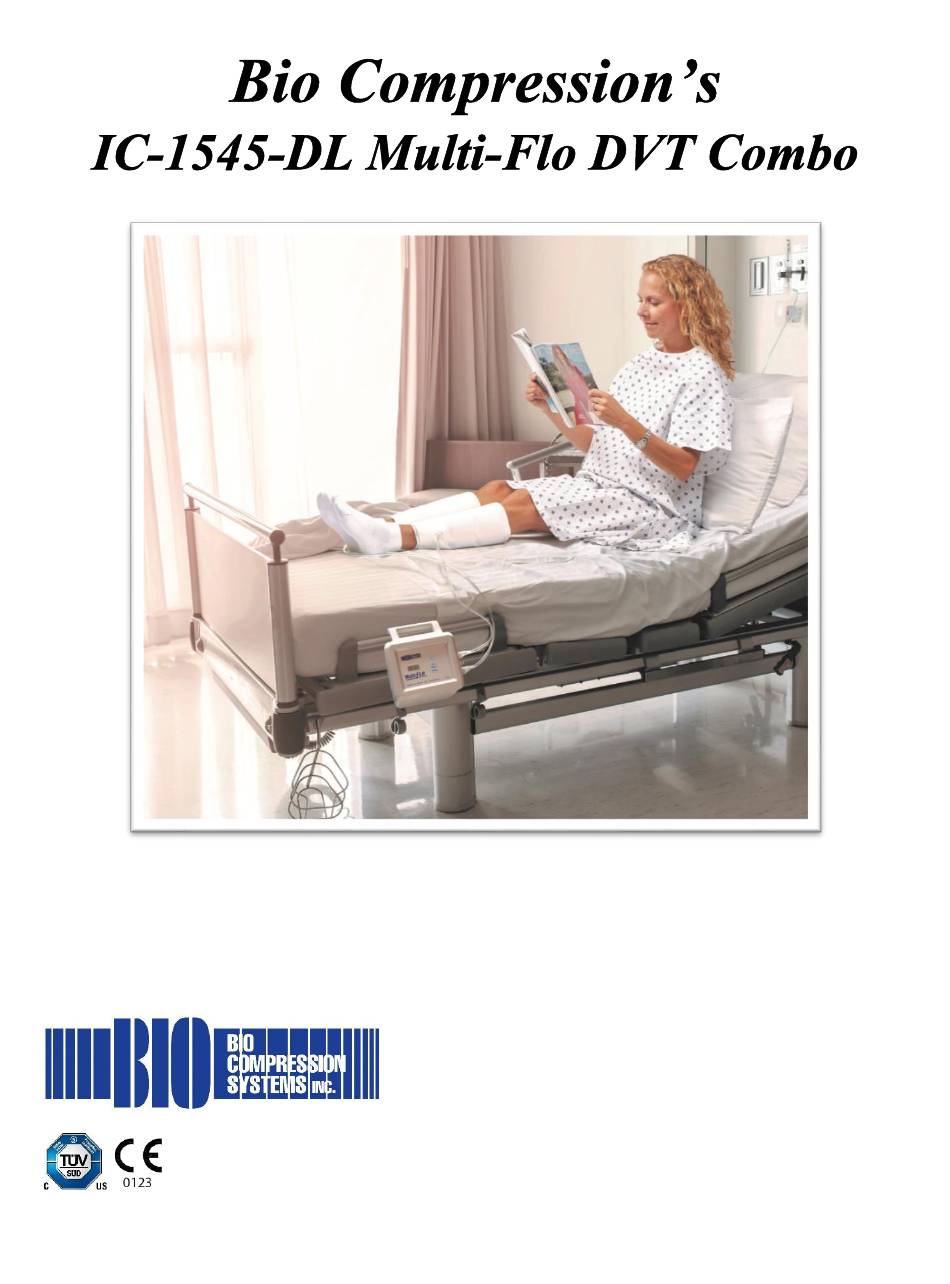

- Page 1 Intermittent Pneumatic Compression Device Operating Instructions Quality Medical Products Since 1983...
-
Page 3: Table Of Contents
Table of Contents Introduction ........................4 Intended Use ........................4 Device Description and Operating Principle ............... 5 Warnings and Precautions ................... 6 Operating Instructions ....................8 Accessories ......................... 11 Product Specifications ....................11 Environmental Specifications ..................12 Symbol Glossary ......................14 Contact Information .................... -
Page 4: Introduction
Introduction Congratulations on the purchase of your Bio Compression Systems model IC-1545-DL Multi-Flo DVT Combo Intermittent Pneumatic Compression pump and garments. Package Contents • IC-1545-DL intermittent pneumatic compression pump • Instructions for use • Garments Intended Use Bilateral Calf Application •... -
Page 5: Device Description And Operating Principle
Device Description and Operating Principle The model IC-1545-DL is an intermittent pneumatic compression device that consists of a compression garment connected to a pneumatic compression pump. The pump’s cyclical inflation and deflation of the compression garments stimulates the flow of blood. Pneumatic compression devices are proven to reduce edema, help close up chronic ulcers, and act as a prophylaxis for deep vein thrombosis (DVT). -
Page 6: Warnings And Precautions
Front Panel and Key Features Key Functions 1. Power On/Off Button 2. UP Button 3. DOWN Button 4. LED Readout 5. Air Supply Ports 6. Center Port (for post-operative cold compression) Warnings and Precautions US federal law restricts this device to sale by or on the order of a physician. - Page 7 any part of the device including the power cord - otherwise, degradation of the performance of this equipment could result • Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation Do Not Use •...
-
Page 8: Operating Instructions
Any serious incident that has occurred in relation to the device must be reported to Bio Compression Systems. In the European Union (EU), incidents should also be reported to the competent authority of the Member State in which the user and / or patient is established. - Page 9 To select calf mode • Begin with device turned off • Press and hold DOWN button and momentarily press power button • Elapsed time will appear followed by “CAF” • Release DOWN button • Pressure will appear (50 mmHg) and device will start running To select foot mode •...
- Page 10 • Do not store cold therapy garments on metal freezer racks Servicing and Repairs • Contact Bio Compression Systems for servicing – there are no user serviceable parts • Tampering, modifying, or dismantling this device in any way voids the warranty •...
-
Page 11: Accessories
Accessories Description GC1-3035-SH Cryo Shoulder GC1-3045-A Cryo Ankle GC1-3045-K Cryo Knee GI-3045-F DVT Foot Sleeve (Pair) GID-3045-K DVT Knee High Calf Sleeve (Pair) GID-3045-T DVT Calf/Thigh Sleeve (Pair) Product Specifications Models: IC-1545-DL, IC-1545-DL-230 Electrical Rating: 120 VAC, 60 Hz, 0.5 A or 230 VAC, 50 Hz, 0.5 A Electrical Classification: Class II Type Applied Part: Type BF Ingress Protection: IP20... -
Page 12: Environmental Specifications
Environmental Specifications Consumables and Natural Resources Used During Care and Use • Electrical energy for operation • 70 mL laundry detergent and 250 mL bleach per 7.6 liters water for garment cleaning - only as needed Emissions During Normal Use •... - Page 13 • Does not contain hazardous substances requiring special handling and treatment • Dispose of in an environmentally responsible manner in accordance with regional requirements • Contact Bio Compression Systems if you have questions or concerns regarding disassembly and disposal Manufacturer’s EMC Declaration...
-
Page 14: Symbol Glossary
Symbol Glossary Authorized Representative in Manufacturer the European Community Atmospheric pressure limitation Medical Device Batch code (lot number) Keep dry Catalog number Power on/off (stand-by) Refer to instruction manual/ Caution booklet Class II equipment (protection Restricted to sale by or on the against electric shock) order of a physician Complies with the Waste... -
Page 15: Contact Information
Contact Information Manufacturer Bio Compression Systems, Inc. 120 West Commercial Avenue Moonachie, NJ 07074, USA Phone: +1-201-939-0716 Toll-Free Phone (US): 800-888-0908 E-mail: biosystems@biocompression.com Website: www.biocompression.com When contacting us, please have your model number and serial number ready. Authorized European Representative... - Page 16 L-008 I EN 2020-04...
