Summary of Contents for Bio Compression Systems SC-3004-DL-230
- Page 1 SEQUENTIAL CIRCULATOR Operating Instructions Quality Medical Products Since 1983...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................3 Intended Use ........................3 Device Description and Operating Principle ............... 3 Warnings and Precautions ................... 5 Operating Instructions ....................7 Accessories ......................... 10 Product Specifications ....................11 Environmental Specifications ..................12 Symbol Glossary ......................14 Information for Distributors and Healthcare Providers ........... -
Page 3: Introduction
Introduction Congratulations on your purchase of your sequential circulator and garments. Package Contents • Sequential Circulator pump • Power cord • Instructions for use • Blocker bar • Garment(s) possibly - packed separately Intended Use Sequential Circulators are pneumatic compression devices intended for either primary or adjunctive treatment of primary or secondary lymphedema. - Page 4 Guidelines for Treatment A physician is required to prescribe these settings, but general guidelines are listed below: • It is ultimately the physician’s responsibility to prescribe the setting and it should be written on the prescription upon referral. Every patient is unique and communication with the physician is important when setting the pressure •...
-
Page 5: Warnings And Precautions

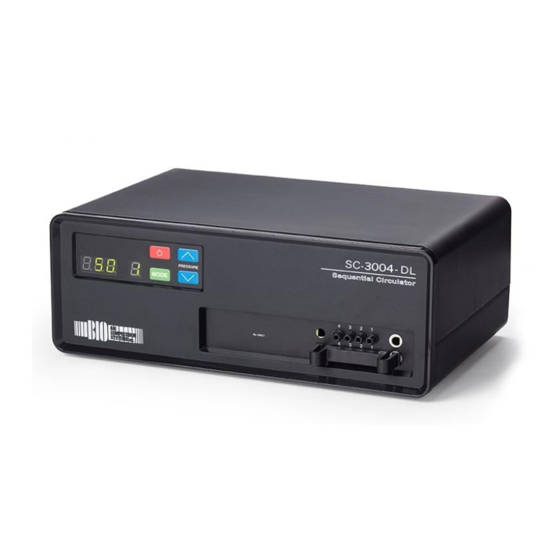

Key Functions 1. Power On/Off Button 2. MODE Button 3. UP Button 4. DOWN Button 5. LED Readout 6. Chamber Number LED 7. Garment Connector Bar Port 8. Auxiliary Connector Bar Port (shown with Blocker Bar) Warnings and Precautions US federal law restricts this device to sale by or on the order of a physician. - Page 6 Any serious incident that has occurred in relation to the device must be reported to Bio Compression Systems. In the European Union (EU), incidents should also be reported to the competent authority of the Member State in which the user and / or patient is established.
-
Page 7: Operating Instructions
Operating Instructions The patient is the intended user and can safely use all functions. Preparing the Device for Use • Remove garment(s) and cardboard underneath from box • Lift pump out of box and remove protective end caps – save packaging for transport and storage •... - Page 8 • Press “Power On/Off” button • Within 5 seconds, press and hold MODE button • Mode will appear (“1Hr” for timed operation or “COn” for continuous) • Press MODE button to change between modes • While mode says “1Hr” use UP or DOWN button to adjust treatment time •...
- Page 9 • Store in a dry location away from a source of heat and free of pests Servicing and Repairs • Contact Bio Compression Systems for servicing – there are no user serviceable parts • Tampering, modifying, or dismantling this device in any way voids the warranty •...
-
Page 10: Accessories
Accessories Description GS-3035-S 4-Chamber Arm Sleeve - Small GS-3035-M 4-Chamber Arm Sleeve - Medium GS-3035-L 4-Chamber Arm Sleeve - Large GS-3035-SH-S-L 4-Chamber Arm & Shoulder Sleeve - Small, Left GS-3035-SH-S-R 4-Chamber Arm & Shoulder Sleeve - Small, Right GS-3035-SH-M-L 4-Chamber Arm & Shoulder Sleeve - Medium, Left GS-3035-SH-M-R 4-Chamber Arm &... -
Page 11: Product Specifications
Product Specifications Models: SC-3004-DL, SC-3004-DL-230 Electrical Rating: 120 VAC, 60 Hz, 0.5 A or 230 VAC, 50 Hz, 0.5 A Electrical Classification: Class II Type Applied Part: Type BF Ingress Protection: IP21 Mains Isolation: Unplug Mode of Operation: Continuous The pump’s cyclical inflation and deflation of the garment(s) -
Page 12: Environmental Specifications
Environmental Specifications Consumables and Natural Resources Used During Care and Use • Electrical energy for operation • 70 mL laundry detergent and 250 mL bleach per 7.6 liters water for garment cleaning - only as needed Emissions During Normal Use •... - Page 13 • Does not contain hazardous substances requiring special handling and treatment • Dispose of in an environmentally responsible manner in accordance with regional requirements • Contact Bio Compression Systems if you have questions or concerns regarding disassembly and disposal Manufacturer’s EMC Declaration...
-
Page 14: Symbol Glossary
Symbol Glossary Authorized Representative in Manufacturer the European Community Atmospheric pressure limitation Medical Device Batch code (lot number) Keep dry Catalog number Power on/off (stand-by) Refer to instruction manual/ Caution booklet Class II equipment (protection Restricted to sale by or on the against electric shock) order of a physician Complies with the Waste... -
Page 15: Information For Distributors And Healthcare Providers
• LED Readout will light up • Release the buttons and then press the MODE button Contact Information Manufacturer Bio Compression Systems, Inc. 120 West Commercial Avenue Moonachie, NJ 07074, USA Phone: +1-201-939-0716 Toll-Free Phone (US): 800-888-0908 E-mail: biosystems@biocompression.com Website: www.biocompression.com... - Page 16 L-048 J EN 2021-03...
