Summary of Contents for Bio Compression Systems SC-2008

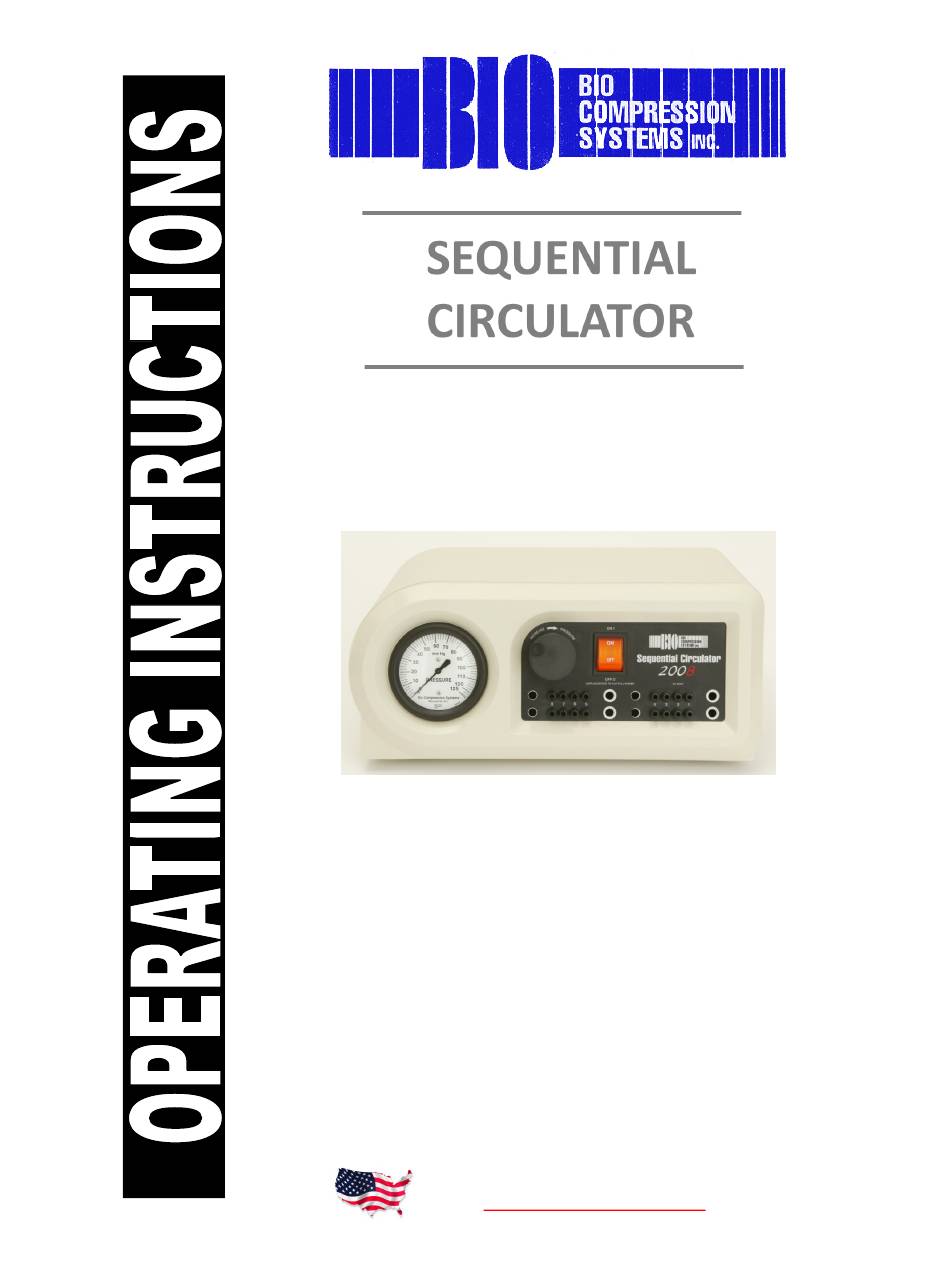

- Page 1 SEQUENTIAL CIRCULATOR MODEL 2008 BIO COMPRESSION SYSTEMS, INC. 800-888-0908 / 201-939-0716 Toll-Free Phone: Phone: 201-939-4503 Fax: biosystems@biocompression.com E-mail: www.biocompression.com All Bio Compression Systems products are U.S. BASED MANUFACTURER...
- Page 2 Congratulations on the purchasing of your BIO COMPRESSION SYSTEMS MODEL # SC-2008 Sequential 8 Circulator System The durable, high quality material used in the manufacturing of this product will ensure you long lasting performance. On rare incidences when problems occur, you can feel confident that your pump and...
-
Page 3: Intended Use
INTENDED USE The Model # SC-2008 Sequential Circulator is a manual (not software driven) 8 chamber sequential, pneumatic compression device intended for either primary or adjunctive treat- ment of primary or secondary lymphedema. The device is also intended for additional or alternate treatment of venous insufficiency and venous stasis ulcers associated with ve- nous insufficiency as well as general treatment for swelling of the extremities. -
Page 4: General Equipment Specifications
(“Electrical Specifications” under separate section) PACKAGING, SHIPPING & STORAGE The Model # SC-2008 is shipped in a specially designed (275 test) corrugated re-usable carton with protective end-caps which envelope each end of the pump, thereby suspending the pump on all four sides within the carton. This packaging design prevents damage to the pump (which would ordinarily be sustained) when the carton is thrown or handled roughly by the carriers. -
Page 5: Controls And Indicators

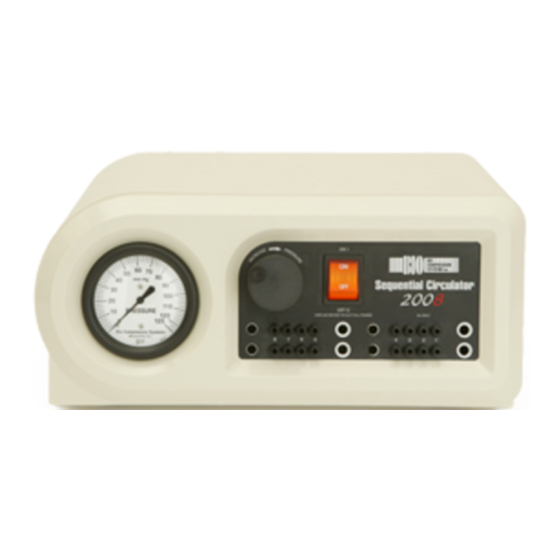

CONTROLS & INDICATORS CONTROL DESCRIPTIONS 1.) Lighted On/Off Switch 2.) Pressure Adjustment Knob, Locking To prevent against involuntary changes in the pressure setting due to inadvertent movement of the Pressure Adjustment Knob, a new “locking” Knob has been implemented on all model pumps to provide for safer, more effective therapy. After the pressure has been set, simply by turning the smaller “inner locking knob”... - Page 6 UPPER EXTREMITY GARMENT 6. Latch Connector Bar To match up with air intake ports on face of pump.
-
Page 7: Electrical Specifications
ELECTRICAL SPECIFICATIONS The Model # SC-2008, Sequential Circulator’s electrical pump and components are “double insulated” and thus do not require a “protective ground.” As a result, the Model #2008 is equipped with an 18 gauge, 2-wire, 10 ft. power cord, secured through the pump casing with a Heyco strain relief bushing. - Page 8 After placing new fuse in cap slot, push cap and fuse inward and turn clockwise to lock in place. NOTE: The outer safety fuse is the only item serviceable by some one other than a Bio Compression Systems technician at the factory. Bio Compression Systems technicians have been trained specifically for the manufacturing and repair of all Bio Compression Systems products.
-
Page 9: Unpacking Equipment
UNPACKING EQUIPMENT SEQUENTIAL CIRCULATOR By laying carton on its side, slide pump out with protective end caps still attached. After removing pump from carton, protective end caps may be detached by gently pulling off each side. NOTE: Be sure to SAVE carton and end caps for future transporting or shipping. When transporting, the carton is equipped with “fold-up”... - Page 10 Loosen the inner locking knob by turning a few turns counter clock-wise enabling the pressure adjustment knob (the larger knob) to turn freely. If the pump is running, shut pump off and wait for the switch light to go out. Remem- ber, often when shutting pump off, the switch light will remain on until the cycle is completed, making it ready to start on chamber #1 when beginning your next treat- ment.
-
Page 11: End Of Treatment
Patients with a history of Deep Vein Thrombosis with or without a filter may require less com- pression. These patients will generally tolerate 40mmHG. These patients with a filter may need to divide their treatment into twice a day, 30 minutes per treatment. It is suggested that the provider obtain a Negative Doppler study from the physician for their records. - Page 12 Once the light has shut off, if desired you may remove plug to cut total power from device. It is now safe should you wish to disconnect garment from your arm or leg as well as from pump. 1. Squeeze LATCH CONNECTOR BAR (#6) and pull outward to remove garment from pump. 2.
-
Page 13: Repair Service
Compression Pump = 3 years from date of purchase / invoice Sleeves/Garments = 1 year from date of purchase / invoice NOTES:_____________________________________________ _____________________________________________ Serial Number:_______________________________________ Date Purchased:______________________________________ Local Representative/Dealer:___________________________ Phone Number:______________________________________ REPAIR SERVICE 1-800-888-0908 BIO COMPRESSION SYSTEMS, INC. 120 West Commercial Ave., Moonachie, NJ 07074 www.biocompression.com... -
Page 14: Maintenance And Storage
MAINTENANCE AND STORAGE Exterior Pump Case Cleaning Instructions: 1. Clean the exterior case and tubing with a damp (not wet) cloth using mild soap and water solu- tion once per month or as needed. WARNING! Only an authorized technician may open the pump ... - Page 15 Other bio compression systems’ products Also available: Sequential Circulator Model 2004 Sequential Circulator Model 2004-FC (Fast Cycle) Sequential Circulator Model 3004 Sequential Circulator Model 3004-FC (Fast Cycle) Sequential circulator model 3008 The Biocryo system Multi-Flo DVT Combo Prophylasix System BioArterial Plus...
