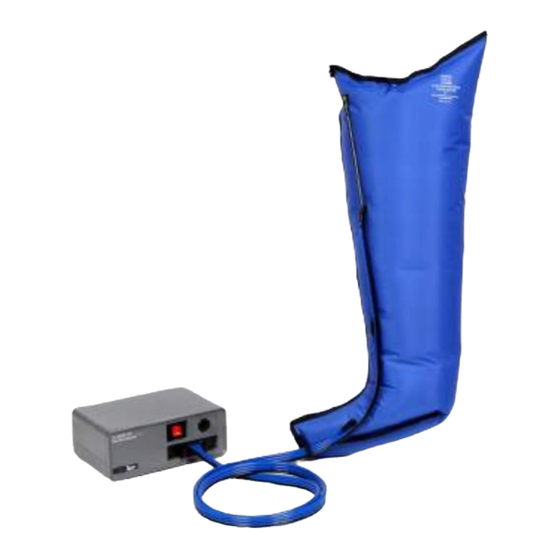

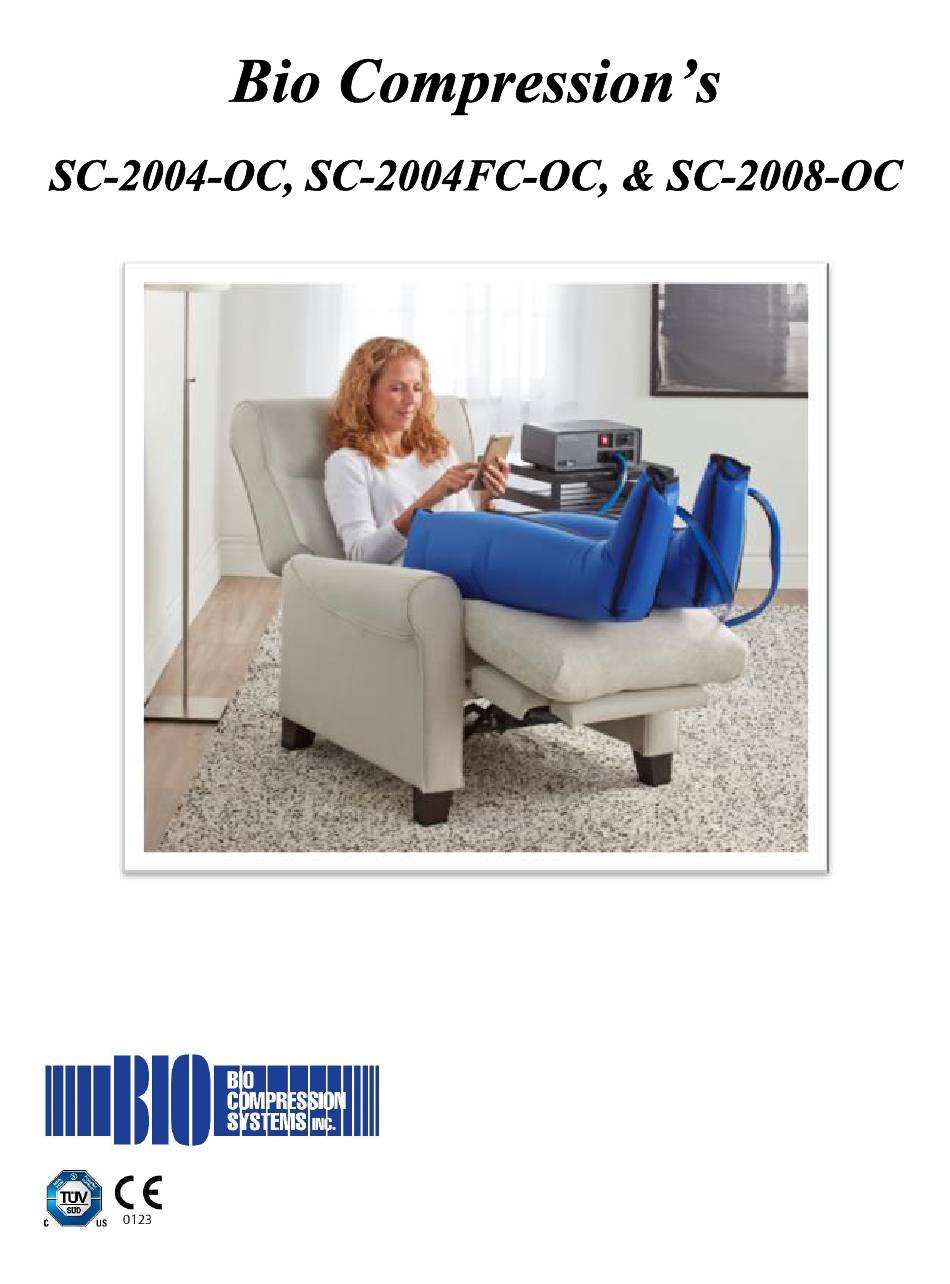

- Page 1 SEQUENTIAL CIRCULATOR Operating Instructions Quality Medical Products Since 1983...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................3 Intended Use ........................3 Device Description and Operating Principle ............... 3 Warnings and Precautions ................... 6 Operating Instructions ....................7 Accessories ......................... 10 Product Specifications ....................12 Environmental Specifications ..................13 Symbol Glossary ......................15 Contact Information .................... -
Page 3: Introduction
Introduction Congratulations on your purchase of your sequential circulator and garments. Package Contents • Sequential Circulator pump • Power cord • Instructions for use • Blocker bar(s) • Garment(s) possibly - packed separately Intended Use Sequential Circulators are pneumatic compression devices intended for either primary or adjunctive treatment of primary or secondary lymphedema. - Page 4 Guidelines for Treatment A physician is required to prescribe these settings, but general guidelines are listed below: • It is ultimately the physician’s responsibility to prescribe the setting and it should be written on the prescription upon referral. Every patient is unique and communication with the physician is important when setting the pressure.
- Page 5 Front Panel and Key Features Key Functions 1. Power On/Off Button 2. Pressure Knob 3. Garment Connector Bar Ports 4. Auxiliary Air Supply Ports (shown with Blocker Bars) 5. Blocker Bars (uninstalled) 6. Garment Connector Bar...
-
Page 6: Warnings And Precautions
Warnings and Precautions US federal law restricts this device to sale by or on the order of a physician. Electrical Medical Equipment • To avoid the risk of electric shock, burns, fire, injury, or improper treatment, read the entire instruction manual before operating this device •... -
Page 7: Operating Instructions
Any serious incident that has occurred in relation to the device must be reported to Bio Compression Systems. In the European Union (EU), incidents should also be reported to the competent authority of the Member State in which the user and / or patient is established. - Page 8 Putting the Garment(s) On • Leg sleeve: unzip, place foot in and use straps to guide garment on, pull up zipper to secure • Arm sleeve: slide arm through larger opening Operating the Device • Sit in a comfortable reclined position with legs elevated within reach of controls •...
- Page 9 • Store in a dry location away from a source of heat and free of pests Servicing and Repairs • Contact Bio Compression Systems for servicing – there are no user serviceable parts • Tampering, modifying, or dismantling this device in any way voids the warranty •...
-
Page 10: Accessories
Accessories (SC-2004-OC, SC-2004FC-OC) Description GA-3045-H 4-Chamber Adjustable Leg Sleeve - Half GA-3045-L 4-Chamber Adjustable Leg Sleeve - Large GA-3045-M 4-Chamber Adjustable Leg Sleeve - Medium GA-3045-S 4-Chamber Adjustable Leg Sleeve - Small GN-3045-L 4-Chamber Narrow Leg Sleeve - Large GN-3045-M... - Page 11 Accessories (SC-2008-OC) Description A8-3045-L 8-Chamber Adjustable Leg Sleeve - Large A8-3045-M 8-Chamber Adjustable Leg Sleeve - Medium A8-3045-S 8-Chamber Adjustable Leg Sleeve - Small G8-3035-L 8-Chamber Arm Sleeve - Large G8-3035-M 8-Chamber Arm Sleeve - Medium G8-3035-S 8-Chamber Arm Sleeve - Small G8-3035-SH-L-L 8-Chamber Arm &...
-
Page 12: Product Specifications
Mode of Operation: Continuous Essential Performance: The pump’s cyclical inflation and deflation of the garment(s) Cycle Time (SC-2004-OC): 90 ± 10 seconds (inflation 72 seconds - 18 seconds/garment chamber, deflation 18 seconds) Cycle Time (SC-2004FC-OC): 60 ± 10 seconds (inflation 50 seconds - 12.5 seconds/garment chamber, deflation 10 seconds) Cycle Time (SC-2008-OC): 60 ±... -
Page 13: Environmental Specifications
Environmental Specifications Consumables and Natural Resources Used During Care and Use • Electrical energy for operation • 70 mL laundry detergent and 250 mL bleach per 7.6 liters water for garment cleaning - only as needed Emissions During Normal Use •... - Page 14 • Dispose of in an environmentally responsible manner in accordance with regional requirements • Contact Bio Compression Systems if you have questions or concerns regarding disassembly and disposal Manufacturer’s EMC Declaration Electromagnetic Emissions Compliance Emissions Electromagnetic Environment - Guidance RF emissions Group 1 The device uses RF energy only for its internal functions.
-
Page 15: Symbol Glossary
Symbol Glossary Authorized Representative in Manufacturer the European Community Atmospheric pressure limitation Medical Device Batch code (lot number) Keep dry Catalog number Power on/off (stand-by) Refer to instruction manual/ Caution booklet Class II equipment (protection Restricted to sale by or on the against electric shock) order of a physician Complies with the Waste... -
Page 16: Contact Information
Contact Information Manufacturer Bio Compression Systems, Inc. 120 West Commercial Avenue Moonachie, NJ 07074, USA Phone: +1-201-939-0716 Toll-Free Phone (US): 800-888-0908 E-mail: biosystems@biocompression.com Website: www.biocompression.com When contacting us, please have your model number and serial number ready. Authorized European Representative...
