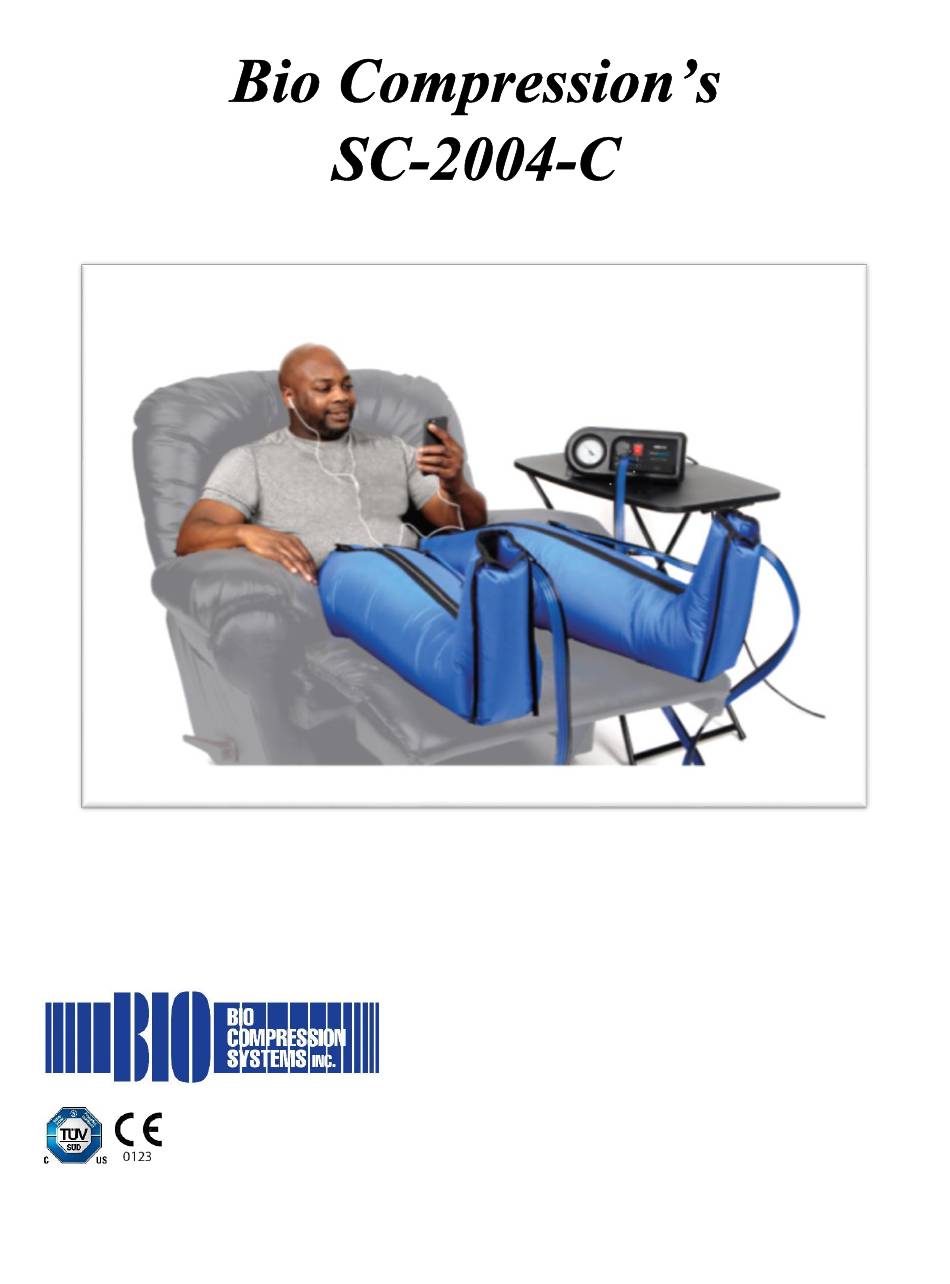

- Page 1 SEQUENTIAL CIRCULATOR Operating Instructions Quality Medical Products Since 1983...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................3 Intended Use ........................3 Device Description and Operating Principle ............... 3 Warnings and Precautions ................... 5 Operating Instructions ....................6 Accessories ........................9 Product Specifications ....................9 Environmental Specifications ..................11 Symbol Glossary ......................13 Contact Information .................... -
Page 3: Introduction
• Garment(s) possibly - packed separately Intended Use The BioCryo Cold Compression System model SC-2004-C is a gradient, sequential, pneumatic compression device, intended for the primary treatment of tendinitis, hamstring pulls, joint inflammation edema, post-op injuries, soft tissue injuries, acute sprains, bruises and other musculoskeletal injuries. - Page 4 Guidelines for Treatment A physician is required to prescribe these settings, but general guidelines are listed below: • It is ultimately the physician’s responsibility to prescribe the setting and it should be written on the prescription upon referral. Every patient is unique and communication with the physician is important when setting the pressure.
-
Page 5: Warnings And Precautions
Front Panel and Key Features Key Functions 1. Power On/Off Button 2. Pressure Knob 3. Pressure Gauge 4. Garment Connector Bar Ports 5. Auxiliary Air Supply Port (shown with Blocker Bar) 6. Garment Connector Bar 7. Blocker Bar (uninstalled) Warnings and Precautions US federal law restricts this device to sale by or on the order of a physician. - Page 6 • Portable RF communications equipment (including cell phones and peripherals such as antenna cables and external antennas) should be used no closer than 12" (30 cm) to any part of the device including the power cord - otherwise, degradation of the performance of this equipment could result •...
-
Page 7: Operating Instructions
Any serious incident that has occurred in relation to the device must be reported to Bio Compression Systems. In the European Union (EU), incidents should also be reported to the competent authority of the Member State in which the user and / or patient is established. - Page 8 • Do not store cold therapy garments on metal freezer racks Servicing and Repairs • Contact Bio Compression Systems for servicing – there are no user serviceable parts • Tampering, modifying, or dismantling this device in any way voids the warranty...
-
Page 9: Accessories
• When contacting Bio Compression Systems, please have your model number and serial number ready Troubleshooting Pump does not turn on: 1. Check to see if the pump is plugged in 2. Unplug and examine power cord for damaged - if damaged, contact Bio Compression Systems 3. -
Page 10: Product Specifications
Product Specifications Models: SC-2004-C, SC-2004-C-230 Electrical Rating: 120 VAC, 60 Hz, 0.5 A or 230 VAC, 50 Hz, 0.5 A Electrical Classification: Class II Type Applied Part: Type BF Ingress Protection: IP20 Mains Isolation: Unplug Mode of Operation: Continuous Essential Performance: The pump’s cyclical inflation and deflation of the garment(s) Cycle Time: 90 ±... -
Page 11: Environmental Specifications
Environmental Specifications Consumables and Natural Resources Used During Care and Use • Electrical energy for operation • 70 mL laundry detergent and 250 mL bleach per 7.6 liters water for garment cleaning - only as needed Emissions During Normal Use •... - Page 12 • Dispose of in an environmentally responsible manner in accordance with regional requirements • Contact Bio Compression Systems if you have questions or concerns regarding disassembly and disposal Manufacturer’s EMC Declaration Electromagnetic Emissions Compliance Emissions Electromagnetic Environment - Guidance RF emissions Group 1 The device uses RF energy only for its internal functions.
-
Page 13: Symbol Glossary
Symbol Glossary Authorized Representative in Manufacturer the European Community Atmospheric pressure limitation Medical Device Batch code (lot number) Keep dry Catalog number Power on/off (stand-by) Refer to instruction manual/ Caution booklet Class II equipment (protection Restricted to sale by or on the against electric shock) order of a physician Complies with the Waste... -
Page 14: Contact Information
Contact Information Manufacturer Bio Compression Systems, Inc. 120 West Commercial Avenue Moonachie, NJ 07074, USA Phone: +1-201-939-0716 Toll-Free Phone (US): 800-888-0908 E-mail: biosystems@biocompression.com Website: www.biocompression.com When contacting us, please have your model number and serial number ready. Authorized European Representative... - Page 16 L-095 G EN 2020-04...
