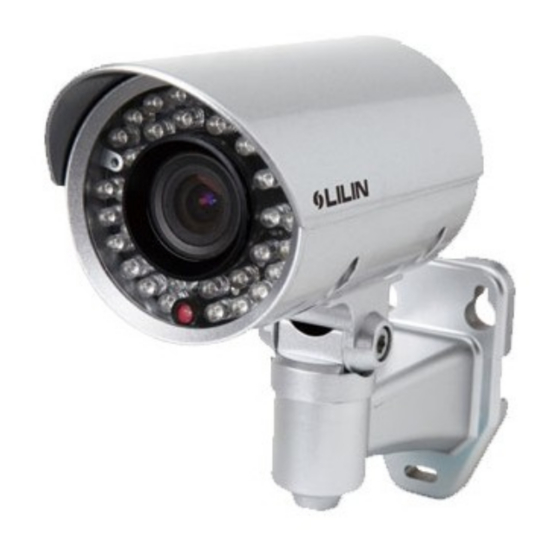

- Page 1 D/N Megapixel HD Infrared IP Camera IPR712S / IPR712M / IPR722S 4.3/6 Instr uction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
- Page 4 CONGRATULATIONS Thank you for purchasing this D/N Megapixel HD Infrared IP Camera. You now own one of the many fine network products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition.
- Page 5 Also it provides higher bit rate of internet and diverse alarm functions such as movement video detection e-mail or FTP. Moreover, IPR712S / IPR712M/ IPR722S can do remote surveillance with iPad, iPhone or Android cell phone. The software R&D engineer can use HTTP protocol(HTTPAPI) or ONVIF protocol to develop related software, and integrate them with existing application software system.
-
Page 6: Part Description & Dimension
PART DESCRIPTION & DIMENSION IPR712S 72.5 Unit: mm... - Page 7 IPR712M / IPR722S 72.5 Unit: mm...
-
Page 8: Installation
TILT ADJUSTMENT SCREW WINDOW RJ-45 NETWORK CONNECTOR ± DC POWER INPUT JACK (DC12V 10%) SD CARD SLOT (IPR712S Support) This network camera is compliant with SD/SDHC card. RESET KEY To restore the server to factory default setting. NETWORK INDICATOR LEDS Green (LINK): While cable of network is connecting the LED is light. - Page 9 2. Installation SD card, please loosen the screws of top cover with screw driver (FIG.3). Put the SD card to SD card slot(FIG.4). FIG. 3 FIG. 4 3. Replace the top cover and tighten the screws(FIG.5&FIG.6). FIG. 5 FIG. 6 4.
- Page 10 IPR712M / IPR722S 1. Take out the IP camera from the inner box first. Loosen the pan adjustment screw with hexagon screw driver. Then, separated the bracket from the camera body (FIG.1). Put the power cable and network cable through the bracket and then fix it to the wall(FIG.2&FIG.3).
- Page 11 3. Next, put the power cable and network cable through the bottom chassis and rubble(FIG.5) and then fix the camera body on the bracket(FIG.6). FIG.5 FIG.6 4. Assemble the cable with the accessory connector and terminal(FIG.7). Plug the power cable to the terminal and plug the network cable to RJ-45 connector of the IP camera(FIG.8).
- Page 12 5. Replace the top cover and tighten the screws(FIG.9&FIG.10). FIG.9 FIG. 10 6. Loosen the pan and tilt adjustment screw on the bracket to turn the camera body to the desired angle and then tighten the screws(FIG.11). FIG. 11...
- Page 13 Instr uction Manual 3. CD Software Pack 4. Power Adaptor SYSTEM ARCHITECTURES For connecting IPR712S/ IPR712M/ IPR722S to the network, please follow one of the system architectures: (1). Use DC12V power adapter and network switch connected to a network. LAN / Internet...
-
Page 14: Emergency Factory Default
(2). Use with PoE-powered network switch and the PoE splitter connected to a network. LAN / Internet PoE Switch PoE Splitter HD Infrared (DC12V) IP Camera EMERGENCY FACTORY DEFAULT Use hardware to restore factory default settings, follow these steps: 1. Hold "RESET" key 10 seconds, then release. 2. -
Page 15: Specifications
SPECIFICATIONS IPR712S D/N 720P HD INFRARED IP CAMERA IPR712S4.3 IPR712S6 Model No. 4.3mm Focal Length F1.8 F1.8 Lens Iris ° ° (V), 63.6 (D) ° ° ° (V), 45.7 (D) ° Angle of View 49.8 (H), 36.8 35.8 (H), 26.5 Pick Up Element 1/4"... - Page 16 Android support Support System Integration ONVIF Free CMX HD3.2 support Video Display LILIN Universal ActiveX Embedded Linux 2.4.19 SD Card recording Support SD/SDHC card for circular recording(card is not included) Design and specification are subject to change without notice.
- Page 17 IPR712M D/N MOS 1.3MP HD INFRARED IP CAMERA IPR712M4.3 IPR712M6 Model No. 4.3mm Focal Length F1.8 F1.8 Lens Iris ° ° (V), 89 (D) ° ° ° (V), 64.5 (D) ° Angle of View 71 (H), 49.5 49.3 (H), 35.9 Pick Up Element 1/3"...
- Page 18 DHCP, DNS, RTP, RTSP, RTCP, ONVIF Mobile Phone and PDA iPad, iPhone and Android support Support System Integration ONVIF Free CMX HD3.2 support Video Display LILIN Universal ActiveX Embedded ulTRON 4.0 Design and specification are subject to change without notice.
- Page 19 IPR722S D/N 1080P HD INFRARED IP CAMERA IPR722S4.3 IPR722S6 Model No. 4.3mm Focal Length F1.6 F1.8 Lens Iris ° ° (V), 89 (D) ° ° ° (V), 64.5 (D) ° Angle of View 70 (H), 51 49.3 (H), 35.9 Pick Up Element 1/2.7"...
- Page 20 Mobile Phone and PDA iPad, iPhone and Android support Support System Integration ONVIF & LILIN HTTP API Free CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Design and specification are subject to change without notice. 66-IPR712CSE-2...
- Page 21 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPR712CSE...
