Lockly SECURE PRO Installation Manual page 28

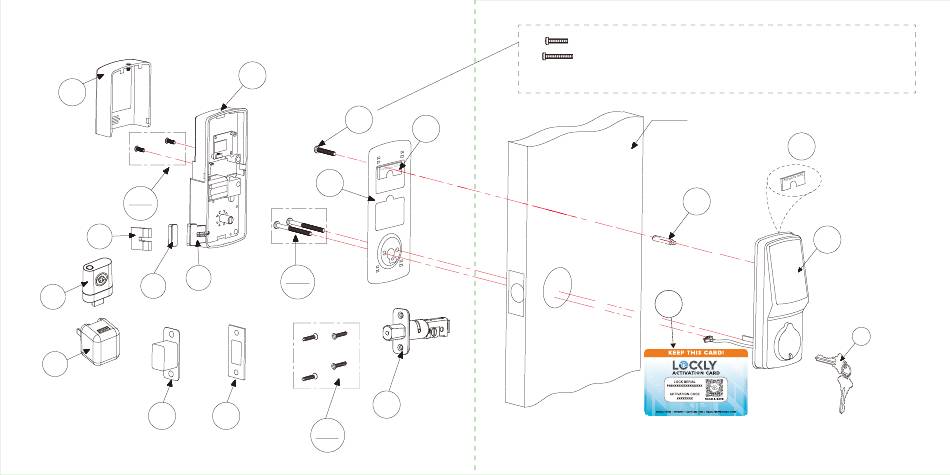

INSTALLATION OVERVIEW & PARTS LIST
Battery Cover
H
I
PM4*12MM
Screw
2X
R
Foam Pads
P
Q
S
Sensor Magnet
Wi-Fi Hub
T
Power Adaptor
N
Dust Box
F
Interior Assembly
E
PM5 Screw
Mounting
D
Plate
G
Wired Sensor
2X
UNF10-32*60mm Screw
J
L
Strike Plate
K
KA4*20MM Screw
4X
E1 PM5 x 25mm Screw, Door thickness1-19/50"~1-69/100"(35~43mm)
E2 PM5 x 35mm Screw, Door thickness1-69/100"~1-97/100"(43~50mm)
M
Adhesive
Deadbolt
Lockly Secure Pro can be fitted for both right swing doors and left swing doors.
NOTE: You can either use M or O to stabilize the exterior part. O requires drilling
an extra hole. Use provided Template for drilling instructions if needed.
Exterior
Slotted Barrel
Extension
O
（Optional）
U
M
Adhesive
B
Exterior Assembly
A Keys
