Summary of Contents for Hyundai HYHT40Li
- Page 1 40V HEDGE TRIMMER HYHT40Li Instruction Manual...
- Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Symbols On The Machine....4 Disposal..........33 Safety Information.....5-14 Our Product Range.......34 Understand Your Machine.......5 Personal Safety..........5-6 Declaration Of Conformity...35 Inspect Your Machine........6-7 Work Area.............7-8 During Use............8-9 Notes.........36-37 Noise..............9 Vibrations............9 Useful Information......38 Power Tool Use And Care......10 Batteries............11 Our YouTube Channel........38 Battery Charger..........11 Warranty............38 Electrical Safety..........12... -
Page 4: Symbols On The Machine
Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment. -
Page 5: Safety Information
Safety Information WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. -
Page 6: Inspect Your Machine
Safety Information lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be thrown from the unit. -
Page 7: Work Area
Safety Information • If the machine should start to vibrate abnormally, stop the machine and check immediately for the cause. Vibration is generally a warning sign of trouble. • Do not tamper with or disable safety systems. • Only use manufacturer-recommended attachments. •... -
Page 8: During Use
Safety Information • Do not work in the rain or when there is a thunderstorm or lightning risk. If there is bad weather conditions, do not use the machine. • Never run over gravel while the motor is running. There is a risk of being hit by stones. •... -
Page 9: Noise
Safety Information • You must remove the battery (making sure that all moving parts are stationary): - After striking a foreign object, you must inspect the machine for damage and make repairs before using it again. - Before checking or working on the machine. - When lifting or transporting the machine. -
Page 10: Power Tool Use And Care
Safety Information Power Tool Use And Care • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. •... -
Page 11: Batteries
Safety Information Battery Use And Care • Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. • Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. -
Page 12: Electrical Safety
Safety Information Electrical Safety (Where Applicable) DANGER! ELECTRICITY CAN KILL – NEVER WORK ON LIVE/ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;... -
Page 13: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. -
Page 14: Getting To Know The Machine

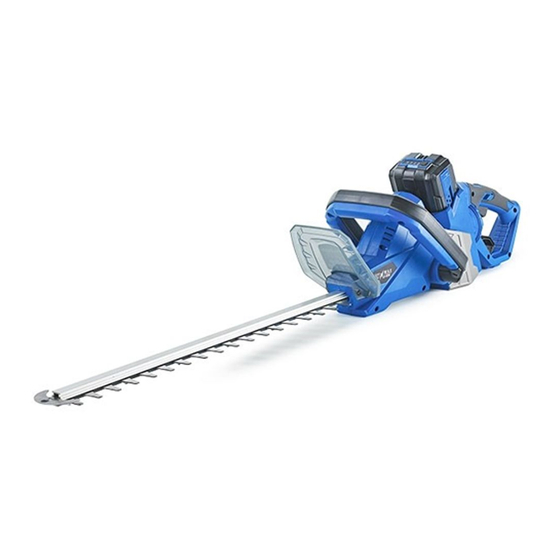

Safety Information Intended Use The HYHT40Li is a battery powered hedge trimmer from HYUNDAI. The HYHT40Li has a cutting length of 520mm and is powered by a 40V 2.5Ah Lithium-ion battery. The hedge trimmer is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly. -
Page 15: Overview Of Parts
Features HYHT40Li Features Protective Guard Battery Cutting Blade... -
Page 16: Unboxing
Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 17: Fitting / Removing Battery
Fitting / Removing Battery Fitting And Removal Of Battery DANGER - To avoid accidental operation and injury, the battery should always be removed whenever you are not using the tool. This is essential when you are making adjustments or maintaining the blade or other moving parts. Use the blade cover when you are storing or transporting the tool to avoid injury and damage. -
Page 18: Starting / Stopping
Starting / Stopping This trimmer is equipped with a dual switch safety feature. The saw will not operate unless both the front handle switch and the rear handle switch are engaged. NEVER attempt to interfere with this safety feature by taping or clamping the switches. Starting 1. -
Page 19: Rotating Handle Feature
Rotating Handle Feature Rotating The Handle 1. Hold the trimmer with both hands, one hand on the front handle, the other on the rear handle. Use your thumb to pull the Handle Rotation lock button back and rotate the handle. The handle will lock in three positions, centre, left 90°and right 90°. -
Page 20: Using The Hedge Trimmer
Using The Hedge Trimmer • Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace. • Do not try to cut stems or twigs that are larger than 15mm thick, or those obviously too large to feed into the cutting blade. -
Page 21: Battery
Battery Checking Charge Status The unit has an LED state of charge indicator on the handlebar. 4 LED lights lit = 100% battery power 3 LED lights lit = 75% battery power 2 LED lights lit = 50% battery power 1 LED light lit = 25% battery power Charging The Battery 1. -
Page 22: Specifications
Technical Data Specifications Model HYHT40Li Rated Voltage 40V DC No Load Speed 1350rpm Motor Size 350W Blade Length 520mm Cutting Capacity 23mm Measured Sound Power 92dB(A) Guaranteed Sound Power 92dB(A) Vibration Level 2.1m/s2, k=1.5m/s2 Weight 4kg Including Battery... -
Page 23: Maintenance And Care
Maintenance & Care Maintenance Safety WARNING - Remove the battery pack before cleaning or maintaining the tool. Remove the battery pack before transporting or storing the tool. IMPORTANT - Routine and accurate maintenance is essential for maintaining original machine safety and performance levels. WARNING - Before cleaning or doing maintenance work, you need to remove the battery. -
Page 24: Cleaning
Maintenance & Care Cleaning WARNING - Do not use water or liquid detergents. Remove the battery before cleaning. 1. Clean the equipment immediately after use with a damp cloth and some soft, non-abrasive soap. Do not use cleaning agents or harsh solvents; these may damage the plastic parts in the equipment. -
Page 25: Storage
Maintenance & Care Storage 1. Make sure it has been cleaned. See cleaning section. 2. Remove the battery before storing. 3. Store the unit in a dry and frost-free place (10-25 °C) away from sources of ignition and varying changes in temperature. DO NOT store a machine that has not been given time to fully cool down. -
Page 26: Spare Parts
Spare Parts Ordering Spare Parts Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardise the safety of the machine, may cause accidents or injuries for which the manufacturer is under no circumstance liable or responsible. Find the part you are looking for in the drawings. - Page 27 Spare Parts Drawing B Drawing C...
- Page 28 Spare Parts Drawing D...
- Page 29 Spare Parts Drawing A Drawing Number Spare Part Name Part Number HYHT40Li-A1 Left Handle Assy 1308001 HYHT40Li-A2 Screw 1290030 HYHT40Li-A3 Auto Switch 1308003 HYHT40Li-A4 Spring 1308004 HYHT40Li-A5 Spring 1308005 HYHT40Li-A6 Switch Plate 1308006 HYHT40Li-A7 Block 1308007 HYHT40Li-A8 Right Handle Assy...
- Page 30 Spare Parts Drawing C Drawing Number Spare Part Name Part Number HYHT40Li-C1 Motor 1308019 HYHT40Li-C2 Motor Gear 1308020 HYHT40Li-C3 1308021 HYHT40Li-C4 Central Bracket 1308022 HYHT40Li-C5 Bearing 1308023 HYHT40Li-C6 Washer 1308024 HYHT40Li-C7 Washer Assy 1308025 HYHT40Li-C8 Reduction Gear Shaft 1308026 HYHT40Li-C9...
- Page 31 Spare Parts Drawing D Drawing Number Spare Part Name Part Number HYHT40Li-D1 Left Casing 1308041 HYHT40Li-D1-1 Left Decoration cover 1308042 HYHT40Li-D1-2 Screw 1308043 HYHT40Li-D2 Shield 1308044 HYHT40Li-D3 1308045 HYHT40Li-D4 Screw 1308046 HYHT40Li-D5 Spring 1308047 HYHT40Li-D6 Spring 1308048 HYHT40Li-D7 Buckle 1308049...
-
Page 32: Troubleshooting
Troubleshooting Fault Possible Cause Remedy Motor does not start 1. Capacitor defective 1. Contact an authorised 2. Battery pack empty service centre 3. Cable defective 2. Charge the battery pack 4. Switch/plug block defective 3. Check the cable 5. Motor terminals or capacitor 4. -
Page 33: Disposal
Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 34: Our Product Range
Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps... -
Page 35: Declaration Of Conformity
Notified Body for EC Directive 2000/14/EC Intertek, Shanghai Product Details Brand: Hyundai Model: HYTR40Li, HYHT40Li Description: Cordless Grass trimmer and Hedgetrimmer Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. -
Page 36: Notes
Notes... - Page 37 Notes...
-
Page 38: Useful Information
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. -
Page 39: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. - Page 40 Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
