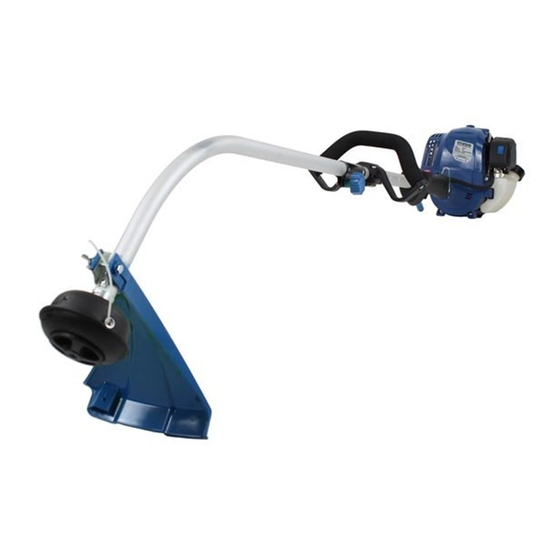

Summary of Contents for Hyundai HY4TR26
- Page 1 PETROL GRASS TRIMMER HY4TR26 User Manual...
-
Page 2: Table Of Contents
INDEX CONTENTS PAGE NO.S SAFETY 3 - 8 PART LOCATIONS ASSEMBLY 10 - 12 PRE OPERATION CHECKS 12 - 13 STARTING PROCEDURE 13 - 14 STOPPING PROCEDURE USING THE MACHINE 14 - 15 MAINTENANCE 16 - 20 TROUBLESHOOTING SPECIFICATION RECYCLING & PRODUCT DISPOSAL DECLARATION OF CONFORMITY CONTACT DETAILS WARRANTY... -
Page 3: Safety
1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user. - Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
- Page 5 1.30 Fueling/De-fueling (where applicable). CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
- Page 6 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.
- Page 7 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced.
- Page 8 1.93 Make sure you keep this manual handy so you may refer to it whenever questions arise and ensure you pass this manual on if the machine is loaned or sold. 1.94 Correct Personal Protective Equipment (PPE) MUST be worn at all times when operating or repairing this machine.
-
Page 9: Part Locations
2. PART LOCATIONS Fuel Filler Cap Primer Bulb Air Filter Spark Plug Exhaust Oil Filler Cap Recoil Starter Handle Cutting Head Cutting Head Shield Drive Shaft Locking Knob Front Handle Rear Handle Harness Hook Choke Button Harness... -
Page 10: Assembly
3. ASSEMBLY WARNING To prevent an accidental start that could cause serious personal injury, always disconnect the engine spark plug HT lead from the spark plug when assembling parts. WARNING Never install, remove or adjust any attachments while power head is running. Failure to stop the engine can cause serious personal injury. - Page 11 To connect the upper and lower shaft, loosed the drive shaft locking knob. Insert the lower shaft into the upper shaft and rotate slowly until the button locks into the positioning hole (the fixing hole is opposite the knob). NOTE if the button does not release completely in to the positioning hole, the shafts are not locked into place.
-
Page 12: Pre Operation Checks
2.17 The harness, with quick-release function, can be installed to the harness hook behind the rear handle. 4. PRE OPERATION CHECKS WARNING This machine is shipped without oil and fuel. You MUST ensure all fluid levels are correct before operation otherwise you may cause serious engine damage that will not be covered by the warranty. -
Page 13: Starting Procedure
WARNING Petrol and its vapours are highly flammable and explosive. To prevent serious personal injury and property damage, handle it with care. Keep away from ignition sources and open flames, handle outdoors only in a well ventilated area. DO NOT smoke and wipe up any spills immediately. ALWAYS shut off the engine and allow to cool BEFORE fueling. -
Page 14: Stopping Procedure
Allow the engine to run for 10 seconds then squeeze the throttle to release the choke in to the RUN position. FROM WARM Place the machine on flat level ground before starting. Turn the ignition switch to the ‘I’ ON position. Ensure the primer bulb has fuel inside. - Page 15 The cutting line should run parallel to the ground surface. The line spool has a bump feed function. The line will be extended by tapping the spool head shortly and lightly onto the ground while the unit is running at high speed. 6.10 Run the engine at high speed.
-
Page 16: Maintenance
8. MAINTENANCE WARNING Before cleaning, inspecting or repairing your unit, you MUST make sure that the engine has stopped and allowed to cool. You MUST disconnect the spark plug HT lead cap to prevent any accidental starting. CAUTION ALWAYS refuel in a well-ventilated area with the engine off and the spark plug HT cap removed. - Page 17 AIR FILTER CAUTION The engine MUST NOT be run without an air filter otherwise piston and/or cylinder damage can occur. This type of damage will NOT be covered under warranty. Maintaining the air filter is very important. If dirt is allowed to get in to the engine through improperly installed, serviced or inadequate filter elements, it can damage and wear out the engine.
- Page 18 The spark plug gap should be 0.6 – 0.8mm. Check the gap using a feeler gauge and adjust as necessary by carefully bending the side electrode to achieve the correct gap. 0.6 – 0.8mm 7.10 Refit the cleaned and adjusted spark plug by hand to avoid cross-threading. 7.11 After spark plug seats then tighten as necessary but avoid over-tightening.
- Page 19 7.16 Fix the 2 line ends at the opening (15cm) to keep the line winded tightly (C). 7.17 Guide the 2 line ends into the holes on the spool housing and refit the spool cover (D). CAUTION ALWAYS use a semi-synthetic 4 stroke SAE 10W30 engine oil and straight unleaded petrol.
- Page 20 7.21 If you do overfill, drain the oil in to a suitable container by pouring excess oil out through the oil filler cap. 7.22 Replace the oil filler cap and tighten securely. TRANSPORT 7.23 For transport, do not overfill the fuel tank. 7.24 If the generator has been used, allow it to cool for at least 15 minutes before loading it in to the transport vehicle.
-
Page 21: Troubleshooting
9. TROUBLESHOOTING CAUTION All corrective actions should be carried out by suitable qualified person/s. Problem Check Status Cause Remedy Fuel filter Clean or replace blocked Fuel at No fuel at Fuel line blocked carburetor carburetor Clean or replace or clogged Carburetor fault Contact dealer No fuel at... -
Page 22: Specification
10. SPECIFICATION Engine Type 4 stroke, Air cooled Engine Displacement 26.5cc Fuel Type Unleaded Petrol Fuel Tank Capacity 280ml Oil Type 4 Stroke Semi-Synthetic SAE 10W30 Oil Capacity 60ml Cutting Diameter 450mm Cutter Head Bump Feed Trimmer Line Diameter 2.5mm Noise Level 104dB Net Weight... -
Page 23: Recycling & Product Disposal
11. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 24: Declaration Of Conformity
12. DECLARATION OF CONFORMITY Genpower Ltd confirms that this Hyundai petrol pressure washer conforms to the following CE directives: 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Noise Emissions Directive 97/68/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by:... -
Page 25: Contact Details
13. CONTACT DETAILS POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. TELEPHONE +44 (0) 1646 687880 +44 (0) 0164 686198 TECHNICAL EMAIL aftersales@genpower.co.uk WEBSITE www.hyundaipowerequipment.co.uk 14. WARRANTY To register your machine for the manufacturer's warranty, please visit https://www.hyundaipowerequipment.co.uk/warranty 15.
