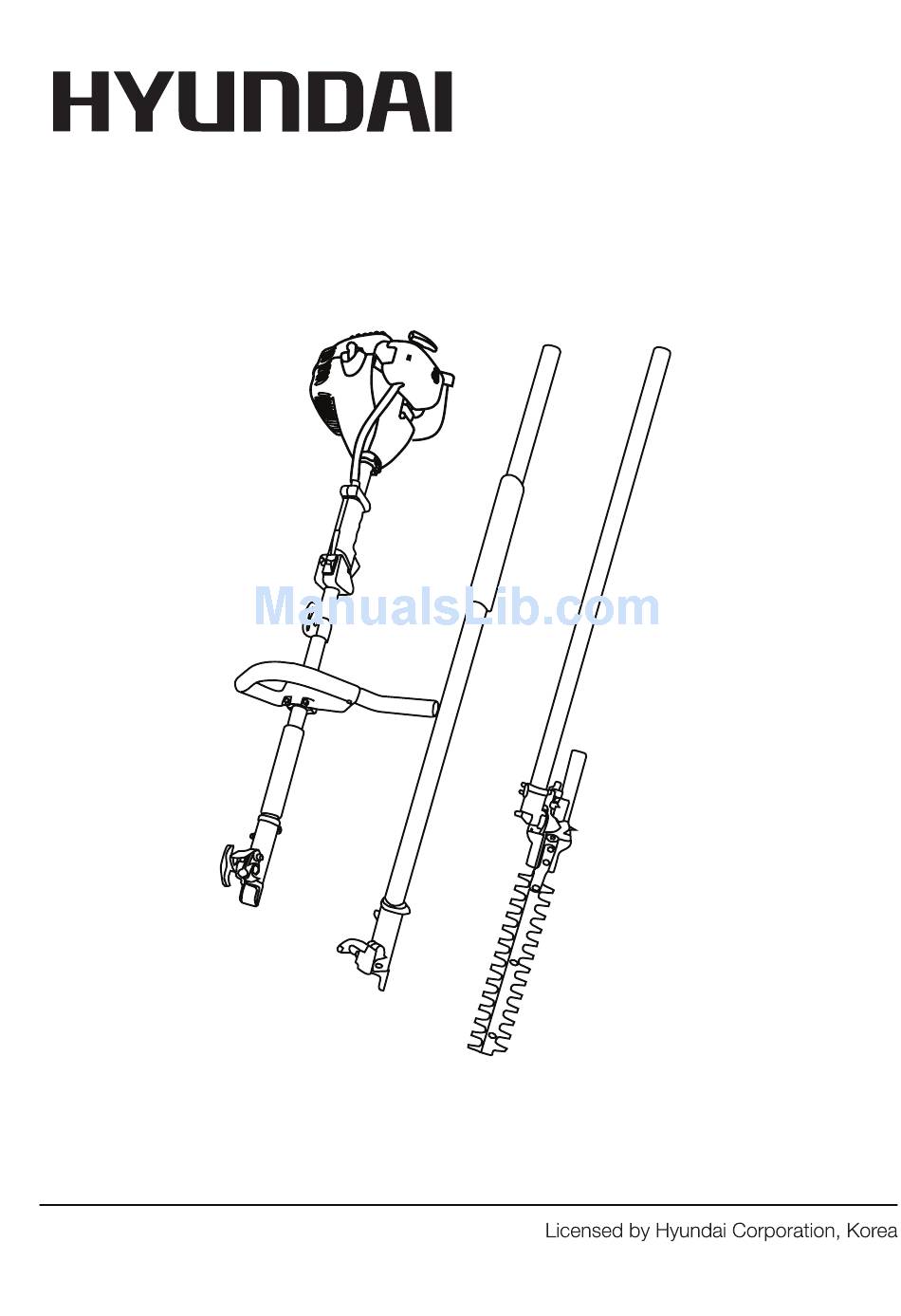

- Page 1 HEDGE TRIMMER Model HYHT33 User Manual...
- Page 2 CONTENTS o’s Page N Section Description I. SAFETY 3 - 5 2. THE UNIT 6 - 7 3. ASSEMBLY & INITIAL OPERATION 4. OPERATION 9 - 10 5. INSPECTION & MAINTENANCE 11 - 12 6 TRANSPORTATION 7. TECHNICAL DATA 8. TROUBLESHOOTING 9.
- Page 3 1. SAFETY. 1.1. The operator of the machine is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points 1.1.2.
- Page 4 1.3. Carbon monoxide. 1.3.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include but not limited to the following; 1.3.2.1.
- Page 5 1.4.7. Dispose of waste fuels correctly. 1.4.8. Petrol safety. 1.4.8.1. Always fuel and defuel in well-ventilated area. 1.4.8.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.4.8.3.
- Page 6 2. MACHINE COMPONENT LOCATIONS 2.1 Power unit. 1. Start handle 2. Air filter 3. Throttle lockout 4. Stop switch 5. Front handle 6. Unit locking screw 7. Throttle lock 8. Throttle trigger 9. Fuel tank 10. Choke lever 11. Primer Bulb 12.
- Page 7 3. ASSEMBLY AND INITIAL OPERATION 3.1 Power unit. 1 Front handle (1) 2. Screw 5mm x 35mm (4) 3. Nut 5mm (4) 4. Cover (1) 5. Front handle bar (1) 6. Screw 4,2mm x 9.5mm (1) 3.1.1 Assemble the front handle as shown in the diagrams. Do not over tighten the screws until you have set the perfect working position with the carrying strap.
- Page 8 4. OPERATION 4.1 Starting the tool. 4.1.1 Start the tool only after the integrated piece has been correctly connected. 4.1.2 Put the operating switch at position “I”. 4.1.3 Put the starting choke lever in position “Start”. 4.1.4 Push the primer bulb 3-5 times. 4.1.5 Push throttle lock and throttle trigger to accelerate.
- Page 9 4.1.8 Now, control the throttle so that the machine runs evenly for it to reach full speed. 4.1.9 As soon as the engine is running smoothly, the choke may be returned to its normal position. 4.2 Spark plug check or replacement. 4.2.1 Pull the spark plug cover off, unscrew the plug using the plug wrench and replace it.
- Page 10 5.2.3 Never repair cutting attachments this may result in serious injury. 5.2.4 Never attempt maintenance that is not outlined in this manual. All repair work must be carried out by a Hyundai Authorised Service Centre. 5.2.5 Refer to the following table for routine maintenance.
- Page 11 5.2 Continued - Maintenance chart. 6. TRANSPORTATION AND STORAGE 6.1 When transporting the machine take the following actions: 6.1.1 Stop the machine and drain the fuel tank before transporting. 6.1.2 If transporting in a vehicle secure the machine to prevent damage whilst the vehicle is in motion.
- Page 12 7. SPECIFICATION Page 12 Rev 3...
- Page 13 8. TROUBLSHOOTING Page 13 Rev 3...
- Page 14 9. DECLARATION OF CONFORMITY Genpower Ltd confirms that this Hyundai product conforms to the following CE directives: 2006/42/EC Machinery directive 2004/108/EC EMC directive 2000/14/EC Noise emissions directive 97/68/EC NRMM Emissions directive Page 14 Rev 3...
- Page 15 Page 15 Rev 3...
- Page 16 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
