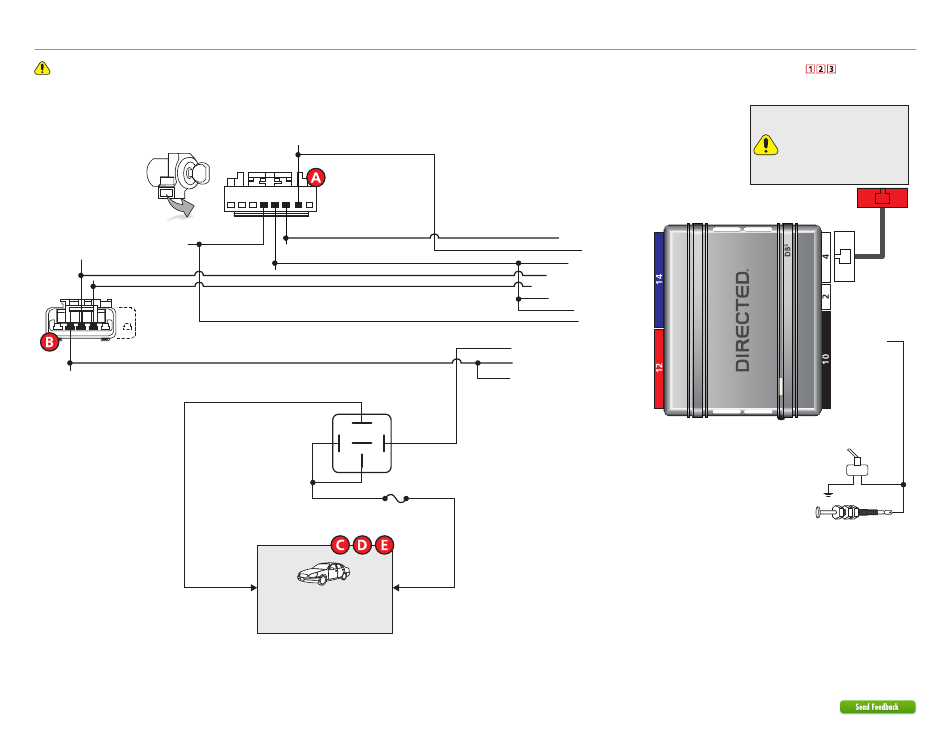

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
(-) Ground: Black or
Black/striped, pin 4
(+) Ignition: Pink/White
or Pink/Green, pin 3
(+) Start: Pin 4
1
(MUX) Ignition:
Violet/Brown, pin 2
Ignition Switch
(black 5 or 6-pin conn.)
(+) Parking light
6 403.CHRYSLER 7.26 2007 Chrysler 300/300c
©2021 VOXX•DEI LLC. All rights reserved.
CAN B Low: White, pin 7
Sentry Key Module
(black 8-pin conn.,
1 8
connector side view)
CAN B High: White/Orange, pin 6
(+) 12V: Red or
Red/Striped, pin 5
87
87a
86 85
30
Fuse 15A
Refer to the
"Vehicle connections" section
for wire and connector details.
HS CAN High: Tan/Black: 3
(+) 12V Input: Brown: 7
(+) Ignition Output: Yellow: 8
(+) Starter Output: Yellow/Red: 11
(+) 12V Input: Brown/Red: 12
(+) 12V Input: Red: 13
(-) Ground: Black: 14
(-) Parking Light Output: Green/Black: 2
(MUX) Ignition Output: Violet/Green: 8
(MUX) Ignition Output: Violet/Brown: 9
(+) 12V
(+) 12V Input
HS CAN Low: Tan: 4
).
You can connect to either a
XL202 RFTD OR a SmartStart
module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
6: White/Black:
(-) Hood Input
Remote Start Safety
Override Switch
Hood Pin
Note: hood pin only
required on vehicles not
equipped with a factory
hood pin.
