Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

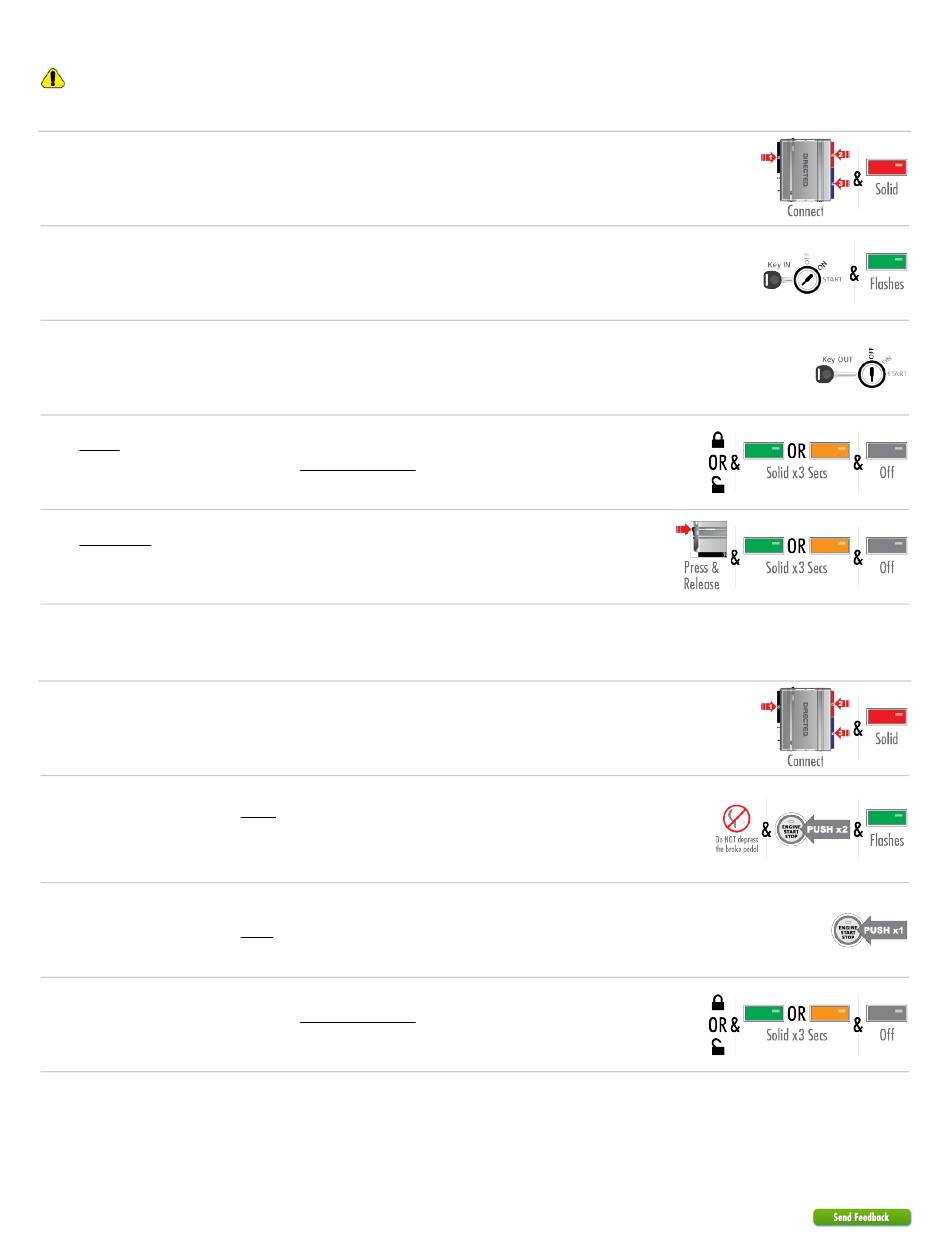

Key-type vehicles

Connect the 10-pin, 12-pin and 14-pin harnesses to DB3, then wait until the LED turns
1
ON solid red.
Insert the key into the ignition barrel and turn it to the ON position. It is important to
wait for the LED to start flashing green.
2
Note: Refer to the LED Diagnostics section for troubleshooting if the LED does not flash
green within 15 seconds.
3
Turn the key to the OFF position and remove it from the ignition barrel.
WITH factory keyless, proceed with and end with step 4, otherwise skip to step 5:
4
Press LOCK or UNLOCK on the factory transmitter. The LED turns ON solid green OR
orange for 3 seconds and then turns off.
WITHOUT factory keyless:
5
Press and release the programming button. The LED turns ON solid green OR orange
for 3 seconds, and then turns OFF.
You have successfully completed the module programming sequence.
Push-to-Start (PTS) vehicles
Connect the 10-pin, 12-pin and 14-pin harnesses to DB3, then wait until the LED turns
1
ON solid red.
Important! Do NOT depress the brake pedal.
Press on the PTS button twice to turn the ignition ON. It is important to wait for the LED
2
to start flashing green.
Note: Refer to the LED Diagnostics section for troubleshooting if the LED does not flash
green within 15 seconds.
3
Press on the PTS button once more to turn the ignition OFF.
Press LOCK or UNLOCK on the factory transmitter. The LED turns ON solid green OR
4
orange for 3 seconds and then turns off.
You have successfully completed the module programming sequence.
