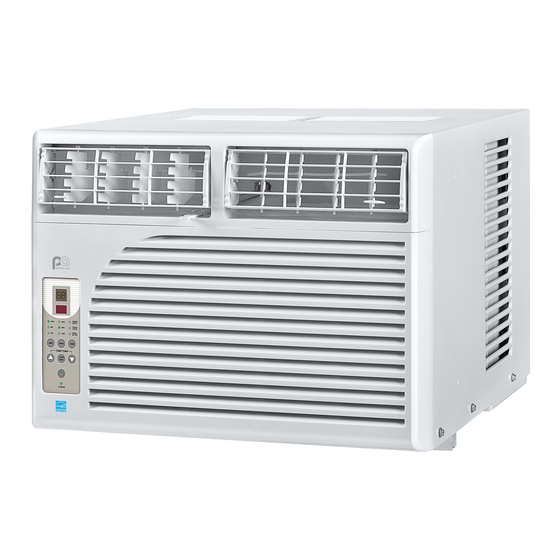

- Page 1 WINDOW AIR CONDITIONER USER MANUAL FOR MODELS: 1PEC8000 1PEC10000 Before using your air conditioner, please read this manual carefully and keep it for future reference, along with your receipt.
- Page 2 CONSUMER PRODUCT INFORMATION For your own records, please attach a copy of your sales receipt to this manual and complete the following: Model Number: _____________________________________ Serial Number: _______________________________________ Purchase Date: ____________________________________ Store Purchased: _____________________________________ Installation Date: ___________________________________ Installation Co.: _______________________________________ Installer Name: _____________________________________ Installer Phone No.: ___________________________________...
-
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..............1 IMPORTANT SAFETY INSTRUCTIONS ...........3 PARTS DIAGRAM ................4 BEFORE INSTALLING ...............5 INSTALLATION ..................6 CONTROL PANEL ................8 REMOTE CONTROL .................9 CARE & CLEANING ................10 TROUBLESHOOTING ...............11 This manual provides the information needed for proper use and mainte- nance of this air conditioner. Basic preventative care can help extend the life of this unit. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE DEATH OR SERIOUS INJURY. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE MODERATE INJURY TO YOUR PERSON, OR DAMAGE TO YOUR UNIT OR OTHER PROPERTY. - Page 5 CAUTIONS When removing air filter, DO NOT touch metal parts of Doing so may cause an injury. the unit. DO NOT clean with water. Water may enter the unit and degrade the insulation, causing an electric shock. Ensure proper ventilation, especially in rooms with a Failure to do so may result in an oxygen shortage. ...
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS NOTE : WARNING FOR YOUR SAFETY: Do not store or use gasoline or other flammable The power supply cord with this air vapors and liquids in the vicinity of this or any other appliances. conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section WARNING - PREVENT ACCIDENTS “Operation of Current Device” (below) for details. In the event that the power To reduce the risk of fire, electrical shock, or injury to persons when using supply cord is damaged, it cannot be your air conditioner, follow basic precautions, including the following: repaired. -
Page 7: Parts Diagram
PARTS DIAGRAM 1. CABINET 2. TOP RAIL 3. SLIDING ACCORDION PANEL (L/R) 4. UP/DOWN LOUVER ADJUSTMENT: Hold the up/down air flap and manually move it upward or downward to your desired position. 5. LEFT/RIGHT LOUVER ADJUSTMENT: Carefully push the air direction control tab left or right to adjust the horizontal air direction. 6. CONTROL PANEL 7. -
Page 8: Installation
INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN CAUTION Read these instructions completely and carefully. DO NOT, under any circumstances, cut or remove the third (ground) prong from the power cord. IMPORTANT- Save these instructions. DO NOT change the plug on the power cord of the air IMPORTANT- Observe all governing codes conditioner. - Page 9 STEP 1: TOP RAIL Higher Side • Remove the air conditioner and top rail from the carton. Place them on a flat surface. • Align the holes in the top rail with those on the top of the unit. • Secure the top rail to the unit with four of the 3/8 inch short screws (A) as shown in diagram to the right. • NOTE: Higher side of the top rail should be facing the inside of the room. 4x Small STEP 2: Screws (A) (3/8 in.) ACCORDION PANEL...
- Page 10 STEP 3: Measure from the cabinet edge INSTALL THE AIR CONDITIONER IN THE WINDOW H: Approx. 3/4ʺ to 1ʺ for • Carefully lift air conditioner and place the unit 5,000–8,000 BTU units INSIDE into the window opening so the bottom of the air H: Approx.
-
Page 11: Control Panel
CONTROL PANEL 1. POWER Button Press to turn the unit ON/OFF. 2. TEMP/TIME Buttons Press to adjust the temperature and set the time for the ON or OFF timer. Press both the at the same time to switch between °C and °F. 3. MODE Button Press to select COOL, DRY, FAN or ENERGY SAVER. 4. SPEED Button Press to select HIGH, MED, or LOW fan speed. 5. TIMER Button Press to set the timer ON/OFF. 6. DIGITAL DISPLAY • In FAN and DRY mode, this displays room temperature. • In COOL mode, this displays the set temperature. -
Page 12: Remote Control
REMOTE CONTROL 1. ON/OFF Button Press to turn the unit ON/OFF. 2. ENERGY SAVER Press this button to operate the unit in Energy Saver mode. (See pg. 8 for more information.). 3. FAN Button Press this button to operate the unit in FAN mode. 4. DRY Button Press this button to operate the unit in DRY mode. -
Page 13: Care & Cleaning
CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. NOTE: If the air filter screen is blocked by dust, the performance of the unit will be affected, the unit will be louder than normal, and power consumption will increase. Therefore, periodic cleaning of the air filter screen is necessary. CLEANING THE AIR FILTER The air filter should be cleaned throughout the operational season. It is recommended that the air filter screen be cleaned once every two weeks using the method below: 1. Remove the air filter screen • Gently hold and press the two lower ends of the front grille and open the grille. • Gently grab the air filter screen and lift it up; then take it out by pulling it toward you. 2. -
Page 14: Troubleshooting
TROUBLESHOOTING BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. • Allow enough time for room to cool, especially if outside temp is very high. • Check that the filter is not dirty and louvers are open all the way and blowing in the desired direction. AIR CONDITIONER NOT • Check that unit is set to COOL mode and that temperature is down enough (but COOLING ROOM, OR NOT BLOWING not too low). - Page 15 BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES FOG IS BLOWN OUT DURING • When the indoor temperature and humidity is high, this may occur. When the THE COOLING OPERATION indoor temperature and humidity drops, the fog will disappear. • This may be the smell of something inside the air conditioner. • Check the outside of the unit to make sure there is nothing around that would THERE IS AN ODD SMELL produce a smell. • Clean the filter.
- Page 16 Distributed by: Perfect Aire, LLC 5401 Dansher Rd. Countryside, IL 60525 844-4PA-AIRE | 844-472-2473 www.perfectaire.us PA/User_1PEC8000_1PEC10000/11212017 Specification and performance data is subject to change without notice. Printed in China...
