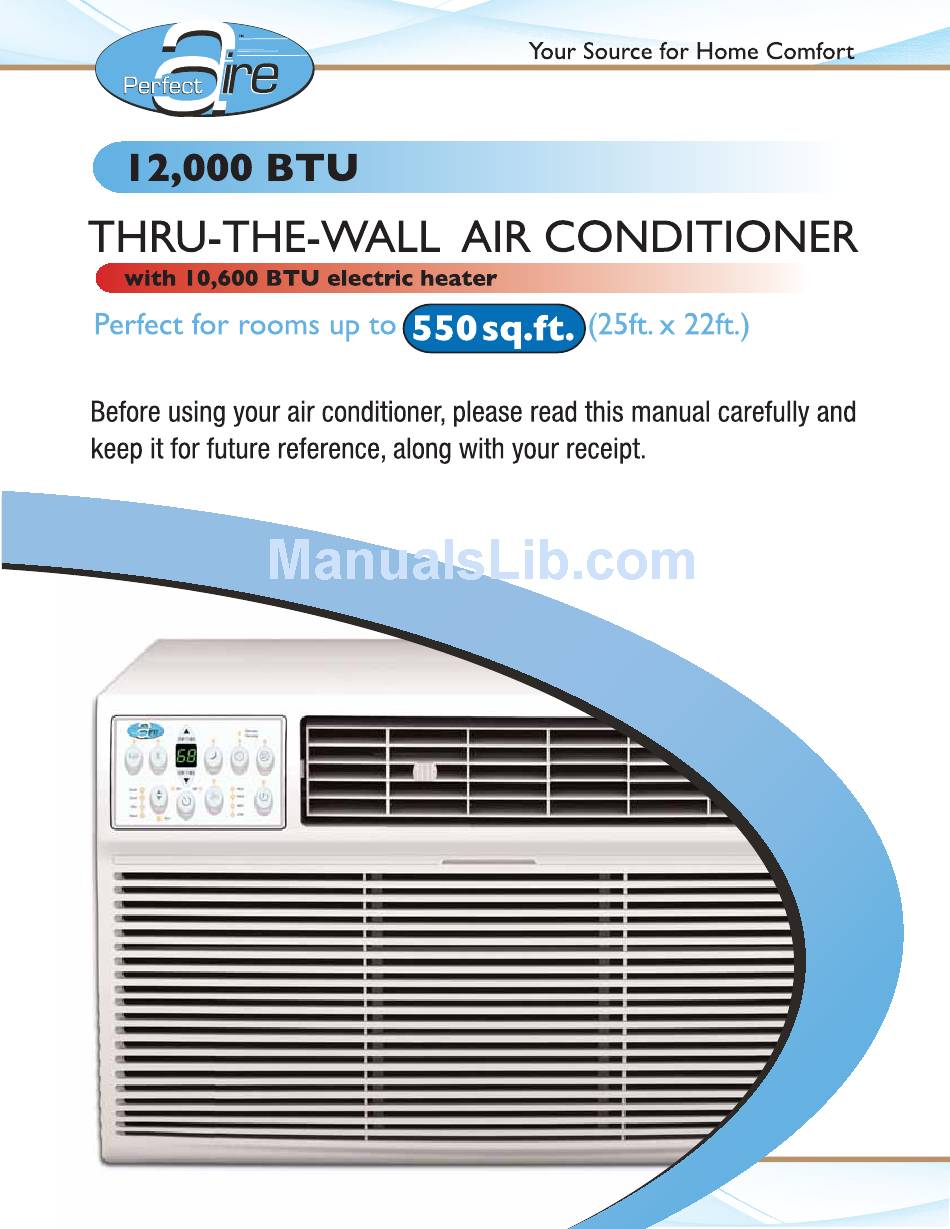

12.000 btu thru-the-wall air conditioner with 10.600 btu electric heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12.000 BTU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perfect Aire 12.000 BTU

Summary of Contents for Perfect Aire 12.000 BTU

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. NORMAL SOUNDS ................5 4. AIR CONDITIONER FEATURES ............5 5. INSTALLATION INSTRUCTIONS............9 6. CARE AND CLEANING ..............22 7. TROUBLESHOOTING TIPS...............23 ead This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly.

  • Page 3: Safety Precautions

    Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
  • Page 4 ! CAUTION When the air filter is to be Do not clean the air Ventilate the room well when removed, do not touch the conditioner with water. used together with a stove, etc. metal parts of the unit. It may cause an injury. Water may enter the unit and An oxygen shortage may occur.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS For your safety WARNING NOTE The power supply cord with Do not store or use gasoline or other flammable vapors and liquids in this air conditioner contains a current the vicinity of this or any other appliance. detection device designed to reduce Avoid fire hazard or electric shock.

  • Page 6: Normal Sounds

    NORMAL SOUNDS Vibration High Pitched Chatter Unit may vibrate and make noise High efficiency compressors because of poor wall or window may have a high pitched chatter construction or incorrect installation. during the cooling cycle. Sound of Rushing Air At the front of the unit, you may Pinging or Switching hear the sound of rushing air being moved by the fan...
  • Page 7 AIR CONDITIONER FEATURES(CONTINUED) NOTE: The following instructions represent the Unit Controls, the same instructions can be used for the Remote Control. TO TURN UNIT ON: TEMP/TIMER Check Sleep Filter DO THIS: TEMP/TIMER Press the On/Off button. Auto On/off Timer High TO CHANGE TEMPERATURE SETTING: NOTE:...
  • Page 8 AIR CONDITIONER FEATURES(CONTINUED) NOTE: TO SELECT THE To choose operating mode, press the Mode button. OPERATING MODE: Each time you press the button, a mode is selected in a sequence that goes from Auto, Cool,Heat, Dry , and Fan. The indicator light beside will be illuminated and remain on once the mode is selected.
  • Page 9 AIR CONDITIONER FEATURES(CONTINUED) TIMER: AUTO START/ NOTE: STOP FEATURE: - When the unit is on or off, first press the Timer button, the TIMER ON indicator light illuminates. It indicates the Auto Start program is initiated. TEMP/TIMER - When the time of TIMER ON is displayed ,press the Timer button again, the TIMER OFF indicator light illuminates.

  • Page 10: Installation Instructions

    ADDITIONAL THINGS YOU SHOULD KNOW Now that you have mastered the operating procedures, here are more features in your control that you should become familiar with. The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.

  • Page 11: How To Install

    INSTALLATION INSTRUCTIONS(CONTINUED) How to Install 1. Identify the wall-sleeve brand for your installation, from the chart below. Brand Wall Sleeve Dimensions (inches) Width Height Depth White-Westinghouse 16,17 or 22 Frigidaire Carrier General Electric/Hotpoint Whirlpool or 23 Fedders/Emerson or 19 Sears/Kenmore Carrier Emerson/Fedders Friedrich...
  • Page 12 This units increased performance characteristics means that; 1. The rear air intake moved to the opposite side, 2. The depth had to be increased. It is very important that these installation instructions are followed so your unit can operate at maximum efficiency.
  • Page 13 Wall Sleeve Brands: #1 Emerson 15 Deep 1. Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.
  • Page 14 Wall Sleeve Brands: 3 4 / #2 Fedders Deep Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.
  • Page 15 Wall Sleeve Brands: 3 4 / #3 Fedders or Friedrich Deep 1.Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.
  • Page 16 Wall Sleeve Brands: 7 8 / #4 General Electra/Hotpoint 16 Deep 1. Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.
  • Page 17 Wall Sleeve Brands: #5 Sears or Carrier 51S Series 5 8 / ( 18 Deep) 1. Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.
  • Page 18 Wall Sleeve Brands: 1 8 / #6 Whirlpool Deep 1. Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.
  • Page 19 Wall Sleeve Brands: #7 Whirlpool ( 23 Deep) 1. Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.
  • Page 20 Wall Sleeve Brands: #8 White Westinghouse/Frigidaire/ Carrier 52F Series ( 16 +17 Deep) 1.Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.
  • Page 21 #9 White Westinghouse or Frigidaire Wall Sleeve Brands: ( 23 Deep) Remove existing rear grill as shown on Page 11 of this manual and replace with provided louvered rear panel. Install as shown here. NOTE: You may need to drill holes in flange of existing sleeve to match new rear grill.

  • Page 22: Direct Unit Mounting

    Direct Unit Mounting: The previous directions are the preferable way to mount the new rear grill. The units performance is slightly better and the possibility of drafts is reduced. As a last resort, direct mounting of the grill to the unit can be considered. Note: The grill must be installed prior to inserting the unit into the sleeve.

  • Page 23: Finishing Installation

    FINISHING INSTALLATION: 1. Install the 1 x1 x84 long stuffer-seal between the wall-sleeve and the unit. A flat-bladed screwdriver or putty knife is recommended. 2. Assemble the trim frame by inserting top and bottom pieces into side pieces and snapping into place.

  • Page 24: Care And Cleaning

    CARE AND CLEANING CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be cleaned every two weeks or as necessary.

  • Page 25: Troubleshooting Tips

    TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Solution Wall plug disconnected. Push plug firmly into direct wall outlet. Air conditioner does not start House fuse blown or circuit breaker tripped.
  • Page 26 Problem Solution Unit removing large quantity of moisture from humid room. This is normal during Water dripping excessively humid days. OUTSIDE when unit is cooling. Remote control not located within range. Place remote control within 20 feet & 180 Remote Sensing radius of the front of the unit.
