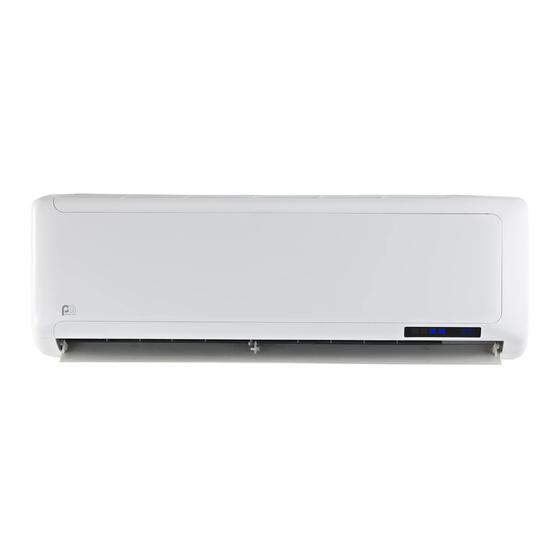

SINGLE-ZONE
DUCTLESS MINI-SPLIT SYSTEM
HYPER HEAT / HIGH EFFICIENCY
USER MANUAL
1PAMSHH09-25
1PAMSHH12-22.5
1PAMSHH18-22.5
1PAMSHH24-20.5
Before using your air
conditioner please read
this manual carefully
and keep it for future
reference, along with
your receipt.
Advertisement
Related Manuals for Perfect Aire 1PAMSHH09-25
Summary of Contents for Perfect Aire 1PAMSHH09-25

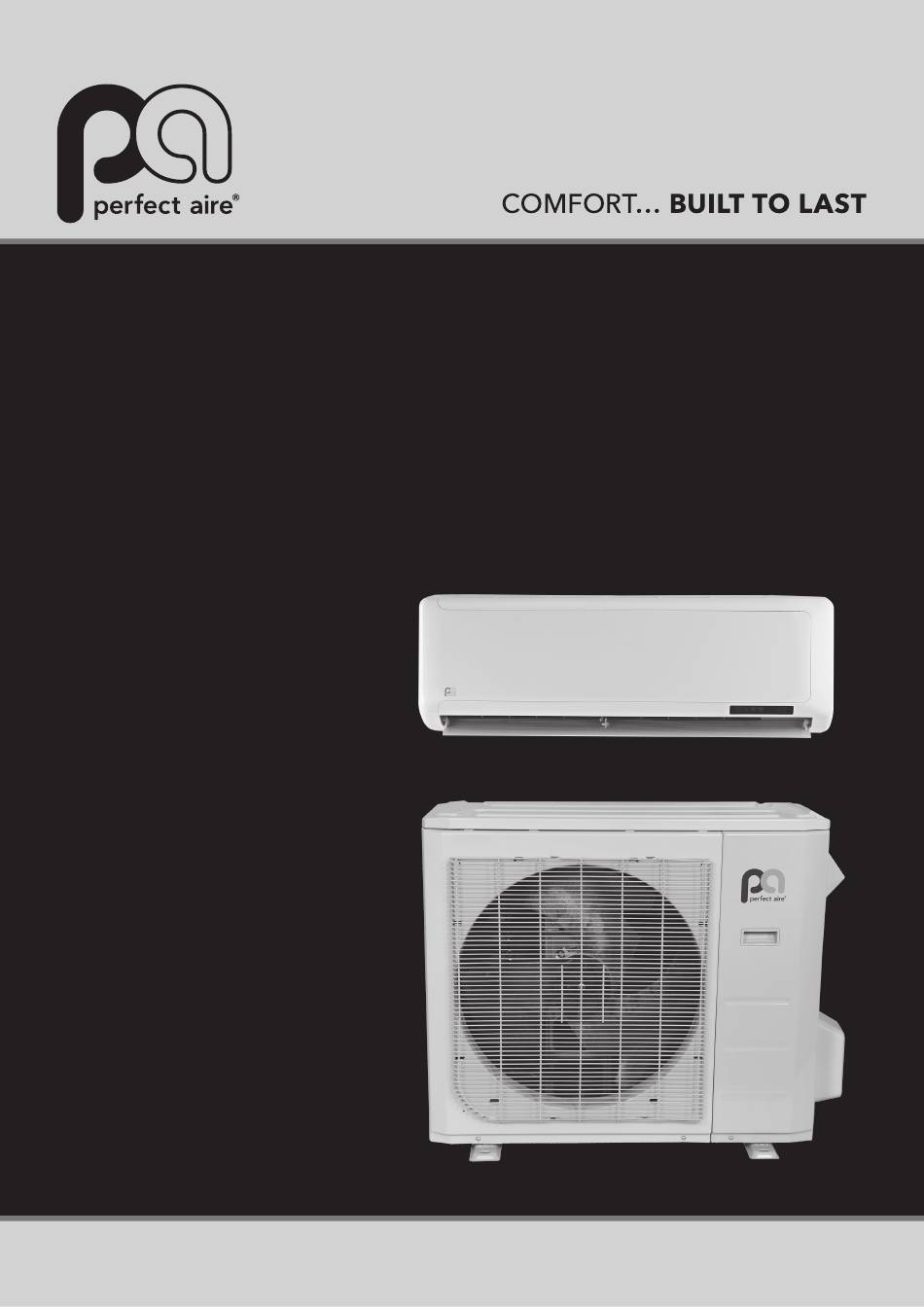

- Page 1 SINGLE-ZONE DUCTLESS MINI-SPLIT SYSTEM HYPER HEAT / HIGH EFFICIENCY USER MANUAL 1PAMSHH09-25 1PAMSHH12-22.5 1PAMSHH18-22.5 1PAMSHH24-20.5 Before using your air conditioner please read this manual carefully and keep it for future reference, along with your receipt.
- Page 2 Table of Contents Owner’s Manual Safety Precautions ............04 Unit Specifications and Features ......06 SAFETY FIRST Manual Operation (Without Remote) ....11...
- Page 3 Care and Maintenance .............12 Troubleshooting ..............14...
- Page 4 Safety Precautions Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. This symbol indicates that ignoring instructions may cause death or serious injury.
- Page 5 ELECTRICAL WARNINGS Only use the specified electrical and communication cable. If the electrical and • communication cable is damaged, it must be replaced by a certified service technician. ON CERTAIN MODELS, keep power plug clean. Remove any dust or grime that accumulates on •...
- Page 6 Unit Specifications and Features Unit Parts Front Panel Power and Communication Cable (Some Units ) Louver Remote Control Functional Filter (On Front of Main Filter - Some Units) Remote Control Holder (Some Units) Display window Signal receiver “ ” when FRESH feature is turned on(some units). “...
- Page 7 Achieving Optimal Performance Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following temperature ranges. When your air conditioner is used outside of these ranges, certain safety protection features will activate and cause the unit to perform less than optimally. Inverter Split Type FOR OUTDOOR UNITS COOL mode...
- Page 8 Wireless Control (some units) • For a detailed explanation of each function, Wireless control allows you to control refer to the Remote Control Manual. your air conditioner using your mobile phone and a Wireless connection. For the USB device access, replacement, Other Features maintenance operations must be carried Auto-Restart...
- Page 9 Setting Angle of Air Flow • Setting vertical angle of air flow While the unit is on, use the SWING/DIRECT button to set the direction (vertical angle) of airflow. Press the SWING/DIRECT button once to activate the louver. Each time you press the button, it will adjust the louver by 6°.
- Page 10 Sleep Operation • The SLEEP function is used to decrease energy use while you sleep (and don’t need the same temperature settings to stay comfortable). This function can only be activated via remote control. Press the SLEEP button when you are ready to go to sleep.
- Page 11 Manual Operation (Without Remote) How to operate your unit without CAUTION the remote control The manual button is intended for testing In the event that your remote control fails to purposes and emergency operation only. Please work, your unit can be operated manually with do not use this function unless the remote is the MANUAL CONTROL button located on lost and it is absolutely necessary.
- Page 12 Care and Maintenance Cleaning Your Indoor Unit When dry, re-clip the air freshening filter to the larger filter, then slide it back into the BEFORE CLEANING OR indoor unit. MAINTENANCE Close the front panel of the indoor unit. ALWAYS TURN OFF YOUR AIR CONDITIONER SYSTEM AND DISCONNECT ITS POWER SUPPLY BEFORE CLEANING OR MAINTENANCE.
- Page 13 Maintenance – CAUTION Long Periods of Non-Use Before changing the filter or cleaning, • If you plan not to use your air conditioner for an turn off the unit and disconnect its power extended period of time, do the following: supply.
- Page 14 Troubleshooting SAFETY PRECAUTIONS If ANY of the following conditions occurs, turn off your unit immediately! The electrical and communication wires are damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •...
- Page 15 Issue Possible Causes A rushing air sound may occur when the louver resets its position. The indoor unit makes noises A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts.
- Page 16 Troubleshooting When troubles occur, please check the following points before contacting a repair company. Problem Possible Causes Solution Temperature setting may be higher than ambient Lower the temperature setting room temperature The heat exchanger on the indoor or outdoor unit is Clean the affected heat exchanger dirty Remove the filter and clean it...
- Page 17 Problem Possible Causes Solution Wait for the power to be Power failure restored The power is turned off Turn on the power The fuse is burned out Replace the fuse The unit is not working Remote control batteries Replace batteries are dead The unit’s 3-minute pro- Wait three minutes after...
- Page 19 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. CS369U-11M 16122000002414 20160918...
- Page 20 Distributed by: f r e e r i 5401 Dansher Rd. Countryside, IL 60525 844-472-2473 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in China PA/Manual_HHUser/02022018...
