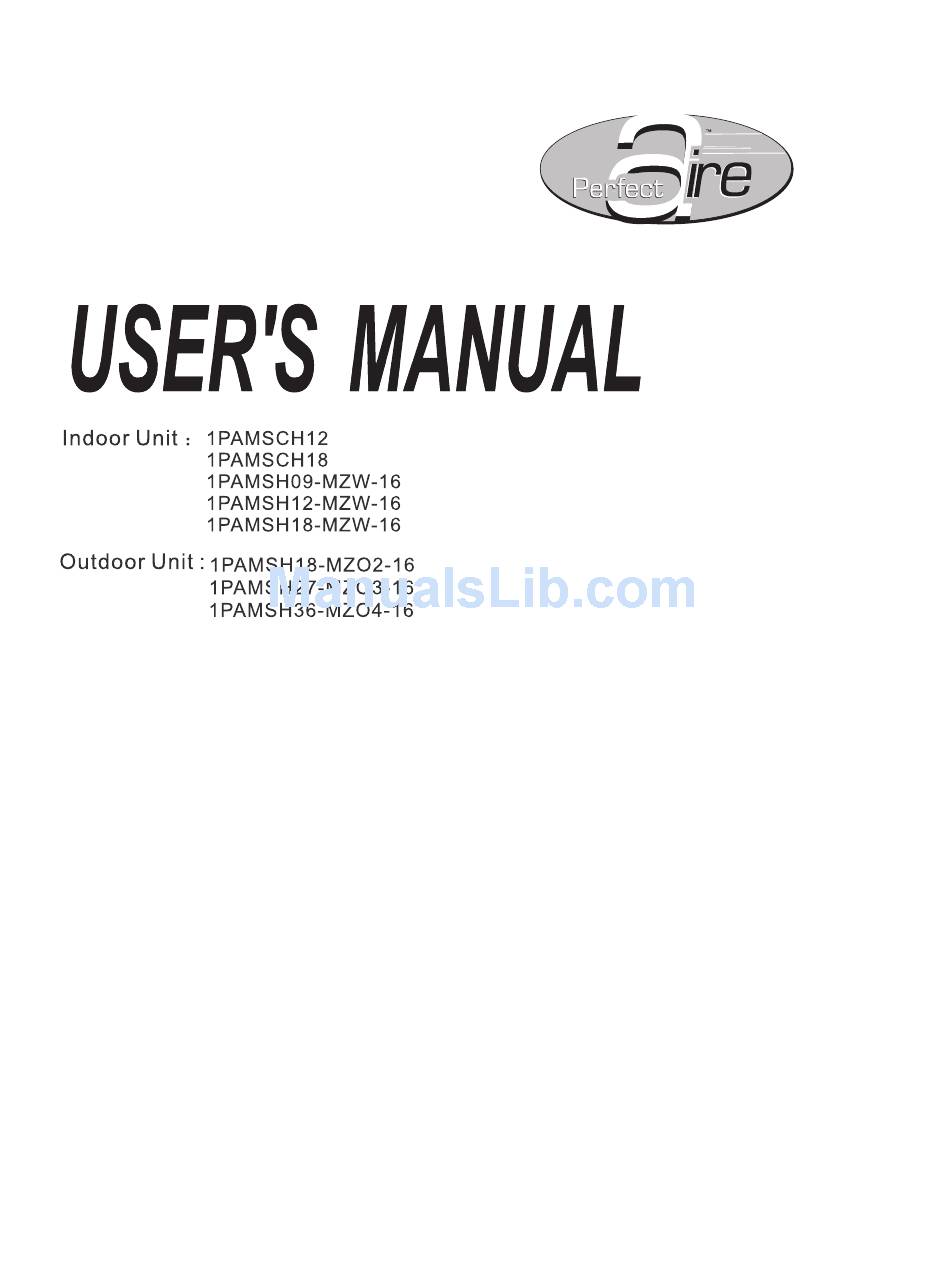

Before using this air conditioner, please read this manual carefully and keep it for future reference along with your receipt. INVERTER DUAL/TRI/QUAD MULTI-ZONE AIR CONDITIONER ead This Manual This manual provides the information needed for proper use and maintenance of this air conditioner. Basic preventive care can help extend the life of this unit. -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS Warning ............................2 Caution ............................3 OPERATING INSTRUCTIONS Identification of parts.........................4 Operating temperature........................17 Manual operation..........................17 Airflow direction control ........................18 How the air conditioner works ......................20 CARE AND MAINTENANCE Care and maintenance ........................22 OPERATION TIPS Operation tips ..........................28 TROUBLESHOOTING TIPS Troubleshooting tips ........................30 CAUTION Contact an authorized service technician for repair or maintenance of this unit. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. - Page 4 SAFETY PRECAUTIONS CAUTION When the air filter is to be Do not clean the indoor unit Ensure proper ventilation, with water. Use only soft especially in rooms with removed, do not touch the a stove or other appliance. cloth or slightly damp cloth. metal parts of the unit.
-
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Identification of parts Indoor unit Indoor unit 1. Panel frame 2. Rear air intake grill four 3. Front panel 4. Air Purifying filter & Air filter (behind) 5. Horizontal louver 6. LCD display window 7. Vertical louver three 8. - Page 6 OPERATING INSTRUCTIONS OPERATION display Display window Displayed when the air conditioner is in NOTE: The display window on the air operation. conditioner you purchased may look like of the following: AUTO operation display Displayed during Auto operation. DEFROST operation display (For Heating &...
-
Page 7: Indoor Unit
OPERATING INSTRUCTIONS Identification of parts Indoor unit Compact four-way cassette type Indoor unit 1. Air flow louver (at air outlet) 2. Drain pump (drain water from indoor unit) 3. Drain pipe 4. Air outlet 5. Air filter (inside air-in grill) 6. -
Page 8: Operating Temperature
OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Control Operations, see the <<Remote Control I nstruction>> packed with the unit for details. Operating temperature Mode Cooling operation Heating operation Drying operation Temperature Room temperature >62ºF (17ºC) 86ºF (30ºC) > 62ºF (17ºC) 32ºF~122ºF (0ºC~50ºC) -
Page 9: Airflow Direction Control
OPERATING INSTRUCTIONS Airflow direction control Adjust the air flow direction properly otherwise it might cause discomfort or cause uneven room temperatures. Adjust the horizontal/vertical louver using the remote control. For some models, the vertical louver can only be adjusted manually. To set the horizontal/vertical air flow direction Range Perform this function while the unit is in operation. - Page 10 OPERATING INSTRUCTIONS Duct-Ceiling Type The following is how to adjust the air flow direction when the air outlet parts (sold separately) are used with the indoor unit. Cooling Heating To effectively cool the whole room, please To effectively heat the bottom of the room adjust the louver horizontally.
-
Page 11: How The Air Conditioner Works
OPERATING INSTRUCTIONS How the air conditioner works AUTO operation When setting the air conditioner in “AUTO” mode, SLEEP operation it will automatically select cooling, heating (cooling /heating models only), or fan only operation depending on what temperature is selected 2ºF and the room temperature. - Page 12 OPERATING INSTRUCTIONS Operation mode selection While simultaneously operating two indoor units or more, make sure the operation modes will not conflict with each other. The heat mode claims precedence over all other modes. If the unit intially started operates under heat mode, the other units can operate under heat mode only. For example: If the unit intially started operates under cool (or fan) mode, the other units can operate under any mode except heat.
-
Page 13: Care And Maintenance
CARE AND MAINTENANCE Care and maintenance Cleaning the Grill, Case and Remote Control Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. NOTE: Supply power must be disconnectd before cleaning the indoor unit. - Page 14 CARE AND MAINTENANCE 4. Remove the Air Freshening Filter (Optional filter): Plasma Dust collector/Silver Ion filter/Bio filter/ Vitamin C filter) from its support frame. (The installation and removing method of the air freshening filter is different depending on the models, see the pictures marked on the left.) Clean the air freshening filter at least once a month,...
-
Page 15: Cassette Type
CARE AND MAINTENANCE CASSETTE TYPE 1. Open the air-in grill Push the grill switches towards the middle simultaneously as indicated in Fig. A. Then pull down the air-in grill. Cautions: The control box cables, which are originally connected with the main body electrical terminals must be pulled off before doing as indicated above. -
Page 16: Ceiling And Floor Type
CARE AND MAINTENANCE CEILING AND FLOOR TYPE For <36000Btu/h models 1. Open the air intake (see Fig.E1). 2. Take out the air filter (see Fig.E2). Air Inlet 3. Clean the air cleaning filter with water or vacuum cleaner, then dry it in a cool place. 4. - Page 17 CARE AND MAINTENANCE 2. Remove the air filter Press the claws on the right and left of the air filter down slightly, then pull upward. (Refer to Fig. F3) 3. Take off the special function filter Hold the tabs of the frame, and remove the claws in 4 places.
- Page 18 CARE AND MAINTENANCE DUCT/CEILING TYPE 1. For the unit that is a rear ventilated panel, please remove the screws (2 pieces) fixed on the filter and take down the filter away from the unit. See Fig.G1. 2. For the unit that is a descensional ventilated panel, please push the filter up slightly to let the position retainer move away from the flange fixed holes, and take off the filter according to the arrow direction shown in...
-
Page 19: Operation Tips
OPERATION TIPS Maintenance If you plan to idle the unit for a long time, perform the following: 1. Clean the indoor unit and air filter. 2. Select “FAN” only mode, let the indoor fan run for a few hours to dry the inside of the unit. 3. - Page 20 OPERATION TIPS 4. Dust is blown out from the indoor unit. This is a normal condition when the air conditioner has not been used for a long time or during first use of the unit. 5. A peculiar smell comes out from the indoor unit. This is caused by the indoor unit giving off smells permeated from building material, from furniture, or smoke.
-
Page 21: Troubleshooting Tips
TROUBLESHOOTING TIPS Stop the air conditioner immediately if one of the following faults occur. Disconnect the power and contact the nearest authorized customer service center. If the E( 0,1..) or P( 0, 1 ..) code appears on the LED (LCD) window, disconnect the power and contact the service people.
