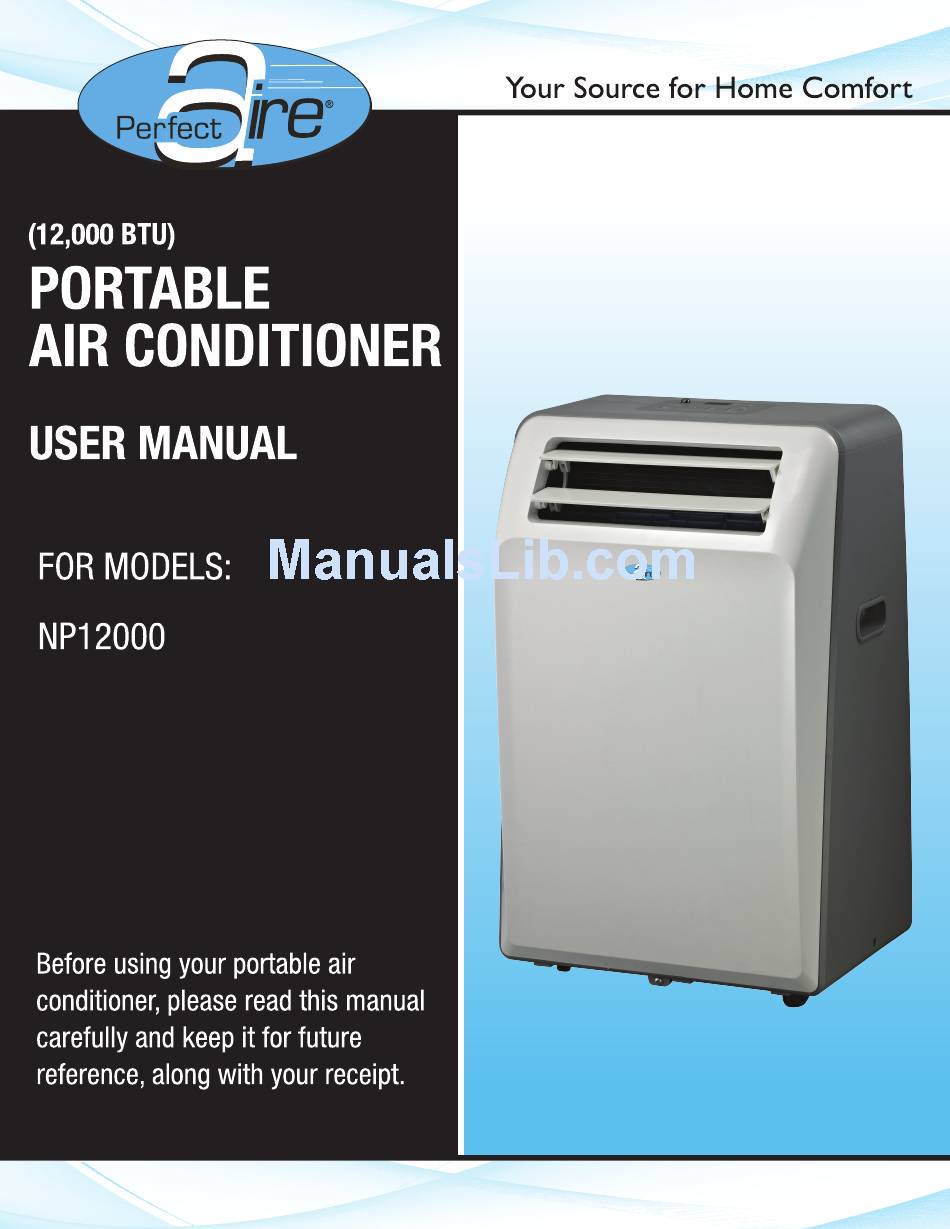

Perfect Aire NP12000 User Manual
  1. Manuals
  2. Brands
  3. Perfect Aire Manuals
  4. Air Conditioner
  5. NP12000
  6. User manual
Perfect Aire NP12000 User Manual

Perfect Aire NP12000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NP12000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perfect Aire NP12000

Summary of Contents for Perfect Aire NP12000

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ..................2 IDENTIFICATION OF PARTS................3 AIR CONDITIONER FEATURES................5 OPERATING INSTRUCTIONS ................6 INSTALLATION INSTRUCTIONS ................ 8 CARE AND MAINTENANCE ................13 TROUBLESHOOTING TIPS ................14 This manual provides the information needed for proper use and maintenance of this air conditioner.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Always do this Never do this Do not operate your air conditioner in a wet room such as a Your air conditioner should be used in such a way bathroom or laundry room. that it is protected from moisture (i.e. condensation, Do not touch the unit with wet or damp hands or when splashed water, etc.).

  • Page 4: Identification Of Parts

    IDENTIFICATION OF PARTS • Exhaust hose 1 Set • Flat mouth adaptor • Window slider kit with bolt • Vent joint Vent Exhaust Flat Mouth Bolt Window Joint Hose Adaptor Slider Kit • Foam Seal 1 Piece • Wall exhaust adaptor A* 1 Set •...

  • Page 5: Names Of Parts

    IDENTIFICATION OF PARTS (CONTINUED) NAMES OF PARTS Front Operation Panel Horizontal Louver Blade (swings automatically) Caster Carrying Handle (both sides) Fig.1 Rear Bottom Tray Drain Outlet Upper Air Filter (behind the grille) Air Outlet Power Cord Outlet Air Intake Drain Outlet Air Intake Lower Air Filter Fig.

  • Page 6: Air Conditioner Features

    AIR CONDITIONER FEATURES ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel and remote control and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote control. NOTE: This manual does not include Remote Control Operations;...

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS COOL operation AUTO operation - Press the "MODE" button until the "COOL" - When you set the air conditioner in AUTO mode, indicator light comes on. it will automatically select cooling, heating - Press the ADJUST buttons " " or " " to (on models with heating function only) or fan select your desired room temperature.
  • Page 8 OPERATING INSTRUCTIONS (CONTINUED) SLEEP operation In this mode the selected temperature will increase (cooling) or decrease (heating - units with heater only) by 2 C 30 minutes after the mode is selected.The temperature will then increase (cooling) or decrease (heating - units with heater only) by another 2 after an additional 30 minutes.

  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS Fig. 5 Vertical window Window Slider Kit Minimum:2.22 ft (67.5 cm) Maximum:4.04 ft (123 cm) Fig. 6 Horizontal window NOTE: If the window opening is less than 2.22 ft, cut the extension piece (see Fig. 7a) shorter so the kit properly fits in the window opening.
  • Page 10 INSTALLATION INSTRUCTIONS (CONTINUED) See Fig. 8. Fig. 8 sill. See Fig. 9. See Fig. 10. 26.5” - 48” Fig. 9 Window sill See Fig. 11. Fig. 10 Window sill Fig. 11...
  • Page 11 INSTALLATION INSTRUCTIONS (CONTINUED) See Fig. 12. Fig. 12 height of height of sill. See Fig. 13. 26.5” - 48” See Fig. 14. Fig. 13 See Fig. 15. Fig. 14 Fig. 15...
  • Page 12 INSTALLATION INSTRUCTIONS (CONTINUED) Fig. 16 Exhaust hose installation: Flat Mouth Adaptor The exhaust hose and adaptor must be installed or removed in accordance with the usage mode as indicated below. Vent Exhaust COOL or AUTO mode Install Hose Joint Hose FAN, DRY, HEAT* Remove Hose (*for units with electric heater)

  • Page 13: Water Drainage

    INSTALLATION INSTRUCTIONS (CONTINUED) Water drainage: Remove the drain plug During dehumidifying modes, remove the drain plug from the back of the unit and attach 3/4” vinyl tube included with the unit (5/8” outer diameter). For the models without drain connector, just attach the drain hose to the hole.

  • Page 14: Care And Maintenance

    CARE AND MAINTENANCE IMPORTANT: 1) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean the unit. Upper filter 3) Do not wash the unit directly under a tap or using a hose. (take out) It may cause electrical danger.

  • Page 15: Troubleshooting Tips

    TROUBLESHOOTING TIPS Before calling for service, please review the chart below. Issue Possible Solutions • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the airflow to/from the unit and louvers such as curtains, etc.
  • Page 16 Your Source for Home Comfort Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 877-365-6274 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in PRC...
