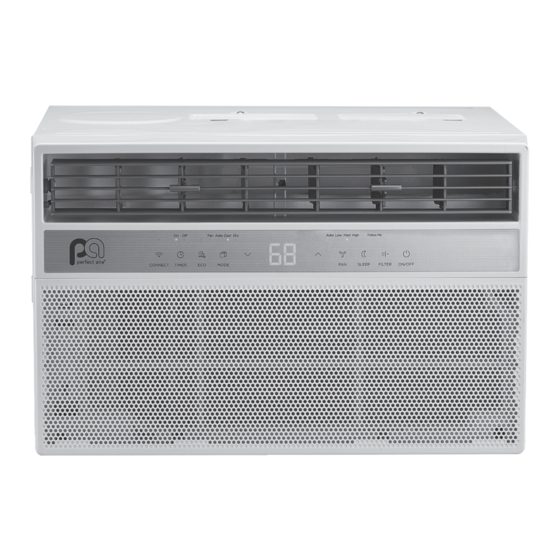

Perfect Aire 1PAWFC8000 Owner's Manual

Window air conditioner with wireless controls
Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
WINDOW AIR CONDITIONER
WITH WIRELESS CONTROLS
MODEL 1PAWFC8000

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1PAWFC8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perfect Aire 1PAWFC8000

Summary of Contents for Perfect Aire 1PAWFC8000

  • Page 1 OWNER’S MANUAL WINDOW AIR CONDITIONER WITH WIRELESS CONTROLS MODEL 1PAWFC8000...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ..............1 IMPORTANT SAFETY INSTRUCTIONS ...........9 INSTALLATION INSTRUCTIONS ...........10 NORMAL SOUNDS .................15 AIR CONDITIONER FEATURES .............15 CARE AND CLEANING ..............18 TROUBLESHOOTING ..............19 This manual provides the information needed for proper use and mainte- nance of this air conditioner. Basic preventative care can help extend the life of this unit.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE DEATH OR SERIOUS INJURY. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE MODERATE INJURY TO YOUR PERSON, OR DAMAGE TO YOUR UNIT OR OTHER PROPERTY.
  • Page 4 CAUTIONS When removing air filter, DO NOT touch metal parts of Doing so may cause an injury.  the unit. DO NOT clean with water. Water may enter the unit and degrade the insulation  causing an electric shock. Ensure proper ventilation, especially in rooms with a Failure to do so may result in an oxygen shortage. ...
  • Page 5 WARNING (For using R290/R32 refrigerant only) • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. • The appliance shall be stored in a room without continuously operating ignition sources •...
  • Page 6 WARNING (For using R290/R32 refrigerant only) Transport of equipment containing flammable refrigerants • See transport regulations. Marking of equipment using signs • See local regulations. Disposal of equipment using flammable refrigerants • See national regulations. Storage of equipment/appliances • The storage of equipment should be in accordance with the manufacturer’s instructions. Storage of packed (unsold) equipment •...
  • Page 7 WARNING (For using R290/R32 refrigerant only) Checks to the refrigeration equipment • Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult the manufacturer’s technical department for assistance.
  • Page 8 WARNING (For using R290/R32 refrigerant only) Repair to intrinsically safe components • Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
  • Page 9 WARNING (For using R290/R32 refrigerant only) Charging procedures • In addition to conventional charging procedures, the following requirements should be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines should be as short as possible to minimize the amount of refrigerant contained in them. •...
  • Page 10 WARNING (For using R290/R32 refrigerant only) Recovery • When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. • When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed.

  • Page 11: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS NOTE : WARNING FOR YOUR SAFETY: Do not store or use gasoline or other flammable The power supply cord with this air vapors and liquids in the vicinity of this or any other appliances. conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section WARNING - PREVENT ACCIDENTS “Operation of Current Device” (below) for details. In the event that the power To reduce the risk of fire, electrical shock, or injury to persons when using supply cord is damaged, it cannot be your air conditioner, follow basic precautions, including the following: repaired.

  • Page 12: Installation Instructions

    NOTE: Unit images may vary from the actual product, but installation steps are not affected. INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN CAUTION Read these instructions completely and carefully. Do not, under any circumstances, cut or remove the IMPORTANT- Save these instructions. third (ground) prong from the power cord.
  • Page 13 C. Align the hole in the top rail with those in the top of STEP 1: the unit as shown in Fig. B. PREPARE THE WINDOW FIG. B Lower sash must open to allow a clear vertical opening (H) of the following size. (See Table 1 on previous page.) Side louvers and the rear of the AC must have clear air space to allow enough through the condenser for heat removal.
  • Page 15 C. To secure lower sash in place, attach right angle sash STEP 6.2: Mark a line on one of the provided insulation lock with 3/4″ (19 mm) or 1/2″ (12.7 mm) screw as panels, matching the measured width in Step 6.1; Cut shown (Fig. 9). the insulation panel along the line (Fig. 12). FIG. 9 FIG. 12 D. Cut window sash seal foam and insert it in the space between the upper and lower sashes (Fig. 10).
  • Page 16 STEP 7: IF AC IS BLOCKED BY A STORM WINDOW INSTALL WEATHER STRIPPING NOTE: This step applies to Energy Star rated Add wood as shown in Fig.15, or remove storm units only. window before air conditioner is installed. In order to minimize air leaks between the room air If storm window frame must remain, be sure the conditioner and the window opening, install weather drain holes or slots are not caulked or painted shut.

  • Page 17: Normal Sounds

    NORMAL SOUNDS HIGH PITCHED CHATTER High efficiency compressors VIBRATION may have a high pitched chatter Unit may vibrate and make during the cooling cycle. noise because of poor wall or window construction or incorrect SOUND OF RUSHING AIR installation. This DOES NOT At the front of the unit, indicate a defective unit. the sound of rushing air being moved by the fan may be heard.
  • Page 18 SLEEP FEATURE: TO SELECT THE OPERATING MODE: Press SLEEP button to initiate the SLEEP To choose operating mode, press the MODE mode. In this mode, the selected temperature will button. Each time you press the button, a mode is increase by 2°F (1°C) 30 minutes after the mode is selected in a sequence that goes from AUTO, COOL, selected. The temperature will then increase (cooling) DRY and FAN.
  • Page 19 DISPLAY: FRESH AIR VENT CONTROL (on 10,000 – 12,000 Btu/h models): Shows the set temperature in °F or °C and the Auto- timer settings. While on FAN only mode, it shows the The Fresh Air Vent allows the air conditioner to: room temperature.

  • Page 20: Care And Cleaning

    For 6000 to 12000 Btu/h CARE AND CLEANING CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. CAUTION Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. AIR FILTER CLEANING For 15000 to 28500 Btu/h The air filter should be cleaned at least every two weeks or as...

  • Page 21: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. • Allow enough time for room to cool, especially if outside temp is very high. • Check that the filter is not dirty and louvers are open all the way and blowing in the desired direction. AIR CONDITIONER NOT • Check that unit is set to COOL mode and that temperature is down enough (but COOLING ROOM, OR NOT BLOWING not too low).
  • Page 24 SCAN CODE TO LEAVE A REVIEW THANK YOU FOR YOUR PURCHASE! We’d love to hear how you are enjoying your Perfect Aire product! Please take a minute to tell us (and others) about your experience. Thanks (again!) 5401 Dansher Road...
