USER MANUAL – EN

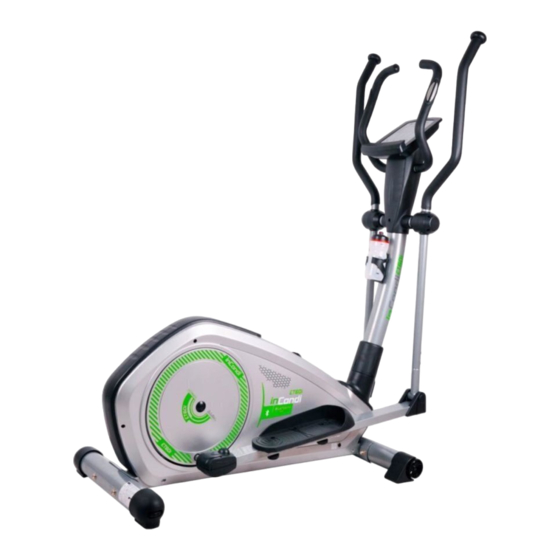

IN 8720 Elliptical Trainer inSPORTline ET60i
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET60i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insportline ET60i

Summary of Contents for Insportline ET60i

  • Page 1 USER MANUAL – EN IN 8720 Elliptical Trainer inSPORTline ET60i...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ........................3 IMPORTANT NOTES ..........................3 EXPLODED DRAWING ........................... 4 PARTS LIST ............................4 CHECK LIST............................8 ASSEMBLY ............................. 9 CONTROL PANEL ..........................16 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........20...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS • To ensure the best safety of the exerciser, regularly check it on damages and worn parts. • If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions. •...

  • Page 4: Exploded Drawing

    • The general rule is that exercisers and training devices are no toys. Therefore, they must only be used by properly informed or instructed persons. • Stop your work-out immediately in case of dizziness, nausea, chest pain or any other physical symptoms.
  • Page 5 Adjustable cap Left moveable cap Right moveable cap Curved washer D22xD8.5x1.5T Spring washer D15.4xD8.2x2T Domed nut M8x1.25x15L Allen boltM8x1.25x20L Handlebar post Pedal support Moveable supporting tube Bushing D35*11L Bushing D19.15x(D25.6x32)xL(17+3) Half ball cap Bearing #99502 Allen bolt M8x1.25x100L Nylon nut M8*1.25*8T Rear stabilizer Square neck bolt M6*1*45L Left pedal...
  • Page 6 Upper cover for the universal joint lower cover for the universal joint Side cover Bolt M8x1.25x20 Bolt M8*52L Round cover Bearing #6004-2RS(C0) Flat washer D20*D11*2.0T Nylon nut M8*1.25*8T Flat washer D28*D8.5*3T Waved washer D21xD16x0.3T Flat washer D24*D16*1.5T Upper protective cover Fixing plate for magnet Ladder bolt M10*1.5*58L Left moveable handlebar...
  • Page 7 Right fixed bar Flat washer D14xD6.5x0.8T Front foot cap(left) Front foot cap(right) Plastic cover Club knob Spring D1.0*55L Nylon nut M6*1*6T Buffer Inner tube Nylon nut M10*1.5*10T Allen bolt M8*1.25*30L C-clip S-16(1T) Bolt M6*65L Nut M6*1*6T Flat washer D13*D6.5*1.0T Joint Nut M8*1.25*6T Screw M5x0.8x15L Screw ST4x1.41x15L...

  • Page 8: Check List

    CHECK LIST & &...

  • Page 9: Assembly

    ASSEMBLY STEP 1 (x4) D22*D8.5 D22*D8.5 D15.4*D8.2 M8x15L 1) Assemble the front stabilizer (2) to the main frame (1) by the allen bolt (3), the curved washer (6), the spring washer (7) and the domed nut (8). 2) Assemble the rear stabilizer (19) to the main frame (1) by the allen bolt (3), the curved washer (6), the spring washer (7) and the domed nut (8).
  • Page 10 STEP 2 (x4) M6*1*45L D14*D6.5*0.8T D40*M6*12 1) Assemble the pedals (21L&21R) to the pedal support (11) by the flat washer (73), the club knob (77) and the square neck bolt (20). The user could adjust the pedals in 3 different positions.
  • Page 11 STEP 3 (x2) M8*20L D21*D8.5 D21*D16 (x8) ST4*15L Step-3 Assemble the left and right moveable handlebar (52L&52R) to handlebar post (10) by left & right upper foot cover (23a&23b), waved washer (47), flat washer (66), bolt (40) and screw (91) like picture a and b shown.
  • Page 12 STEP 4 (x8) M8*1.25*20L D15.4*D8.2*2T D22*D8.5*1.5T Step-4 1) Assemble the handlebar post (10) to the main frame (1) by the curved washer (6), the spring washer (7) and the allen bolt (9). 2) Assemble the Left & Right moveable handlebar (52L&52R) to the moveable supporting tube (12) by the curved washer (6), the spring washer (7) and the allen bolt (9).
  • Page 13 STEP 5 (x4) M5*10L Assemble the upper computer cable (29) to the computer (64). Through the handle pulse cable attached to the computer out of the holes on the handlebar post like fig shown.
  • Page 14 STEP 6 (x2) M8*1.25*100L D22*D8.5*1.5T D22*D8.5*1.5T D15.4*D8.2*2T M8*1.25*8T 1) Fix the Left & Right fixed handlebar (72L&72R) onto the handlebar post (10) by curved washer (6) and spring washer (7), allen bolt (17) and nylon nut (18). 2) Connect the handle pulse cable (65) with the pulse cable attached to the computer (64).
  • Page 15 STEP 7 1) Assemble the computer brackets (67&68) to the handlebar post (10) by the screw (90) and the screw (91). 2) Assemble the water bottle holder (101) onto the handlebar post (10) by bolt (100). Insert the water bottle (102) into the bottle holder. 3) Assemble the Upper &...

  • Page 16: Control Panel

    CONTROL PANEL SUPPORT DEVICES Support iOS devices: Support Android devices: iPod touch (5th generation) Android tablet OS 4.0 or above iPod touch (4th generation) Android tablet resolution 1280X800 pixels iPod touch (3rd generation) Android phone OS 2.2 or above iPhone 5S Android phone resolution: iPhone 5C 1920X1080 pixels...
  • Page 17 developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S.
  • Page 18 OPERATION POWER ON Plug in power supply, computer will power on and display all segments on LCD for 2 seconds. After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the console up. WORKOUT SELECTION Press UP and Down to select workout Manual →...
  • Page 19 ADVANCE MODE 1) Press UP or DOWN to select workout program, choose Advance mode and press ENTER to confirm. 2) Press UP or DOWN to preset TIME. 3) Press START/STOP key to start workout. Press UP or DOWN to adjust load level. 4) Press START/STOP key to pause workout.

  • Page 20: Terms And Conditions Of Warranty, Warranty Claims

    1) Press UP or DOWN to select workout program, choose WATT and press ENTER to confirm. 2) Press UP or DOWN to preset WATT target. (default: 120) 3) Press UP or DOWN to preset TIME. 4) Press START/STOP key to start workout. Press UP or DOWN to adjust Watt level. 5) Press START/STOP key to pause workout.
  • Page 21 Warranty Period The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty period provided to the Consumer is not affected. By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features.
  • Page 22 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk...

This manual is also suitable for:

In 8720
