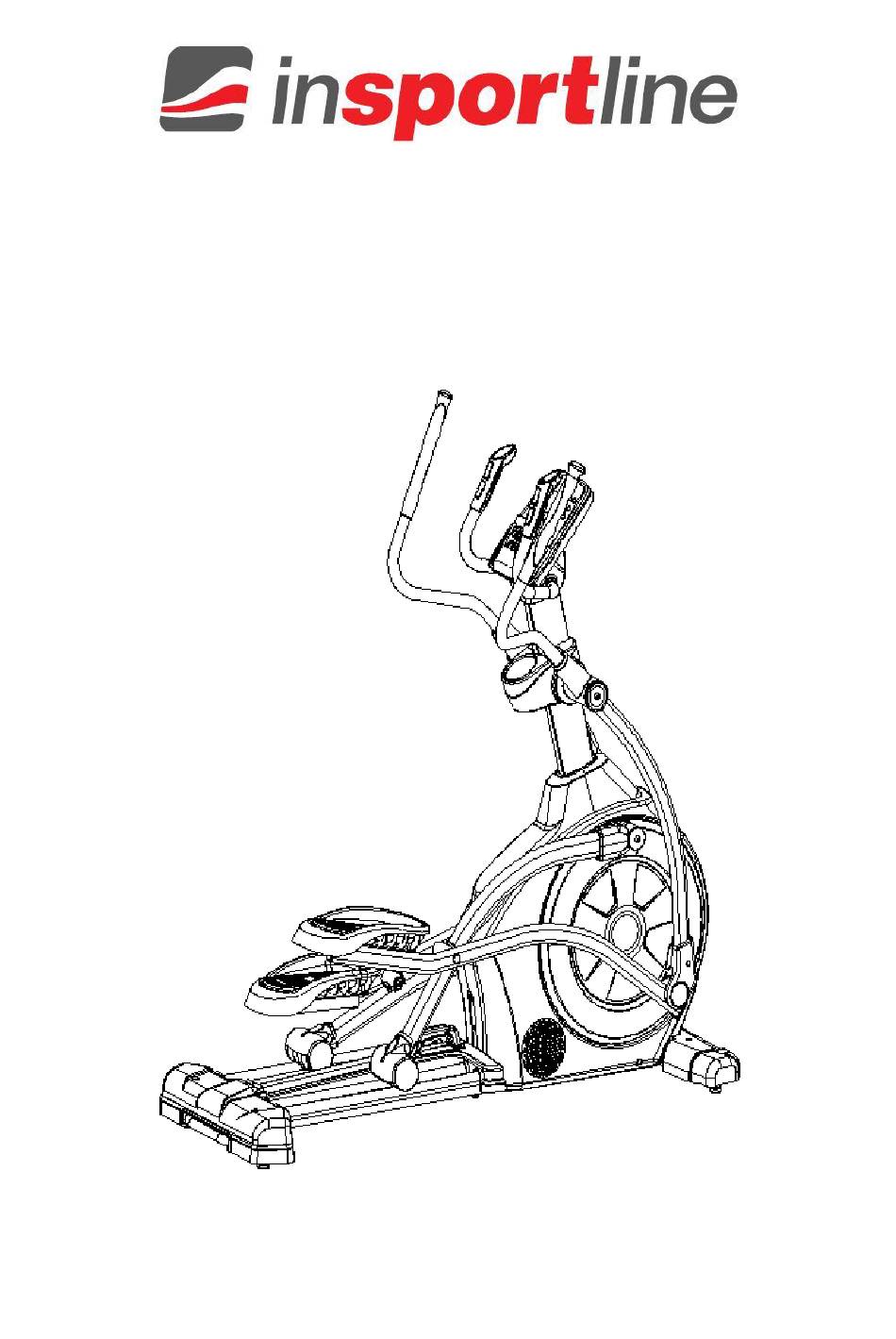

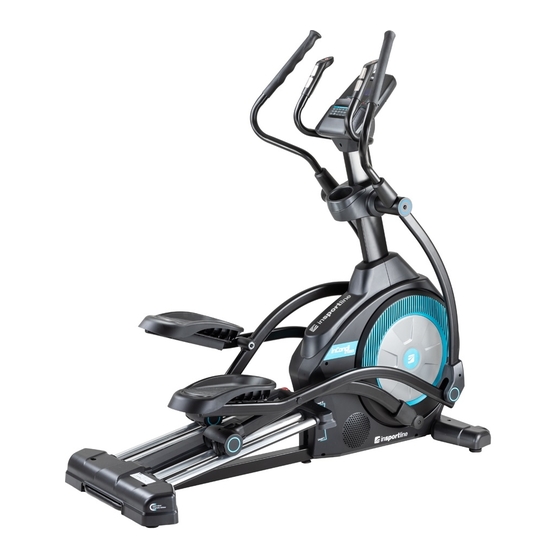

- Page 1 USER MANUAL – EN IN 20157 Elliptical inSPORTline inCondi ET660i...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 IMPORTANT NOTES ..........................3 ASSEMBLY ............................. 4 CONSOLE ............................... 8 USE ..............................12 APPLICATION MEPANEL ........................16 USE OF ELEPTICAL TRAINER ......................20 THE WARM UP PHASE ........................20 MAINTENANCE ............................ 21 DIAGRAM .............................. 22 PARTS LIST ............................ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future reference. • To ensure the best safety of the exerciser, regularly check it on damages and worn parts. • If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions. -
Page 4: Assembly
contents of the delivery is complete by referring to the parts list of the assembly and operating instructions. • Be sure to set up the exerciser in a dry and even place and always protect it from humidity. If you wish to protect the place particularly against pressure points, contamination, etc., it is recommended to put a suitable, non-slip mat under the exerciser. - Page 5 STEP 2 The main frame (1) is supported by the packing material (A). There are 3 bolts (33) and 3 washers (34) on the right and left stabilizer (3, 2) with foot. The screws (21) are screwed in front of the main frame (1).
- Page 6 STEP 3 Remove the 2 screws (21) from the main frame and attach the rear stabilizer cover with the 2 screws (21). STEP 4 Attach the chain guards (42 and 43) to the main frame (1) as shown.
- Page 7 STEP 5 Connect the console cables (51) as shown. Connect the cables (A1 - A2), (B1 - B2), (C1 - C2), (D1 - D2), (E1 - E2) and plug the excess cables into the post (44). Then attach the console (51) to the post (44) with 4 screws (52).
-
Page 8: Console
STEP 7 Remove the 4 screws (74) and 4 nuts (7) from the left and right handlebars (72 and 73). Install the covers (75) on the left and right handlebars (72 and 73). Then attach the left and right handlebars with the screws (74) and nuts (7). - Page 9 1 Manual program 10 presets programs P1: Rolling P2: Valley P3: Fat burn P4: Ramp P5: Mountain P6: Interval P7: Cardio P8: Endurance P9: Slope P10: Rally...
- Page 10 WATT program HRC program 55% H.R 75% H.R 90% H.R TARGET H.R User programs 1 - 4 User program 1 User program 2 User program 3 User program 4...
- Page 11 BODY FAT Gender, height, weight, and age data are saved even when you disconnect the device. The dot display shows the current status. The heart rate is displayed. Speed, RPM, time, distance, power, WATT, pulse, level are displayed at the same time. The console will automatically shut down if the console does not receive the signal for 4 minutes.
-
Page 12: Use
A. TURN ON Plug the device into the power outlet, the console will start up, a beep will sound and enter the home screen (Pic. 24) Pic. 24 B. PROGRAM SELECTION Manual program or preset programs P1-P10 1. Select a program using the navigation buttons UP / DOWN (Pic. 25) 2. - Page 13 3. Use the navigation buttons to set the time and confirm with ENTER, then set the distance 4. Use the navigation buttons to set the distance and confirm with ENTER, then set the calories burned 5. Use the navigation buttons to set the desired calories burned and confirm with ENTER, then set the age 6.
- Page 14 2. Confirm with ENTER 3. Use the navigation keys to adjust the height and confirm with ENTER (Pic. 35) 4. Use the navigation keys to set the weight and confirm with ENTER (Pic. 36) 5. Use the navigation keys to set the age and confirm with ENTER (Pic. 37) 6.
- Page 15 NOTE: Grasp both body pulse plates. FAT%, BMR, BMI and body status results are displayed. (Pic. 40). FAT%: Body fat measured in %. BMR: Metabolism BMI: Body mass index If the pulse pads do not work properly and do not transmit a signal during the measurement, ERROR2 is displayed.
-
Page 16: Application Mepanel
WATT Displays the result of the WATT program ERROR 1 – check motor and motor connection ERROR 2 – check the pulse sensors MP3 PLAYER (if available) Connect the audio device to the console. Then start the audio device and then the console. If the console starts audio itself, it should start playing automatically. - Page 17 Pic. C Pic. D BLUETOOTH CONNECTION Devices are paired using Bluetooth 4.0. Press and select a device. Select your smart device and access the app. The console display turns off when you start the application. When you turn off the app, the console display turns on again. FUNCTION You can connect to the device a smart device with Bluetooth 4.0 and MEPANEL application installed.
- Page 18 A. Program selection Choose a program: B. Parameter settings Setting personal data: Select MENU in the upper left corner to set the height, weight, age and gender. Then return to the main menu. Setting program parameters: When selecting a program, you can set the time, move the slider up or down and confirm with OK.
- Page 19 Press to expand the map Setting the route: After zooming in the map, hold the start symbol for 2 seconds and then set the start of your route, press the location on the map again to set the destination. The application automatically sets the route.
-
Page 20: Use Of Eleptical Trainer
One-minute counts down begins, then results from F1 (best) - F6 (worst) Statistics: Enter MENU - STATISTICS, you can look at the exercise curve. USE OF ELEPTICAL TRAINER The elliptical trainer is a popular fitness machine, one of the newest and most effective home training machines. -
Page 21: Maintenance
Inside upper thigh Sit on the floor and place your feet together. Knees are pointed outwards. Pull your feet as close as possible to your groin. Press your knees carefully downwards. Keep this position for 30-40 seconds if possible. Calves and Achilles tendon Lean against a wall with your left leg in front of the right one and your arms forward. -
Page 22: Diagram
DIAGRAM... -
Page 23: Parts List
PARTS LIST Name Qty. Name Qty. Main frame Screw M8*70 Left front foot tube connection Screw M4*10 assembly Right front pipe connecting Motor cable assembly Stopper M8 Motor cable Short crank sleeve Front support cover Belt Rear cover Nut M8 Front chain cover Belt wheel Rear chain cover... -
Page 24: Environment Protection
Handle cover Pedal pad Left Handle Flat washer Right handle Screw M6*15 Screw Right pedal assembly Crank cover Cover Left crank assembly Cover Ridge ending Cover Crankcase Cover Large sealing ring Spacer Rotating seal Outer spring Right crank assembly Roller Left crank cover Gasket Right crank cover... - Page 25 According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not conclude and execute the Contract in order to run or promote his own trade or business activities. “The Buyer who is not the End Customer”...
- Page 26 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.cz reklamacie@insportline.cz servis@insportline.cz...
