Power LED
The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin definitions.
NMI Button
The non-maskable interrupt (NMI) button header is located on pins 19 and 20 of JF1. Refer
to the table below for pin definitions.
PWR
Power Button
Reset
Reset Button
3.3V
UID LED
3.3V Stby
3.3V Stby
3.3V Stby
3.3V Stby
2
NMI
Power LED

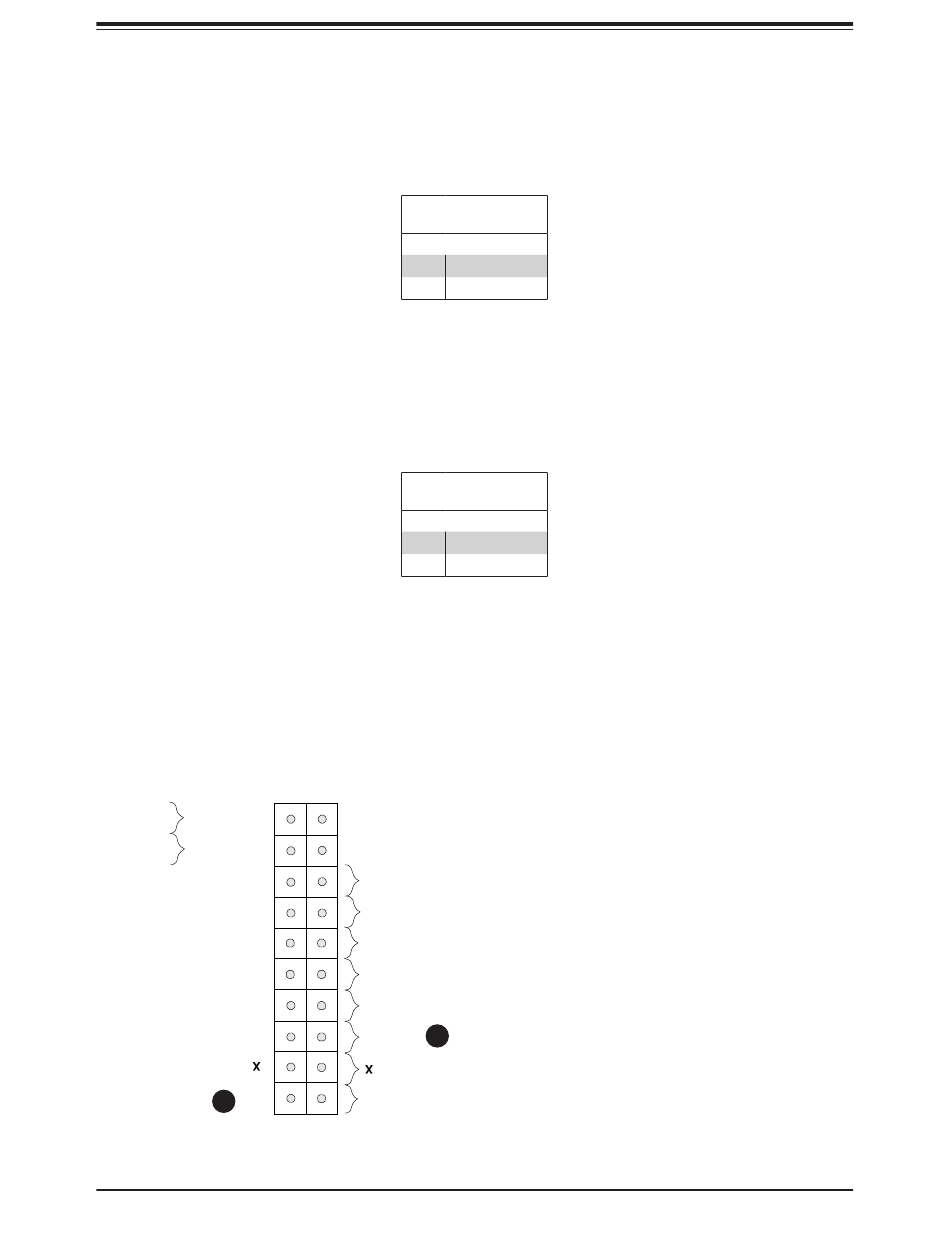

Pin Definitions (JF1)
Pins Definition
15 3.3V
16 PWR LED
NMI Button
Pin Definitions (JF1)
Pins Definition
19 Control
20 Ground
1 2
Ground
Ground
Power Fail LED
OH/Fan Fail LED
NIC2 Active LED
NIC1 Active LED
HDD LED
1
PWR LED
Ground
19 20
44
1. PWR LED
2. NMI
