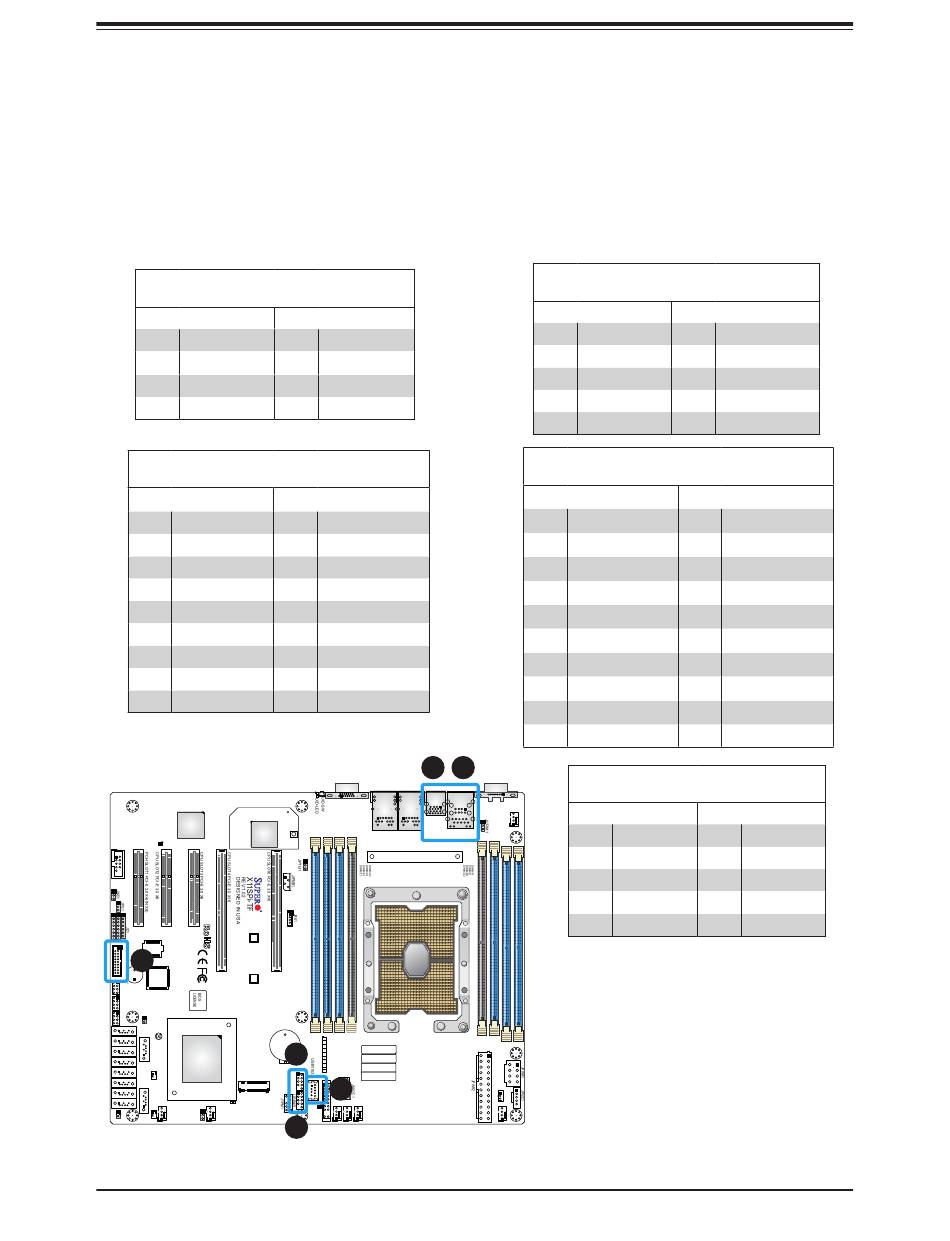

Universal Serial Bus (USB) Ports
There are two USB 2.0 ports (USB0/1) and two USB 3.0 ports (USB6/7) located on the I/O
back panel. The motherboard also has two front access USB 2.0 headers (USB2/3 and
USB4/5) and one front access USB 3.0 header (USB8/9). The USB10 header is USB 3.0
Type-A. The onboard headers can be used to provide front side USB access with a cable
(not included).
Back Panel USB 0/1 (2.0)
Pin Definitions
Pin# Definition
1 +5V
2 USB_N
3 USB_P
4 Ground
Back Panel USB 6/7 (3.0)
Pin Definitions
Pin# Definition
A1 VBUS
A2 D-
A3 D+
A4 GND
A5 Stda_SSRX-
A6 Stda_SSRX+
A7 GND
A8 Stda_SSTX-
A9 Stda_SSTX+
ASpeed
AST2500
Intel
X557
LEDBMC
COM2
MH11
5
USB8/9(3.0)
MH10
SP1
I-SGPIO2
I-SGPIO1
S-SGPIO1
JOH1
JBT1
S-SATA0 Intel
C622
I-SATA0
I-SATA1
I-SATA2
I-SATA3
JSD2
I-SATA4
M.2 PCI-E 3.0 X4
I-SATA5
I-SATA6
I-SATA7
S-SATA1
LE3
FANB JPME2 FANA
JSD1
JL1
Pin# Definition
5 +5V
6 USB_N
7 USB_P
8 Ground
Pin# Definition
B1 Power
B2 USB_N
B3 USB_P
B4 GND
B5 USB3_RN
B6 USB3_RP
B7 GND
B8 USB3_TN
B9 USB3_TP
4 1
VGA
USB6/7(3.0)
IPMI_LAN
LAN2 LAN1
USB0/1
CPU
2
SAN MAC
BAR CODE
BT1
MAC CODE
USB2/3
IPMI CODE
6
FAN4 FAN3 FAN2
LEDPWR C
3
JF1
Front Panel USB 2/3, 4/5 (2.0)
Pin Definitions
Pin# Definition
1 +5V
3 USB_N
5 USB_P
7 Ground
9 Key
Front Panel USB 8/9 (3.0)
Pin Definitions
Pin# Definition
1
VBUS
2
Stda_SSRX-
3
Stda_SSRX+
4
GND
5
Stda_SSTX-
6
Stda_SSTX+
7
GND
8
D-
9
D+
10
Type A USB 10 (3.0)
COM1
FAN5 Pin# Definition
1 VBUS
2 USB_N
3 USB_P
4 Ground
1. USB0/1
2. USB2/3
3. USB4/5
4. USB6/7
5. USB8/9
JSTBY1
FAN1
6. USB10
