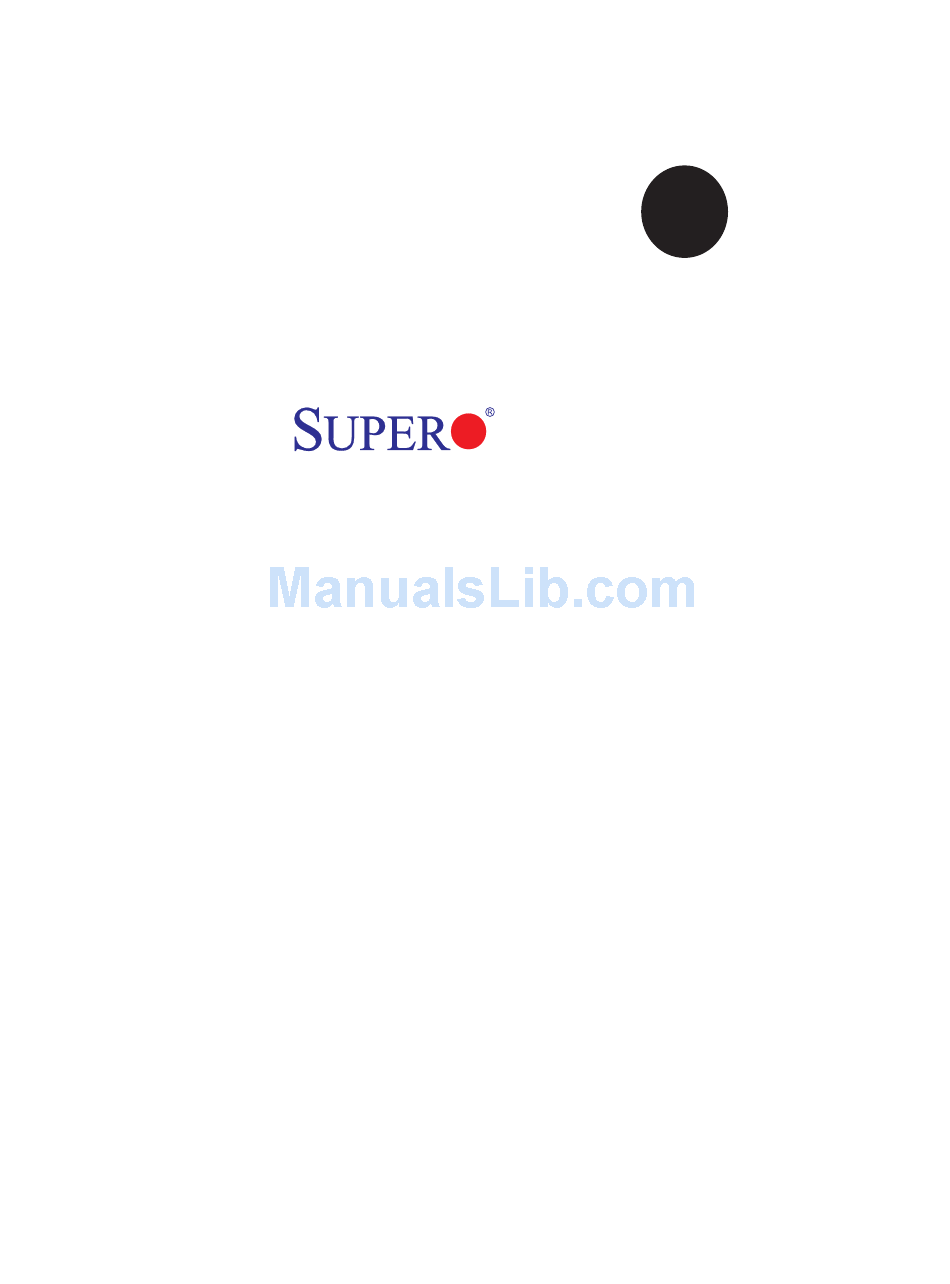

  • Page 1 UPER X7DBN USER’S MANUAL Revision 1.1...
  • Page 2 Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

  • Page 3: Manual Organization

    Extended Memory 64 Technology (EM64T). These features allow the motherboard to operate at much higher speeds with better power management in much safer environments than the traditional motherboards. The X7DBN is ideal for high per- formance dual processor (DP) enterprise server/workstation environments. This product is intended to be professionally installed.

  • Page 4: Table Of Contents

    Conventions Used in the Manual ... iii Chapter 1: Introduction Overview ... 1-1 Checklist ... 1-1 Contacting Supermicro ... 1-2 X7DBN Image ... 1-3 X7DBN Layout ... 1-4 Quick Reference ... 1-5 Motherboard Features ... 1-6 Intel 5000P Chipset: System Block Diagram ... 1-8 Chipset Overview ...
  • Page 5 Reset Button ... 2-13 Power Button ... 2-13 2-5 Connecting Cables ... 2-14 ATX Power Connector ... 2-14 Processor Power Connector ... 2-14 Universal Serial Bus ... 2-15 Chassis Intrusion ... 2-15 Fan Headers ... 2-16 Keylock ... 2-16 ATX PS/2 Keyboard and Mouse Ports ... 2-17 Serial Ports ...
  • Page 6 X7DBN User's Manual IDE Connectors ... 2-31 Chapter 3: Troubleshooting Troubleshooting Procedures ... 3-1 Before Power On ... 3-1 No Power ... 3-1 No Video ... 3-1 Losing the System’s Setup Confi guration ... 3-1 Memory Errors ... 3-2 Technical Support Procedures ... 3-2 Frequently Asked Questions ...

  • Page 7: Chapter 1: Introduction

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Check that the following items have all been included with your motherboard. If anything listed here is damaged or missing, contact your retailer.

  • Page 8: Contacting Supermicro

    X7DBN User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 9: X7Dbn Image

    Chapter 1: Introduction X7DBN Image (Note: The drawings and pictures shown in this manual were based on the latest PCB Revision available at the time of publishing of the manual. The motherboard you’ve received may or may not look exactly the same as the graphics shown...

  • Page 10: X7Dbn Layout

    Slot 2 or Slot 3. However, when both slots are populated, both Slot 2 and Slot 3 can support up to 100MHz. 5. SEPC: Supermicro Enhanced Power Connector, specially designed to support Supermicro 2U Riser Card only. 6. When LE1 is on, make sure to unplug the power cable before removing or in-...

  • Page 11: Quick Reference

    Quick Reference ( X7DBN) Jumper Description J27, J28 C Bus to PCI-X/PCI-E Slots 3rd PWR Failure Detect JBT1 CMOS Clear JCF1 Compact Card Master/Slave Select JPG1 VGA Enable JPL1/ JPL2 GLAN1/GLAN2 Enable Watch Dog Connector Description ATX PWR (JPW1) Primary 24-Pin ATX PWR Connector Aux.

  • Page 12: Motherboard Features

    X7DBN User's Manual Motherboard Features • Dual Intel 64-bit Xeon LGA 771 Quad-Core/Dual-Core processors at a front ® side bus speed of 1.333 GHz/1.066 GHz/667 MHz with a system clock speed of 333/267 MHz Memory • Eight 240-pin DIMM sockets with support up to 32 GB DDR2 Fully Buffered (FBD) ECC 667/533 Memory (*See Section 2-3 in Chapter 2 for DIMM Slot Population.)
  • Page 13 ACPI Features • Slow blinking LED for suspend state indicator • Main switch override mechanism • ACPI/ACPM Power Management • Keyboard Wakeup from Soft-off Onboard I/O • Six SATA ports (w/support of RAID 0, 1,10 and 5) • One SIMLP IPMI socket •...
  • Page 14 X7DBN User's Manual PROCESSOR#2 1067/1333 PCI-E X8 PCI-E X8 PCI-EXP X4 PCI-EXP X8 PCI-X 133 PCI33MMZ ES 1000 CONN RJ45 RJ45 PARALLEL PORT Block Diagram of the 5000P Chipset Note: This is a general block diagram. Please see the previous Motherboard Features pages for details on the features of each motherboard.

  • Page 15: Chipset Overview

    Chapter 1: Introduction Chipset Overview Built upon the functionality and the capability of the 5000P Chipset, the X7DBN motherboard provides the performance and feature set required for dual processor- based servers with confi guration options optimized for communications, presenta- tion, storage, computation or database applications. The 5000P Chipset supports single or dual Xeon 64-bit Quad-Core/Dual-Core processor(s) with front side bus speeds of up to 1.333 GHz.

  • Page 16: Special Features

    Advanced BIOS Setup section. (Default: Last State) PC Health Monitoring This section describes the PC health monitoring features of the X7DBN. All have an onboard System Hardware Monitor chip that supports PC health monitoring. CPU cores, chipset voltage, +3.3V, +5V, +12V, −12V, +3.3V standby, +5V standby and VBATT.

  • Page 17: Acpi Features

    System Resource Alert This feature is available when used with Supero Doctor III in the Windows OS environment or used with Supero Doctor II in Linux. Supero Doctor is used to notify the user of certain system events. For example, you can also confi gure Supero Doctor to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a pre-defi...

  • Page 18: Power Supply

    It is even more important for processors that have high CPU clock rates. The X7DBN can only accommodate 24-pin ATX power supplies. Although most power supplies generally meet the specifi cations required by the CPU, some are inadequate. In addition, the 12V 4-pin power supply - is also required to ensure adequate power supply to the system.

  • Page 19: Super I/O

    Chapter 1: Introduction Super I/O The disk drive adapter functions of the Super I/O chip include a fl oppy disk drive controller that is compatible with industry standard 82077/765, a data separator, write pre-compensation circuitry, decode logic, data rate selection, a clock generator, drive interface control logic and interrupt and DMA logic.
  • Page 20 X7DBN User's Manual Notes 1-14...

  • Page 21: Chapter 2: Installation

    Static-Sensitive Devices Electro-Static-Discharge (ESD) can damage electronic com ponents. To prevent damage to your system board, it is important to handle it very carefully. The following measures are generally suffi cient to protect your equipment from ESD. Precautions • Use a grounded wrist strap designed to prevent static discharge. •...

  • Page 22: Processor And Heatsink Fan Installation

    X7DBN User's Manual Processor and Heatsink Fan Installation When handling the processor package, avoid placing direct pressure on the label area of the fan. (Notes: 1. Always connect the power cord last and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.
  • Page 23 3. Use your thumb and your index fi nger to hold the CPU at the north center edge and the south center edge of the CPU. 4. Align CPU Pin1 (the corner marked with a triangle) against the socket cor- ner marked with a triangle cutout.
  • Page 24 X7DBN User's Manual Installing the Heatsink CEK Heatsink Installation 1. Do not apply any thermal grease to the heatsink or the CPU die-the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the retention mechanism.
  • Page 25 Mounting the Motherboard in the Chassis All motherboards have standard mounting holes to fi t different types of chas- sis. Make sure that the locations of all the mounting holes for both motherboard and chassis match. Make sure that the metal standoffs click in or are screwed in tightly.

  • Page 26: Installing Dimms

    Repeat for all modules (see step 1 above). Memory Support The X7DBN supports up to 32 GB fully buffered (FBD) ECC DDR2 533/667 in 8 DIMMs. Populating DIMM modules with pairs of memory modules of the same size and same type will result in Interleaved Memory which will increase memory performance.
  • Page 27 Possible System Memory Allocation & Availability System Device Firmware Hub fl ash memory (System BIOS) Local APIC Area Reserved for the chipset I/O APIC (4 Kbytes) PCI Enumeration Area 1 PCI Express (256 MB) PCI Enumeration Area 2 (if needed) -Aligned on 256-MB boundary- VGA Memory TSEG...

  • Page 28: Back Panel Connectors/Io Ports

    X7DBN User's Manual Control Panel Connectors/IO Ports The I/O ports are color coded in conformance with the PC 99 specifi cation. See Figure 2-3 below for the colors and locations of the various I/O ports. A. Back Panel Connectors/IO Ports Back Panel I/O Port Locations and Defi...

  • Page 29: Front Control Panel

    These connectors are designed specifi cally for use with Supermicro server chassis. See the drawings below for the descriptions of the various control panel buttons and LED indicators. Refer to the following section for descriptions and pin defi...

  • Page 30: Front Control Panel Pin Defi Nitions

    X7DBN User's Manual C. Front Control Panel Pin Defi nitions NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table on the right for pin defi nitions. Power LED The Power LED connection is located on pins 15 and 16 of JF1.

  • Page 31: Hdd Led

    HDD LED The HDD LED connection is located on pins 13 and 14 of JF1. Attach the hard drive LED cable here to display disk activity (for any hard drives on the system, including SAS, Serial ATA and IDE). See the table on the right for pin defi...

  • Page 32: Overheat/Fan Fail Led

    X7DBN User's Manual Overheat/Fan Fail LED (OH) Connect an LED to the OH/Fan Fail connection on pins 7 and 8 of JF1 to provide advanced warning of chassis overheating or fan failure. Refer to the table on the right for pin defi ni- tions.

  • Page 33: Reset Button

    Reset Button The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to the hardware reset switch on the computer case. Refer to the table on the right for pin defi nitions. Power Button The Power Button connection is located on pins 1 and 2 of JF1.

  • Page 34: Connecting Cables

    X7DBN User's Manual Connecting Cables ATX Power Connector There are a 24-pin main power sup- ply connector(JPW1) and an 8-pin CPU PWR connector (JPW3) on the motherboard. These power connec- tors meet the SSI EPS 12V specifi ca- tion. The 4-pin 12V PWR supply is required to provide adequate power to the system.

  • Page 35: Universal Serial Bus

    Universal Serial Bus (USB) There are fi ve USB 2.0 (Universal Se- rial Bus) ports/headers on the moth- erboard. Two of them are Back Panel USB ports (USB#0/1:JUSB1), and the other three are Front Panel USB headers (USB#2/3:JUSB2, USB#4: JUSB3). See the tables on the right for pin defi...

  • Page 36: Fan Headers

    X7DBN User's Manual Fan Headers The X7DBN has eight chassis/system fan headers (Fan1 to Fan8) and two CPU Fans (Fans 7/8). (Note: all these fans are 4-pin fans. However, Pins 1-3 of the fan headers are backward compatible with the traditional 3-pin fans.) See the table on the right for pin defi...

  • Page 37: Atx Ps/2 Keyboard And Mouse Ports

    ATX PS/2 Keyboard and PS/2 Mouse Ports The ATX PS/2 keyboard and the PS/2 mouse are located at JKM1. See the table on the right for pin defi nitions. (The mouse port is above the key- board port. See the table on the right for pin defi...

  • Page 38: Wake-On-Ring

    X7DBN User's Manual Wake-On-Ring The Wake-On-Ring header is desig- nated JWOR1. This function allows your computer to "wake up" when it re- ceives an incoming call to the modem while in the suspend state. See the table on the right for pin defi nitions.

  • Page 39: Glan (Ethernet Ports)

    GLAN 1/2 (Giga-bit Ethernet Ports) Two G-bit Ethernet ports are desig- nated JLAN1 and JLAN2 on the IO backplane. This port accepts RJ45 type cables. Power LED/Speaker On the JD1 header, pins 1-3 are for a power LED and pins 4-7 are for the speaker.

  • Page 40: Power Fault

    X7DBN User's Manual Power Fault (PWR Supply Failure) Connect a cable from your power supply to the Power Fail (PSF) header to provide a warning of power supply failure. This warning signal is passed through the PWR_LED pin to indicate of a power failure on the chassis.

  • Page 41: Overheat Led/Fan Fail

    Overheat LED/Fan Fail (JOH1) The JOH1 header is used to connect an LED to provide warning of chassis overheating. This LED will blink to in- dicate a fan failure. Refer to the table on right for pin defi nitions. A System Management Bus header is located at J18.

  • Page 42: Vga Connector

    X7DBN User's Manual Power SMB (I C) Connector Power SMB (I C) Connector (J17) monitors the status of PWR supply, fan and system temperature. See the table on the right for pin defi nitions. VGA Connector A VGA connector (J15) is located next to the COM1 port on the IO backplane.

  • Page 43: Compact Flash Card Pwr Connector

    Compact Flash Card PWR Connector Compact Flash Card Power Connector is located at JWF1. For the Compact Flash Card to work properly, you will need to connect the Compact Flash Card power cable to JWF1 fi rst and then enable the Compact Flash Connector by closing JCF1.

  • Page 44: Jumper Settings

    X7DBN User's Manual Jumper Settings Explanation of Jumpers To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identifi ed with a square solder pad on the printed circuit board.

  • Page 45: Clear Cmos

    CMOS Clear JBT1 is used to clear CMOS. Instead of pins, this "jumper" consists of contact pads to prevent the accidental clearing of CMOS. To clear CMOS, use a metal object such as a small screwdriver to touch both pads at the same time to short the connection. Always remove the AC power cord from the system before clearing CMOS.

  • Page 46: 3Rd Pwr Supply Pwr Fault

    X7DBN User's Manual 3rd PWR Supply PWR Fault Detect (J3P) The system can notify you in the event of a power supply failure. This feature avail- able when three power supply units are installed in the chassis with one acting as a backup.

  • Page 47: Compact Flash Master/Slave Enable/Disable

    Compact Flash Master/Slave Select A Compact Flash Master (Primary)/Slave (Secondary) Select Jumper is located at JCF1. Close this jumper to enable Compact Flash Card. For the Compact Flash Card or the Compact Flash Jumper (JCF1) to work properly, you will need to connect the Compact Flash Card power cable to JWF1 fi...

  • Page 48: Onboard Indicators

    X7DBN User's Manual Onboard Indicators GLAN LEDs There are two GLAN ports on the moth- erboard. Each Gigabit Ethernet LAN port has two LEDs. The Amber LED indicates activity, while the power LED may be green, amber or off to indicate the speed of the connection.

  • Page 49: Parallel Port, Floppy, Hard Disk Drive And Simlp Ipmi Connections

    Parallel Port, Floppy Drive, SIMLP IPMI and Hard Disk Drive Connections Note the following when connecting the fl oppy and hard disk drive cables: • The fl oppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1. •...

  • Page 50: Floppy Connector

    X7DBN User's Manual Floppy Connector The fl oppy connector is located next to the compact fl ash card slot. See the table below for pin defi nitions. SIMLP IPMI Slot There is a SIM Low Profile IPMI Slot on the motherboard.

  • Page 51: Ide Connectors

    IDE Connectors There are two IDE Connectors (JIDE1: Blue,JIDE2: White) on the mother- board. The blue IDE connector (JIDE1) is designated as the Primary IDE Drive. The white IDE connector (JIDE2) is des- ignated as the Secondary IDE Drive, reserved for Compact Flash Card use only.
  • Page 52 X7DBN User's Manual Notes 2-32...

  • Page 53: Chapter 3: Troubleshooting

    Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Note: Always disconnect the power cord before adding, changing or installing any hardware components.

  • Page 54: Memory Errors

    Technical Support Procedures Before contacting Technical Support, please take the following steps. Also, note that as a motherboard manufacturer, Supermicro does not sell directly to end-us- ers, so it is best to fi rst check with your distributor or reseller for troubleshooting services.

  • Page 55: Frequently Asked Questions

    Question: What are the various types of memory that my motherboard can support? Answer: The X7DBN has eight 240-pin DIMM slots that support DDR2 FDB ECC 533/667 SDRAM modules. It is strongly recommended that you do not mix memory modules of different speeds and sizes. (See Chapter 2 for detailed Information.)

  • Page 56: 3-4 Returning Merchandise For Service

    X7DBN User's Manual 3-4 Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required be- fore any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.

  • Page 57: Chapter 4: Bios

    4-1 Introduction This chapter describes the Phoenix BIOS™ Setup utility for the X7DBN. The Phoenix ROM BIOS is stored in a fl ash chip and can be easily upgraded using a fl oppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 58: Running Setup

    X7DBN User's Manual Running Setup *Default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choosing the appropriate text from the main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see the next page).

  • Page 59: Main Bios Setup Menu

    Chapter 4: BIOS Main BIOS Setup Menu Main Setup Features System Time To set the system date and time, key in the correct information in the appropriate fi elds. Then press the <Enter> key to save the data. System Date Using the arrow keys, highlight the month, day and year fi...
  • Page 60 X7DBN User's Manual IDE Channel 0 Master/Slave, SATA Port0, SATA Port1, SATA Port2, SATA Port3 These settings allow the user to set the parameters of IDE Channel 0 Master/ Slave, SATA Port0, SATA Port1, SATA Port2, SATA Port3 slots. Hit <Enter> to activate the following sub-menu screen for detailed options of these items.
  • Page 61 Chapter 4: BIOS CHS Format The following items will be displayed by the BIOS: TYPE: This item displays the type of IDE or SATA drive. Cylinders: This item indicates the status of Cylinders. Headers: This item indicates the number of headers. Sectors: This item displays the number of sectors.
  • Page 62 X7DBN User's Manual Parallel ATA This setting allows the user to enable or disable the function of Parallel ATA. The options are Disabled and Enabled. Serial ATA This setting allows the user to enable or disable the function of Serial ATA. The options are Disabled and Enabled.

  • Page 63: Advanced Setup

    Advanced Setup Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>. Boot Features Access the submenu to make changes to the following settings.
  • Page 64 X7DBN User's Manual ACPI Mode Use the setting to determine if you want to employ ACPI (Advanced Confi guration and Power Interface) power management on your system. The options are Yes and No. Power Button Behavior If set to Instant-Off, the system will power off immediately as soon as the user hits the power button.
  • Page 65 Chapter 4: BIOS Cache Base 0-512K If enabled, this feature will allow the data stored in the base memory area: block 0-512K to be cached (written) into a buffer, a storage area in the Static DROM (SDROM) or to be written into L1, L2 cache inside the CPU to speed up CPU operations.
  • Page 66 X7DBN User's Manual PCI Confi guration Access the submenu to make changes to the following settings for PCI devices. Onboard GLAN1/Onboard GLAN2 (Gigabit- LAN) OPROM Confi gure Enabling this option provides the capability to boot from GLAN. The options are Disabled and Enabled.
  • Page 67 Enable Master This setting allows you to enable the selected device as the PCI bus master. The options are Enabled and Disabled. Latency Timer This setting allows you to set the clock rate for Bus Master. A high-priority, high- throughout device may benefi t from a greater clock rate. The options are Default, 0020h, 0040h, 0060h, 0080h, 00A0h, 00C0h, and 00E0h.
  • Page 68 For the X7DBN, the TOE device is built inside the ESB 2 South Bridge chip.) The options are Enabled and Disabled.
  • Page 69 Chapter 4: BIOS Clock Spectrum Feature If Enabled, the BIOS will monitor the level of Electromagnetic Interference caused by the components and will attempt to decrease the interference whenever needed. The options are Enabled and Disabled. Enabling Multi-Media Timer Select Yes to activate a set of timers that are alternative to the traditional 8254 timers for the OS use.
  • Page 70 X7DBN User's Manual C1 Enhanced Mode (*Available when supported by the CPU.) Set to Enabled to enable Enhanced Halt State to lower CPU voltage/frequency to prevent overheat. The options are Enabled and Disabled. (*Note: please refer to Intel’s web site for detailed information.) Execute Disable Bit (*Available when supported by the CPU and the OS.)
  • Page 71 I/O Device Confi guration Access the submenu to make changes to the following settings. KBC Clock Input This setting allows you to select clock frequency for KBC. The options are 6MHz, 8MHz, 12MHz, and 16MHz. Serial Port A This setting allows you to assign control of serial port A. The options are Enabled (user defi...
  • Page 72 X7DBN User's Manual Mode This feature allows you to specify the parallel port mode. The options are Output only, Bi-Directional, EPP and ECP. DMA Channel This item allows you to specify the DMA channel for the parallel port. The options are DMA1 and DMA3.
  • Page 73 Chapter 4: BIOS Console Redirection Access the submenu to make changes to the following settings. COM Port Address This item allows you to specify which COM port to direct the remote console to: Onboard COM A or Onboard COM B. This setting can also be Disabled. BAUD Rate This item allows you to set the BAUD rate for Console Redirection.
  • Page 74 X7DBN User's Manual Hardware Monitor Logic *Note: The Phoenix BIOS will automatically detect the type of CPU(s) and hardware monitoring chip used on the motherboard and will display the Hardware Monitoring Screen accordingly. Your Hardware Monitoring Screen may look like the one shown on this page, on P.
  • Page 75 Chapter 4: BIOS Hardware Monitor Logic (*See the Note on Page 4-18.) CPU Temperature Threshold This option allows the user to set a CPU temperature threshold that will activate the alarm system when the CPU temperature reaches this pre-set temperature threshold.
  • Page 76 X7DBN User's Manual Hardware Monitor Logic (*See the Note on Page 4-18.) CPU Temperature Threshold This option allows the user to set a CPU temperature threshold that will activate the alarm system when the CPU temperature reaches this pre-set temperature threshold.
  • Page 77 IPMI (The option is available only when an IPMI card is installed in the system.) IPMI Specifi cation Version: This item displays the current Firmware Version. Firmware Version: System Event Logging Select Enabled to enable IPMI Event Logging. When this function is set to Disabled, the system will continue to log events received via system interface.
  • Page 78 X7DBN User's Manual OS Boot Watch Dog Set to Enabled to enable OS Boot Watch Dog. The options are Enabled and Disabled. Timer for Loading OS (Minutes) This feature allows the user to set the time value (in minutes) for the previous item: OS Boot Watch Dog by keying-in a desired number in the blank.
  • Page 79 Chapter 4: BIOS System Event Log (List Mode) Realtime Sensor Data This feature display information from motherboard sensors, such as temperatures, fan speeds and voltages of various components. 4-23...

  • Page 80: Security Settings

    X7DBN User's Manual Security Settings Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Security setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Security BIOS settings are described in this section.

  • Page 81: Boot Settings

    Password on Boot This setting allows you to decide if a password is required for a user to enter the system at boot-up. The options are Enabled (password required) and Disabled (password not required). Boot Settings Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display.

  • Page 82: Exit

    X7DBN User's Manual Exit Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. All Exit BIOS settings are described in this section. Exit Saving Changes Highlight this item and hit <Enter> to save any changes you made and to exit the BIOS Setup utility.

  • Page 83: Post Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A POST Error Beep Codes This section lists POST (Power On Self Test) error beep codes for the Phoenix BIOS. POST error beep codes are divided into two categories: recoverable and terminal. This section lists Beep Codes for recoverable POST errors. Recoverable POST Error Beep Codes When a recoverable type of error occurs during POST, BIOS will display a POST code that describes the problem.
  • Page 84 X7DBN User's Manual Notes...

  • Page 85: Appendix B: Installing The Windows Os

    South Bridge RAID Settings before you install the Windows OS and other software drivers. To confi gure RAID settings, please refer to RAID Confi guration User Guides posted on our website at www.supermicro.com/support/manuals. B-1 Installing the Windows XP/2000/2003 OS for...
  • Page 86 Windows XP/2000/2003 installation. After the Windows XP/2000/2003 OS Installation is completed, the system will automatically reboot. Insert the Supermicro Setup CD that came with your motherboard into the CD Drive during system boot, and the main screen will display.

  • Page 87: Appendix C: Installing Other Software Programs And Drivers

    Installing Other Software Programs and Drivers Installing Drivers other than the Adaptec Embedded Serial ATA RAID Controller Driver After you've installed the Windows Operating System, a screen as shown below will appear. You are ready to install software programs and drivers that have not yet been installed.
  • Page 88 X7DBN User's Manual Confi guring Supero Doctor III The Supero Doctor III program is a Web-base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called the SD III Client. The Supero Doctor III program included on the CDROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 89 Supero Doctor III Interface Display Screen-II (Remote Control) *Note: SD III Software Revision 1.0 can be downloaded from our Web site at: ftp:// ftp.supermicro.com/utility/Supero_Doctor_III/. You can also download SDIII User's Guide at: http://www.supermicro.com/PRODUCT/Manuals/SDIII/UserGuide.pdf. For Linux, we will still recommend that you use Supero Doctor II.
  • Page 90 X7DBN User's Manual Notes...
  • Page 91 (Disclaimer continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in signifi cant injury or loss of life or catastrophic property damage.
