Supermicro SYS-X11SPi-TF User Manual page 43

NIC1/NIC2 (LAN1/LAN2)
The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins
11 and 12 of JF1, and LAN port 2 is on pins 9 and 10. Attach the NIC LED cables here to
display network activity. Refer to the table below for pin definitions.
HDD LED
The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to pin 14 to
show hard drive activity status. Refer to the table below for pin definitions.

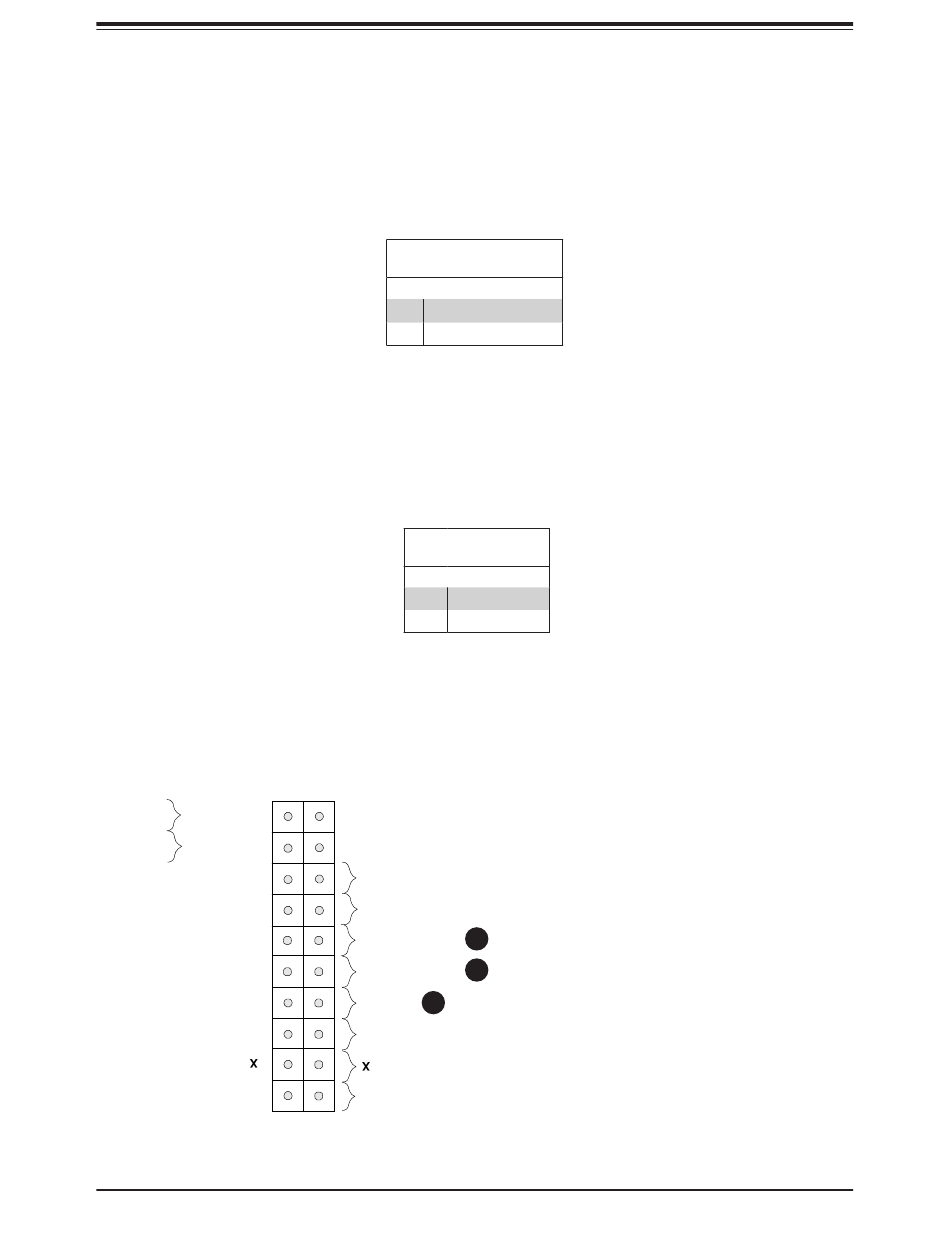

1
PWR
Power Button
Reset
Reset Button
3.3V
UID LED
3.3V Stby
3.3V Stby
3.3V Stby
3.3V Stby
NMI
19
LAN1/LAN2 LED
Pin Definitions (JF1)
Pin# Definition
9 NIC 2 Activity LED
11 NIC 1 Activity LED
HDD LED
Pin Definitions (JF1)
Pins Definition
13 3.3V Stdby
14 HDD Active
2
Ground
Ground
Power Fail LED
OH/Fan Fail LED
1
NIC2 Active LED
2
NIC1 Active LED
3
HDD LED
PWR LED
Ground
20
43
Chapter 2: Installation
1. NIC2 LED
2. NIC1 LED
3. HDD LED
