Headers

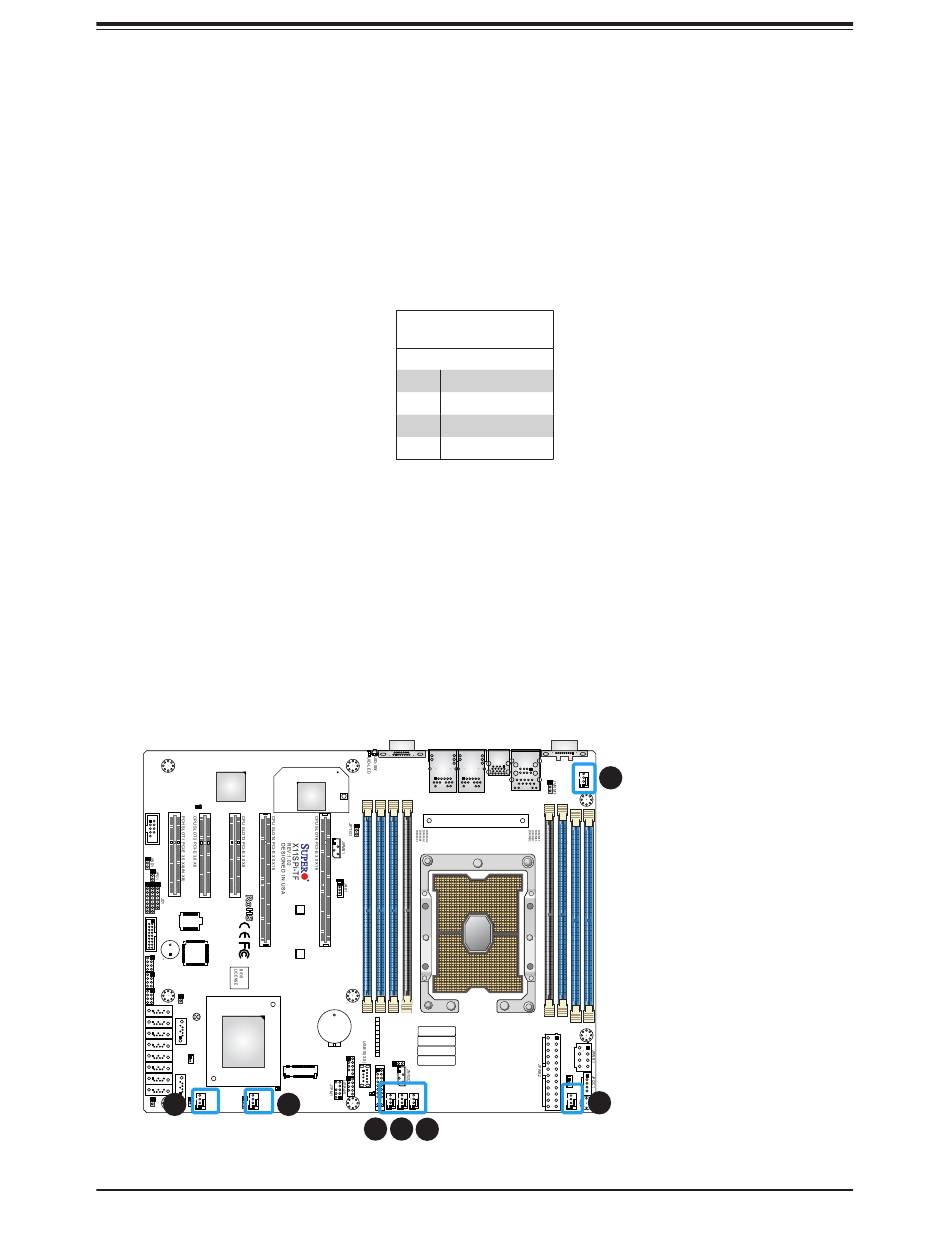

Fan Headers
There are seven 4-pin fan headers (FAN1 ~ FAN5, FANA ~ FANB) on the motherboard. All
these 4-pin fan headers are backwards compatible with the traditional 3-pin fans. However,
fan speed control is available for 4-pin fans only by Thermal Management via the IPMI 2.0
interface. Refer to the table below for pin definitions.
ASpeed
AST2500
LEDBMC
COM2
MH11
USB8/9(3.0)
MH10
SP1
I-SGPIO2
I-SGPIO1
S-SGPIO1
JOH1
JBT1
S-SATA0
Intel
C622
I-SATA0
I-SATA1
I-SATA2
I-SATA3
JSD2
I-SATA4
M.2 PCI-E 3.0 X4
I-SATA5
I-SATA6
I-SATA7
S-SATA1
LE3
2 1
FANB JPME2 FANA
JSD1
JL1
Fan Header
Pin Definitions
Pin# Definition
1 Ground (Black)
2 2.5A/+12V (Red)
3 Tachometer
4 PWM_Control
VGA
Intel
LAN2 LAN1
X557
CPU
SAN MAC
BAR CODE
BT1
MAC CODE
USB2/3
IPMI CODE
FAN4 FAN3 FAN2
LEDPWR C
JF1
6 5 4
47
1. FANA
COM1
FAN5 7
USB6/7(3.0)
2. FANB
IPMI_LAN
USB0/1
3. FAN1
4. FAN2
5. FAN3
6. FAN4
7. FAN5
JSTBY1
FAN1
3
