Connections

Connect the EUT to the test station using a gauge adapter and lens ring from the selection
provided.
information@ITM.com
This unit can generate very high pressures and, as a
consequence, only metal-to-metal sealing is acceptable, i.e. no
sealing washers of any description should be used (see Figure
3.1 and 3.2 for methods of sealing).

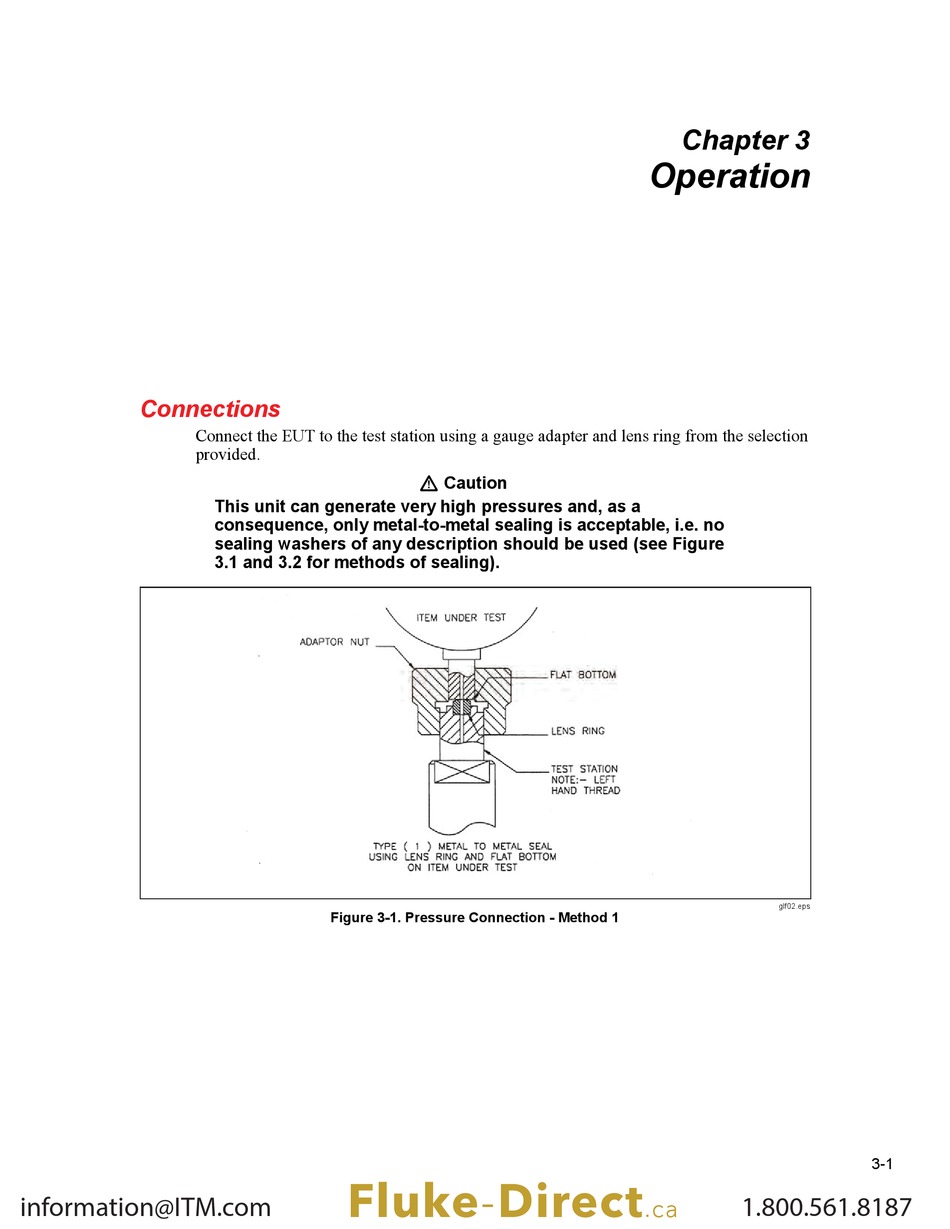

Figure 3-1. Pressure Connection - Method 1
