Summary of Contents for KanexPro VW-SP1X44K

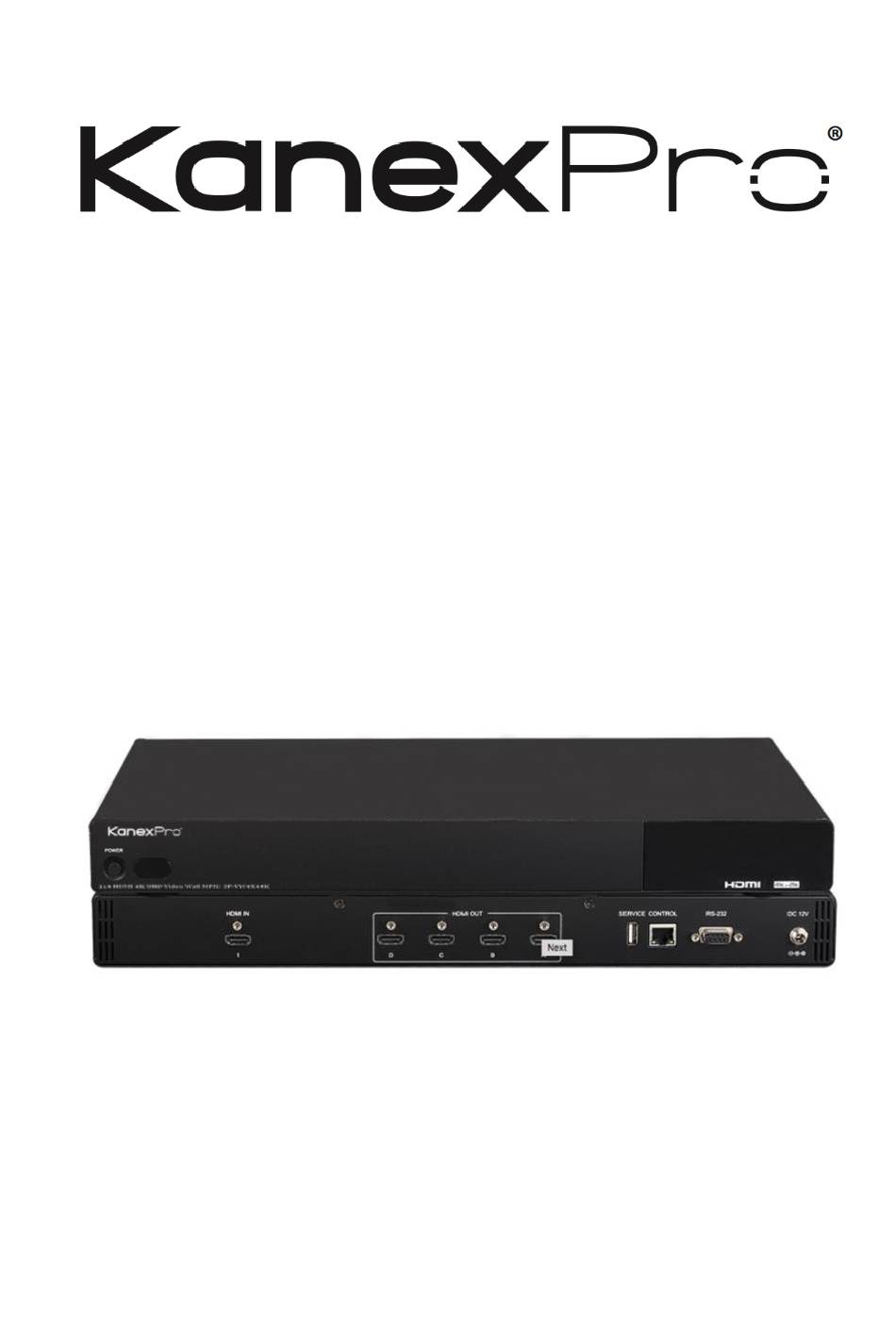

  • Page 1 VW-SP1X44K 1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction Create Video Walls from 2x2, 2x3 & 3x3 screens up to 9-Displays All Rights Reserved MPN: VW-SP1X44K...
  • Page 2 VW-SP1X44K SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 3: Table Of Contents

    VW-SP1X44K CONTENTS Introduction ..........1 Applications ..........1 Package Contents ........1 System Requirements ........ 1 Features ............ 2 Operation Controls and Functions....2 Front Panel ..........2 Rear Panel ..........3 RS-232 Protocols ........5 RS-232 and Telnet Commands ....6 Telnet Control .........
  • Page 5: Introduction

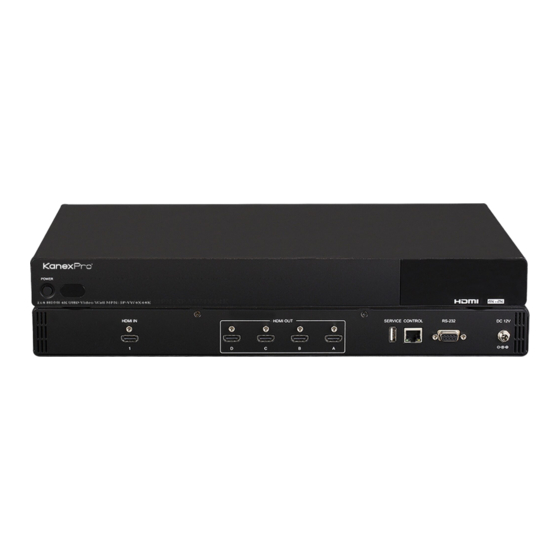

    VW-SP1X44K 1. INTRODUCTION The KanexPro VW-SP-1X44K is a 4K based video processor which allows one HDMI input to be freely arranged on to four 4K displays. It offers bezel correction support with a simple and easy to use control application. The device supports video output timings up to WUXGA@60 and 1080p@60Hz, audio format up to 7.1CH LPCM at...
  • Page 6: Features

    One locking power supply included ▪ 1U (19”) rack mountable enclosure ▪ Backed by KanexPro 3-year parts and labor warranty 6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel ① POWER: Press POWER button to power on the unit or set to standby mode.
  • Page 7: Rear Panel

    Power button. ④ CONTROL: Connect to an active network for telnet control. Collocated with “VW-SP1X44K AP” application could do multi-device control. ⑤ RS-232: Connect from PC/Laptop with D-Sub 9pin cables for RS-232 command sending and controlling over the device.
  • Page 8 VW-SP1X44K RS-232...
  • Page 9: Rs-232 Protocols

    VW-SP1X44K 6.3 RS-232 Protocols REMOTE CONTROL (PC) HDMI SPLITTER Definition Definition ► ◄ Baud Rate: 115200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...
  • Page 10: Rs-232 And Telnet Commands

    VW-SP1X44K 6.4 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER HELP(?) Show Command list NONE HELP(?) N Show Command N=Command name description RRES Request Current Output NONE Resolution SRES N1 Set Output Resolution to N1=0(640x480@60), 1(480p60), 2(576p50), 3(800x600@60), 4(848x480@60), 5(1024x768@60), 6(720p50), 7(720p60),...
  • Page 11 VW-SP1X44K COMMAND DESCRIPTION PARAMETER RINS Get Input Resolution 0(VGA60), 1(VGA72), 2(VGA75), 3(VGA85), 4(WXGA60), 5(WXGA75), 6(XGA60), 7(XGA70), 8(XGA75), 9(XGA85), 10(SXGA60), 11(SXGA75), 12(SVGA56), 13(SVGA60), 14(SVGA72), 15(SVGA75), 16(SVGA85), 17(DTV_480P60), 18(DTV_576P50), 19(DTV_480I60), 20(DTV_576I50), 21(HDTV_720P50), 22(HDTV_720P60), 23(HDTV_1080I50), 24(HDTV_1080I60), 25(HDTV_1080P24), 26(HDTV_1080P50), 27(HDTV_1080P60), 28(V848_480_60), 29(V852_480_60), 30(V854_480_60), 31(V1024_852_60),...
  • Page 12 VW-SP1X44K COMMAND DESCRIPTION PARAMETER 46(V2048_1080_60), 47(V2048_1152_1), 48(V2048_1152_2), 49(V2048_1152_3), 50(V3840_2160_24), 51(V3840_2160_25), 52(V3840_2160_30), 53(V4096_2160_24), 54(K_ NO_SIGNAL), 55(K_NO_ SUPPORT) ROSDD NONE Request Current OSD Display State SOSDD N1 Set OSD Display Enable/ N1=0(OFF), 1(ON) Disable ROSDH Request Current OSD NONE Horizontal Position SOSDH N1...
  • Page 13 VW-SP1X44K COMMAND DESCRIPTION PARAMETER SBRI N1 N2 Set Channel N1 Brightness N1= 1~4, N2=0~100(50) Value to N2 RCON N1 Request Chanel N1 N1=1~4 Contrast Value SCON N1 N2 Set Channel N1 Contrast N1= 1~4, N2=0~100(50) Value to N2 RSAT Request Current...
  • Page 14 VW-SP1X44K COMMAND DESCRIPTION PARAMETER RGAA Request Current Static NONE Gateway Address SGAA X.X.X.X X=0~255 (192.168.1.50) Set Static Gateway Address RETIME Request Current Ethernet NONE Timeout SETIME N1 Set Ethernet Timeout N1=0(OFF), 1(10 Minute), 2(20 Minute), 3(30 Minute), 4(40 Minute), 5(50 Minute), 6(60...
  • Page 15 VW-SP1X44K COMMAND DESCRIPTION PARAMETER SBV N1 Set TV Wall Vertical Bezel N1=0~255 Correction RBEZ Request Current Bezel NONE Correction State SBEZ N1 N1=0(Off), 1(On) Set Bezel Correction Enable/Disable RMDN Request Unit ID Number NONE SMDN N1 Set Unit ID Number to N1...
  • Page 16: Telnet Control

    VW-SP1X44K 6.5 Telnet Control To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd” in the Search field then press Enter. Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” with then press Enter.
  • Page 17 VW-SP1X44K This will bring us into the unit which we wish to control. Type 'HELP' to list the available commands. Note: All the commands will be not executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also...
  • Page 18: Pc Application Control

    Note: This action should be executed every time when the unit is power On or reset or re-run the “VW-SP1X44K AP” application. Select the unit that is to be adjusted then pressed “Connect” to connecting the unit.
  • Page 19: System Settings

    VW-SP1X44K 6.6.1 System Settings ① Power: Click on “Power” to power on/off the controlled unit. To control all connected units, click on “ALL IP” then click Power. From power ON to power OFF the application will disconnect the link, to power ON again please re- Connect.
  • Page 20: Connect Interface

    VW-SP1X44K 6.6.2 Connect Interface ① Connect: Click “Connect” to link the unit. ② Disconnect: Click “Disconnect” to terminate the link. ③ MAC: Click on “MAC” with the arrow down button to show all the TV Wall units and select the nominated unit/MAC for connection.
  • Page 21: Tv Wall Setup (1)

    VW-SP1X44K 6.6.4 TV Wall Setup (1) ① Fast TV Wall Setting: TV Wall’s fast setting. Click on hot key to pre- set the TV Wall setup.
  • Page 22: Tv Wall Setup (2)

    VW-SP1X44K 6.6.5 TV Wall Setup (2) ① Manual Setup: Manually setup TV wall’s setting by Rows and Columns from 1~15 and click on Send to confirm the setting. ② Bezel Correction Horizon & Vertical: Set up Bezel Correction figures on the selected MAC/ID No.
  • Page 23: Tv Wall Setup (3)

    VW-SP1X44K 6.6.6 TV Wall Setup (3) ① Save TV Wall Settings: Save current setting to Favorite up to 5 settings allows. ② Recall TV Wall Settings: Recall restored TV Wall settings from 5 settings.
  • Page 24: I/O Setup

    VW-SP1X44K 6.6.7 I/O Setup ① Output Resolution and OSD Menu Adjustment: All settings under I/ O Setup can be done with single TV Wall unit or units with a single click on “ALL IP”. Parameter and default value are as stated in RS- 232 description parameters.
  • Page 25: Image Adjust

    VW-SP1X44K 6.6.8 Image Adjust ① Brightness, Contrast, Saturation and Hue Adjustment: Again, all settings under Image Adjust can be done with single TV Wall device or multiple TV Wall devices with single click on “ALL IP”. Parameter and default value are as stated in RS-232 description.
  • Page 26: Connection Diagram

    VW-SP1X44K 7. CONNECTION DIAGRAM DVD/Blu-ray Player HDMI Input Router Power Supply HDMI IN HDMI Outputs RS-232 Equipped PC/Laptop 2×2 TVs/Displays (Total 4 Screens)
  • Page 27 VW-SP1X44K DVD/Blu-ray Player HDMI Input Router HDMI Splitter Smartphone HDMI Outputs Tablet Device H D MI I N Power Supply RS-232 Equipped PC/Laptop HDMI Outputs Cascade Output H D MI I N Power Supply HDMI Outputs 2×3 TVs/Displays (Total 6 Screens)
  • Page 28: Specifications

    VW-SP1X44K 8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/9 Gbps Input Ports 1×HDMI (Female type), 1×Control (RJ45), 1×RS- 232 (D-sub 9-pin), 1×USB (Service only) Output Ports 4×HDMI (Female type) HDMI Cable Distance 10M/8-bit 1080p, 5M/4K2K Baud Rate 115200bps ESD Protection Human body model: ±...
  • Page 29: Supported Resolutions

    VW-SP1X44K 8.2 Supported Resolutions INPUT RESOLUTION OUTPUT RESOLUTION 640×480@60/72/75/85 640×480 1280×768@60/75 480p@60 (720×480) 1024×768@60/70/75/85 576p@50 (720×576) 1280×1024@60/75 800×600 800×600@56/60/72/75/85 848×480 480p@60 1024×768 576p@50 720p@50 (1280×720) 480i@60 720p@60 (1280×720) 576i@50 1280×768 720p@50/60 1280×800 1080i@50/60 1280×960 1080p@24/50/60 1280×1024 848×480@60 1360×768 852×480@60 1366×768 854×480@60...
  • Page 30: Output Resolution Limitations

    VW-SP1X44K 8.3 Output Resolution Limitations 8.3.1 Input Resolution is 3840×2160 VIDEO WALL 10X10 15X15 640×480 ✓ ✓    ✓ ✓ ✓ ✓ ✓ ✓ 480p@60 (720×480) ✓ ✓    ✓ ✓ ✓ ✓ ✓ ✓ 576p@50 (720×576) ✓...
  • Page 31 VW-SP1X44K 8.3.2 Input Resolution is 4096×2160 VIDEO WALL 10X10 15X15 640×480 ✓ ✓     ✓ ✓ ✓ ✓ ✓ 480p@60 (720×480) ✓ ✓    ✓ ✓ ✓ ✓ ✓ ✓ 576p@50 (720×576) ✓ ✓ ...
  • Page 32 VW-SP1X44K 8.3.3 Input Resolution is 2048×1080/2048×1152 VIDEO WALL 10X10 15X15 640×480 ✓ ✓  ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 480p@60 (720×480) ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 576p@50 (720×576) ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓...
  • Page 33: Acronyms

    VW-SP1X44K 9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television On-Screen Display Universal Serial Bus...
