Conduct a site survey to determine the best location for the device. You can either mount the device to a wall or mount it to
the T-bar ceiling, as follows:
Wall-Mounting:
To mount the device to a wall, follow the following steps:
1. If the device is powered on, unplug all the power cables.
2. Place the mounting plate on the wall with the embossed inverted letter "L" facing your right, as shown below:
3. Fasten the mounting plate by using a pair of plastic anchors and screws provided with the product package.
4. Hold the device with its rear panel facing up. Next, align two keyholes on the device with the two holders on the
mounting plate.
5. Carefully slide the device down until the holders on the mounting plate fasten securely onto the keyholes of the
device.
Ceiling Mounting:
To mount the device to ceiling, follow the following steps:
1. If the device is powered on, unplug all the power cables.
2. Place the mounting plate onto the ceiling with the embossed inverted letter "L" facing your right. Refer
Plate
3. Fasten the mounting plate by using a pair of plastic anchors and screws provided with the product package.
4. Hold the device with its rear panel facing front. Next, align two keyholes on the device with the two holders on the
mounting plate.
5. Carefully slide the device towards rear side until the holders on the mounting plate fasten securely onto the keyholes
of the device.
®
ORiNOCO 802.11n & 802.11ac Access Points - Hardware Installation Guide

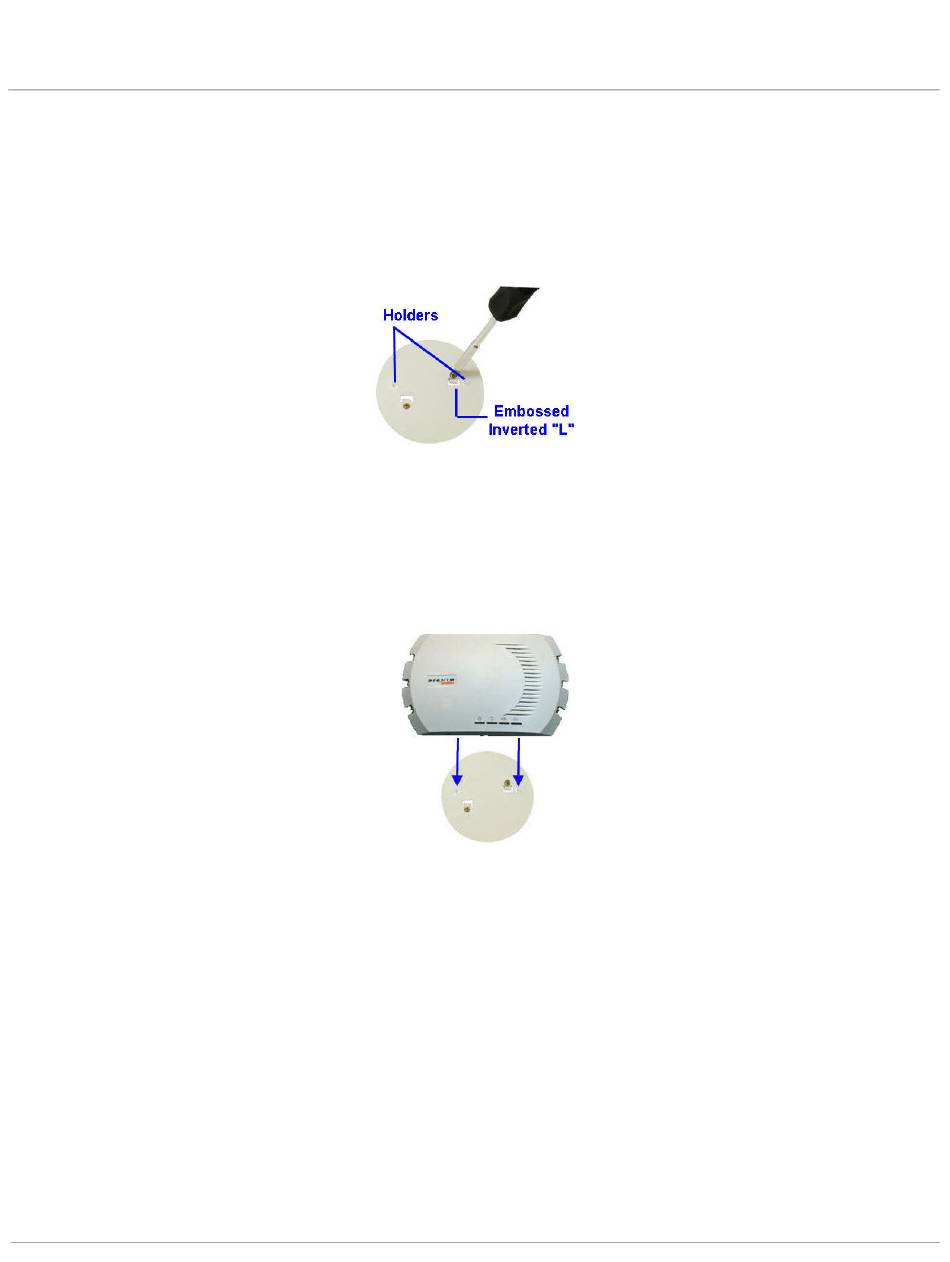

Figure 2-3 Mounting Plate
