ORiNOCO AP-2000 Access Point
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Proxim ORINOCO AP-2000

Summary of Contents for Proxim ORINOCO AP-2000

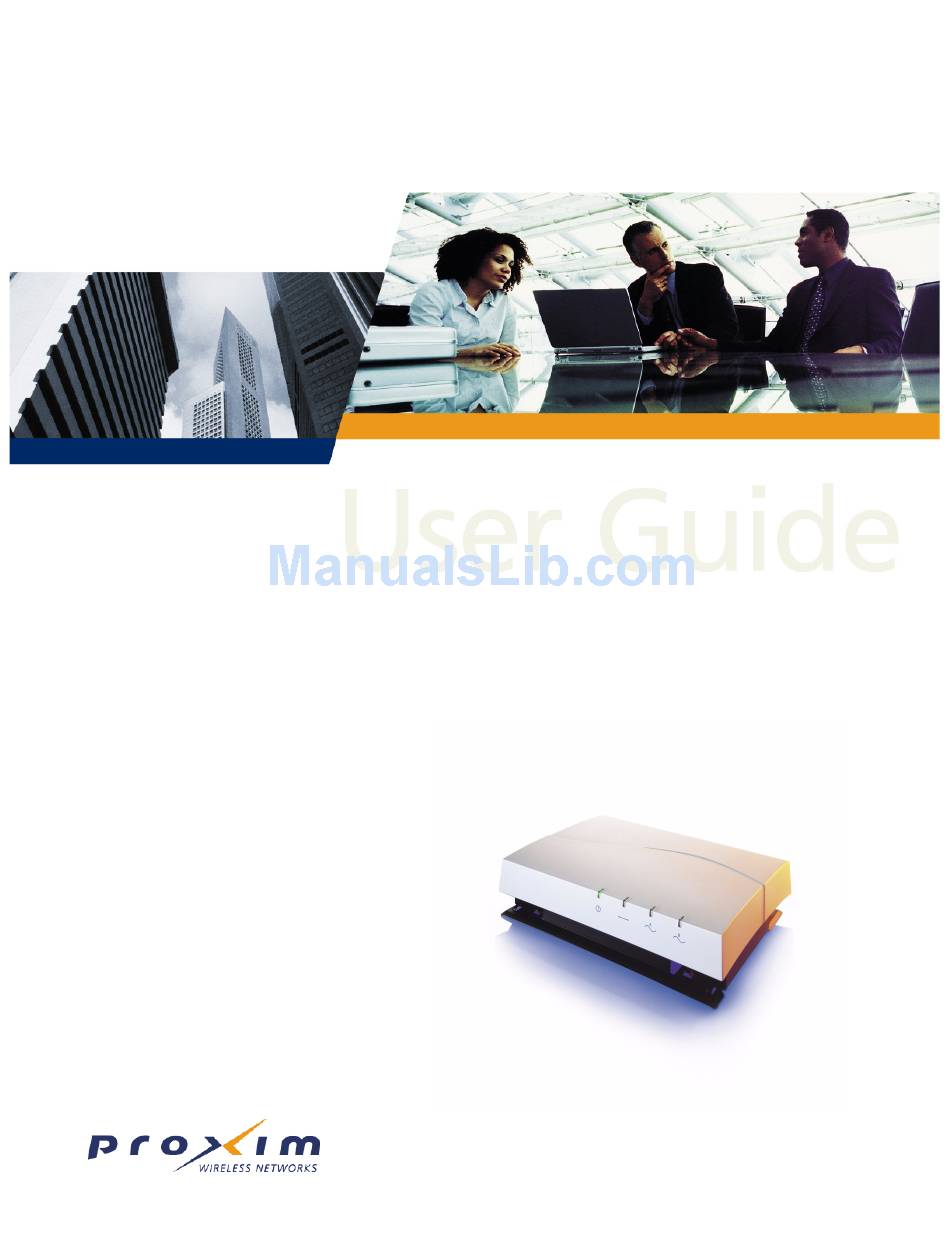

  • Page 1 ORiNOCO AP-2000 Access Point User Guide...
  • Page 2 Proxim Corporation. Trademarks ORiNOCO is a registered trademark, and Proxim, and the Proxim logo are trademarks of Proxim Corporation. All other trademarks mentioned herein are the property of their respective owners. OpenSSL License Note This product contains software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http:// www.openssl.org/) and that is subject to the following copyright and conditions:...

  • Page 3: Table Of Contents

    Contents Introduction ........... .12 Document Conventions .
  • Page 4 Contents LED Indicators ............. 32 Viewing Status Information .
  • Page 5 Contents Procedure to Reset Configuration via the Serial Interface ......63 Filtering ............. . 64 Ethernet Protocol .
  • Page 6 Contents Configuring MAC Access ..........86 Security Profiles.
  • Page 7 Contents Help Link ............120 Troubleshooting the AP-2000 .
  • Page 8 Contents A Using the Command Line Interface (CLI)......132 General Notes ............132 Prerequisite Skills and Knowledge .
  • Page 9 Contents Set up Auto Configuration ..........147 Other Network Settings .
  • Page 10 Contents Proxy ARP Parameters ..........171 IP ARP Filtering Parameters .
  • Page 11 Electrical Specifications ..........185 Environmental Specifications .

  • Page 12: Introduction

    As wireless clients move from one coverage cell to another, they maintain network connectivity. To determine the best location for an Access Point, Proxim recommends conducting a Site Survey before placing the device in its final location. For information about how to conduct a Site Survey, contact your local reseller.

  • Page 13: Guidelines For Roaming

    Introduction Figure 1-1 Typical wireless network access infrastructure Once initialized, the network administrator can configure each unit according to the network’s requirements. The AP functions as a wireless network access point to data networks. An AP network provides: • Seamless client roaming •...

  • Page 14: Ieee 802.11 Specifications

    Introduction IEEE 802.11 Specifications In 1997, the Institute of Electrical and Electronics Engineers (IEEE) adopted the 802.11 standard for wireless devices operating in the 2.4 GHz frequency band. This standard includes provisions for three radio technologies: direct sequence spread spectrum, frequency hopping spread spectrum, and infrared. Devices that comply with the 802.11 standard operate at a data rate of either 1 or 2 Megabits per second (Mbits/sec).

  • Page 15: Snmp Management

    ORiNOCO Enterprise MIB Proxim provides these MIB files on the CD included with each Access Point. You need to compile one or more of the above MIBs into your SNMP program’s database before you can manage an Access Point using SNMP. Refer to the documentation that came with your SNMP manager for instructions on how to compile MIBs.

  • Page 16: Getting Started

    Getting Started • Prerequisites • Product Package • System Requirements • Hardware Installation • Initialization • Download the Latest Software • Additional Hardware Features Prerequisites Before installing an AP, you need to gather certain network information. The following section identifies the information you need.

  • Page 17: Product Package

    Getting Started Product Package Each Dual-radio AP comes with the following: • One ceiling or wall mounting plate • Mounting hardware • Metal faceplate for APs mounted in a plenum environment • AP cover • Processor module (with integrated Active Ethernet, if applicable) •...

  • Page 18: Hardware Installation

    Getting Started Hardware Installation • AP-2000 with Active Ethernet • AP-2000 with Power Supply • 5 GHz or AP-2000 11a Upgrade Kit AP-2000 with Active Ethernet 1. Slide the AP module onto the mounting bracket. Make sure it is properly seated. Figure 2-1 Insert Module into Mounting Bracket 2.

  • Page 19: Ap-2000 With Power Supply

    Getting Started Figure 2-3 Connect an Ethernet cable from an AE hub to the AP 6. Conduct a Site Survey to determine the best location for your device. 7. Once you have chosen a final location for your unit, mount the wall bracket and the processor module and place the cover onto the unit as shown.
  • Page 20 Getting Started Figure 2-5 Install the power supply 3. Slide the AP module onto the mounting bracket. Make sure it is properly seated. 4. Plug the DC connector from the power supply into the top of the AP module. Figure 2-6 Insert module in mounting bracket and attach power connector...
  • Page 21 Getting Started Figure 2-7 Slide a PC Card into the AP 5. Attach one end of an Ethernet cable to the AP's Ethernet port and the other end to a network hub or switch. 6. Connect the unit to a power source. 7.

  • Page 22: Ghz Or Ap-2000 11A Upgrade Kit

    Getting Started 5 GHz or AP-2000 11a Upgrade Kit If you are installing this kit on a new AP (one that has not been installed yet), skip to Step 4. 1. Remove the AP from your network by unplugging the power and Ethernet cables from the unit. 2.
  • Page 23 Getting Started 6. Angle the antenna adapter slightly upwards, pinch the end tabs inwards and carefully slide the antenna adapter onto the mounting bracket. 7. Gently push forward while rotating the antenna downwards and clip the adapter into the small cutouts on the face of the mounting bracket.

  • Page 24: Initialization

    Getting Started Initialization Proxim provides two tools to simplify the initialization and configuration of an AP: • ScanTool • Setup Wizard ScanTool is included on the Installation CD; the Setup Wizard launches automatically the first time you access the HTTP interface.
  • Page 25 Getting Started NOTE If your computer has more than one network adapter installed, you will be prompted to select the adapter that you want ScanTool to use before the Scan List appears. If prompted, select an adapter and click OK. You can change your adapter setting at any time by clicking the Select Adapter button on the Scan List screen.

  • Page 26: Setup Wizard

    Getting Started Figure 2-14 Scan Tool Change Screen Set IP Address Type to Static. Enter a static IP Address for the AP in the field provided. You must assign the unit a unique address that is valid on your IP subnet. Contact your network administrator if you need assistance selecting an IP address for the unit.
  • Page 27 Getting Started Figure 2-15 Enter Network Password Figure 2-16 Setup Wizard 5. Click Setup Wizard to begin. If you want to configure the AP without using the Setup Wizard, click Exit and see Performing Advanced Configuration. The Setup Wizard supports the following navigation options: •...
  • Page 28 Getting Started 8. Assign the AP new passwords to prevent unauthorized access and click Save & Next. Each management interface has its own password: — SNMP Read Password — SNMP Read-Write Password — SNMPv3 Authentication Password — SNMPv3 Privacy Password —...

  • Page 29: Download The Latest Software

    11. When finished, click Reboot on the Summary screen to restart the AP and apply your changes. Download the Latest Software Proxim periodically releases updated software for the AP on its Web site at http://www.proxim.com. Proxim recommends that you check the Web site for the latest updates after you have installed and initialized the unit.

  • Page 30: Setup Your Tftp Server

    Download Updates from your TFTP Server using the Web Interface 1. Download the latest software from http://www.proxim.com. 2. Copy the latest software updates to your TFTP server. 3. In the Web Interface, click the Commands button and select the Update AP tab.

  • Page 31: Download Updates From Your Tftp Server Using The Cli Interface

    Getting Started Download Updates from your TFTP Server using the CLI Interface 1. Download the latest software from http://www.proxim.com. 2. Copy the latest software updates to your TFTP server. 3. Open the CLI interface via Telnet or a serial connection.

  • Page 32: Active Ethernet

    Getting Started Active Ethernet An Active Ethernet-enabled AP is equipped with an 802.3af-compliant Active Ethernet module. Active Ethernet (AE) delivers both data and power to the access point over a single Ethernet cable. If you choose to use Active Ethernet, there is no difference in operation;...

  • Page 33: Related Topics

    Getting Started Related Topics The Setup Wizard helps you configure the basic AP settings required to get the unit up and running. The AP supports many other configuration and management options. The remainder of this user guide describes these options in detail. –...

  • Page 34: Viewing Status Information

    Viewing Status Information • Logging into the HTTP Interface • System Status Logging into the HTTP Interface Once the AP has a valid IP Address and an Ethernet connection, you may use your web browser to monitor the system status. Follow these steps to monitor an AP’s operating statistics using the HTTP interface: 1.

  • Page 35: System Status

    Viewing Status Information System Status System Status is the first screen to appear each time you connect to the HTTP interface. You can also return to this screen by clicking the Status button. Figure 3-2 System Status Screen Each section of the System Status screen provides the following information: –...

  • Page 36: Performing Advanced Configuration

    Performing Advanced Configuration • Configuring the AP Using the HTTP/HTTPS Interface • System: Configure specific system information such as system name and contact information. • Network: Configure IP settings, DNS client, DHCP server, and Link Integrity. • Interfaces: Configure the Access Point’s interfaces: Wireless and Ethernet. Also describes configuring a Distribution System (WDS).
  • Page 37 Performing Advanced Configuration Figure 4-1 Enter Network Password Screen 5. Click the Configure button located on the left-hand side of the screen. Figure 4-2 Configure Main Screen 6. Click the tab that corresponds to the parameter you want to configure. For example, click Network to configure the Access Point’s TCP/IP settings.

  • Page 38: System

    Performing Advanced Configuration System You can configure and view the following parameters within the System Configuration screen: • Name: The name assigned to the AP. System name must be between 1-31 characters. Refer to the Support Access Point System Naming Convention •...

  • Page 39: Network

    • DNS Client Default Domain Name: The default domain name for the Access Point’s network (for example, “proxim.com”). Contact your network administrator if you need assistance setting this parameter. Advanced •...

  • Page 40: Dhcp Server

    Performing Advanced Configuration DHCP Server If your network does not have a DHCP Server, you can configure the AP as a DHCP server to assign dynamic IP addresses to Ethernet nodes and wireless clients. CAUTION Make sure there are no other DHCP servers on the network and do not enable the DHCP server without checking with your network administrator first, as it could bring down the whole network.

  • Page 41: Link Integrity

    Performing Advanced Configuration You can configure and view the following parameters within the DHCP Server Configuration screen: • Enable DHCP Server: Place a check mark in the box provided to enable DHCP Server functionality. NOTE You cannot enable the DHCP Server functionality unless there is at least one IP Pool Table Entry configured. •...

  • Page 42: Interfaces

    Performing Advanced Configuration Figure 4-4 Link Integrity Configuration Screen Interfaces The Interfaces tab contains the following sub-tabs: – Operational Mode – 8Wireless-A and Wireless-B – Ethernet From these sub-tabs, you configure the Access Point’s operational mode, wireless interface settings and Ethernet settings.

  • Page 43: Operational Mode

    Performing Advanced Configuration Operational Mode Operational Mode Selection You can configure and view the following parameters within the Operational Mode screen. • Operational Mode: the mode of communication between the wireless clients and the Access Point: • 802.11b only • 802.11g only •...
  • Page 44 Performing Advanced Configuration • RTS/CTS Medium Reservation: This parameter affects message flow control and should not be changed under normal circumstances. Range is 0 to 2347. When set to a value between 0 and 2347, the Access Point uses the RTS/CTS mechanism for packets that are the specified size or greater.

  • Page 45: Wireless (802.11B)

    Performing Advanced Configuration In shutdown state, AP will not transmit and receive frames from the wireless interface and will stop transmitting periodic beacons. Moreover, none of the frames received from the Ethernet interface will be forwarded to that wireless interface. Wireless service on a wireless interface of the AP can be resumed through CLI/HTTP/SNMP management interface.
  • Page 46 Access Points). Note that this feature is available only if you are using an Orinoco Classic Gold card. Proxim recommends that you leave this parameter enabled, particularly if you have ORiNOCO clients on your wireless network (leaving this parameter enabled should not adversely affect the performance of any ORiNOCO ComboCards or non-ORiNOCO cards on your network).
  • Page 47 Performing Advanced Configuration NOTE This feature is available only if you are using an Orinoco Classic Gold card. Cell capacities are compared in the following table, which shows that small cells suit most offices and large cells suit most warehouses: Small Cell Physically accommodates few stations High cell bandwidth per station...

  • Page 48: Wireless (802.11B/G)

    Performing Advanced Configuration stations that may not be able to receive multicast packets at the higher rates; in this case, you should set Multicast Rate to 1 or 2 Mbits/sec. Figure 4-6 1 Mbits/s and 11 Mbits/s Multicast Rates NOTE There is an inter-dependent relationship between the Distance between APs and the Multicast Rate.

  • Page 49: Wireless Distribution System (Wds)

    Performing Advanced Configuration – 802.11b/g mode: This is the default mode. Use this mode if you want to support a mix of 802.11b and 802.11g devices. – 802.11g-wifi: This mode was developed for Wi-Fi compliance testing purposes. It is similar to 802.11g only mode.
  • Page 50 Performing Advanced Configuration Figure 4-7 WDS Example Bridging WDS Each WDS link is mapped to a logical WDS port on the AP. WDS ports behave like Ethernet ports rather than like standard wireless interfaces: on a BSS port, an Access Point learns by association and from frames; on a WDS or Ethernet port, an Access Point learns from frames only.
  • Page 51 Performing Advanced Configuration 1. Confirm that Auto Channel Select is disabled. 2. Write down the MAC Address of the radio that you wish to include in the Wireless Distribution System. 3. Click on Interfaces > Wireless-A or Wireless-B. 4. Scroll down to the Wireless Distribution System heading. 5.

  • Page 52: Ethernet

    For best results, Proxim recommends that you configure the Ethernet setting to match the speed and transmission mode of the device the Access Point is connected to (such as a hub or switch). If in doubt, leave this setting at its default, auto-speed-auto-duplex.

  • Page 53: Management

    Password field and the Confirm field. This password must be between 6 and 32 characters. The default password is “public”. NOTE For security purposes Proxim recommends changing ALL PASSWORDS from the default “public” immediately, to restrict access to your network devices to authorized personnel. If you lose or forget your password settings, you can always perform the...

  • Page 54: Services

    • SSL Certificate Passphrase: After enabling SSL, the only configurable parameter is the SSL passphrase. The default SSL passphrase is proxim. The AP supports SSLv3 with a 128-bit encryption certificate maintained by the AP for secure communications between the AP and the HTTP client. All communications are encrypted using the server and the client-side certificate.
  • Page 55 Performing Advanced Configuration Figure 4-10 Management Services Configuration Screen...

  • Page 56: Telnet Configuration Settings

    Performing Advanced Configuration Telnet Configuration Settings • Telnet Interface Bitmask: Select the interface (Ethernet, Wireless-Slot A, Wireless-Slot B, All Interfaces) from which you can manage the AP via telnet. This parameter can also be used to Disable telnet management. • Telnet Port: The default port number for Telnet applications is 23.
  • Page 57 Performing Advanced Configuration To manually generate or delete host keys on the AP: • Select Create to generate a new pair of host keys. • Select Delete to remove the host keys from the AP. If no host keys are present, the AP will not allows connections using SSH.

  • Page 58: Serial Configuration Settings

    Serial Flow Control: Select either None (default) or Xon/Xoff (software controlled) data flow control. NOTE To avoid potential problems when communicating with the AP through the serial port, Proxim recommends that you leave the Flow Control setting at None (the default value).

  • Page 59: Automatic Configuration (Autoconfig)

    Performing Advanced Configuration Automatic Configuration (AutoConfig) The Automatic Configuration feature which allows an AP to be automatically configured by downloading a specific configuration file from a TFTP server during the boot up process. Automatic Configuration is disabled by default. The configuration process for Automatic Configuration varies depending on whether the AP is configured for dynamic or static IP.
  • Page 60 Performing Advanced Configuration Figure 4-12 Automatic Configuration Screen Set up Automatic Configuration for Dynamic IP Perform the following procedure to enable and set up Automatic Configuration when you have a dynamic IP address for the TFTP server via DHCP. The Configuration filename and the TFTP server IP address are contained in the DHCP response when the AP gets its IP address dynamically from the DHCP server.
  • Page 61 Performing Advanced Configuration Figure 4-13 DHCP Options: Setting the Boot Server Host Name 4. Add the Boot Server Host Name and Boot Filename parameters to the Active Options list. 5. Set the value of the Boot Server Host Name Parameter to the host name or IP Address of the TFTP server. For example: 11.0.0.7.

  • Page 62: Hardware Configuration Reset (Chrp)

    Performing Advanced Configuration Hardware Configuration Reset (CHRP) Hardware Configuration Reset Status is a parameter that defines the hardware configuration reset behavior of the AP (i.e., what effect pressing the reload button has on an AP operating in normal operating mode). If a user loses or forgets the AP’s HTTP/Telnet/SNMP password, the reset button on the AP provides a way to reset the AP to default configuration values to gain access to the AP.

  • Page 63: Configuring Hardware Configuration Reset

    Performing Advanced Configuration Configuring Hardware Configuration Reset Perform the following procedure to configure Hardware Configuration Reset and to set the Configuration Reset Password. 1. Click Configure -> Management -> CHRD. 2. Check (enable) or uncheck (disable) the Enable Hardware Configuration Reset checkbox. 3.

  • Page 64: Filtering

    Performing Advanced Configuration Filtering The Access Point’s Packet Filtering features help control the amount of traffic exchanged between the wired and wireless networks. There are four sub-tabs under the Filtering tab: – Ethernet Protocol – Static MAC – Advanced – TCP/UDP Port Ethernet Protocol The Ethernet Protocol Filter blocks or forwards packets based on the Ethernet protocols they support.
  • Page 65 Performing Advanced Configuration Each MAC Address or Mask is comprised of 12 hexadecimal digits (0-9, A-F) that correspond to a 48-bit identifier. (Each hexadecimal digit represents 4 bits (0 or 1).) Taken together, a MAC Address/Mask pair specifies an address or a range of MAC addresses that the AP will look for when examining packets.

  • Page 66: Static Mac Filter Examples

    Performing Advanced Configuration Static MAC Filter Examples Consider a network that contains a wired server and three wireless clients. The MAC address for each unit is as follows: – Wired Server: 00:40:F4:1C:DB:6A – Wireless Client 1: 00:02:2D:51:94:E4 – Wireless Client 2: 00:02:2D:51:32:12 –...

  • Page 67: Advanced

    Performing Advanced Configuration • Wired Mask: FF:FF:FF:FF:FF:FF • Wireless MAC Address: 00:00:00:00:00:00 • Wireless Mask: 00:00:00:00:00:00 Result: The Access Point does not forward any packets that have a destination address of 01:00:5E:00:32:4B to the wireless network. Advanced You can configure the following advanced filtering options: •...

  • Page 68: Editing Tcp/Udp Port Filters

    Performing Advanced Configuration • Ethernet and Wireless Slot A • Wireless Slot B • Ethernet and Wireless Slot B • Wireless Slot A and B • All Interfaces 7. Click OK. Editing TCP/UDP Port Filters 1. Click Edit under the TCP/UDP Port Filter Table heading. 2.

  • Page 69: Alarms

    Performing Advanced Configuration Alarms This tab has three sub-tabs. – Groups – Alarm Host Table – Syslog – Rogue Access Point Detection (RAD) Groups The AP can be configured to generate and send alarms/notifications/traps as version 1 or a version 2c. Use the drop-down menu to select SNMP alarm type.
  • Page 70 Performing Advanced Configuration • Security Trap Group Trap Name Authentication Failure Unauthorized Manager Detected RAD Scan Complete RAD Scan Results • Wireless Interface/Card Trap Group Trap Name Wireless Card Not Present Wireless Card Failure Wireless Card Removal Incompatible Firmware Incompatible Vendor Firmware Download Failure (classic card only) Firmware Failure Radar Interference Detected...
  • Page 71 Performing Advanced Configuration Flash Memory Corrupted Restoring Last Known Good Configuration File • TFTP Trap Group Trap Name TFTP Operation Failure TFTP Operation Initiated TFTP Operation Completed • Image Trap Group Trap Name Zero Size Image Invalid Image Image Too Large Incompatible Image Invalid Image Digital Signature In addition, the AP supports these standard traps, which are always enabled:...

  • Page 72: Severity Levels

    Performing Advanced Configuration Severity Levels There are three severity levels for system alarms: – Critical – Major – Informational Critical alarms will often result in severe disruption in network activity or an automatic reboot of the AP Major alarms are usually activated due to a breach in the security of the system. Clients cannot be authenticated or an attempt at unauthorized access into the AP has been detected.

  • Page 73: Syslog Messages

    Performing Advanced Configuration • Syslog Heartbeat Status: Enables or disables the sending of heartbeat messages from the AP to the configured Syslog servers. • Syslog Heartbeat Interval: Specifies the interval (in seconds) at which Syslog Heartbeat messages are sent to the configured Syslog servers.

  • Page 74: Rogue Access Point Detection (Rad)

    Performing Advanced Configuration Rogue Access Point Detection (RAD) The Rogue AP Detection (RAD) feature provides an additional security level for wireless LAN deployments. Rogue AP detection provides a mechanism for detecting Rogue Access Points by utilizing the coverage of the trusted Access Point deployment.

  • Page 75: Configuring Rad

    Performing Advanced Configuration Points to the IP address of the management station. The Access Points on detecting a new Access Point sends a RAD Scan Result Trap to the management station. An example network deployment is shown. The Trusted AP has Rogue Access Detection enabled and the trap host is configured to be the management station.

  • Page 76: Bridge

    For more information on Spanning Tree protocol, see Section 8.0 of the IEEE 802.1d standard. The Spanning Tree configuration options are advanced settings. Proxim recommends that you leave these parameters at their default values unless you are familiar with the Spanning Tree protocol.

  • Page 77: Packet Forwarding (Pkt Fwd)

    Performing Advanced Configuration To block Intra BSS traffic, set Intra BSS Traffic Operation to Block. To allow Intra BSS traffic, set Intra BSS Traffic Operation to Passthru. Packet Forwarding (Pkt Fwd) The Packet Forwarding feature enables you to redirect traffic generated by wireless clients that are all associated to the same AP to a single MAC address.

  • Page 78: Radius Profiles

    Performing Advanced Configuration RADIUS Profiles Configuring RADIUS Profiles on the AP define a profile for RADIUS Servers used by the system or by a VLAN. The network administrator can define RADIUS Servers per Authentication Mode and per The AP communicates with the RADIUS server defined in a profile to provide the following features: –...

  • Page 79: Radius-Based Vlan Assignment

    Performing Advanced Configuration server used depends on whether the authentication is done for an 802.1x client or non-802.1x client. The clients in VLAN 2 are authenticated using a different set of authentication servers configured for authenticating users in VLAN 2. Authentication servers for each VLAN are configured as part of the configuration options for that VLAN.

  • Page 80: Adding Or Modifying A Radius Server Profile

    Performing Advanced Configuration Adding or Modifying a RADIUS Server Profile Perform the following procedure to add a RADIUS server profile and to configure its parameters. 1. Click Add to create a new profile. To Modify an existing profile, select the profile and click Edit. To delete an existing profile, select the profile and click Delete.

  • Page 81: Mac Access Control Via Radius Authentication

    Performing Advanced Configuration • Server Name/IP Address: Enter the server’s name or IP address. • Destination Port: Enter the port number which the AP and the server will use to communicate. By default, RADIUS servers communicate on port 1812. • Server VLAN ID: Indicates the VLAN that uses this RADIUS server profile.

  • Page 82: Radius Accounting

    Performing Advanced Configuration RADIUS Accounting Using an external RADIUS server, the AP can track and record the length of client sessions on the access point by sending RADIUS accounting messages per RFC2866. When a wireless client is successfully authenticated, RADIUS accounting is initiated by sending an “Accounting Start”...

  • Page 83: Ssid/Vlan/Security

    Performing Advanced Configuration SSID/VLAN/Security The AP provides several security features to protect your network from unauthorized access. Virtual Local Area Networks (VLANs) are logical groupings of network hosts. Defined by software settings, other VLAN members or resources appear (to clients) to be on the same physical segment, no matter where they are attached on the logical LAN or WAN segment.
  • Page 84 Performing Advanced Configuration Figure 4-23 Components of a typical VLAN VLAN Workgroups and Traffic Management Access Points that are not VLAN-capable typically transmit broadcast and multicast traffic to all wireless Network Interface Cards (NICs). This process wastes wireless bandwidth and degrades throughput performance. In comparison, VLAN-capable AP is designed to efficiently manage delivery of broadcast, multicast, and unicast traffic to wireless clients.

  • Page 85: Enabling/Disabling Vlan Protocol

    Performing Advanced Configuration The AP can segment users into a maximum of 16 different workgroups (32 if using two cards in a Dual-radio AP) based on an SSID/VLAN pair (also referred as a VLAN Workgroup or a Sub-network). NOTE The ability to configure up to 16 VLAN/SSID pairs and to configure a security profile per SSID is available only for 802.11b/g APs and 802.11a Upgrade Kit APs.

  • Page 86: Mac Access

    Performing Advanced Configuration MAC Access The MAC Access sub-tab allows you to build a list of stations, identified by their MAC addresses, authorized to access the network through the AP. The list is stored inside each AP within your network. Note that you must reboot the AP for any changes to the MAC Access Control Table to take effect.

  • Page 87: Security Profiles

    Performing Advanced Configuration Security Profiles The AP supports the following Security features: • Encryption: The original encryption technique specified by the IEEE 802.11 standard. • 802.1x Authentication: An IEEE standard for client authentication. • Wi-Fi Protected Access (WPA): A new standard that provides improved encryption security over WEP. WEP Encryption The IEEE 802.11 standards specify an optional encryption feature, known as Wired Equivalent Privacy or WEP, that is designed to provide a wireless LAN with a security level equal to what is found on a wired Ethernet network.

  • Page 88: Wi-Fi Protected Access (Wpa)

    Performing Advanced Configuration Authentication Process There are three main components in the authentication process. The standard refers to them as: supplicant (client PC) authenticator (Access Point) authentication server (RADIUS server) When using Authentication Mode to 802.1x, WPA, Mixed mode (802.1x and WEP), or 802.11i, you need to configure your RADIUS server for authentication purposes.

  • Page 89: Authentication Protocol Hierarchy

    Performing Advanced Configuration • Dynamic Key distribution – The AP generates and maintains the keys for its clients – The AP securely delivers the appropriate keys to its clients • Client/server mutual authentication – 802.1x – Pre-shared key (for networks that do not have an 802.1x solution implemented) NOTE For more information on WPA, see the Wi-Fi Alliance Web site at http://www.wi-fi.org.

  • Page 90: Configuring Security Profiles

    Performing Advanced Configuration Configuring Security Profiles Security policies can be configured and applied on the AP as a whole, or on a per VLAN basis. When VLAN is disabled on the AP, the user can configure a security profile for each interface of the AP. When VLANs are enabled and Security per SSID is enabled, the user can configure a security profile for each VLAN.
  • Page 91 Performing Advanced Configuration • 802.1x Station: • Authentication Mode: 802.1x • Cipher: WEP • Encryption Key Length: 64 or 128 Bits. • If 802.1x is enabled simultaneously with WEP, the 802.1x Station’s encryption key length is determined by the WEP encryption key. •...
  • Page 92 Performing Advanced Configuration Figure 4-27 Security Profile Table - Add Entries...

  • Page 93: Wireless-A And Wireless-B

    Performing Advanced Configuration Wireless-A and Wireless-B Each SSID/VLAN can have its own Security Profile that defines its security mode, authentication mechanism, and encryption, so that customers can have multiple types of clients (non-WEP, WEP, 802.1x, WPA) on the same system, but separated per VLAN.
  • Page 94 Performing Advanced Configuration Figure 4-30 SSID/VLAN Edit Entries Screen (VLAN Protocol Disabled) 4. Enter a unique Network Name (SSID), between 1 and 32 characters. This parameter is mandatory. 5. Enter a unique VLAN ID. This parameter is mandatory. – You must specify a unique VLAN ID for each SSID on the interface. A VLAN ID is a number from -1 to 4094. A value of -1 means that an entry is “untagged.”...
  • Page 95 Performing Advanced Configuration Figure 4-31 SSID, VLAN, and Security Data Configuration (VLAN Protocol Disabled) 8. Enable or disable RADIUS accounting on the VLAN/SSID under the Accounting Status drop-down menu. 9. Enable or disable RADIUS MAC authentication status on the VLAN/SSID under the RADIUS Authentication Status drop-down menu.

  • Page 96: Adding Or Modifying An Ssid/Vlan With Vlan Protocol Enabled

    Performing Advanced Configuration 13. Define the RADIUS Server Profile Configuration for the VLAN/SSID: • RADIUS MAC Authentication Profile • RADIUS EAP Authentication Profile • RADIUS Accounting Profile If 802.1x, WPA, or 802.11i security mode is used, the RADIUS EAP Authentication Profile must have a value. A RADIUS Server Profile for authentication for each VLAN shall be configured as part of the configuration options for that VLAN.
  • Page 97 Performing Advanced Configuration The Add Entry or Edit Entry screen appears. See Figure 4-33 below and Figure 4-34 on page Figure 4-33 SSID/VLAN Add Entries Screen (VLAN Protocol Enabled)
  • Page 98 Performing Advanced Configuration Figure 4-34 SSID/VLAN Edit Entries Screen (VLAN Protocol Enabled) 4. Enter a unique Network Name (SSID), between 1 and 32 characters. This parameter is mandatory. 5. Enter a unique VLAN ID. This parameter is mandatory. – You must specify a unique VLAN ID for each SSID on the interface. A VLAN ID is a number from -1 to 4094. A value of -1 means that an entry is “untagged.”...

  • Page 99: Broadcast Ssid And Closed System

    SSID has been specified in the probe request. This option is disabled by default. To enable Closed System, click on Interfaces > Wireless-A or Wireless-B and check the Enable Closed System box. For more information, on Broadcast SSID and Closed System, refer to Technical Bulletin 69680 at http://support.proxim.com.

  • Page 100: Monitoring The Ap-2000

    Monitoring the AP-2000 • Logging into the HTTP Interface • Version: Provides version information for the Access Point’s system components. • ICMP: Displays statistics for Internet Control Message Protocol packets sent and received by the AP. • IP/ARP Table: Displays the AP’s IP Address Resolution table. •...
  • Page 101 Monitoring the AP-2000 Figure 5-1 Enter Network Password Screen 5. Click the Monitor button located on the left-hand side of the screen. Figure 5-2 Monitor Main Screen 6. Click the tab that corresponds to the statistics you want to review. For example, click Learn Table to see the list of nodes that the AP has discovered on the network.

  • Page 102: Version

    Monitoring the AP-2000 Version From the HTTP interface, click the Monitor button and select the Version tab. The list displayed provides you with information that may be pertinent when calling Technical Support. With this information, your Technical Support representative can verify compatibility issues and make sure the latest software are loaded. This screen displays the following information for each Access Point component: •...

  • Page 103: Icmp

    Monitoring the AP-2000 ICMP This tab provides statistical information for both received and transmitted messages directed to the AP. Not all ICMP traffic on the network is counted in the ICMP (Internet Control Message Protocol) statistics. Figure 5-4 ICMP Monitoring Screen IP/ARP Table This tab provides information based on the Address Resolution Protocol (ARP), which relates MAC Address and IP Addresses.

  • Page 104: Learn Table

    Monitoring the AP-2000 Learn Table This tab displays information relating to network bridging. It reports the MAC address for each node that the device has learned is on the network and the interface on which the node was detected. There can be up 10,000 entries in the Learn Table.

  • Page 105: Radius

    Monitoring the AP-2000 RADIUS This tab provides RADIUS authentication, EAP/802.1x authentication, and accounting information for both the Primary and Backup RADIUS servers. NOTE RADIUS authentication and accounting must be enabled for this information to be valid. Figure 5-8 RADIUS Monitoring Screen...

  • Page 106: Interfaces

    Monitoring the AP-2000 Interfaces This tab displays statistics for the Ethernet and wireless interfaces. The Operational Status can be up, down, or testing. Figure 5-9 Wireless Interface Monitoring...

  • Page 107: Station Statistics

    Monitoring the AP-2000 Station Statistics This tab displays information on wireless clients attached to the AP and on Wireless Distribution System links. Enabling and Viewing Station Statistics To enable the monitoring of Stations Statistics, perform the following procedure: 1. Click on the Monitor tab on the left on the web page. 2.
  • Page 108 Monitoring the AP-2000 • Interface to which the Station is connected: The interface number on which the client is connected with the AP. For WDS links this is the interface on which the link is configured. • Station Type: The type of wireless client (STA or WDS). •...

  • Page 109: Performing Commands

    Performing Commands • Logging into the HTTP Interface • Introduction to File Transfer via TFTP or • Update AP via TFTP: Download files from a TFTP server to the AP. • Update AP via HTTP: Download files to the AP from HTTP. •...
  • Page 110 Performing Commands Figure 6-1 Enter Network Password Screen 5. Click the Commands button located on the left-hand side of the screen. Figure 6-2 Commands Main Screen 6. Click the tab that corresponds to the command you want to issue. For example, click Reboot to restart the unit.

  • Page 111: Introduction To File Transfer Via Tftp Or Http

    Performing Commands Introduction to File Transfer via TFTP or HTTP There are two methods of transferring files to or from the AP, TFTP or HTTP (or HTTPS if enabled). The following procedures describe downloading Configuration, AP Image, Bootloader, Private Key, and Certificate files to the AP: •...

  • Page 112: Update Ap Via Tftp

    Performing Commands Update AP via TFTP Use the Update AP via TFTP tab to download Configuration, AP Image, Bootloader files, and Certificate and Private Key files to the AP. A TFTP server must be running and configured to point to the directory containing the file. Figure 6-3 Update AP via TFTP Command Screen If you do not have a TFTP server installed on your system, install the TFTP server from the ORiNOCO CD.

  • Page 113: Update Ap Via Http

    Performing Commands Update AP via HTTP Use the Update AP via HTTP tab to download Configuration, AP Image, Bootloader files, and Certificate and Private Key files to the AP. Once on the Update AP screen, click on the via HTTP tab. Figure 6-4 Update AP via HTTP Command Screen The Update AP via HTTP tab shows version information and allows you to enter HTTP information as described...
  • Page 114 Performing Commands Figure 6-5 Warning Message Click OK to continue with the operation or Cancel to abort the operation. NOTE An HTTP file transfer using SSL may take extra time. If the operation completes successfully the following screen appears. Figure 6-6 Update AP Successful If the operation did not complete successfully the following screen appears, and the reason for the failure is displayed.

  • Page 115: Retrieve File Via Tftp

    Performing Commands Retrieve File via TFTP Use the Retrieve File via TFTP tab to upload files from the AP to the TFTP server. The TFTP server must be running and configured to point to the directory to which you want to copy the uploaded file. We suggest you assign the file a meaningful name, which may include version or location information.

  • Page 116: Retrieve File Via Http

    Performing Commands Retrieve File via HTTP Use the Retrieve File via HTTP tab to retrieve configuration files, CLI Batch Files, or CLI Batch Logs from the AP. Select the type of file (Config, CLI Batch File, or CLI Batch Log) from the File Type drop-down menu. For more information on CLI Batch Files and CLI Batch Logs refer to Figure 6-9 Retrieve File via HTTP Command Screen...
  • Page 117 Performing Commands Figure 6-11 File Download Dialog Box On clicking the Save button the following Save As window displays, where the user is prompted to choose the filename and location where the file is to be downloaded. Select an appropriate filename and location and click OK. Figure 6-12 Retrieve File Save As Dialog...

  • Page 118: Reboot

    Performing Commands Reboot Use the Reboot tab to save configuration changes (if any) and reset the AP. Entering a value of 0 (zero) seconds causes an immediate reboot. Note that Reset, described below, does not save configuration changes. CAUTION Rebooting the AP will cause all users who are currently connected to lose their connection to the network until the AP has completed the restart process and resumed operation.

  • Page 119: Reset

    Performing Commands Reset Use the Reset tab to restore the AP to factory default conditions. The AP may also be reset from the RESET button located on the side of the unit. Since this will reset the Access Point’s current IP address, a new IP address must be assigned.

  • Page 120: Help Link

    Performing Commands Help Link To open Help, click the Help button on any display screen. During initialization, the AP on-line help files are downloaded to the default location: C:/Program Files/ORiNOCO/AP/HTML/index.htm. NOTE Use the forward slash character ("/") rather than the backslash character ("\") when configuring the Help Link location.

  • Page 121: Troubleshooting The Ap-2000

    Troubleshooting the AP-2000 • Troubleshooting Concepts • Symptoms and Solutions • Recovery Procedures • Related Applications NOTE This section helps you locate problems related to the AP device setup. For details about RADIUS, TFTP, serial communication programs (such as HyperTerminal), Telnet applications, or web browsers, please refer to the documentation that came with the application for assistance.

  • Page 122: Symptoms And Solutions

    Troubleshooting the AP-2000 Symptoms and Solutions Connectivity Issues Connectivity issues include any problem that prevents you from powering up or connecting to the AP. AP Unit Will Not Boot - No LED Activity 1. Make sure your power source is operating. 2.

  • Page 123: Http (Browser) Or Telnet Interface Does Not Work

    Troubleshooting the AP-2000 2. The AP only contacts a DHCP server during boot-up. If your network’s DHCP server is not available while the AP is booting, the device will retain the last IP Address it had. Reboot the AP once your DHCP server is on-line again or use the ScanTool to find the Access Point’s current IP address.

  • Page 124: Client Connection Problems

    Client PC Card Does Not Work 1. Make sure you are using the latest PC Card driver software. 2. Download and install the latest ORiNOCO client software from http://www.proxim.com. Intermittent Loss of Connection 1. Make sure you are within range of an active AP.

  • Page 125: Active Ethernet (Ae)

    Troubleshooting the AP-2000 I have just configured the Management ID and now I can't manage the AP? – Check to ensure your password is correct. If your password is incorrect or all inbound packets do NOT have the correct tag, then a manual override is necessary. CAUTION The manual override process disconnects all users and resets all values to factory defaults.

  • Page 126: Reset To Factory Default Procedure

    Troubleshooting the AP-2000 Reset to Factory Default Procedure Use this procedure to reset the network configuration values, including the Access Point’s IP address and subnet mask. The current AP Image is not deleted. Follow this procedure if you forget the Access Point’s password: 1.

  • Page 127: Download A New Image Using Scantool

    Download Procedure Follow these steps to use ScanTool to download a software image to an Access Point with a missing image: 1. Download the latest software from http://www.proxim.com. 2. Copy the latest software updates to your TFTP server. 3. Launch ScanTool.

  • Page 128: Download A New Image Using The Bootloader Cli

    Download Procedure 1. Download the latest software from http://www.proxim.com. 2. Copy the latest software updates to your TFTP server’s default directory. 3. Use a straight-through serial cable to connect the Access Point’s serial port to your computer’s serial port.

  • Page 129: Setting Ip Address Using Serial Port

    Troubleshooting the AP-2000 7. Enter only the following statements: [Device name]> set ipaddrtype static [Device name]> set ipaddr <Access Point IP Address> [Device name]> set ipsubmask <IP Mask> [Device name]> set tftpipaddr <TFTP Server IP Address> [Device name]> set tftpfilename <AP Image File Name, including file extension> [Device name]>...
  • Page 130 Troubleshooting the AP-2000 Follow these steps to assign the AP an IP address: 1. Open your terminal emulation program (like HyperTerminal) and set the following connection properties: • Com Port: <COM1, COM2, etc., depending on your computer> • Baud rate: 9600 •...

  • Page 131: Related Applications

    Troubleshooting the AP-2000 Related Applications RADIUS Authentication Server If you enabled RADIUS Authentication on the AP, make sure that your network’s RADIUS servers are operational. Otherwise, clients will not be able to log in. There are several reasons the authentication server services might be unavailable, here are two typical things to check: •...

  • Page 132: A Using The Command Line Interface (Cli)

    Using the Command Line Interface (CLI) This section describes the AP’s Command Line (CLI) Interface. CLI commands can be used to initialize, configure, and manage the Access Point. – CLI commands may be entered in real time through a keyboard or submitted with CLI scripts. –...

  • Page 133: Navigation And Special Keys

    Using the Command Line Interface (CLI) • Download vs. Upload - Downloads transfer files to the Access Point. Uploads transfer files from the Access Point. The TFTP server performs file transfers in both directions. • Group - A logical collection of network parameter information. For example, the System Group is composed of several related parameters.

  • Page 134: Bootloader Cli

    Using the Command Line Interface (CLI) Bootloader CLI The Bootloader CLI is a minimal subset of the normal CLI used to perform initial configuration of the AP. This interface is only accessible via the serial interface if the AP does not contain a software image or a download image command over TFTP has failed.

  • Page 135: Cli Command Types

    Using the Command Line Interface (CLI) CLI Command Types This guide divides CLI Commands into two categories: Operational and Parameter Controls. Operational CLI Commands These commands affect Access Point behavior, such as downloading, rebooting, and so on. After entering commands (and parameters, if any) press the Enter key to execute the Command Line.
  • Page 136 Using the Command Line Interface (CLI) Figure A-4 Result of “s?” CLI command Example 3. Display parameters for set and show Example 3a allows you to see every possible parameter for the set (or show) commands. Notice from example 3a that the list is very long.

  • Page 137: Done, Exit, Quit

    Using the Command Line Interface (CLI) Example 4. Display Prompts for Successive Parameters Enter the command, a space, and then ?. Then, when the parameter prompt appears, enter the parameter value. Result: The parameter is changed and a new CLI line is echoed with the new value (in the first part of the following example, the value is the IP Address of the TFTP server).

  • Page 138: History

    Using the Command Line Interface (CLI) Figure A-8 Results of “help” CLI command 2. Complete command description and command usage can be provided by: [Device-Name]>help <command name> [Device-Name]><command name> help history Shows content of Command History Buffer. The Command History Buffer stores command statements entered in the current session.

  • Page 139: Upload

    Using the Command Line Interface (CLI) upload Uploads a text-based configuration file from the AP to the TFTP Server. Executing upload with the asterisk character (“*”) will make use of the previously set/stored TFTP parameters. Executing upload without parameters will display command help and usage information.

  • Page 140: Configuring Objects That Require Reboot

    Using the Command Line Interface (CLI) Configuring Objects that Require Reboot Certain objects supported by the Access Point require a device reboot in order for the changes to take effect. In order to inform the end-user of this behavior, the CLI provides informational messages when the user has configured an object that requires a reboot.
  • Page 141 Using the Command Line Interface (CLI) Example 3 - Modify a table entry or row Use the index to be modified and the table elements you would like to modify. For example, suppose the IP Access Table has one entry and you wanted to modify the IP address: [Device-Name]>set mgmtipaccesstbl 1 ipaddr 10.0.0.11 You can also modify several elements in the table entry.

  • Page 142: Using Tables & User Strings

    Using the Command Line Interface (CLI) Example 6 - Show Individual and Table Parameters 1. View a single parameter. Syntax: [Device-Name]>show <parameter name> Example: [Device-Name]> show ipaddr Result: Displays the Access Point IP address. Figure A-11 Result of “show ipaddr” CLI Command 2.

  • Page 143: Using Strings

    Result: HyperTerminal sends a line return at the end of each line of code. Enter the CLI password (default is public). NOTE Proxim recommends changing your default passwords immediately. To perform this operation using CLI commands, refer to Change Passwords.

  • Page 144: Set Basic Configuration Parameters Using Cli Commands

    Using the Command Line Interface (CLI) NOTE Proxim recommends changing your default passwords immediately. To perform this operation using CLI commands, refer to Change Passwords. Set Basic Configuration Parameters using CLI Commands There are a few basic configuration parameters that you may want to setup right away when you receive the AP. For example: –...

  • Page 145: Set Network Names For The Wireless Interface

    [Device-Name]>set snmpv3privpasswd <New Password> (SNMPv3 privacy password) [Device-Name]>reboot 0 CAUTION Proxim strongly urges you to change the default passwords to restrict access to your network devices to authorized personnel. If you lose or forget your password settings, you can always perform the Factory Default Procedure.
  • Page 146 Using the Command Line Interface (CLI) Examples: [Device-Name]>set wifssidtbl 3.1 ssid accesspt1 vlanid 22 ssidauth enable acctstatus enable secprofile 1 radmacprofile "MAC Authentication" radeapprofile "EAP Authentication" radacctprofile "Accounting" radmacauthstatus enable aclstatus enable set wifssidtbl 4.1 ssid accesspt1 vlanid 22 ssidauth enable acctstatus enable secprofile 1 radmacprofile "MAC Authentication"...

  • Page 147: Download An Ap Configuration File From Your Tftp Server

    Using the Command Line Interface (CLI) Download an AP Configuration File from your TFTP Server Begin by starting your TFTP program. It must be running and configured to transmit and receive. [Device-Name]>set tftpfilename <file name> tftpfiletype config tftpipaddr <IP address of your TFTP server> [Device-Name]>show tftp (to ensure the filename, file type, and the IP address are correct) [Device-Name]>download * [Device-Name]>reboot 0...

  • Page 148: Configure The Ap As A Dhcp Server

    Using the Command Line Interface (CLI) NOTE Refer to Performing Advanced Configuration Configure the AP as a DHCP Server NOTE You must have at least one entry in the DHCP Server IP Address Pool Table before you can set the DHCP Server Status to Enable.
  • Page 149 Using the Command Line Interface (CLI) Operational Mode [Device-Name]>set wif <index> mode <see table> mode Operational Mode dot11b-only dot11g-only dot11bg dot11a-only dot11g-wifi Autochannel Select (ACS) ACS is enabled by default. Reboot after disabling or enabling ACS. [Device-Name]>set wif <index> autochannel <enable/disable> [Device-Name]>reboot 0 Enable/Disable Closed System [Device-Name]>set wif <index>...

  • Page 150: Set Ethernet Speed And Transmission Mode

    Using the Command Line Interface (CLI) Set the Multicast Rate (802.11b Only) [Device-Name]>set wif <index> multrate <1,2,5.5,11 NOTE The Distance Between APs must be set before the Multicast Rate. Enable/Disable Super Mode (802.11a/g only) [Device-Name]>set wif 3 super <enable/disable> Enable/Disable Turbo Mode (802.11a/g only) [Device-Name]>set wif 3 turbo <enable/disable>...

  • Page 151: Configure Syslog

    Using the Command Line Interface (CLI) Configure Secure Socket Layer (HTTPS) Enabling SSL and configuring a passphrase allows encrypted Secure Socket Layer communications to the AP through the HTTPS interface. [Device-Name]>set sslstatus <enable/disable> The user must change the SSL passphrase when uploading a new certificate/private key pair, which will have a corresponding passphrase.

  • Page 152: Configure Mac Access Control

    Using the Command Line Interface (CLI) Configure MAC Access Control Setup MAC (Address) Access Control [Device-Name]>set macaclstatus enable [Device-Name]>set macacloptype <passthru, block> [Device-Name]>reboot 0 Add an Entry to the MAC Access Control Table [Device-Name]>set macacltbl <index> macaddr <MAC Address> status enable [Device-Name]>show macacltbl Disable or Delete an Entry in the MAC Access Control Table [Device-Name]>set macacltbl <index>...

  • Page 153: Set Radius Parameters

    Using the Command Line Interface (CLI) Set RADIUS Parameters Configure RADIUS Authentication servers Perform the following command to configure a RADIUS Server and assign it to a VLAN. The RADIUS Server Profile index is specified by the index parameter and the subindex parameter specifies whether you are configuring a primary or secondary RADIUS server.
  • Page 154 Using the Command Line Interface (CLI) Index Primary/Backup Profile Name Server Status Server Addressing Format IP Address/Host Name Destination Port VLAN Identifier MAC Address Format Response Time Maximum Retransmission Authorization Lifetime Accounting Update Interval Accounting Inactivity Timer Index Primary/Backup Profile Name Server Status Server Addressing Format IP Address/Host Name...

  • Page 155: Set Rogue Access Point Detection (Rad) Parameters

    Using the Command Line Interface (CLI) Accounting Update Interval Accounting Inactivity Timer Index Primary/Backup Profile Name Server Status Server Addressing Format IP Address/Host Name Destination Port VLAN Identifier MAC Address Format Response Time Maximum Retransmission Authorization Lifetime Accounting Update Interval Accounting Inactivity Timer Index Primary/Backup...

  • Page 156: Set Hardware Configuration Reset Parameters

    Using the Command Line Interface (CLI) Set Hardware Configuration Reset Parameters The Hardware Configuration Reset commands allows you to enable or disable the hardware reset functionality and to change the password to be used for configuration reset during boot up. To disable hardware configuration reset, enter: [Device-Name]>set hwconfigresetstatus disable To enable hardware configuration reset, enter:...
  • Page 157 Using the Command Line Interface (CLI) Access Point network objects are associated with Groups. The network objects are listed below and associated parameters are described in the following Parameter Tables: • System Parameters - Access Point system information – Inventory Management Information •...

  • Page 158: System Parameters

    Using the Command Line Interface (CLI) – VLAN/SSID Parameters - Enable the configuration of multiple subnetworks based on VLAN ID and SSID pairs. – Security Profile Table - Configure Security Profiles that define allowed security modes (wireless clients), and encryption and authentication mechanisms. •...

  • Page 159: Inventory Management Information

    Using the Command Line Interface (CLI) Inventory Management Information Name Type System Inventory Management Subgroup Component Table Subgroup Component Interface Table Subgroup NOTE The inventory management commands display advanced information about the AP’s installed components. You may be asked to report this information to a representative if you contact customer support. Network Parameters IP Configuration Parameters Name...

  • Page 160: Dhcp Server Parameters

    Using the Command Line Interface (CLI) DHCP Server Parameters Name Type DHCP Server Group DHCP Server Status Integer Gateway IP Address IpAddress Primary DNS IP Address IpAddress Secondary DNS IP IpAddress Address Number of IP Pool Table Integer32 Entries NOTE The DHCP Server (dhcpstatus) can only be enabled after a DHCP IP Pool table entry has been created.

  • Page 161: Link Integrity Parameters

    Using the Command Line Interface (CLI) Link Integrity Parameters Name Type Link Integrity Group Link Integrity Status Integer Link Integrity Poll Integer Interval Link Integrity Poll Integer Retransmissions Link Integrity IP Target Table Name Type Link Integrity IP Target Table Table Table Index Integer...

  • Page 162: Interface Parameters

    Using the Command Line Interface (CLI) Interface Parameters Wireless Interface Parameters The wireless interface group parameter is wif. For Dual-radio APs, Slot A uses table index 3 and Slot B uses table index 4. Common Parameters to 802.11a, 802.11b, and 802.11b/g APs Name Type Wireless Interfaces...
  • Page 163 Using the Command Line Interface (CLI) 802.11b Only Parameters Name Type Distance between APs Integer Interference Robustness Integer Operating Frequency Channel Integer Multicast Rate Integer Closed Wireless System Integer Medium Distribution Integer MAC Address PhyAddress Supported Data Rates Octet String Transmit Rate Integer32 Supported Frequency Channels...
  • Page 164 Using the Command Line Interface (CLI) 802.11b/g Only Parameters Name Type Wireless Operational Mode Integer Operating Frequency Channel Integer Supported Data Rates Octet String Transmit Rate Integer32 Physical Layer Type Integer SuperMode Integer TurboMode Integer Note 1: Super Mode must be enabled first on the wireless interface before Turbo Mode can be enabled. Wireless Distribution System (WDS) Parameters Name Type...

  • Page 165: Wireless Interface Ssid/Vlan/Profile Parameters

    Using the Command Line Interface (CLI) Wireless Interface SSID/VLAN/Profile Parameters The Wireless Interface SSID table manages the SSID/VLAN pairs, and the Security Profile and RADIUS Profiles associated to the VLAN NOTE The ability to configure up to 16 VLAN/SSID pairs and to configure security and RADIUS profiles per SSID is available only for 802.11b/g APs and 802.11a Upgrade Kit APs.

  • Page 166: Ethernet Interface Parameters

    Using the Command Line Interface (CLI) Ethernet Interface Parameters Name Type Ethernet Interface Group Speed Integer MAC Address PhyAddress Management Parameters Secure Management Parameters Name Type Secure Management Integer SNMP Parameters Name Type SNMP Group SNMP Management Interface Bitmask Interface Bitmask Read Password DisplayString Read/Write Password...

  • Page 167: Telnet Parameters

    Using the Command Line Interface (CLI) HTTP Password DisplayString HTTP Port Integer Help Link DisplayString SSL Status Integer SSL Certificate DisplayString Passphrase NOTE The default path for the Help files is C:/Program Files/ORiNOCO/AP/HTML/index.htm. (Use the forward slash character ("/") rather than the backslash character ("\") when configuring the Help Link location.) The AP Help information is available in English, French, German, Italian, Spanish, and Japanese.

  • Page 168: Radius Based Management Access Parameters

    Using the Command Line Interface (CLI) RADIUS Based Management Access Parameters The RADIUS Based Management Access parameters allow you to enable HTTP or Telnet Radius Management Access, enable or disable local user access, and configure the local user password. The default local user ID is root and the default local user password is public. “Root” cannot be configured as a valid user for RADIUS based management access when local user access is enabled.

  • Page 169: Auto Configuration Parameters

    Using the Command Line Interface (CLI) Auto Configuration Parameters These parameters relate to the Auto Configuration feature which allows an AP to be automatically configured by downloading a specific configuration file from a TFTP server during the boot up process. Name Type Auto Configuration...

  • Page 170: Filtering Parameters

    Using the Command Line Interface (CLI) Filtering Parameters Ethernet Protocol Filtering Parameters Name Type Ethernet Filtering Group Filtering Interface Interface Bitmask Bitmask Operation Type Ethernet Protocol Filtering Table Identify the different filters by using the table index. Name Type Ethernet Protocol Table Filtering Table Table Index...

  • Page 171: Proxy Arp Parameters

    Using the Command Line Interface (CLI) Proxy ARP Parameters Name Type Proxy ARP Group Status Integer IP ARP Filtering Parameters Name Type IP ARP Filtering Group Status Integer IP Address IpAddress Subnet Mask IpAddress Broadcast Filtering Table Name Type Broadcast Filtering Table Table Index...

  • Page 172: Alarms Parameters

    Using the Command Line Interface (CLI) Port Number Octet String Protocol Name DisplayString Interface Bitmask Integer32 Status (optional) Integer Alarms Parameters SNMP Table Host Table Parameters When creating table entries, you may either specifying the argument name followed by argument value. CLI applies default values to the omitted arguments.

  • Page 173: Bridge Parameters

    Using the Command Line Interface (CLI) Syslog Lowest Priority Integer Logged Heartbeat Status Integer Heartbeat Interval (seconds) Integer NOTE The Heartbeat parameters are advanced settings not available via the HTTP interface. When Heartbeat is enabled, the AP periodically sends a message to the Syslog server to indicate that it is active. The frequency with which the heartbeat message is sent depends upon the setting of the Heartbeat Interval.

  • Page 174: Storm Threshold Parameters

    Using the Command Line Interface (CLI) Priority Integer Path Cost Integer State Integer Status Integer Storm Threshold Parameters Name Type Storm Threshold Group Broadcast Threshold Integer Multicast Threshold Integer Storm Threshold Table Name Type Storm Threshold Table Table Table Index Integer Broadcast Threshold Integer...

  • Page 175: Security Parameters

    Using the Command Line Interface (CLI) NOTE The Wireless Distribution System (WDS) feature is not available for 802.11a or 802.11b/g APs at this time. Security Parameters MAC Access Control Parameter Name Type MAC Address Control Group Status Integer Operation Type Integer MAC Access Control Table Name...

  • Page 176: Rogue Access Point Detection (Rad) Parameters

    Using the Command Line Interface (CLI) Server IP Address or IpAddress Name DisplayString Port (optional) Integer Shared Secret DisplayString Response Time Integer (optional) Maximum Integer Retransmissions (optional) RADIUS MAC Address Integer Format RADIUS Accounting Integer32 Inactivity Timer Authorization Lifetime Integer32 RADIUS Accounting Integer32 Update Interval...

  • Page 177: Security Profile Table

    Using the Command Line Interface (CLI) Security Profile Table The Security Profile Table allows you to configure security profiiles. A maximum of 16 security profiles are supported per wireless interface. Each security profile can be enable and configure one or more security modes (None Secure Station, WEP Station, 802.1x Station, WPA Station, WPA-PSK Station).

  • Page 178: Other Parameters

    Using the Command Line Interface (CLI) Configuring a Security Profile with WPA-PSK Security Mode set secprofiletbl <index> secmode wpa-psk passphrase <value> status enable Example: set secprofiletbl 6 secmode wpa-psk passphrase 12345678 status enable Configuring a Security Profile with 802.11i Security Mode set secprofiletbl <index>...

  • Page 179: Cli Batch File

    Using the Command Line Interface (CLI) CLI Batch File A CLI Batch file is a user-editable configuration file that provides a user-friendly way to change the AP configuration through a file upload. The CLI Batch file is an ASCII file that facilitates Auto Configuration because it does not require the user to access one of the AP’s management interfaces to make configuration changes as is required with the proprietary TLV format configuration file.

  • Page 180: Reboot Behavior

    Using the Command Line Interface (CLI) Reboot Behavior When a CLI Batch file contains a reboot command, the reboot will occur only after the entire CLI Batch file has been executed. There are two methods of uploading the CLI Batch File: •...

  • Page 181: B Ascii Character Chart

    ASCII Character Chart You can configure WEP Encryption Keys in either Hexadecimal or ASCII format. Hexadecimal digits are 0-9 and A-F (not case sensitive). ASCII characters are 0-9, A-F, a-f (case sensitive), and punctuation marks. Each ASCII character corresponds to two hexadecimal digits. The table below lists the ASCII characters that you can use to configure WEP Encryption Keys.

  • Page 182: C Specifications

    Specifications • Software Features • Hardware Specifications • Radio Specifications Software Features The tables below compare the software features available depending on the card type in the Access Point: • Number of Stations per BSS • Management Functions • Advanced Bridging Functions •...

  • Page 183: Advanced Bridging Functions

    Specifications Advanced Bridging Functions Feature IEEE 802.1d Bridging WDS Relay Roaming Protocol Filtering Multicast/Broadcast Storm Filtering Proxy ARP TCP/UDP Port Filtering Blocking Intra BSS Clients Packet Forwarding Medium Access Control (MAC) Functions Feature Automatic Channel Selection (ACS) Dynamic Frequency Selection (DFS) Closed System Feature Wireless Service Shutdown TX Power Control...

  • Page 184: Network Functions

    Specifications Network Functions Feature DHCP Client DHCP Server Inter Access Point Protocol (IAPP) Link Integrity System Logging (Syslog) RADIUS Accounting Support DNS Client TCP/IP Protocol Support Virtual LAN Support Note 1: Includes Fallback to Primary RADIUS Server, RADIUS Session Timeout, RADIUS Multiple MAC Address Formats, RADIUS DNS Host Name Support, RADIUS Start/Stop Accounting.

  • Page 185: Electrical Specifications

    Specifications Electrical Specifications Without Active Ethernet Module Voltage = 100 to 240 VAC (50-60 Hz) Current = 0.2 amp Power Consumption = 20 Watts With Active Ethernet Module Input Voltage = 42 to 60 VDC Output Current = 200mA at 48V Power Consumption = 9-10 Watts Environmental Specifications AP-2000 Unit...

  • Page 186: 802.11A Channel Frequencies

    Specifications 802.11a Channel Frequencies The available 802.11a Channels varies by regulatory domain and/or country. 802.11a radio certification is available in the following regions: – FCC: U.S., Canada, and Australia – ETSI: Europe and the United Kingdom – TELEC: Japan – SG: Singapore –...

  • Page 187: Channel Frequencies

    Specifications 802.11b Channel Frequencies The available 802.11b channels vary by regulatory domain and/or country. 802.11b radio certification is available in the following regions: — FCC - U.S./Canada, Mexico, and Australia — ETSI - Most of Europe, including the United Kingdom and some Eastern block countries —...

  • Page 188: Wireless Communication Range

    Communications at a lower transmit range may travel longer distances. The range values listed in the Communications Range Chart are typical distances as calculated by Proxim’s development team for FCC-certified products. These values provide a rule of thumb and may vary according to the actual radio conditions at the location where the product is used.

  • Page 189: A (5 Ghz Upgrade Kit)

    Specifications 802.11a (5 GHz Upgrade Kit) Range 54 Mbits/ 48 Mbits/s Open Office 19 m 33 m (62 ft.) (108 ft.) Semi-Open 13 m 23 m Office (43 ft.) (75 ft.) Closed Office 16 m (30 ft.) (52 ft.) Tx Power (dBm) Receiver Sensitivity...

  • Page 190: 802.11B/G

    Specifications 802.11b/g Range Mbits/s Mbits/s Mbits/s Open 56 m 69 m 107 m Office (184 ft.) (226 ft.) (351 ft.) Semi- 38 m 48 m 73 m Open (125 ft.) (157 ft.) (239 ft.) Office Closed 26 m 33 m 51 m Office (85 ft.)

  • Page 191: D Technical Support

    – Check the HTTP interface’s – Include the source of the software version (e.g., pre-loaded on unit, installed from CD, downloaded from Proxim Web site, etc.) • Information about your network – Network operating system (e.g., Microsoft Networking); include version information –...

  • Page 192: E Statement Of Warranty

    The express warranties set forth in this Agreement will not apply to defects in a Product caused; (i) through no fault of Proxim during shipment to or from Buyer, (ii) by the use of software other than that provided with or installed in the...

  • Page 193: Other Information

    Calls to the Customer Service Center for reasons other than Product failure will not be accepted unless Buyer has purchased a Proxim Service Contract or the call is made within the first thirty (30) days of the Product’s invoice date.

  • Page 194: F Regulatory Information

    ORiNOCO AP-4000 User Guide Regulatory Information This regulatory flyer contains the following sections: • Information to the User Read this document prior to installation! User Documentation is provided on the CD-ROM. • Informations pour l’utilisateur Lisez ce document avant l'installation ! La documentation utilisateur est fournie sur le CD-ROM.

  • Page 195: Information To The User

    Regulatory Information Information to the User This document provides regulatory information for the following products: • Wireless Client products such as the PC Card. • Wireless Base Station products such as the AP-200, AP-700, AP-1000, AP-4000, AP-4000 11a Upgrade Kit, AP-4000 11g Cardbus Kit, AP-600 11abg Upgrade Kit, AP-2500, AP-4000, ORiNOCO AP-600, AP-600 11g Upgrade Kit.

  • Page 196: Wireless Lan And Your Health

    Regulatory Information Wireless LAN and your Health Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of emitted energy however is far less than the electromagnetic energy emitted by other wireless devices like mobile phones, for example.
  • Page 197 Regulatory Information Informations pour l’utilisateur Ce document fournit des informations sur les réglementations concernant les produits suivants : • Les produits client sans fil tels que PC Card. • Les produits sans fil de la Base Station tels que AP-200, AP-700, AP-1000, AP-4000, AP-4000 11a Upgrade Kit, AP-4000 11g Cardbus Kit, AP-600 11abg Upgrade Kit, AP-2500, AP-4000, ORiNOCO AP-600, AP-600 11g Upgrade Kit.
  • Page 198 Regulatory Information Réseaux sans fil et votre santé Les produits pour un réseau sans fil, comme d’autres dispositifs radio, émettent de l’énergie électromagnétique de fréquence radio. Le niveau d’énergie émis par les dispositifs pour résaeu sans fil est toutefois beaucoup moins élevé que l’énergie électro-magnétique émise par des dispositifs comme par exemple les téléphones portables.
  • Page 199 Regulatory Information Informazioni per l’utente Questo documento contiene informazioni legali relative ai seguenti prodotti: • Prodotti client wireless come la PC Card. • Prodotti per Base Station wireless come il AP-200, AP-700, AP-1000, AP-4000, AP-4000 11a Upgrade Kit, AP-4000 11g Cardbus Kit, AP-2500, AP-4000, ORiNOCO AP-600, AP-600 11g Upgrade Kit, AP-600 11abg Upgrade Kit.
  • Page 200 Regulatory Information Wireless LAN e la salute I prodotti LAN wireless, così come altri dispositivi radio, emettono energia elettromagnetica in radiofrequenza. L'energia emessa è tuttavia molto inferiore all'energia elettromagnetica emessa da altri dispositivi wireless come, ad esempio, i telefoni cellulari. Poiché i prodotti LAN wireless funzionano entro i limiti previsti dalle norme e dalle raccomandazioni sulla sicurezza delle emissioni in radiofrequenza, riteniamo che l'uso dei nostri prodotti LAN wireless non comporti rischi per la salute degli utenti.

  • Page 201: Wichtige Sicherheitshinweise

    Regulatory Information Informationen für den Benutzer Dieses Dokument enthält wichtige Informationen über folgende Produkte: • Funk-Client-Produkte wie die PC Card. • Funk-Base Stations-Produkte wie der AP-200, AP-700, AP-1000, AP-4000, AP-4000 11a Upgrade Kit, AP-4000 11g Cardbus Kit, AP-2500, AP-4000, ORiNOCO AP-600, AP-600 11g Upgrade Kit, AP-600 11abg Upgrade Kit. Funk-Client- und Funk-Base Stations-Produkte sind die drahtlosen Netzprodukte, die auf IEEE 802.11 Standards basieren, wie definiert und durch das Institute of Electrical and Electronics Engineers genehmigt.
  • Page 202 Regulatory Information Funk-LAN und gesundheitliche Sicherheit Funk-LAN-Produkte geben wie alle Hochfrequenzgeräte elektromagnetische Hochfrequenzenenergie ab. Bei Funk-LAN-Geräten ist jedoch eine deutlich geringere Emission elektromagnetischer Energie zu verzeichnen als bei anderen Funkgeräten, wie z. B. Mobiltelefonen. Da die Funk-LAN-Produkte den Richtlinien der HF-Sicherheitsstandards und -empfehlungen entsprechen, besteht beim Gebrauch von Funk-LAN-Produkten keine Gefährdung für den Kunden.
  • Page 203 Regulatory Information Información para el usuario Este documento incluye información sobre normativas acerca de los siguientes productos: • Productos cliente inalámbricos como la PC Card. • Productos de Base Station inalámbricos como el AP-200, AP-700, AP-1000, AP-4000, AP-4000 11a Upgrade Kit, AP-4000 11g Cardbus Kit, AP-2500, AP-4000, ORiNOCO AP-600, AP-600 11g Upgrade Kit, AP-600 11abg Upgrade Kit.
  • Page 204 Regulatory Information LAN inalámbrica y su salud Los productos de LAN inalámbrica, al igual que otros dispositivos de radiotecnología, emiten energía electromagnética de radiofrecuencia. Sin embargo, el nivel de energía que emiten es mucho menor que la energía electromagnética emitida por otros dispositivos inalámbricos, como por ejemplo los teléfonos móviles. Debido a que los productos de LAN inalámbrica operan de conformidad con las pautas fijadas en las normas y recomendaciones de seguridad de radiofrecuencia, creemos que nuestros productos de LAN inalámbrica son seguros para los consumidores.
  • Page 205 Regulatory Information ユーザー情報 このマニュアルでは、次の製品に関する規制情報について説明します。 ･ PC Card などの無線クライアント製品 ･ AP-200, AP-700, AP-1000, AP-4000, AP-4000 11a Upgrade Kit, AP-4000 11g Cardbus Kit, AP-2500, AP-4000, ORiNOCO AP-600, AP-600 11g Upgrade Kit, AP-600 11abg Upgrade Kit, などの無線 Base Station 製品 . 無線クライアントおよび Base Station 製品は、 電気電子技術者教会 (IEEE) により定義・承認された無線 LAN 向け IEEE 802.11 標準に基づく無線ネットワーク製品です。IEEE 802.11a/802.11g 標準に準拠して設計された製品は、直交周波数分割多重...
  • Page 206 Regulatory Information 無線 LAN と人体への影響 無線 LAN 製品は、他の無線装置と同様に、無線周波数電磁エネルギーを放出します。ただし、無線 LAN 装置が放出するエ ネルギーのレベルは、携帯電話などの無線装置が放出する電磁エネルギーより、はるかに低く抑えられています。無線 LAN 製品は、無線周波数に関する各種安全基準や推奨基準のガイドラインを反映するもので、広範な研究資料を検討している研 究者によるパネルや委員会の審議の結果策定されています。 規制に関する情報 この装置は、製品に添付のユーザーマニュアルに記載されたメーカーの指示に従って取り付け、使用する必要があります。 国ごとの無線の承認については、この冊子の ただし、建物の所有者または組織の代表者によって無線装置の使用が規制される場合もあります。たとえば、次のような場 合です。 ･ 飛行機内での無線装置の使用 ･ 他の装置やサービスに対する干渉の危険性が認められるか、または有害であると考えられる環境での使用 空港などの特定の組織または環境で無線の使用が許可されているかどうかが不明な場合は、使用前に無線装置の使用の可否 を確認してください。 このキットに含まれる装置を許可なく変更した場合、またはメーカーの指定以外の接続ケーブルおよび機器を使用した場合、 ラジオまたはテレビに干渉が発生しても、メーカーは一切責任を負いません。 上記のような許可のない変更や、代替製品の使用または取り付けによって発生した干渉については、ユーザーの責任におい て修正を行うものとします。 メーカーおよびその正規の代理店または販売店は、これらのガイドラインに従わないことによって生じる損害または法規違 反については、一切責任を負いません。 無線の承認 のセクションを参照してください。...

  • Page 207: United States Fcc Information

    Regulatory Information United States FCC Information Federal Communications Commission (FCC) Declaration of Conformity Products marked with the FCC logo and comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 208: Canada Ic Information

    Regulatory Information Canada IC Information Industry Canada (IC) This device complies with the limits for a class B digital device and conforms to Industry Canada standard ICES-003. Products that contain a radio transmitter comply with Industry Canada standard RSS 210 and are labelled with IC approval number.

  • Page 209: Europe Information

    Regulatory Information Europe Information • Products labeled with the CE mark comply with EMC Directive 89/336/EEC and the Low Voltage Directive • 73/23/EEC implying conformity to the following European Norms. • Tous les produits portant la marque CE sont conformes à la directive EMC 89/336/EEC et à la directive •...
  • Page 210 5 GHz band. • Les produits de la Proxim 802.11a Base Station vendues en Europe utilisent une technique dénommée Sélection de fréquence dynamique (Dynamic Frequency Selection, DFS) pour qu'un canal de fonctionnement soit automatiquement choisi. Le l'institut européen des standards de télécommunications (European Telecommunications Standard Institute, ETSI) exige que les...

  • Page 211: Japan Information

    この製品は、ディレクトシーケンススペクトラム拡散 (DSSS) を採用しており、無線周波数帯は 2.400 ～ 2.483 MHz です。こ の周波数帯域は、次のような産業・科学・医療機器でも使用されています。 ･ 電子レンジ ･ 次のいずれかを含む移動体識別用システム (RF-ID) ･ 免許を要する構内無線局 ･ 免許を要しない工場製造ライン用特定小電力無線局 この装置を使用する前に、 1 無線 LAN 装置を使用する場所の近くに、移動体識別用システム (RF-ID) がないことを確認してください。40 メートル以内 に近づくと、干渉が起きる場合があります。 2 移動体識別用システム (RF-ID) へのRF干渉が発生した場合は、無線信号の発信を停止するか、装置が使用する周波数チャ ネルを変更してください。免許を要する移動体識別用システム (RF-ID) の付近でRF干渉が発生した場合は、ただちに無線 信号の発信を停止してください。 3 無線装置から移動体識別用システム (RF-ID) への干渉が発生するなどの問題が生じた場合は、正規の代理店またはメー カーまでご連絡ください。お問い合わせ先については、Web サイト http://www.proxim.com を参照してください。...

  • Page 212: South Korea Information

    Proxim Corporation AP-2500 AP-2000 Proxim Corporation AS-2000 AS-2000 Agere Systems AP-700 AP-AG-AT-01 Proxim Corporation / USI AP-4000 AP-AG-AT-02 Proxim Corporation / USI For Class (A) products: Class (A) 제품용 For Class (B) products: Class (B) 제품용 (Certification No.) (Date of...

  • Page 213: Radio Approvals

    Regulatory Information Radio Approvals To determine whether you are allowed to use your device in the countries listed below, please check the “contains transmitter” number that is printed on the identification label of your device. Certifications radio Pour déterminer si vous êtes autorisé à utiliser votre dispositif dans les pays indiquées ci-dessous, veuillez contrôler le “numéro de l’émetteur”...
  • Page 214 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Australia Alpha-1: A13QBF Austria PC24E-H-FC CE 0122 ! Österreich PC24E-H-ET-L R0167 SRD3a...
  • Page 215 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Belgium PC24E-H-FC CE 0122 ! Belgie Belgique PC24E-H-ET-L RTT/RL/X 113...
  • Page 216 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Belgium Alpha-1: C38WCW CE 0560 ! Belgium AP-700: CE 0560 !
  • Page 217 Systems Netherlands B.V. Brazil G11FNF-PC pending Brazil Alpha-1, modelo: (01) 07898903006 01 3 • This equipment operates in secondary mode: It is not B11FNF Fabricante: Proxim Corporation p/a Europe B.V. Brazil Alpha-1: G11FNF pending Canada PC24E-H-FC IC: 230391152A PC24-11-FC/R IC: 4005A-PC2411R...
  • Page 218 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Canada Alpha-1: B11FNF IC: 1856B-B11FNF Canada Alpha-1: G11FNF IC: 1856A-G11FNF Canada Alpha-1: A13QBF IC: 1856A-A13QBF...
  • Page 219 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Czech PC24E-H-ET-L 45314454 Republic PC24E-H-ET Denmark PC24E-H-FC CE 0122 ! Danmark...
  • Page 220 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Finland PC24E-H-FC CE 0122 ! Suomi PC24E-H-ET-L R0167 SRD3a PC24E-H-ET...
  • Page 221 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 France PC24E-H-FC CE 0122 ! PC24E-H-FR-L 99 0394 PP 0 (Dossier 97289 RD) PC24E-H-FR...
  • Page 222 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 France Alpha-1: B13ENE CE 0336 ! France Alpha-1: G11FNF Alpha-1: G13ENE...
  • Page 223 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Germany G11FNF-PC CE 0336 ! Deutschland G13ENE-PC CE 0336 ! Germany...
  • Page 224 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Hong Kong PC24E-H-FC LP400096 PC24E-H-ET LP400095 PC24E-11-FC/R Hong Kong Alpha-1: B13ENE HKTA-1039...
  • Page 225 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Iceland PC50E-4-ET/A CE 0336 ! Ísland PC50E-8-ET/A CE 0336! A19PCE-PC...
  • Page 226 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Israel G05INI-PC MoC pending Israel Alpha-1: B05INI MoC pending Israel Alpha-1: G05INI...
  • Page 227 内の使用に ( 限定 ) されています。 • Only indoor with integral or approved Range Extender Antenna. ･内蔵、あるいは認可された範囲拡張アンテナを使った、屋 内の使用に ( 限定 ) されています。 • Product name: PC Card Manufacturer: Agere Systems Made in: Taiwan Product name: PC Card Manufacturer: Proxim Corporation Made in: Taiwan...
  • Page 228 Liechtenstein Alpha-1: C38WCW CE 0560! Restrictions Restrictions Limitazioni Beschränkungen Restricciones 制限 Product name: PC Card Manufacturer: Proxim Corporation Made in: Taiwan Product name: PC Card Manufacturer: Proxim Corporation Made in: Taiwan Product name: PC Card Manufacturer: Proxim Corporation Made in: Taiwan...
  • Page 229 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Liechtenstein AP-700: CE 0560! AP-AG-AT-01 Liechtenstein AP-4000: CE 0560! AP-AG-AT-02 Liechtenstein Alpha-1: B13ENE CE 0336 !
  • Page 230 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Luxemburg PC50E-4-ET/A CE 0336 ! Luxembourg PC50E-8-ET/A CE 0336 ! A19PCE-PC...
  • Page 231 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Mexico Alpha-1: B11FNF COFETEL: México PCPPRAL03-095 Mexico Alpha-1: G11FNF COFETEL: México...
  • Page 232 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Netherlands PC24E-H-FC CE 0122 ! Nederland PC24E-H-ET-L R0167 SDR3a;...
  • Page 233 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 New Zealand PC24E-H-FC PC24E-11-FC/R ENG 3/2/RFS29 PC24E-H-ET-L PC24E-H-ET PC24E-11-ET/R...
  • Page 234 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Poland PC24E-H-FC 688/2000 PC24E-H-FC/R 072/2002 PC24E-H-ET-L PC24E-H-ET PC24E-H-ET/R 072/2002...
  • Page 235 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Saudi Arabia PC24E-H-FC Reference 10/36 of 18-3-2002 PC24E-11-FC/R Reference 10/36 of 18-3-2002...
  • Page 236 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 South Africa PC24E-H-FC PC24E-H-ET-L PC24E-H-ET South Africa G11FNF-PC ICASA: TA-2003/93 G13ENE-PC...
  • Page 237 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Sweden G11FNF-PC CE 0336 ! Sverige G13ENE-PC CE 0336 ! Sweden...
  • Page 238 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Switzerland G11FNF-PC CE 0336 ! Suisse Schweiz G13ENE-PC CE 0336 !
  • Page 239 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Switzerland AP-700: CE 0560 ! Suisse AP-AG-AT-01 Schweiz Svizzera...
  • Page 240 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 United PC24E-H-FC CE 0122 ! Kingdom PC24E-H-ET-L R0167 SRD3a PC24E-H-ET...
  • Page 241 Regulatory Information Country Radio Transmitter Approval Reference Pays Émetteur Radio Numéro du Permis Paese Trasmittente de Numero di Land Radio Approvazione País Radio-Übermittler Zustimmung-Nummer Transmisor de Número de Permiso 国名 Radio 承認番号 線送信機 無 Alpha-1: B11FNF FCC ID: HZB-B11FNF Alpha-1: G11FNF FCC ID: HZB-G11FNF Alpha-1: A13QBF FCC ID: HZB-A13QBF •...
  • Page 242 Regulatory Information 4 ou 8 indique le nombre de canaux. zz =FC ou FC/R identifie un carte universelle à 11 canaux, conforme aux normes FCC, qui opère dans la zone de 2.412 - 2.462 GHz seulement. FC/A identifie un émetteur radio IEEE 802.11a conforme aux normes FCC. ET ou ET/R identifie un émetteur radio à...
  • Page 243 Regulatory Information E =wahlweise freigestellte Kennung, zum anzuzeigen, daß der Übermittler eine integrale Antenne hat. y =H oder 11 kennzeichnet einen Funksender, der hohe Datentransferraten bis zu 11, 5,5, 2 und 1 Mbps unterstützt. 4 oder 8 kennzeichnet die Zahl Funkkanälen. zz =FC oder FC/R kennzeichnet eine FCC-konforme "Worldcard"...
  • Page 244 Regulatory Information GNJ / LEJ = Japan INI = Israel 無線タイプ番号の形式は、PCxxE-y-zz です。 xx =24 は、2.4 GHｚ 周波数帯域で使用される IEEE 802.11b 準拠の WLAN 無線製品であることを示します。 50 は、5 GHｚ 周波数帯域で使用される IEEE 802.11a 準拠の WLAN 無線製品であることを示します。 E = 送信機に統合アンテナが装備されていることを示すオプションの識別記号です。 y =H または 11 は、11、5.5、2 および 1 Mbps の高速データ転送をサポートする送信機であることを示します。 4 または...

Table of Contents
