3 Installation
1.
Before installing the camera, make sure
the mounting surface can withstand
three times the weight of your camera.
2.
Do not let the cables get caught in
improper places or the electric line cover
can be damaged. This may cause
a short or fire.
3.

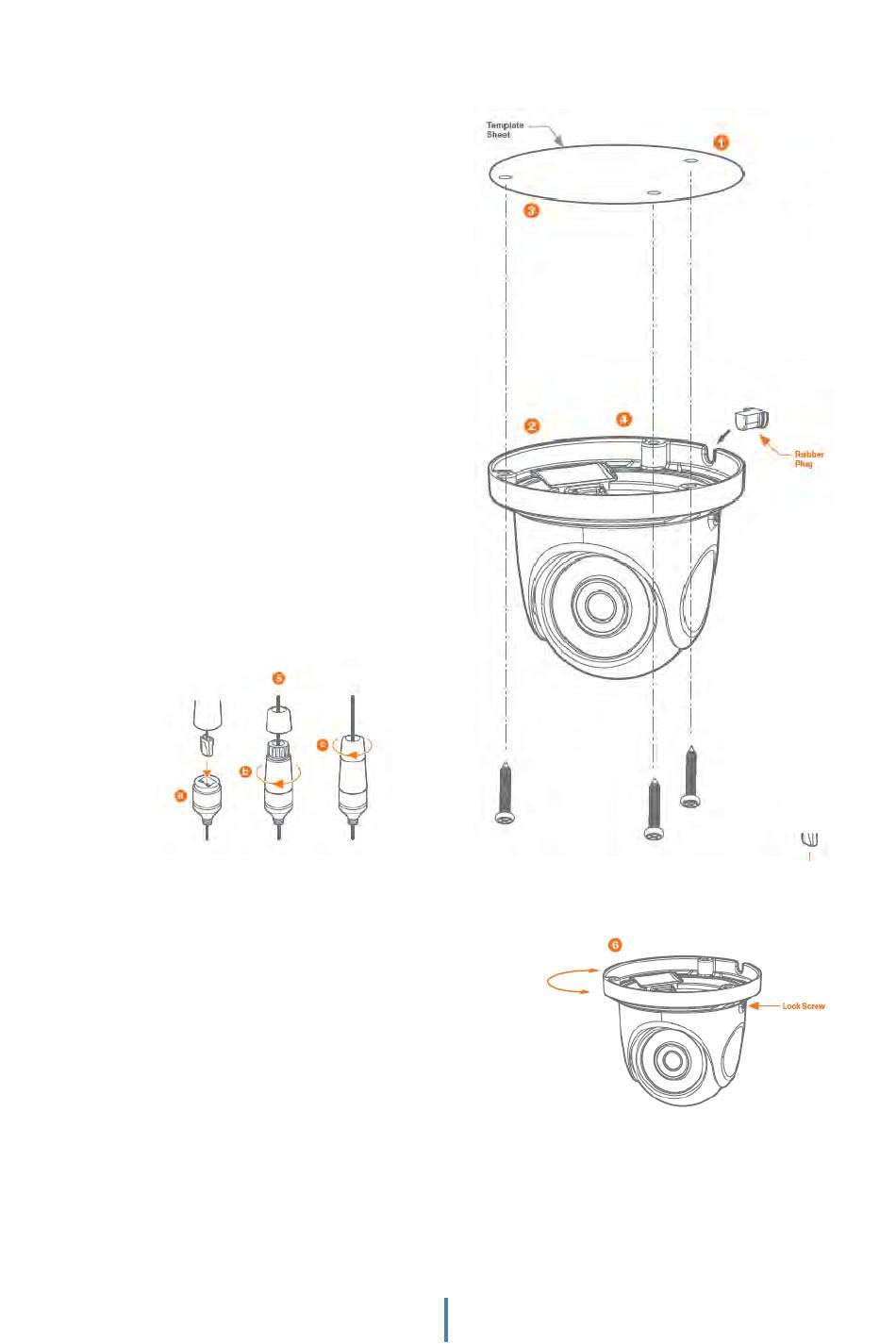

Using the mounting template sheet or
the camera itself, mark and drill the
necessary holes in the wall or ceiling.
4.
Pass the wires through and make all
necessary connections. See cabling
section for more information.
5.
To use the camera's water proof wiring:
a.
Install the LAN cable into 'a' .
b.
'b' will be assembled to 'a' with a 1/4
turn.
c.
Thread 'c' tightly to 'b' .Adjust the
camera to obtain an optimum
angle by loosening the lock screws.
6.
Tighten the lock screws after you finish adjusting the view angle of the camera.
7.
Remove the protection film softly to complete the installation
NOTE: To ensure moisture seal, make sure the O-ring is in place between 'a' and 'b' . In extreme
environments use of an outdoor rated sealer is recommended.
NOTE: When using the waterproof cap, crimp the RJ45 connector after passing the cable through the
waterproof cap.
