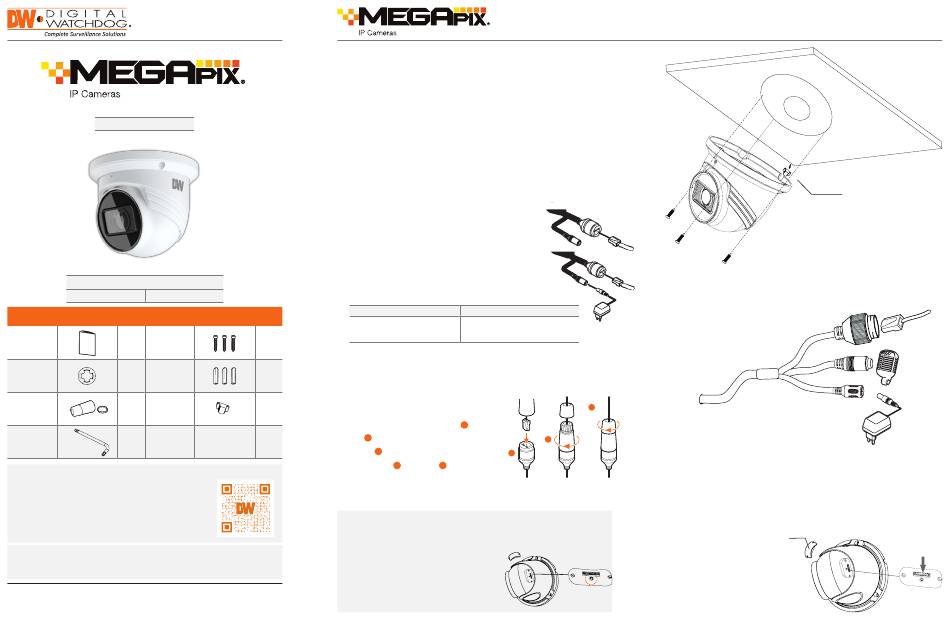

Digital Watchdog MEGApix DWC-MT94WiAT Quick Start Manual

Quick Start Guide
DWC-MT94WiAT
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Quick setup
Tapping
and
1 set Screws –
Installation
3pcs
guides
Mounting Plastic Plugs
1
Template – 3pcs
Waterproof
1 set Rubber Plug
Cap
Hexagonal
Wrench 1
0.07" (2mm)
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line
cover to be damaged. This may cause a breakdown or fire.
3. Using the mounting template sheet or the camera itself, mark and
drill the necessary holes in the wall or ceiling.
STEP 2 – POWERING THE CAMERA
Pass the wires through and make all the necessary connections. See
STEP 4.
1. NETWORK CONNECTIONS – Using a PoE Switch
or PoE Injector, connect the camera using an
Ethernet cable for both data and power.
2. NETWORK CONNECTIONS – Not using PoE Switch
or PoE Injector, connect the camera to the switch
using an Ethernet cable for data transmission and
use a power adapter to power the camera.
Power requirements
DC12V, PoE
(IEEE 802.3af class 3).
Adapter not Included.
1 set
STEP 3 – INSTALLING THE CAMERA
1 set
1. Mount the camera to the mounting surface using the included
screws and anchors.
1
2. To use the camera's waterproof wiring:
a. Install the LAN cable into
b
b. will be assembled
a
to with a 1/4 turn.
c. Thread
3. Loosen the lock screw under the camera's
lens to adjust the camera module's position.
Resetting the camera: To reset the camera, use the tip of a
paper clip or a pencil and press the reset button. Loosen the
lock screw under the camera's lens and rotate the camera
module to access the control panel.
Open the control panel cover on the
top of the camera module to access
the control panel. Pressing the button
for five (5) seconds will initiate a
digital-watchdog.com
camera-wide reset of all the settings,
including network settings.
Power consumption
<9.5W
a
.
b
a
c b
tightly to .
STEP 4 – CABLING
Use the diagram below to properly connect power, network and audio to
the camera.
c
STEP 5 – MANAGING THE SD CARD
1. To install the camera's SD Card, loosen the lock screw under the
camera lens and rotate the camera module to access the control
panel. Open the control panel cover on the top of the camera module.
Locate the SD card slot by opening the control panel at the base of
the camera module.
2. Insert a class 10 SD/SDHC/SDXC card into the SD card slot by
pressing the SD
card until it clicks.
3. To remove the SD
card, press the
card inward until
it clicks to release
it from the card slot.
Quick Start Guide
Rubber Plug
Network
Audio Input
Power
Cover
SD Card Slot
