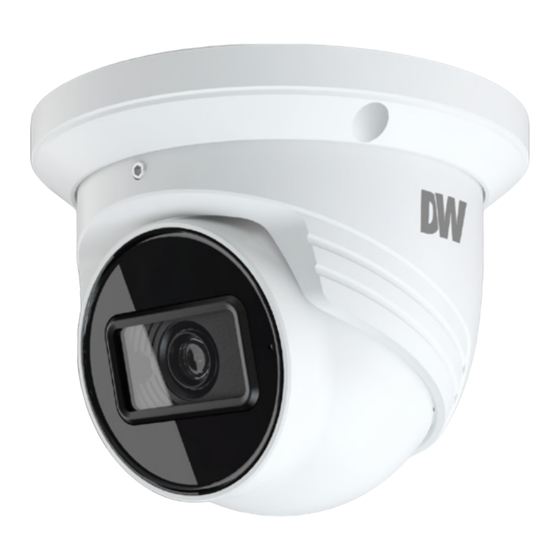

Digital Watchdog MEGAPIX DWC-MT95Wi28TW Quick Start Manual

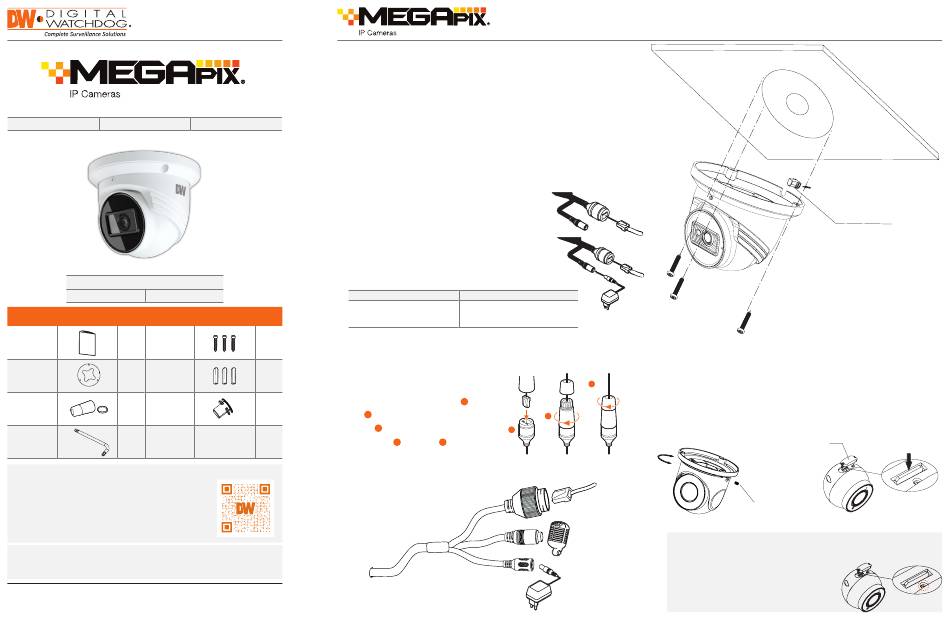

Quick Start Guide
DWC-MT95Wi28TW DWC-MT95WW28TW
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Quick Setup
Tapping
and
1 set Screws –
Installation
3pcs
Guides
Mounting Plastic Plugs
1
Template – 3pcs
Waterproof
1 set Rubber Plug
Cap
Hexagonal
Wrench 1
0.07" (2mm)
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line
cover to be damaged. This may cause a breakdown or fire.
DWC-MT95Wi36TW
3. Using the mounting template sheet or the camera itself, mark and
drill the necessary holes in the wall or ceiling.
STEP 2 – POWERING THE CAMERA
Pass the wires through and make all the necessary connections. See
STEP 4.
1. NETWORK CONNECTIONS – Using a PoE Switch or
PoE Injector, connect the camera using an Ethernet
cable for both data and power.
2. NETWORK CONNECTIONS – Not using PoE Switch
or PoE Injector, connect the camera to the switch
using an Ethernet cable for data transmission and
use a power adapter to power the camera.
Power requirements
DC12V, PoE
(IEEE 802.3af class 3).
Adapter not Included.
1 set
STEP 3 – INSTALLING THE CAMERA
1. Mount the camera to the mounting surface using the included
1 set screws and anchors.
2. To use the camera's waterproof wiring:
a. Install the LAN cable into
1
b
b. will be assembled
a
to
c. Thread
3. Loosen the lock screw at the base of the
camera to adjust the camera module's position.
STEP 4 – CABLING
Use the diagram below to properly
connect power, network and audio
to the camera.
digital-watchdog.com
Power consumption
<7W
a
.
b
with a 1/4 turn. a
c b
tightly to .
STEP 5 – MANAGING THE SD CARD
1. To install the camera's SD Card, loosen the lock screw at the base of
the camera to disassemble the camera module from the base. Locate
the SD card slot by opening the control panel at the base of the
c
camera module.
2. Insert a class 10 SD/SDHC/SDXC card into the SD card slot by
pressing the SD card until clicks.
3. To remove the SD card, press the card inward until it clicks to release
it from the card slot.
Network
Lock Screw
Resetting the camera: To reset the camera, use the tip of a
Audio Input
paper clip or a pencil and press the reset button at the base
of the camera. You will need to loosen the lock screw to
disassemble the camera module from the
Power
base and access the control panel.
Pressing the button for five (5) seconds
will initiate a camera-wide reset of all
the settings, including network settings.
Quick Start Guide
Rubber Plug
Cover
SD Card Slot
