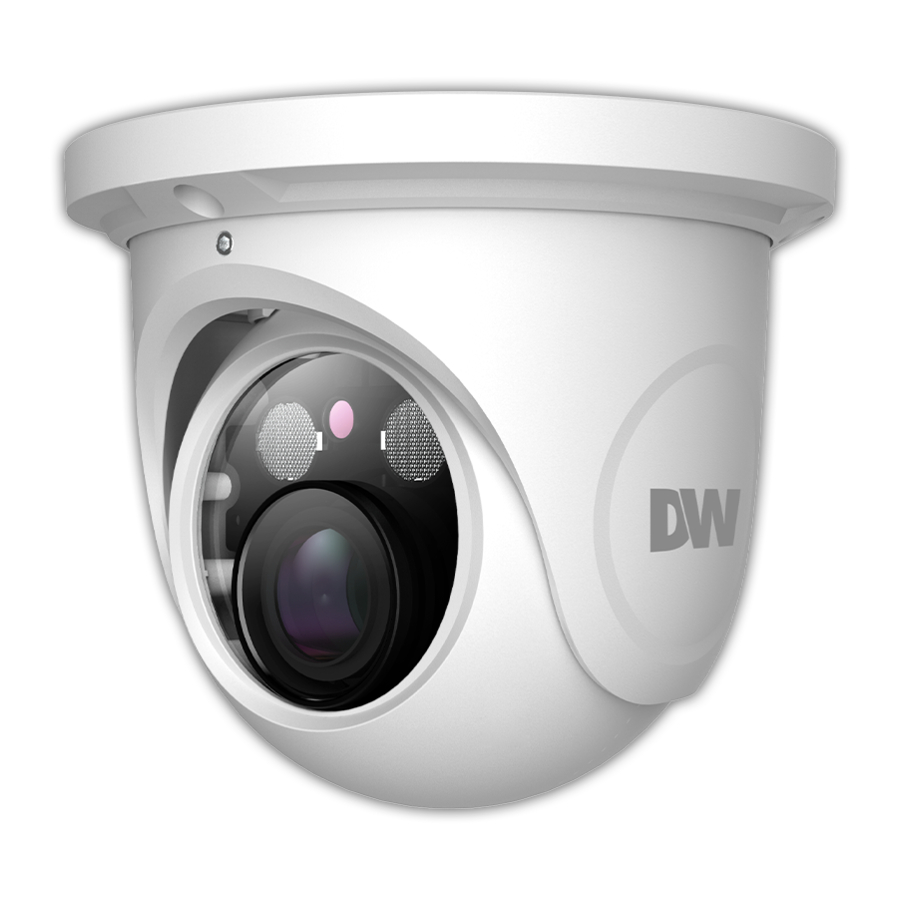

Summary of Contents for Digital Watchdog MEGApix DWC-MTT4WiA

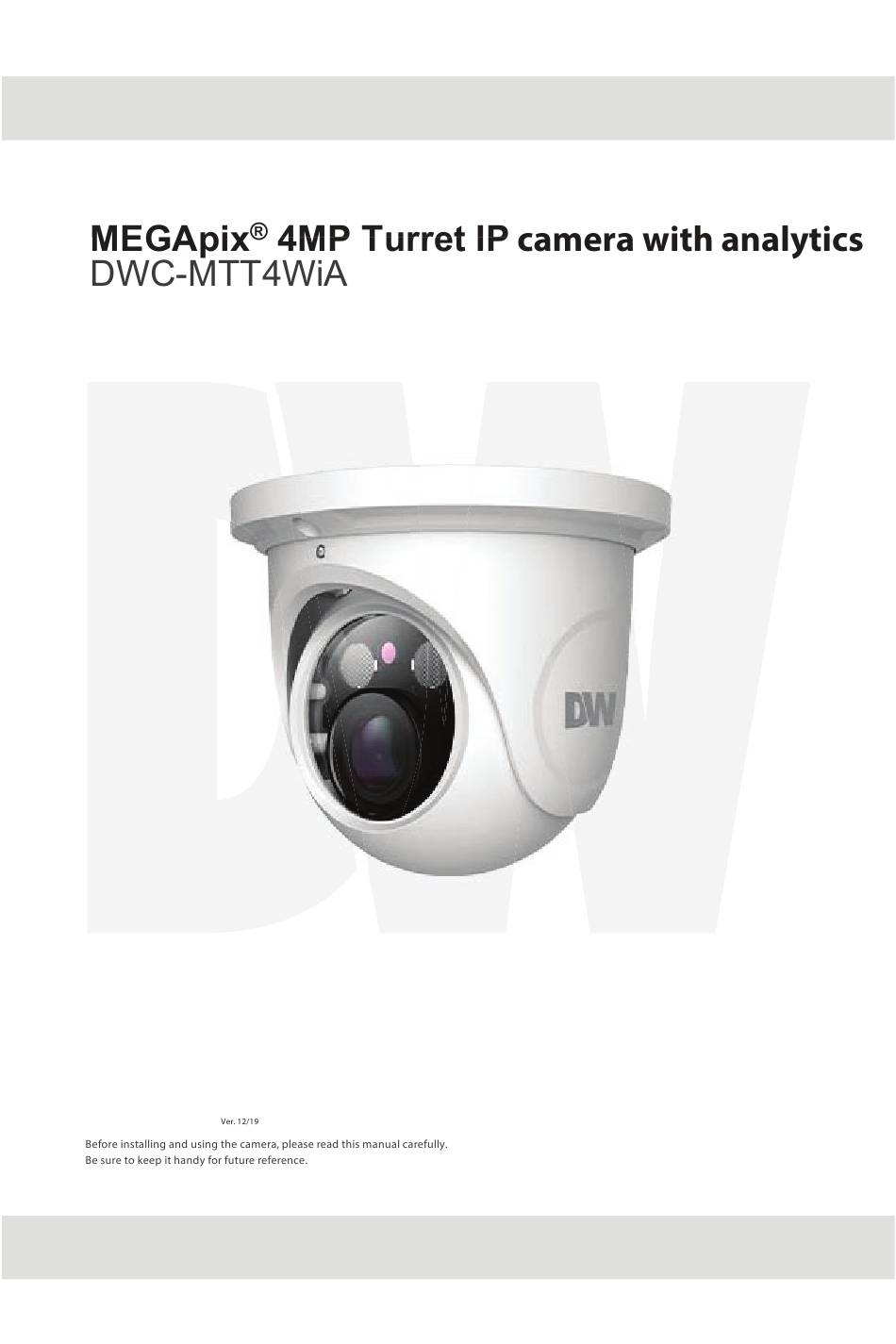

- Page 1 User’s Manual...
- Page 6 1 Product & Accessories ct & Accessories...
-
Page 7: Parts And Description
2 Parts and Description... -
Page 8: Installation
Mounting 3 Installation template Before installing the camera, make sure the mounting surface can three times the weight of your camera. Do not let the cables get caught in improper places or the electric line cover be damaged. This may cause a fire. - Page 9 4 Cabling NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using an Ethernet cable for both data and power. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to the switch using an Ethernet cable for data transmission and use a power adapter to power the camera.
- Page 10 To log in to the camera, open an Internet Explorer page and input the camera’s IP address. If you are connecting to the camera for the first time, be sure to download the ActiveX control. After downloading, a login window will pop up as shown below. Input the username and password to log in.
- Page 29 For more accuracy, here are some recommendations for installation. Cameras should be installed on stable surfaces, as vibrations can affect the accuracy of detection. Avoid pointing the camera at the reflective surfaces (like shiny floors, mirrors, glass, lake surfaces and so on). Avoid places that are narrow or have too much shadowing.
- Page 30 Enable the applicable detection that’s desired. Scene Change Detection: Alarms will be triggered if the scene of the monitor video has changed. Video Blur Detection: Alarms will be triggered if the video becomes blurry. Abnormal Color Detection: Alarms will be triggered if the video becomes obscured. Set the alarm holding time and alarm trigger options.
- Page 31 Enable line crossing alarm and set the alarm holding time. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. Click “Save” button to save the settings. Set area and sensitivity of the line crossing alarm. Click the “Area and Sensitivity” tab to go to the interface as shown below.
- Page 32 A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A. Click the “Draw” button and then drag the mouse to draw an alarm line in the image. Click the “Stop” button to stop drawing. Click the “Clear” button to delete the cordons. Click the “Save”...
- Page 33 Enable perimeter intrusion detection alarm and set the alarm holding time. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. Click the “Save” button to save the settings. Set the alarm area of the intrusion detection.
- Page 34 Set the alarm area number on the right side. Up to 4 alarm areas can be added. Click the “Draw Area” button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the “Stop Draw”...
- Page 60 9 Dimensions...
