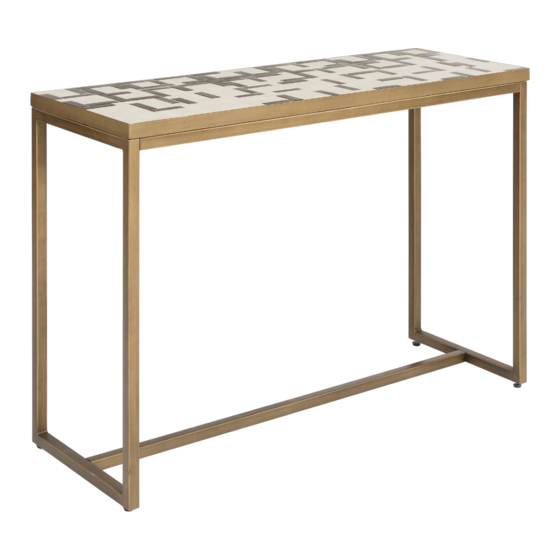

Console table

Advertisement

Quick Links

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

Part List

A.
Top
1 pc.
C.
Stretcher
2 pcs.
D.
Stretcher
1 pc.
Hex Wrench
1 pc.
The concrete top is made of natural stone materials with naturally occurring
fissures and cavities. A sealer has been applied to the concrete to reduce the
absorption of liquids. Even with sealer applied, liquids can absorb into the
concrete causing permanent stains. Never allow liquids to remain on the top.
Tool(s) required for assembly: Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 08101 0022
Console Table
Small Hex Wrench
1 pc.
Flat Washer
6 pcs. (+1 extra)
888-680-7460, 877-831-0319
B.
Side Frame
2 pcs.
M6x15
Head Cap Bolt
18 pcs. (+1 extra)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20 08101 0022 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles 20 08101 0022

  • Page 1 fissures and cavities. A sealer has been applied to the concrete to reduce the absorption of liquids. Even with sealer applied, liquids can absorb into the concrete causing permanent stains. Never allow liquids to remain on the top. Tool(s) required for assembly: Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/4 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/4 STEP 2 Place Top (A) upside down on a soft cloth. Head Cap Bolt Attach unit to Top (A) Flat Washer with Flat Washers and Head Cap Bolts, tightening bolts only halfway. Tighten all Head Cap Bolts used in Steps 1 and 2.
  • Page 4 Assembly Instructions 4/4 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 4 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”...
  • Page 5 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
