IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

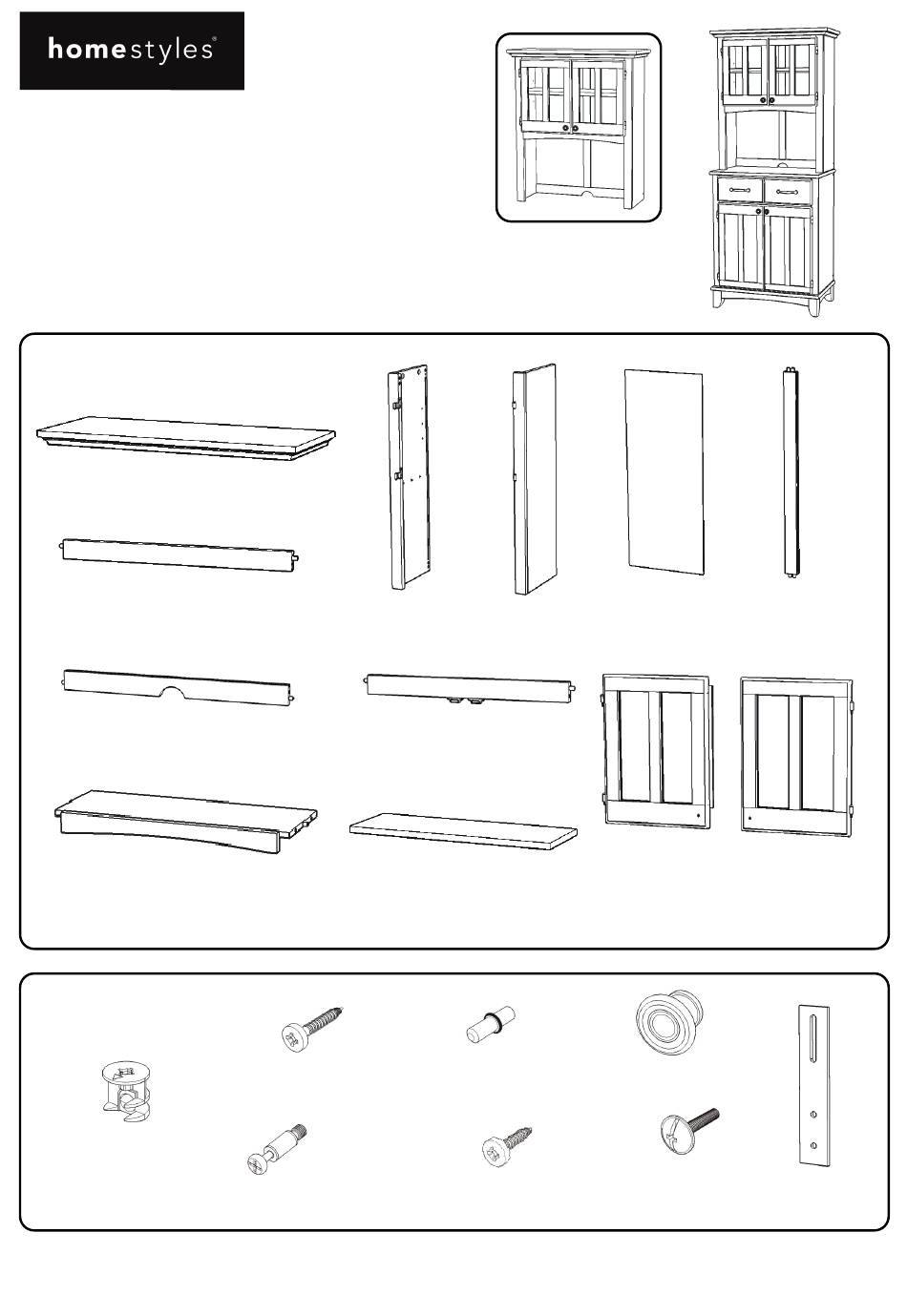

Part List
A.
Top
1 pc.
F.
Back Stretcher
1 pc.
G.
Back Stretcher
1 pc.
I.
Fixed Shelf
1 pc.
Cam Lock
14 pcs. (+2 extra)
Tool(s) required for assembly: Phillips screwdriver, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05001 0306
Hutch
B.
Side Panel
1 pc.
H.
Front Stretcher
1 pc.
J.
Shelf
1 pc.
M3.5x16
Wood Screw for Back Panel
8 pcs. (+1 extra)
Cam Lock Screw
14 pcs. (+1 extra)
Hutch
C.
D.
Side Panel
Back Panel
1 pc.
2 pcs.
Adjustable Pin
4 pcs. (+1 extra)
M4x13
Wood Screw for Bracket
8 pcs. (+1 extra)
888-680-7460, 877-831-0319
E.
Back Upright
1 pc.
K.
L.
Door
Door
1 pc.
1 pc.
Knob
2 pcs.
M4x25
Machine Screw
2 pcs.
Bracket
2 pcs.
