IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
F.
Top
1 pc.
H.
Side Panel
1 pc.
Hardware List
Plug
4 pcs. (+1 extra)
Leveler
Hex Wrench
4 pcs.
1 pc.
Carton 20 05436 0771 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05436 0772

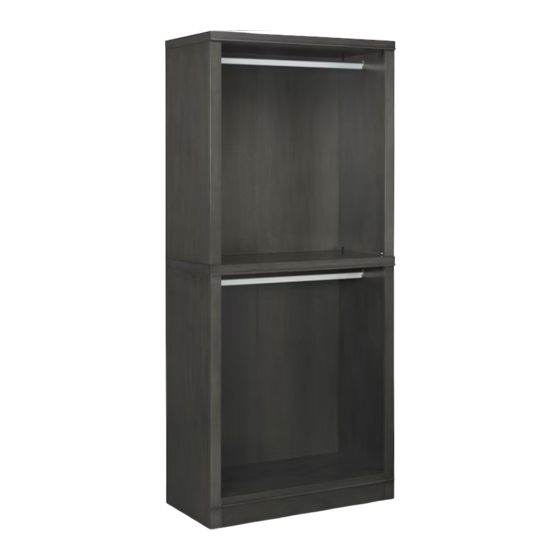

Closet Wall Hanging Unit
I.
J.
Side Panel
Back Panel
1 pc.
1 pc.
Cam Lock Screw
4 pcs. (+1 extra)
Cam Lock
4 pcs. (+2 extra)
K.
Back Panel
1 pc.
M3x15
Wood Screw for
Bracket
8 pcs. (+1 extra)
M3x19
Wood Screw for
Leveler
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
G.
Rod
2 pcs.
L.
Plinth
1 pc.
M.
Bottom
1 pc.
M3 x1
.5
6
Wood Screw for
Rod Support
8 pcs. (+1 extra)
Rod Support
Bracket
4 pcs.
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 20 05436 0772
Summary of Contents for Home Styles 20 05436 0772
- Page 1 16 pcs. (+1 extra) 4 pcs. 2 pcs. Carton 20 05436 0771 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/8 Lock STEP 2 Attach Plinth (L) to Bottom (M), then flip Locks. (See Figures 3 and 4) Figure 3 Figure 4 Cam Lock STEP 3 Attach unit to Side Panel (I) with Cam Locks, then flip Locks. (See Figure 5) Attach Back Panels (K) and (J) to unit, then flip Locks.
- Page 4 Assembly Instructions 4/8 STEP 4 Attach Levelers to bottom of unit with Wood Screws for Levelers into pre-drilled holes (See Figure 6) Figure 6 Wood Screw for Leveler Leveler Lock STEP 5 Attach Top (F) to unit, then flip Locks.
- Page 5 Assembly Instructions 5/8 STEP 6 Attach Back Panel (D) to Side Panel (B), then flip Locks. Attach Back Panel (E) to Side Panel (C), then flip Locks. Attach unit to unit. Lock STEP 7 Attach Top (A) to unit, then flip Locks.
- Page 6 Assembly Instructions 6/8 STEP 8 Place top unit onto base unit, then flip Locks. Lock Plug STEP 9 Place unit at desired location. Figure 7 Note: If assembling multiple Closet Wall Units together, place all units at desired location. Level unit(s) by adjusting the adjustable levelers on bottom of unit(s).
-
Page 7: Hardware List
Assembly Instructions 7/8 IMPORTANT To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 10 Place unit at desired location. Anchor in wall Wall Screw Pre-drilled hole Bracket Drill a 3/8” hole in wall in-line with at top of unit on wall 3/8”... - Page 8 Assembly Instructions 8/8 Wood Screw for Bracket Bracket Figure 11 STEP 11 Note: If assembling multiple Closet Wall Units together, complete Step 11. Attach tops of units together with Brackets and Wood Screws for Brackets into pre-drilled holes. (See Figure 11) Return to and complete Step 10.
- Page 9 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
