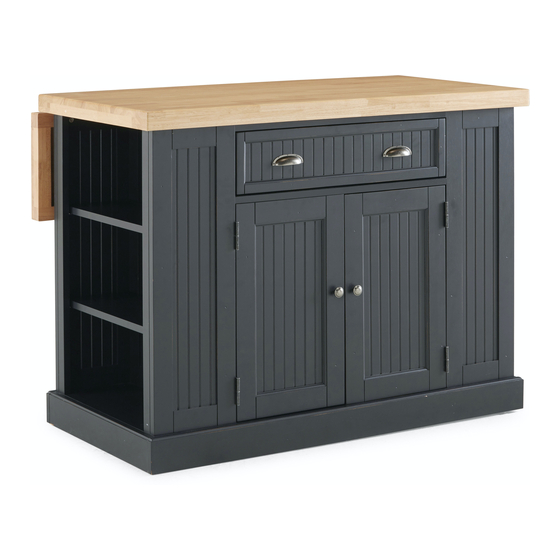

Kitchen island

Advertisement

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

Part List

B.
C.
Side Panel
Side Panel
1 pc
.
1 pc.
I.
Back Rail
2 pcs.
N.
O.
Back Support
Back Support
1 pc.
1 pc.
Q.
Plinth
2 pcs.

Hardware List

Small Hex Wrench
1 pc.
Hex Wrench
1 pc.
Carton 20 05033 0944 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05033 0945
Kitchen Island
D.
E.
Side Panel
Side Panel
1 pc.
1 pc.
J.
K.
Back Upright
Back Panel
1 pc.
2 pcs.
R.
P.
Leg Support
Base
1 pc.
1 pc.
M6x30
Cam Lock Screw
Head Cap Bolt
16 pcs. (+1 extra)
26 pcs. (+1 extra)
M4x16
Wood Screw
for Hinge
Cam Lock
16 pcs. (+2 extra)
27 pcs. (+2 extra)
G.
F.
Side Panel
Side Panel
1 pc.
1 pc.
L.
Shelf
4 pcs.
M.
Shelf
1 pc.
V.
Drawer
1 pc.
M3.5x25
Wood Screw (long)
8 pcs. (+1 extra)
M3.5x16
Wood Screw (short)
6 pcs. (+1 extra)
888-680-7460, 877-831-0319
H1.
Front Rail
1 pc.
H2.
Front Rail
1 pc.
S.
Plinth
2 pcs.
T.
Door
1 pc.
Refer to later page(s) of these
instructions for drawer assembly.
Pull Handle
Adjustable Pin
2 pcs.
20 pcs. (+1 extra)
M4x25
Knob
Machine Screw
2 pcs.
6 pcs.
U.
Door
1 pc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20 05033 0945 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles 20 05033 0945

  • Page 1 6 pcs. (+1 extra) 2 pcs. 16 pcs. (+2 extra) 27 pcs. (+2 extra) 6 pcs. Carton 20 05033 0944 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/6 Cam Lock STEP 3 Attach Side Panel (E) to unit with Head Cap Bolts. Attach Back Rail (I) to unit with Cam Lock. (See Figure 3) Attach Back Upright (J) to unit. Slide Back Panels (K) into position. Head Cap Bolt Attach Back Rail (I) to unit with Cam Lock.
  • Page 4 Assembly Instructions 4/6 Cam Lock STEP 5 Attach Side Panel (D) to unit with Head Cap Bolts. Attache Front Rails (H1) and (H2) to unit with Cam Locks. Attach Side Panel (F) to unit with Head Cap Bolts and Cam Locks. Head Cap Bolt STEP 6 Turn unit to its’...
  • Page 5 Assembly Instructions 5/6 Drawer (V) Wood Screw (long) Bottom STEP 7 Attach Drawer Front (V1) and Drawer Back (V2) to Drawer Side (V3) with Wood Screws (long). Attach Drawer Side (V4) to unit with Wood Screws (long). Roller at back STET 8 Wood Screw (short) Slide Drawer Bottom (V5) into the grooves...
  • Page 6 Assembly Instructions 6/6 Cam Lock Screw Wood Screws for Hinge STEP 10 Place Tops (A1) and (A2) upside down on a soft cloth. Attach Top (A2) to Top (A1) with Wood Screws for Hinge. Insert Cam Lock Screws into pre-drilled holes of top unit, then tighten.
  • Page 7 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
