IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

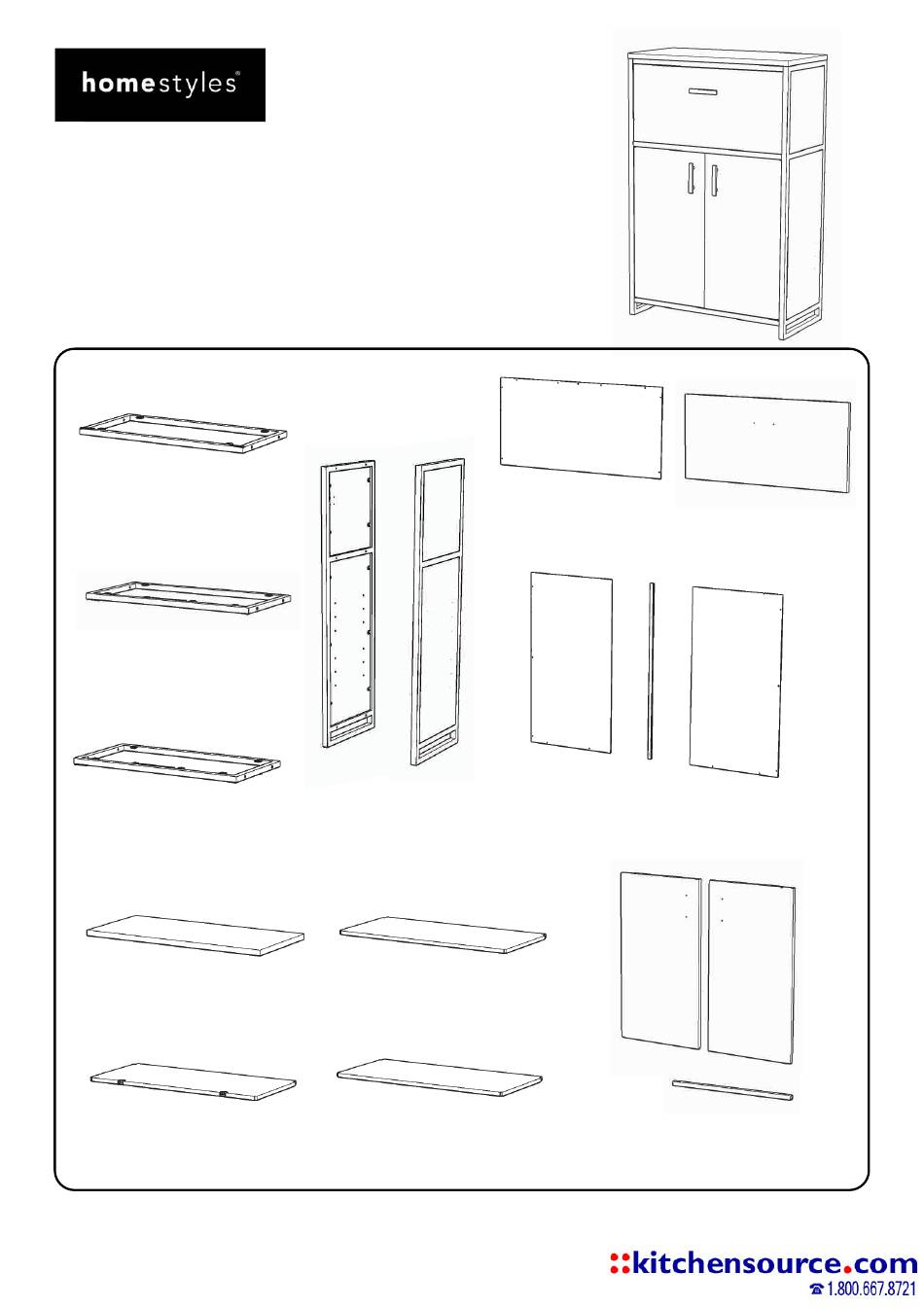

Part List
A.
Frame
1 pc.
B.
Frame
1 pc.
C.
Frame
1 pc.
F.
Top
1 pc.
G.
Shelf
1 pc.
Tool(s) required for assembly:
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05053 0099
Bar
D.
E.
Side Panel
Side Panel
1 pc.
1 pc.
H.
Bottom
1 pc.
I.
Shelf
2 pcs.
Phillips screwdriver,
Level
K.
Back Panel
1 pc.
L.
M.
Back Panel
Strip
1 pc.
1 pc.
P.
Door
1 pc.
888-680-7460, 877-831-0319
O.
Door
1 pc.
N.
Back Panel
1 pc.
Q.
Door
1 pc.
J.
Support
2 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bar 20 05053 0099 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Styles Bar 20 05053 0099

Summary of Contents for Home Styles Bar 20 05053 0099

  • Page 1 1 pc. 1 pc. 1 pc. Bottom Door Door 1 pc. 1 pc. 1 pc. 1 pc. Shelf Shelf Support 1 pc. 2 pcs. 2 pcs. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...

  • Page 2: Hardware List

    20 05053 0099 IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
  • Page 3 Assembly Instructions 3/9 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 4 Assembly Instructions 4/9 Flush STEP 3 Align Frames (A), (B) and (C) flush with Side Panels (D) and (E). (See Figure 3) Tighten all bolts used in Step 2. Flush Flush Figure 3 Figure 4 Flat Washer Spring Washer Head Cap Bolt STEP 4 Attach Top (F), Shelf (G) and Bottom (H) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway.
  • Page 5 Assembly Instructions 5/9 Wood Screw (short) Figure 5 STEP 5 Attach Back Panels (K) and (L) to unit with Wood Screws (short) into pre-drilled holes, tightening screws only halfway. (See Figure 5) Wood Screw (short) Figure 6 STEP 6 Attach Strip (M) to Back Panel (L).
  • Page 6 Assembly Instructions 6/9 Hinge A, B Screw Hinge A Wood Screw (long) STEP 7 Attach Hinges A to Door (O) with Hinge A, B Screws. (See Figure 7) Attach Supports (J) to Shelves (I) with Wood Screws (long) into pre-drilled holes. (See Figure 8) Hinge Screw A, B Figure 8 Figure 7...
  • Page 7 Assembly Instructions 7/9 Hinge A, B Screw Hinge B Hinge A, B Screw Figure 11 Machine Screw Handle Figure 12 STEP 9 Attach Hinges B to Door (O) and side panels with Hinge A, B Screws into pre-drilled holes. (See Figures 11 and 12) Attach Handle to Door (O) with Machine Screws.
  • Page 8 Assembly Instructions 8/9 STEP 11 Attach Hinges C to side panels with Hinge C Screws into pre-drilled holes. (See Figure 14) Attach Doors (P) and (Q) to unit with Hinge C Screws into pre-drilled holes. (See Figure 15) Attach Handles to Doors (P) and (Q) with Machine Screws.
  • Page 9 Assembly Instructions 9/9 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 12 Pre-drilled hole Anchor in wall Bracket Wall Screw at top of unit on wall Place unit at desired location.
  • Page 10 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
