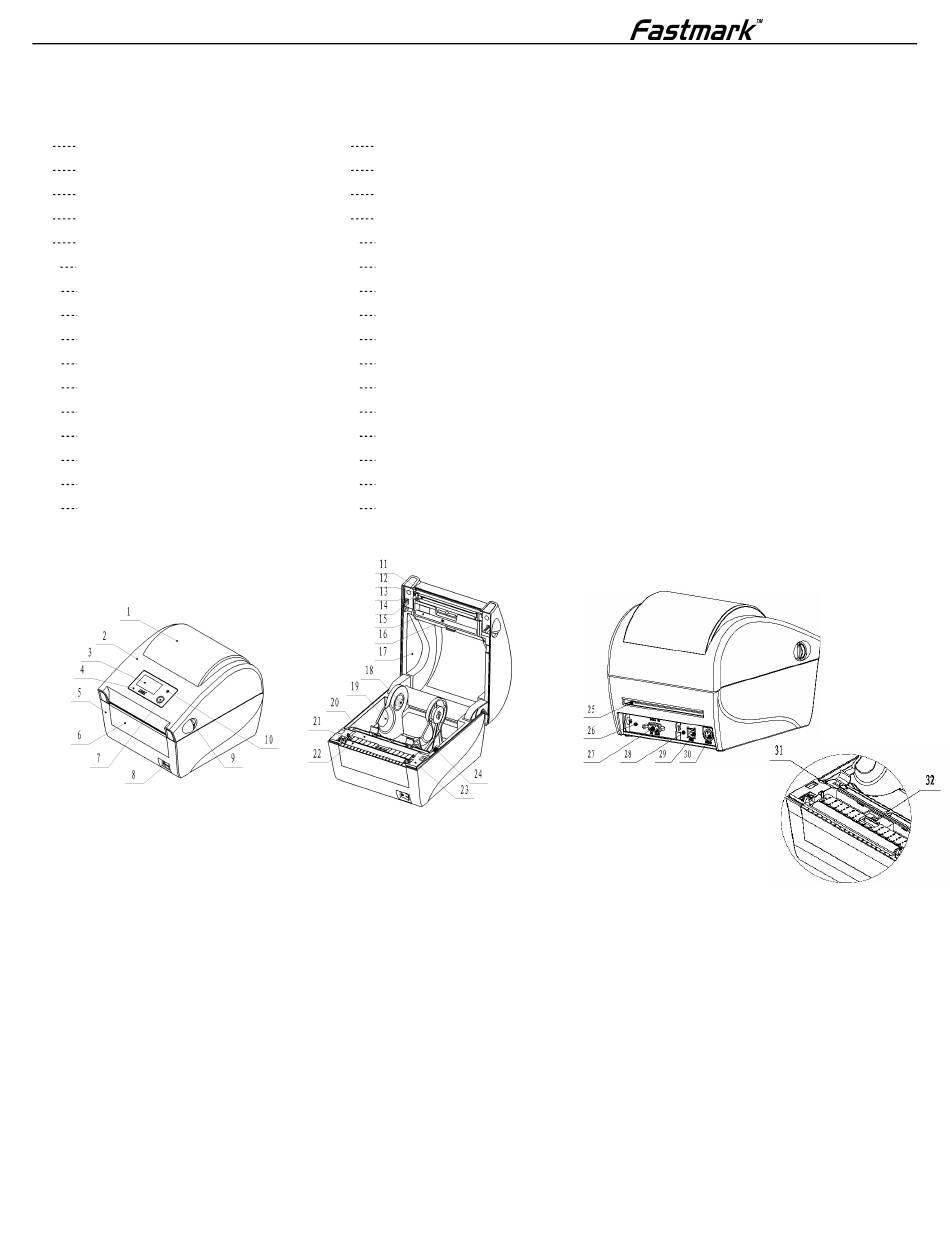

1.3 Appearance and module

1 window
3 LCD (optional)
5 bottom cover
7 button
9 cover open lever
11 tear-off bar
13 print head
15 guard board for print head
17 upper path
19 paper roll holder
21 platen roller shaft sleeve
23 lower path
25 entrance for external paper roll
27 serial interface
29 USB interface
31 micro switch

1.4 Introduction of main modules

1)
Button and LED (7, 10): indicate the printer status and complete printing function;
Power switch (8): press "O" to power off and press "－" to power on;
2)
3)
Transmissive sensor (16): used for calibration, detection and location of media;
4)
Paper roll holder baffle (18), paper roll holder (19): support paper roll holder and stop paper roll holder
from shaking;
5)
Print head micro switch (31): used to detect whether the print head is uplifted or pressed down;
6)
Reflective sensor (32): used for the calibration, detection and location of media with black marks.
2 top cover
4 Logo plate
6 guard board for bottom cover
8 power switch
10 LED
12 print head fixing plate
14 latch
16 transmissive sensor
18 paper roll holder baffle
20 sensor cover board
22 platen roller
24 paper roll holder thumb wheel
26 9-pin serial interface baffle
28 interface board
30 24V power interface
32 reflective sensor
