Summary of Contents for Gold Medal 5330 Series

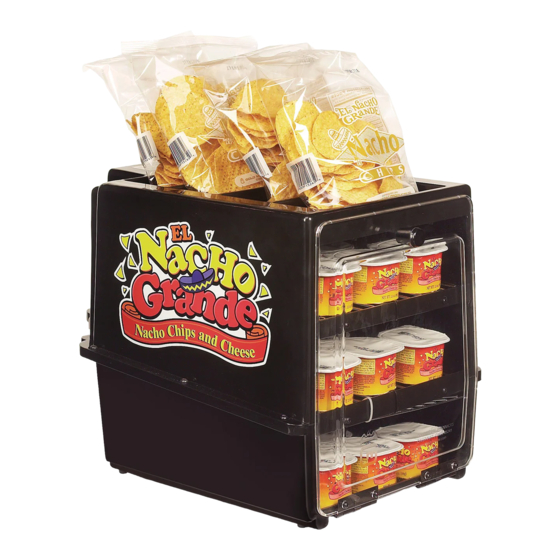

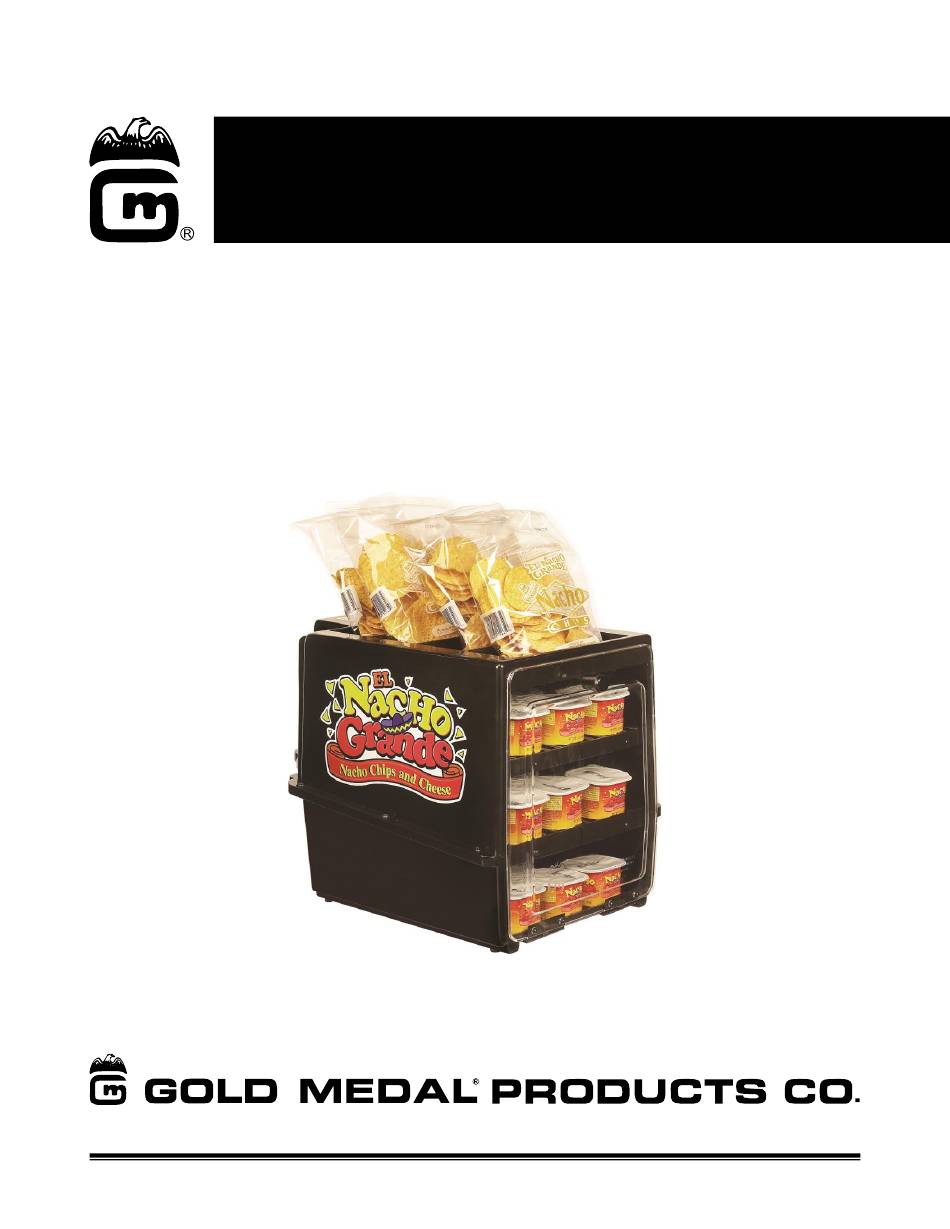

- Page 1 Instruction Manual Cheese Cup Warmer Model No. 5330 Series 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 36063...
-
Page 2: Table Of Contents
Cheese Cup Warmer Model No. 5330 Series Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Model Description ..............................5 Items Included with the Unit ..........................5 Setup ................................... 6 Electrical Requirements ............................. -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Unit is a Portion Pak Cheese Cup warmer. Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
Cheese Cup Warmer Model No. 5330 Series INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 6: Setup
Cheese Cup Warmer Model No. 5330 Series Setup 1. Remove all packaging and tape prior to operation. 2. Place unit on a sturdy, level base for use. 3. Install alternate graphics, if desired. 4. Plastic ties hold the interior racks in place for shipping. Carefully cut the tie for each shelf and allow the bottom shelf to fold down into place on the bottom of the cabinet. -
Page 7: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Operating Instructions
Cheese Cup Warmer Model No. 5330 Series OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH Supplies power to the heating element—three position power switch: I = Low Setting O = OFF II = High Setting Low Setting High Setting Center Position is OFF... -
Page 9: Care And Cleaning
USE ABRASIVES on this unit. Ammonia cleaners will damage plastic panels. If needed, only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No. 2588). Note: Periodically, use a vacuum cleaner and/or a SLIGHTLY damp cloth to clean the air intake as needed. -
Page 10: The Following Sections Are For Qualified Service Personnel Only
Cheese Cup Warmer Model No. 5330 Series THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. -
Page 11: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 12: Cabinet Parts
Cheese Cup Warmer Model No. 5330 Series Cabinet Parts 6, 7 Part Number Item Part Description 5330 5330EX DECAL - NACHO CHEESE CUP 37001 37001 MEISTER BAKE DECAL 67811 67811 RACK HOLDER 36077 36077 HINGE WITH SPRING 36069 36069 CLEAR DOOR... -
Page 13: Electrical Box - Internal View
8*, 9 *CAUTION: If supply cord is damaged, it must be replaced Model 5330 (120V) image shown for general by Gold Medal Products Co., its service agent, or similarly parts reference only. qualified persons in order to avoid a hazard. -
Page 14: Wiring Diagram
Cheese Cup Warmer Model No. 5330 Series Wiring Diagram Model No. 5330 gmpopcorn.com Page 14... - Page 15 Cheese Cup Warmer Model No. 5330 Series Model No. 5330EX gmpopcorn.com Page 15...
-
Page 16: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
